Description
30GPM rated, Max. 40GPM

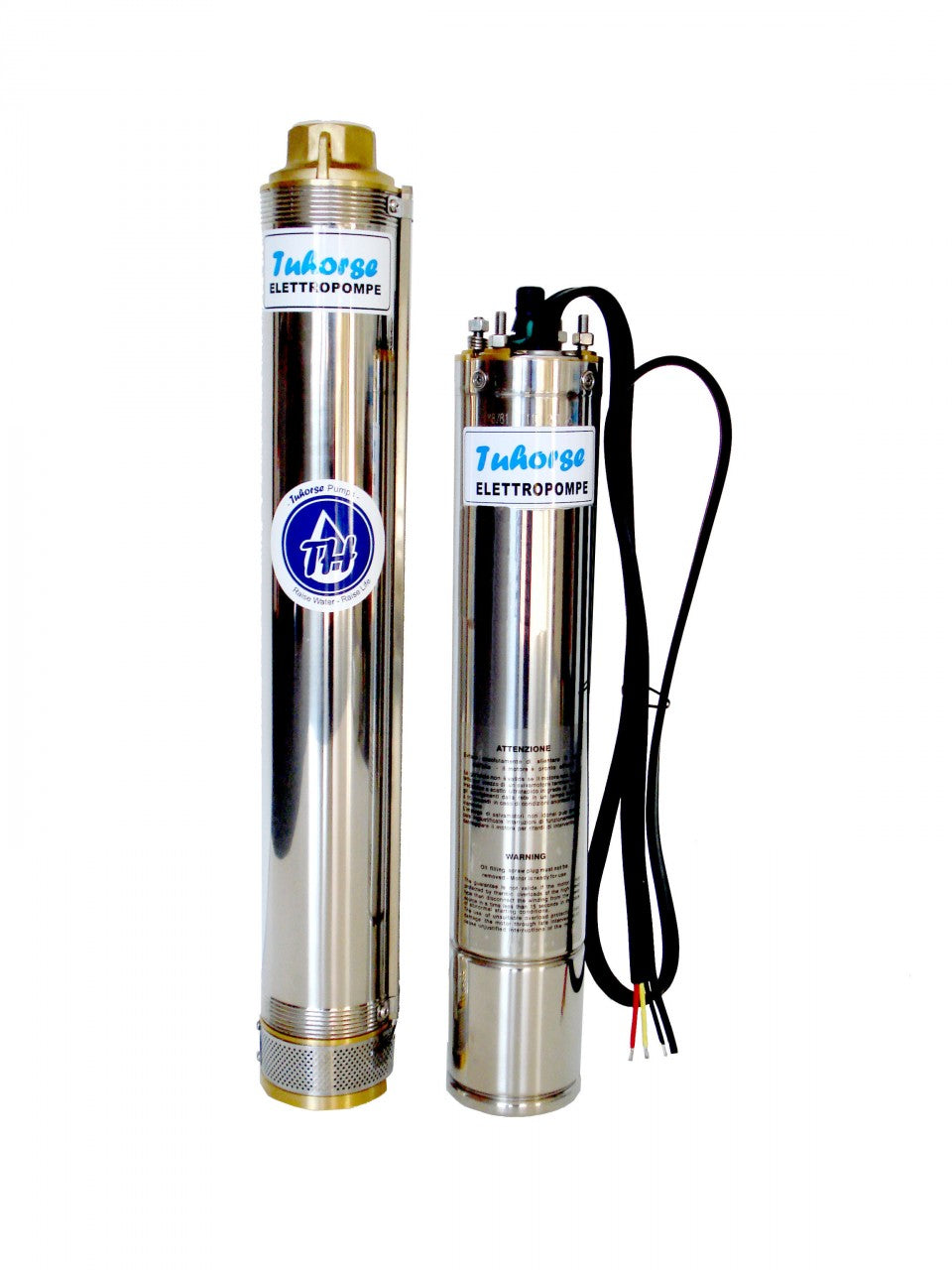

Pump-end and motor. Complete Instructions.
- HP: 3HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 9.4 A
- Motor RPM: 3450 RPM
- Stages: 11
- Maximum Head(cut off): 360 ft
- Maximum Flow(0-100feet): 40 GPM

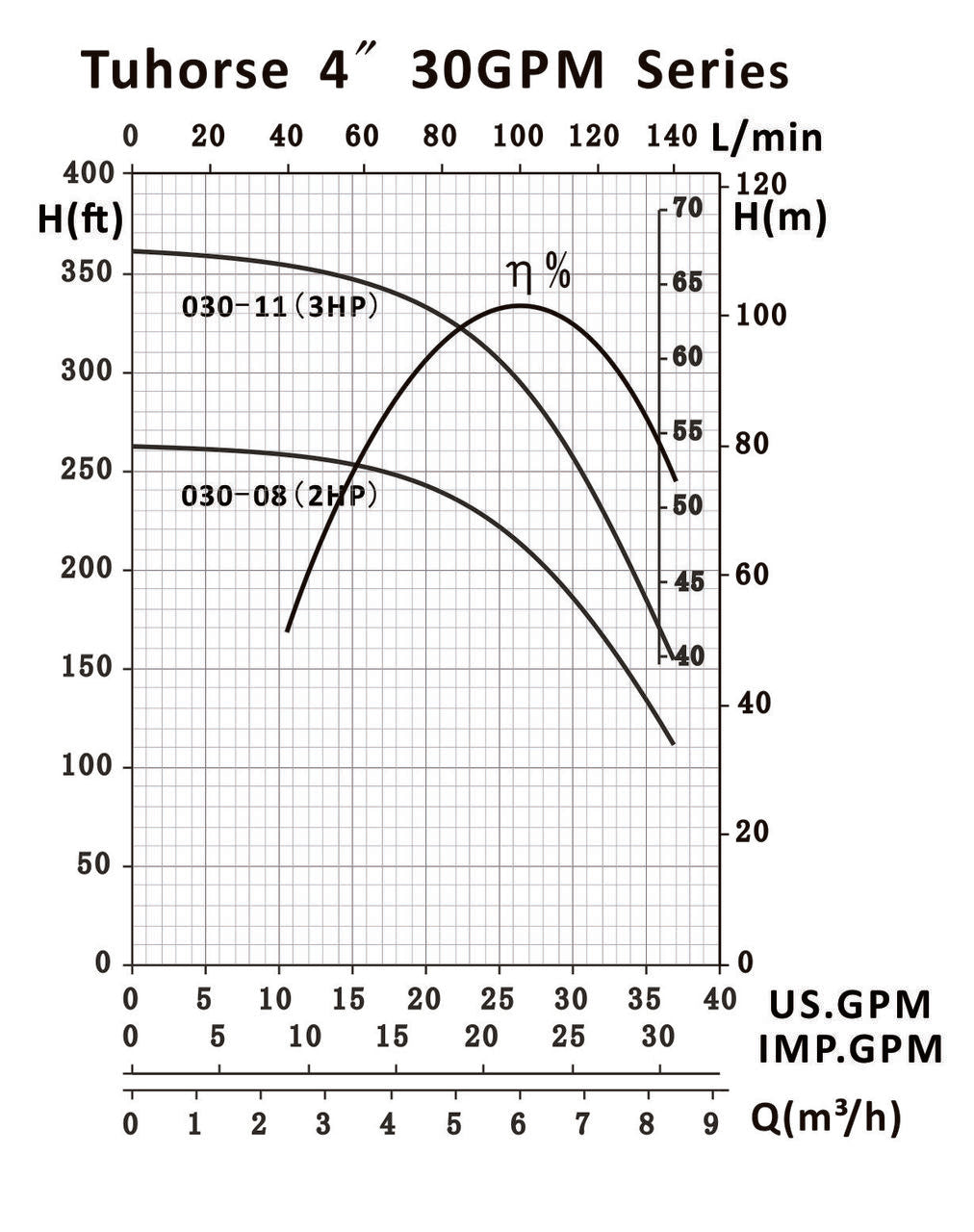

- Free Flow Rates: 35GPM @ 180ft; 30GPM @ 250ft; 25GPM @ 300ft
- Suction Port: Center Suction
- Discharge Port: 1.5 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel, Grade 304
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel, Grade 304

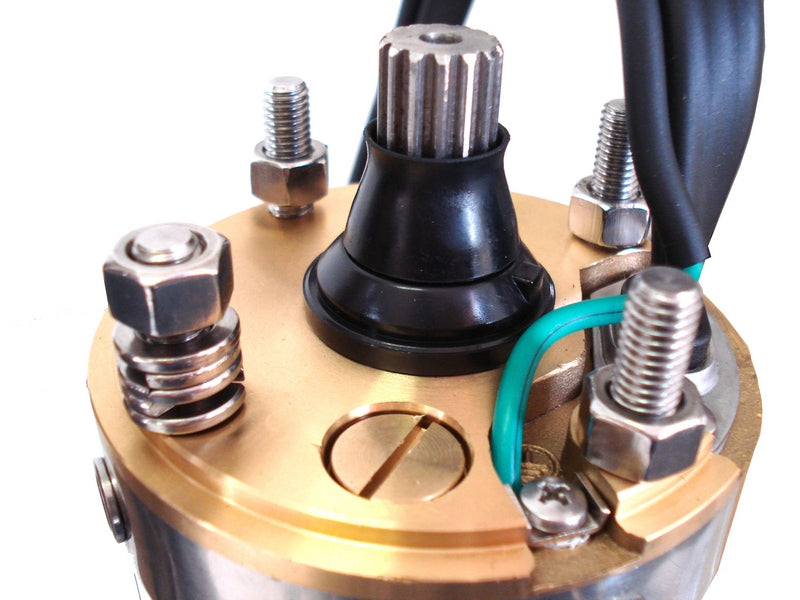

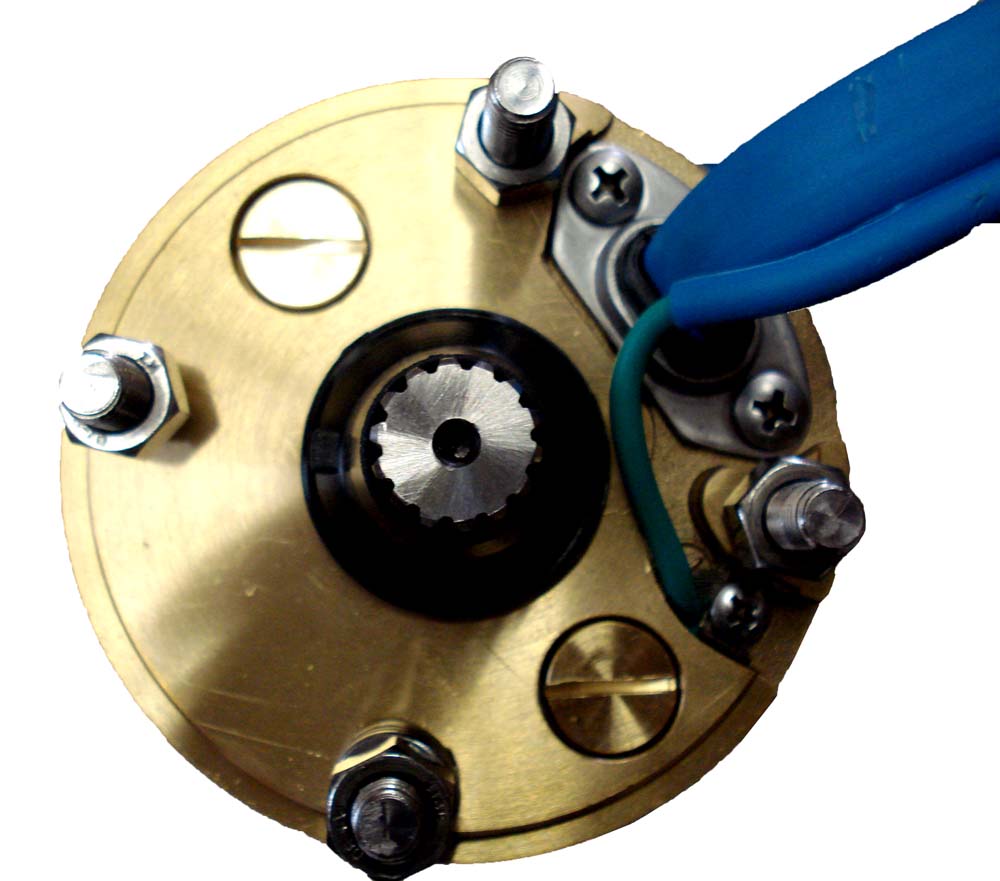

- Motor Top: Brass
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Panel: Optional
- Weight: 50.60 lbs
- Dimensions/Length: 43"
*Control panel sold separately
Note: We recommend you to use our TDH calculator in selecting a pump for your application
Warranty: 1 Year
