3HP TH4-023-13 230V 1-Phase. Complete pump-end, motor, control box pro set

SKU: TH402313M230
Regular price $649.00 USD
Regular price $1,028.00 USD Sale price $649.00 USD
Out of stock

Description

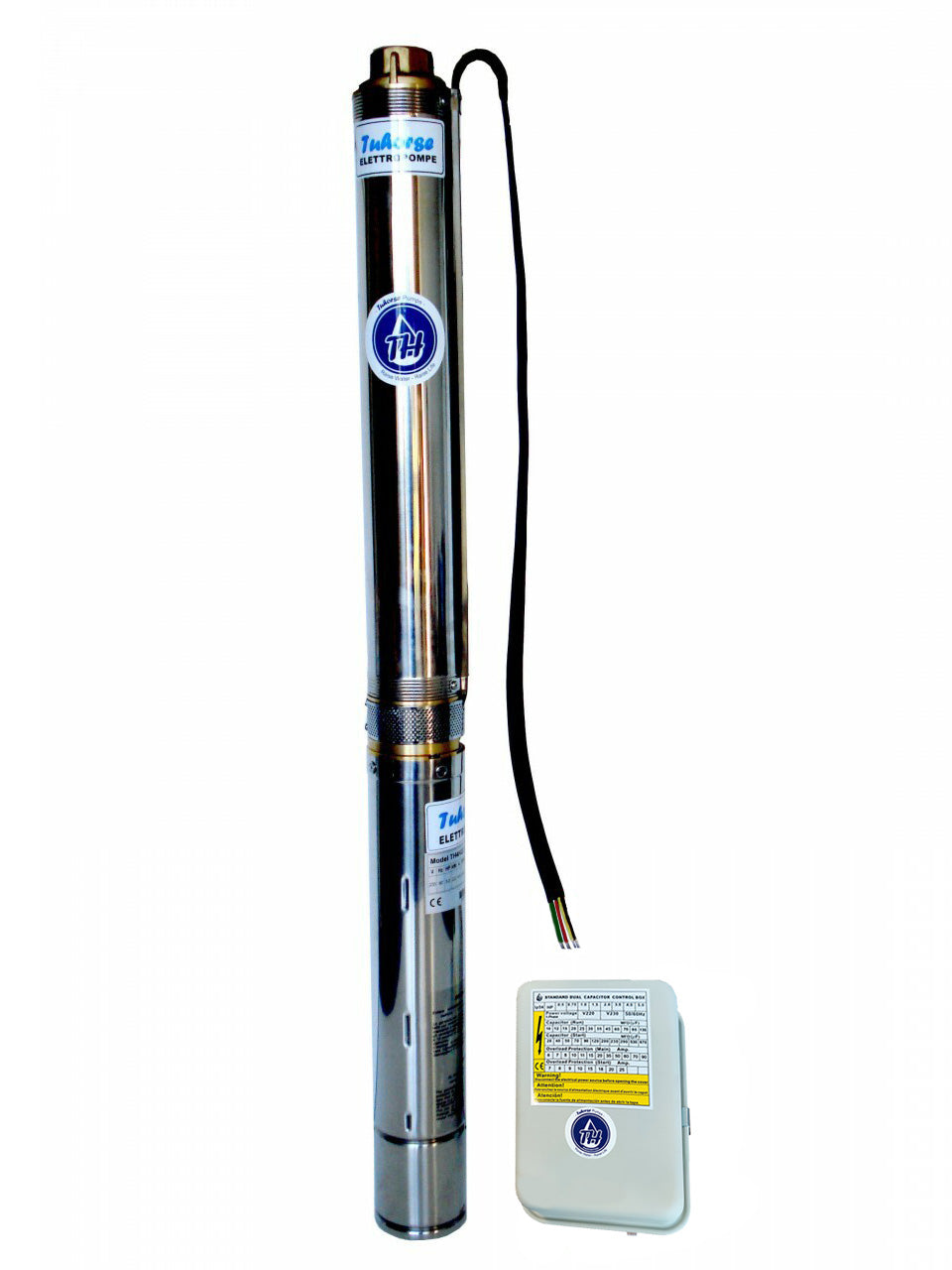

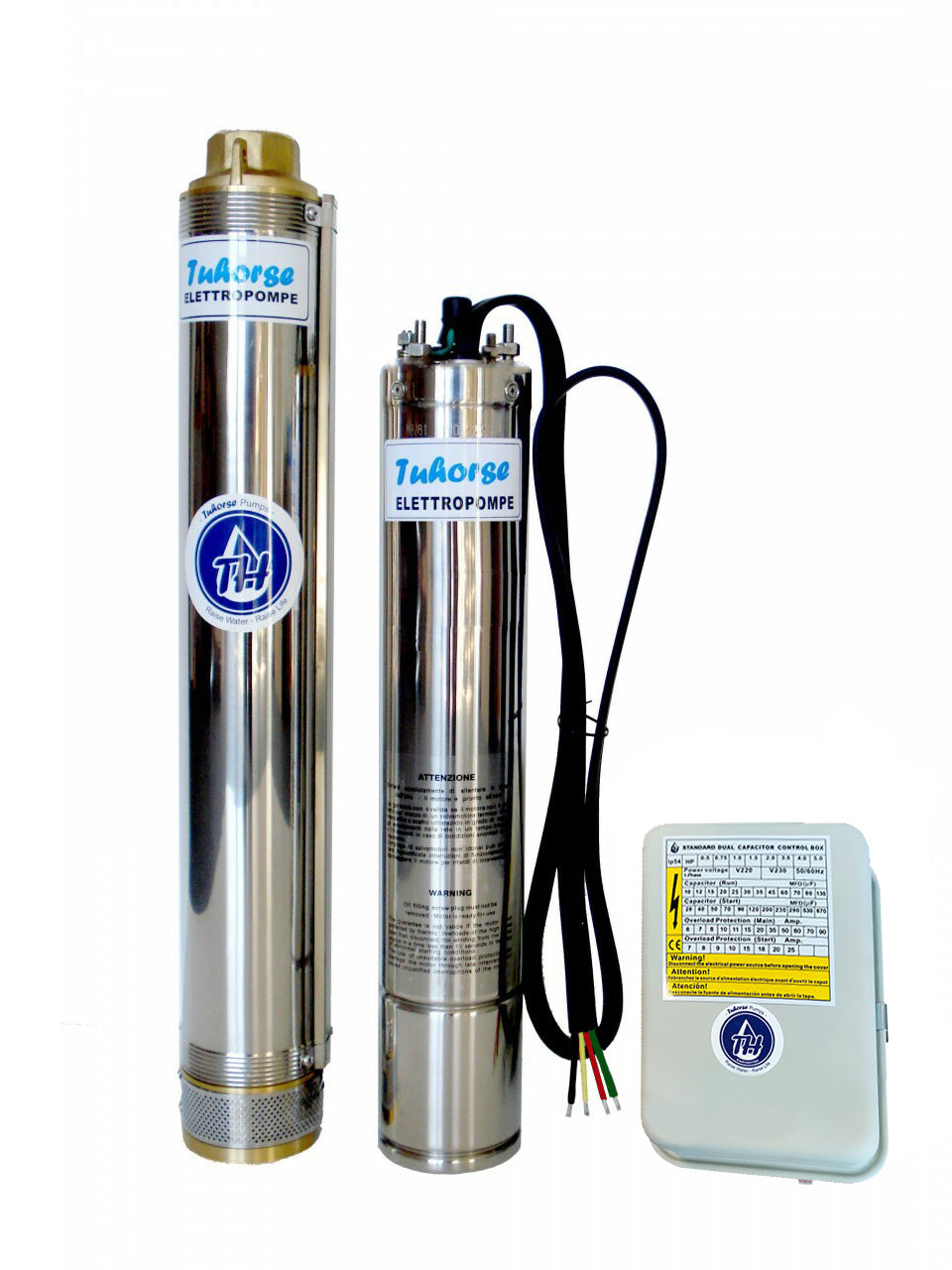

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.



  • HP: 3HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 13.6 A
  • Motor RPM: 3450 RPM
  • Stages: 13 (old product sold before September 2017 has 12 stages)
  • Rated Flow: 23 GPM
  • Maximum Flow: 30 GPM
  • Maximum Head: 460 ft.

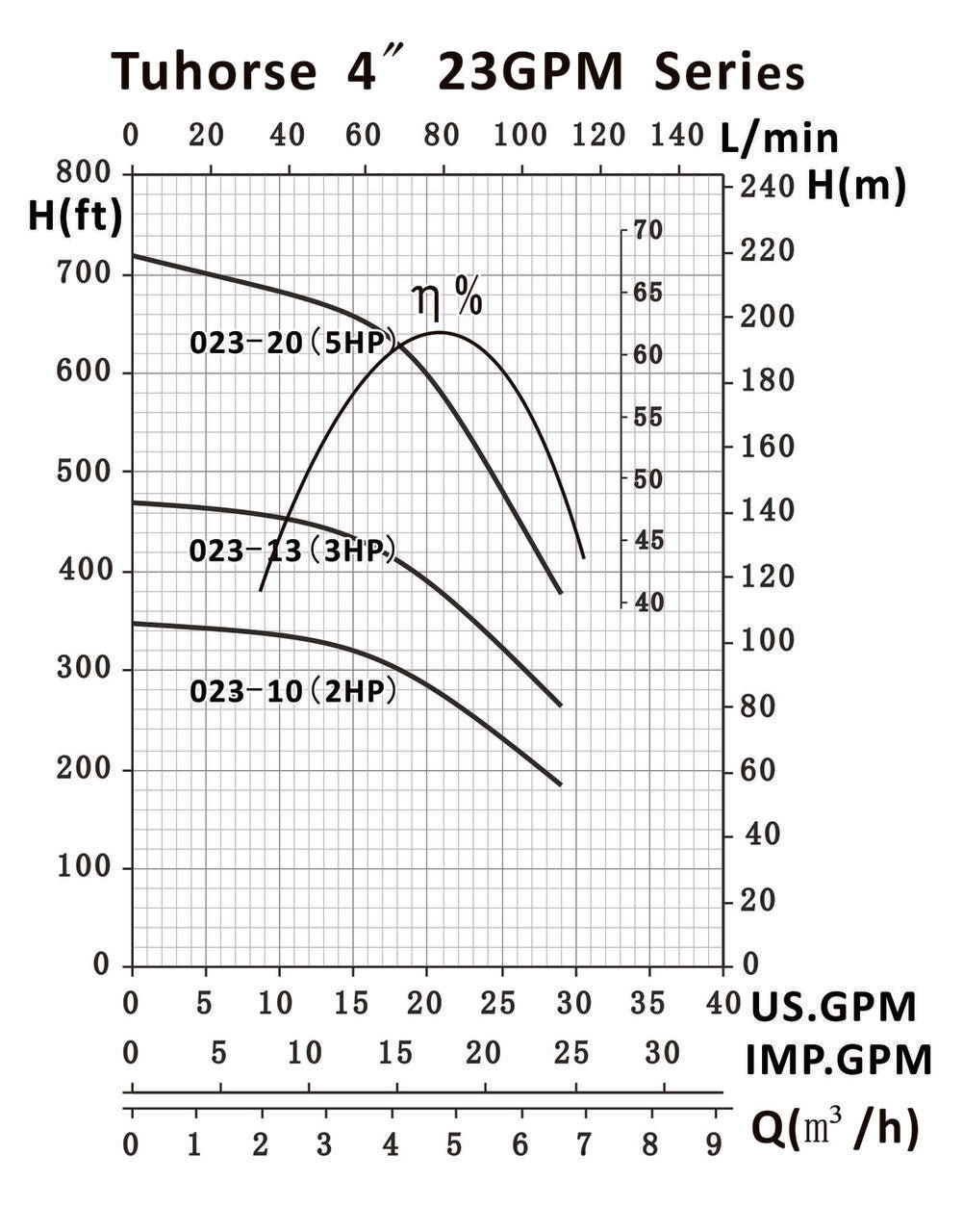

  • Typical Flow: 29GPM @ 230ft; 27GPM @ 280ft; 23GPM @ 320ft; 16GPM @ 390ft; 13GPM @ 405ft.
  • Suction Port: Center Suction
  • Discharge Port: 1.5 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour

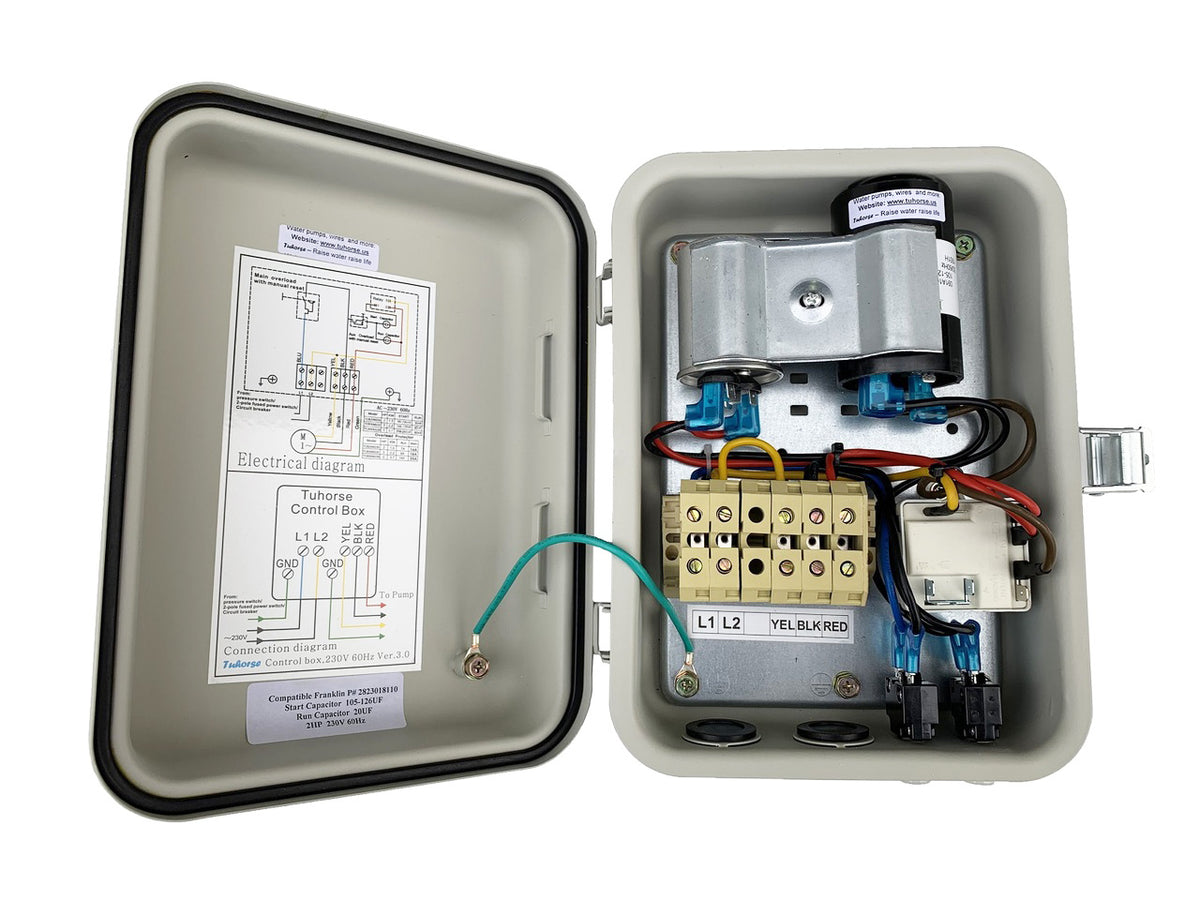

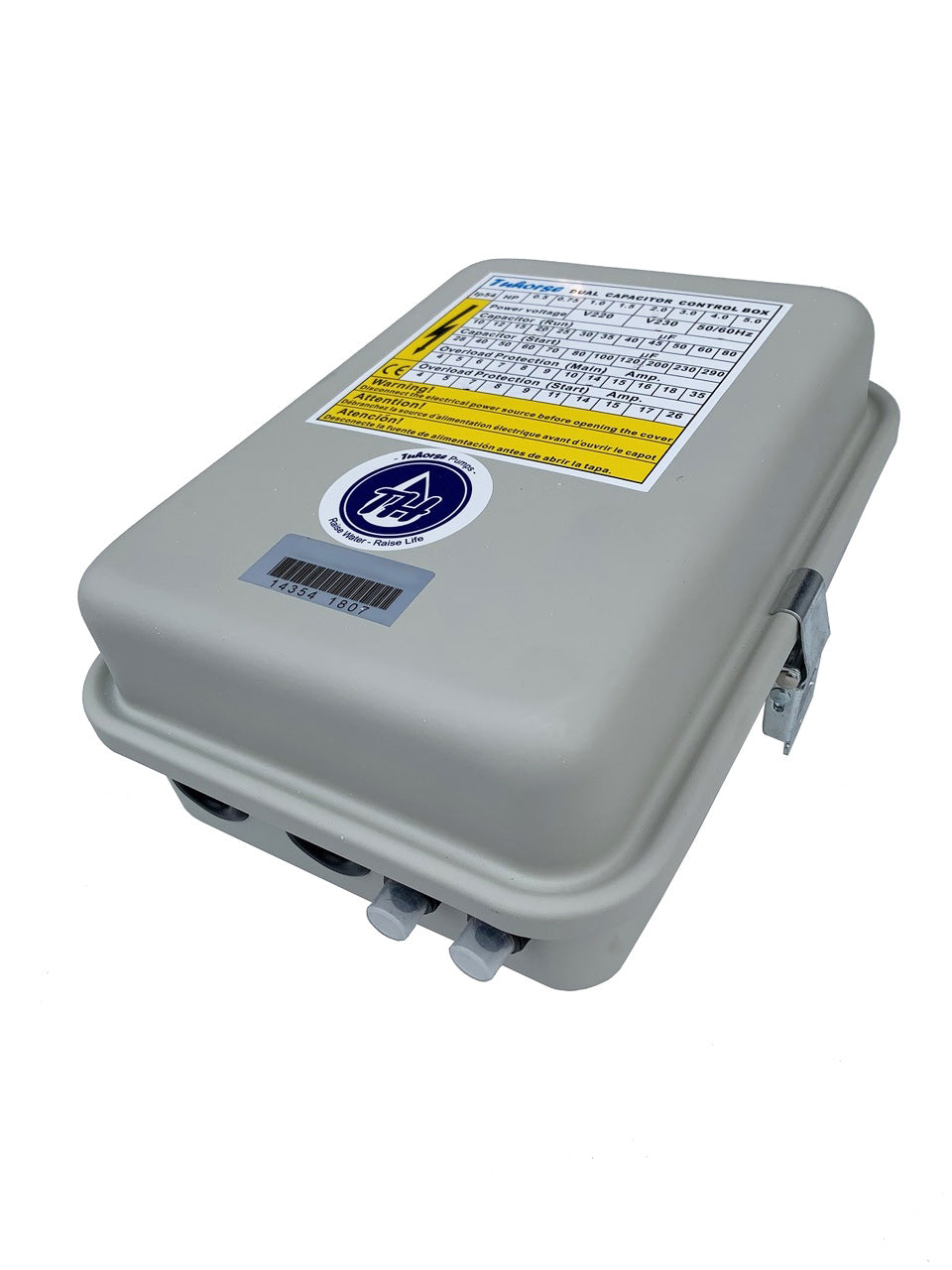

  • Control Box: motor start box included
  • Weight: 50.60 lbs.
  • Dimensions/Length: 42.5"

Warranty: 1 Year
