Description

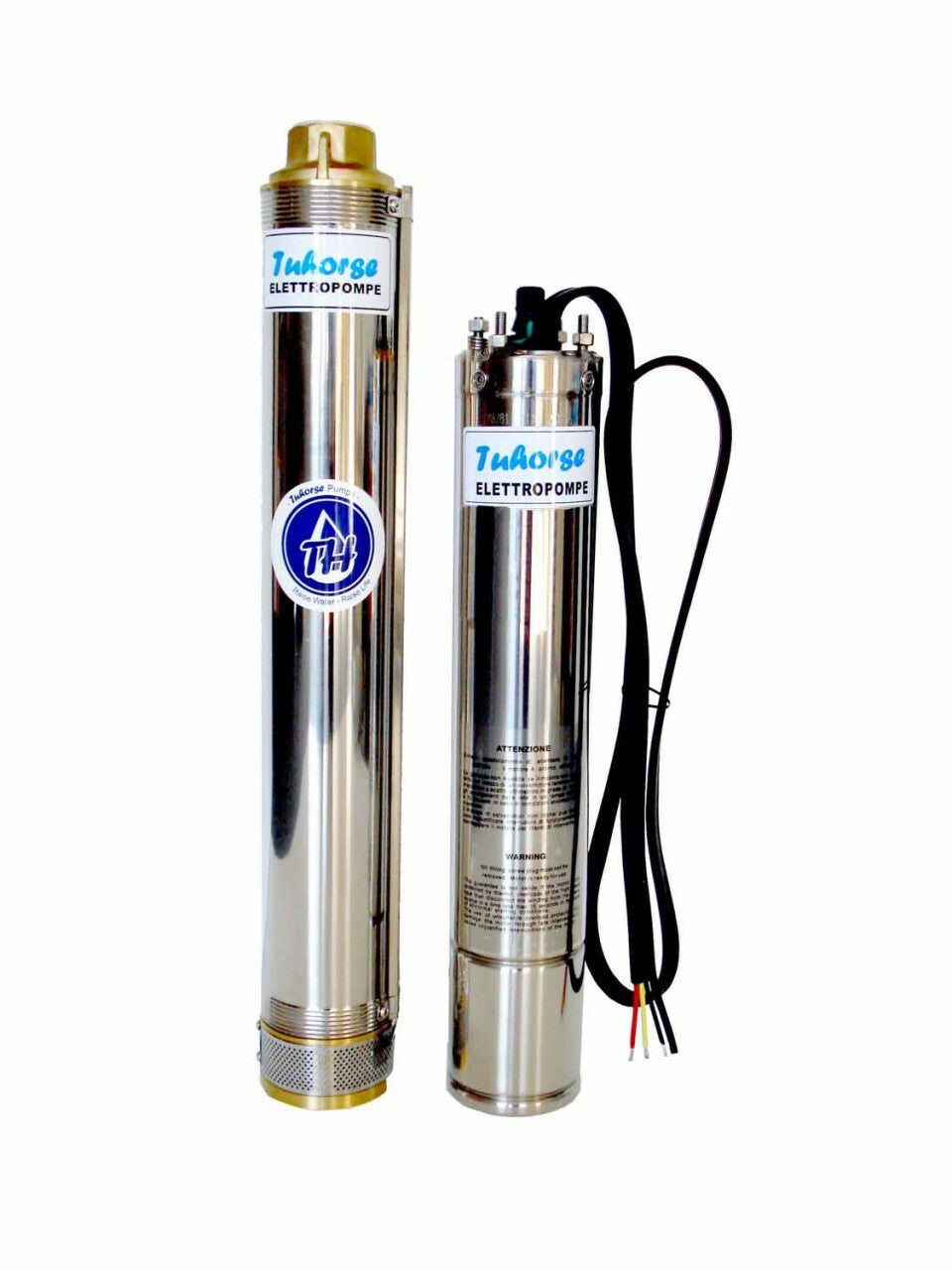

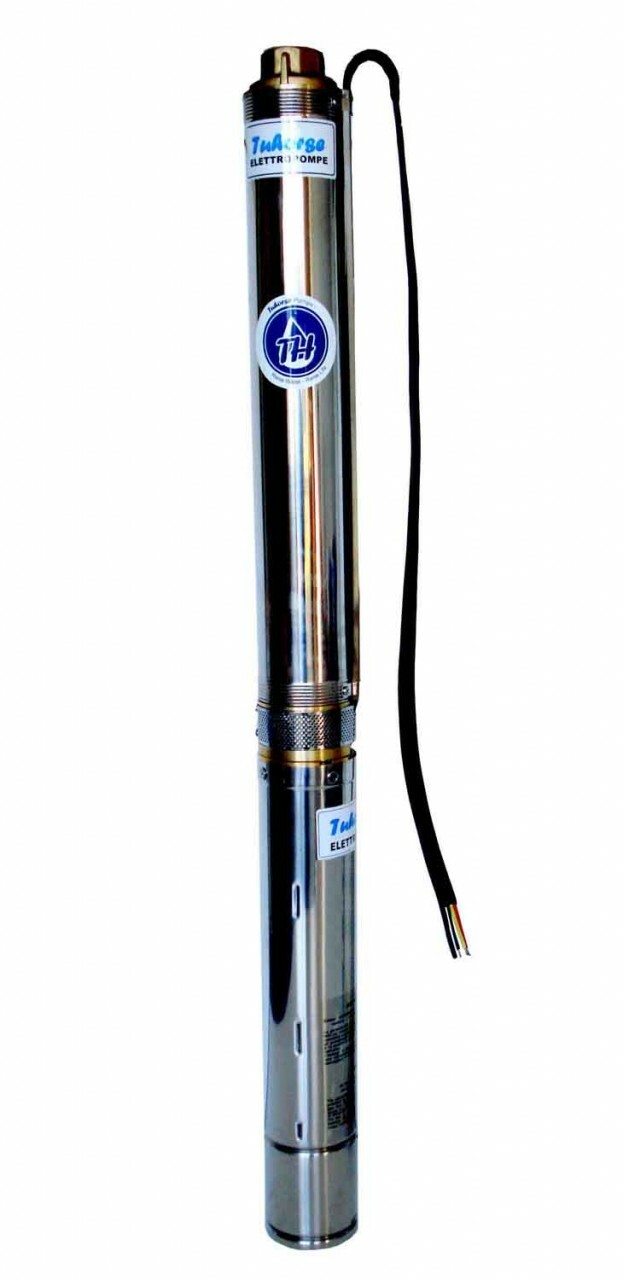

Complete pump end and motor set. Control box (control panel) is not required, but a three phase power switch with overload protection is required. Complete Instructions.
- HP: 3HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 9.4 A
- Motor RPM: 3450 RPM
- Stages: 17
- Maximum Flow: 22 GPM
- Maximum Head: 613 ft

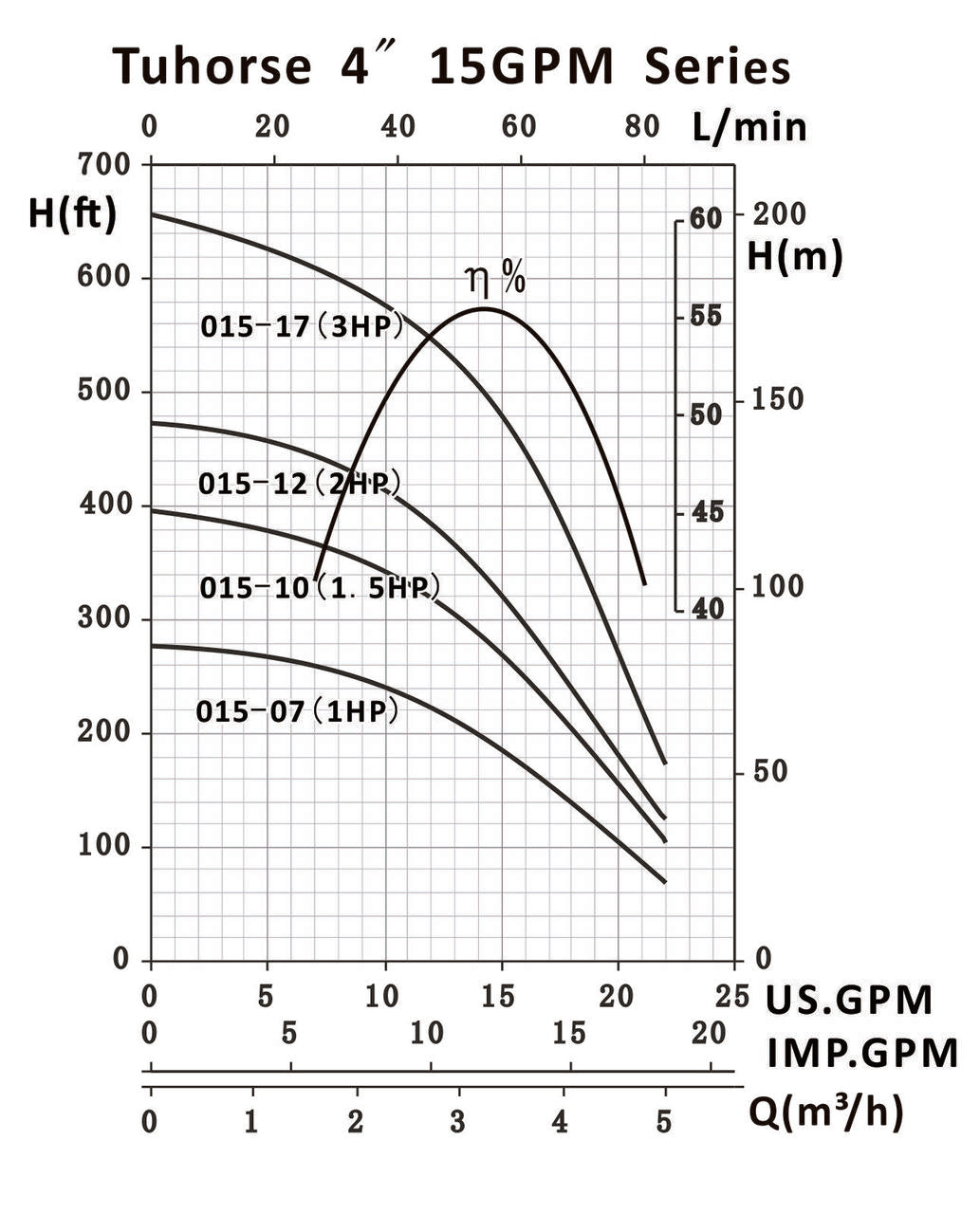

- Typical Flow: 21GPM @ 184ft; 14GPM @ 442ft; 7GPM @ 590ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: Control Box (Control Panel) Optional
- Weight: 46.2 lbs
- Dimensions/Length: 46.5"
*Control panel sold separately
Warranty: 1 Year
