Description
15 GPM rated, 25 GPM Max. Medium-High pressure in class, recommend to be used for TDH 300 feet up to 520 feet.

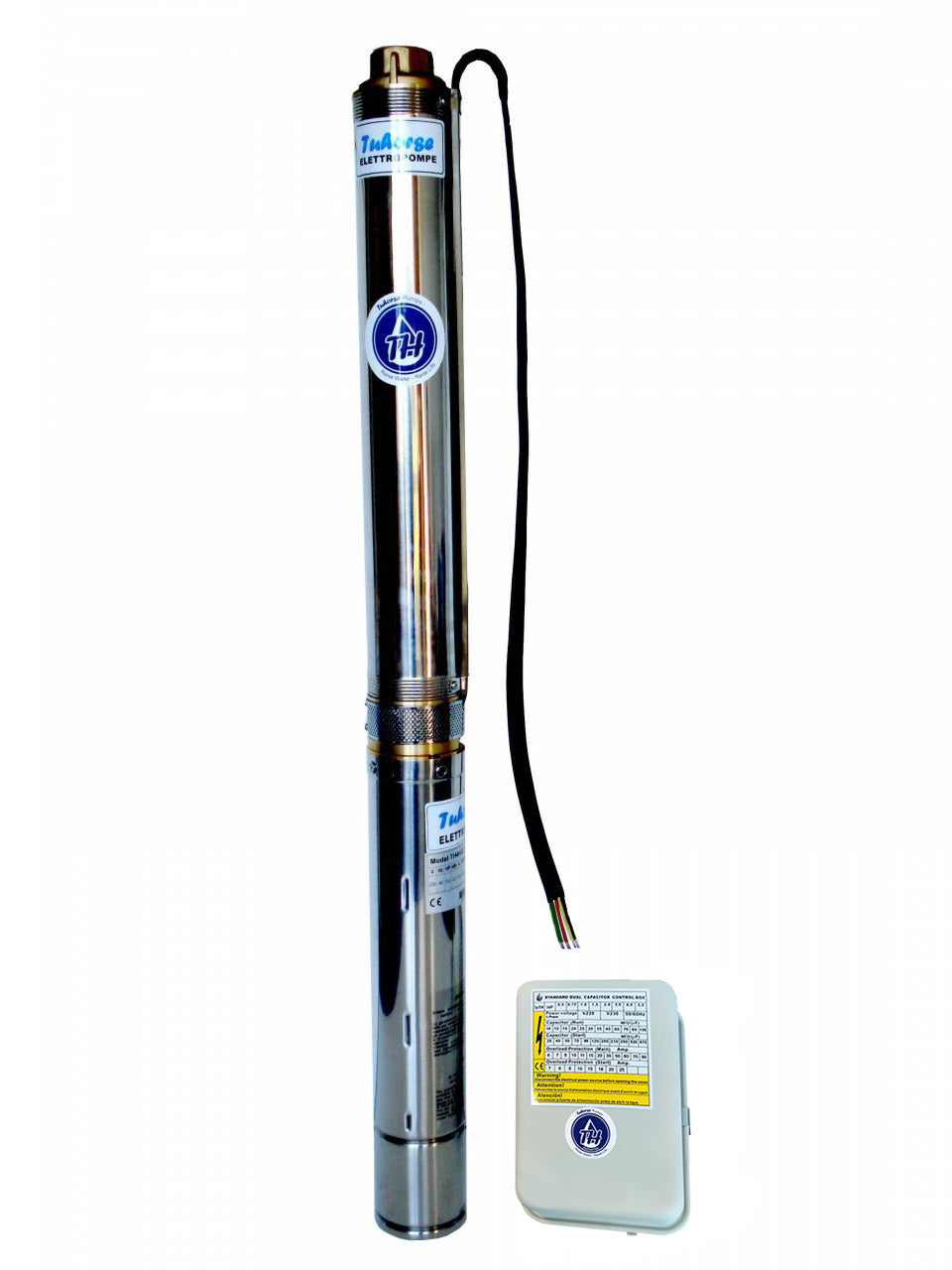

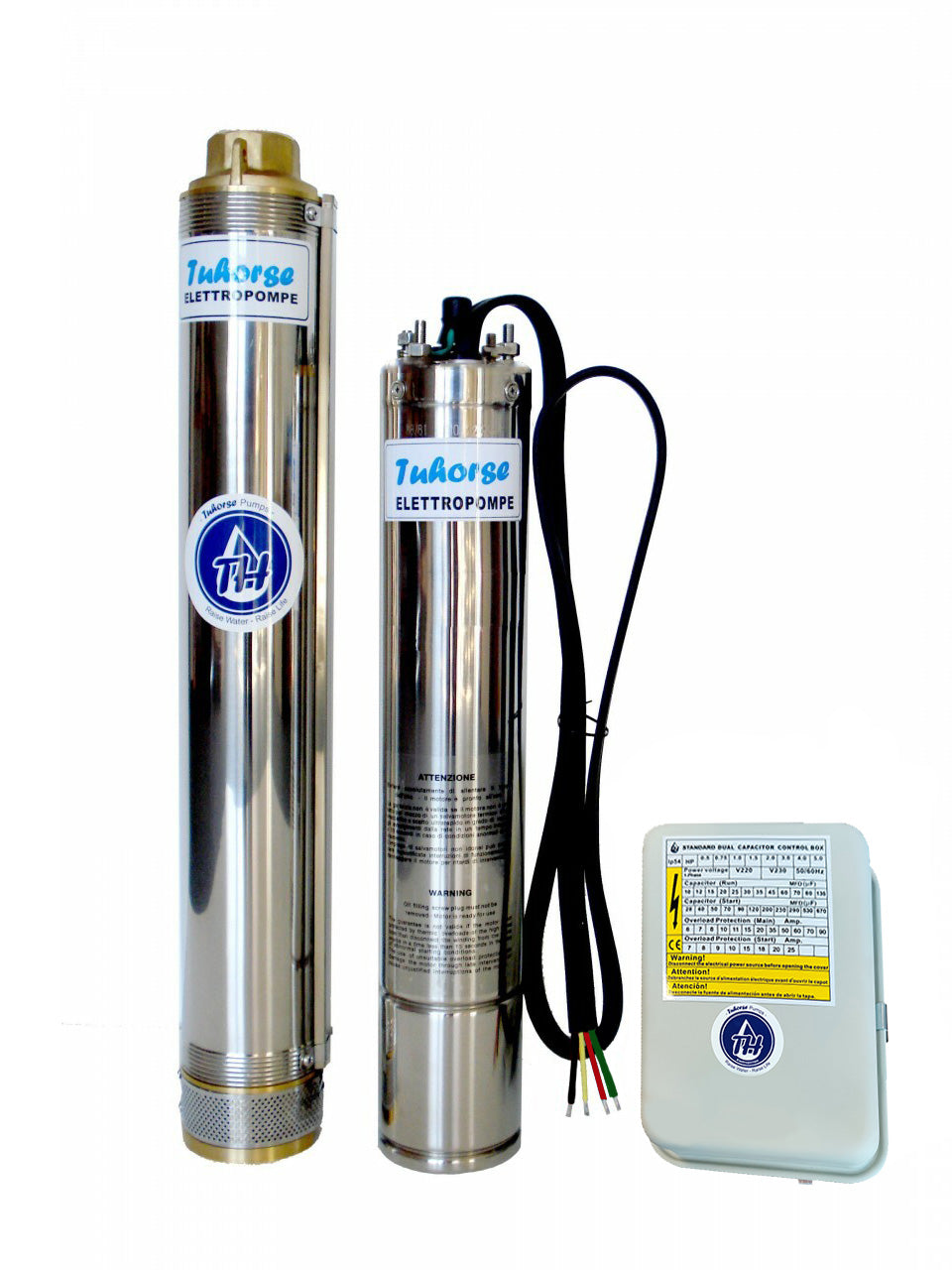

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 3HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 13.6 A
- Motor RPM: 3450 RPM
- Stages: 17
- Maximum Flow: 25 GPM
- Maximum Head: 613 ft.

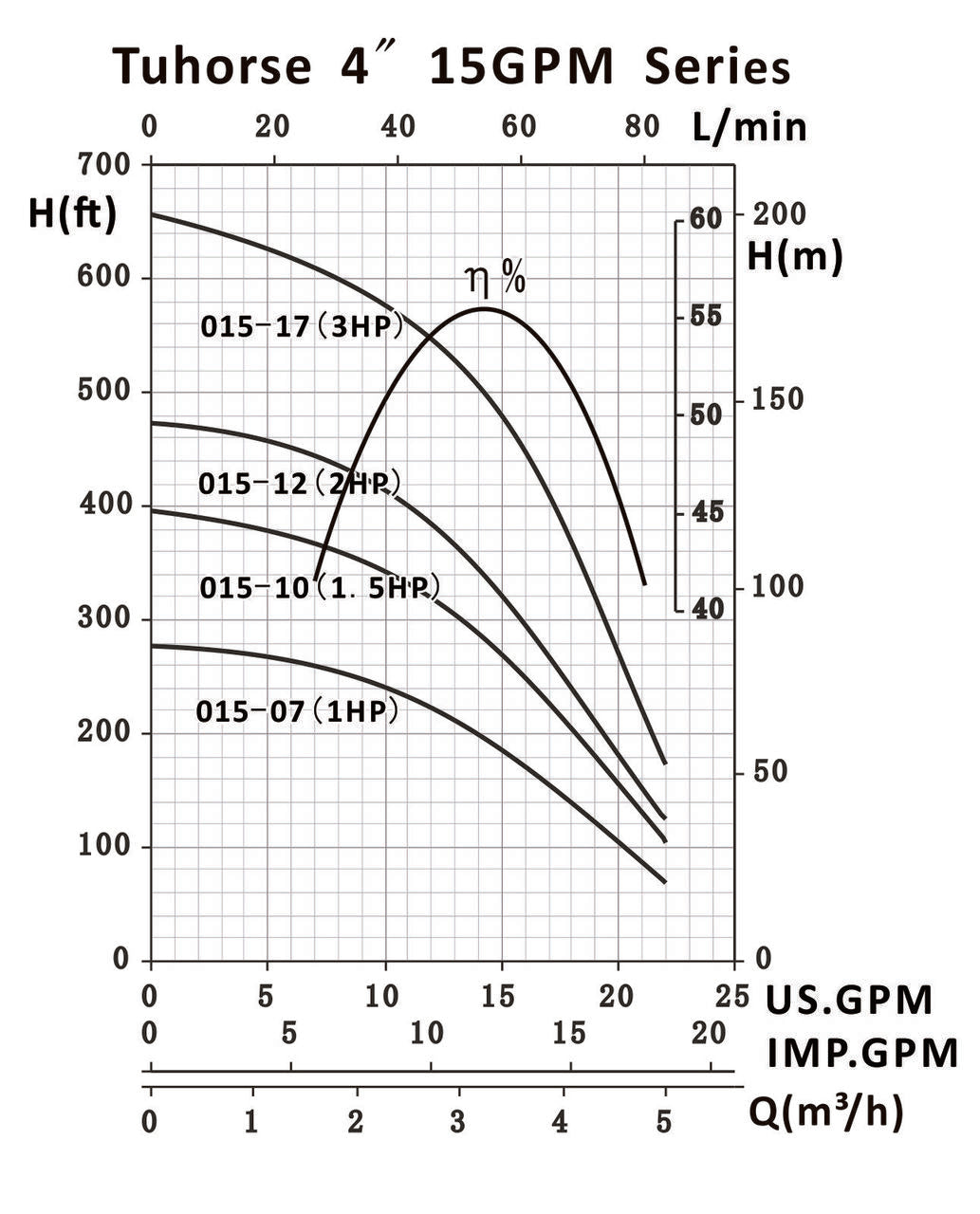

- Typical Flow: 21GPM @ 184ft; 14GPM @ 442ft; 7GPM @ 590ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour

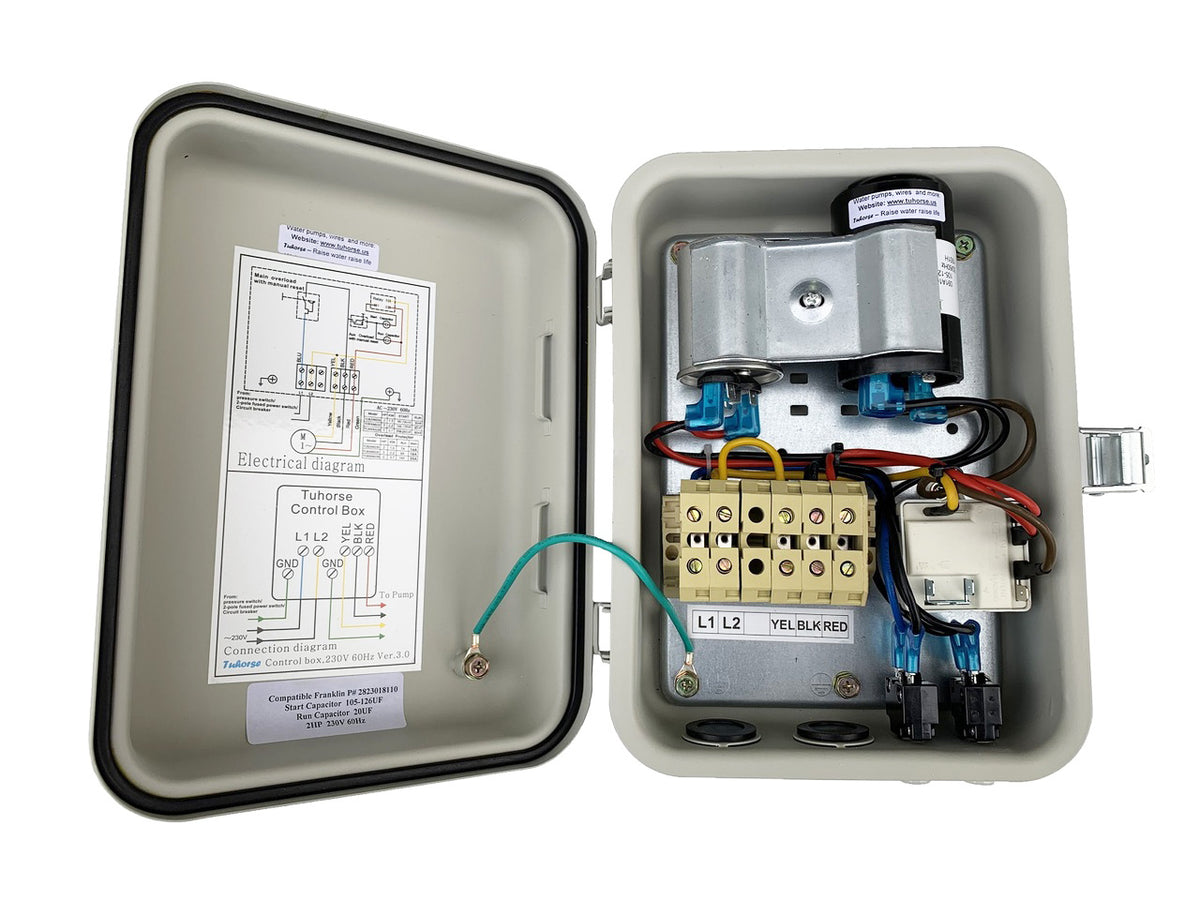

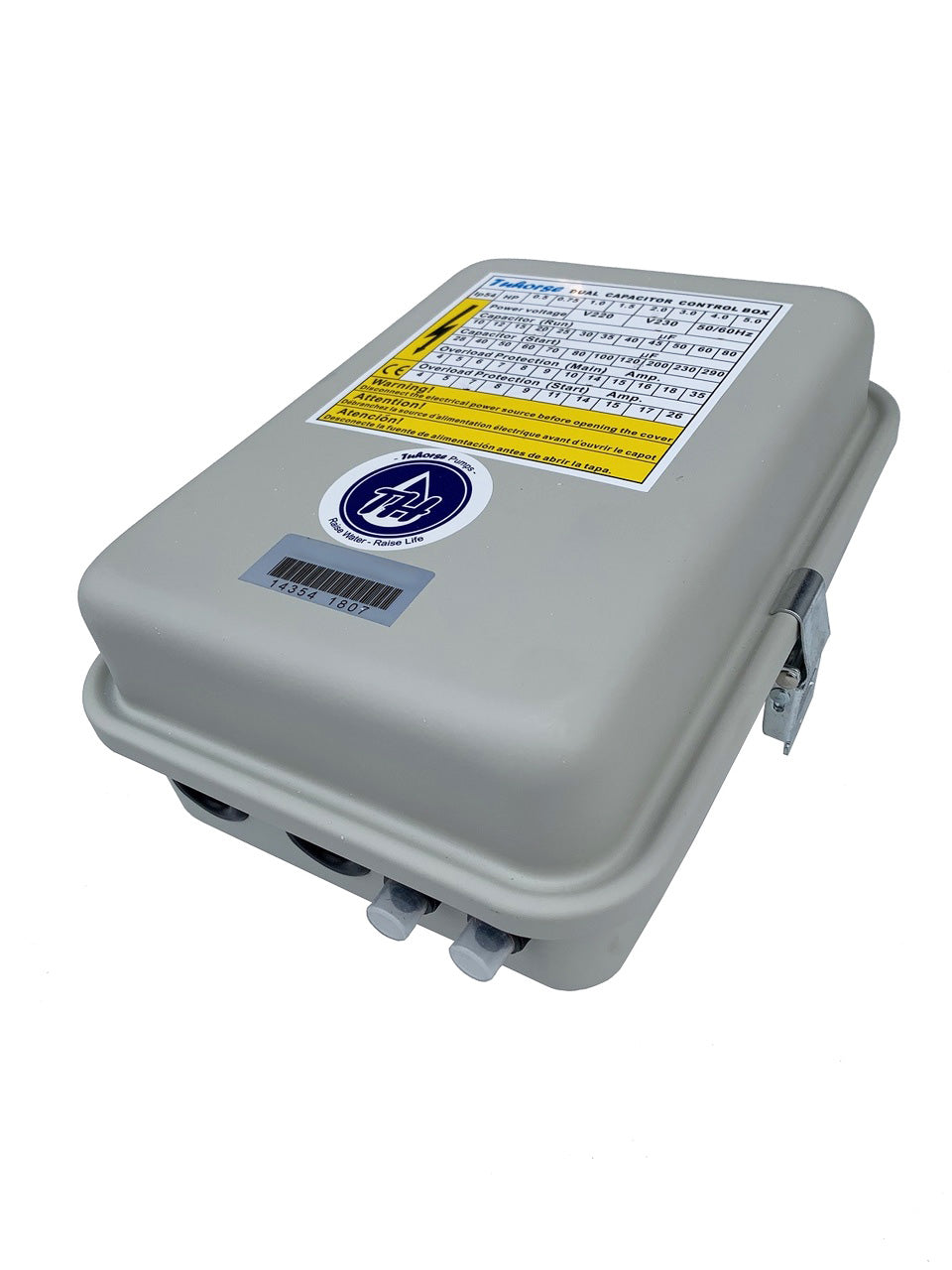

- Control Box: Dual capacitor control box pro
- Weight: 50.60 lbs.
- Dimensions/Length: 45.75"
Warranty: 1 Year
