Description
9GPM Rated

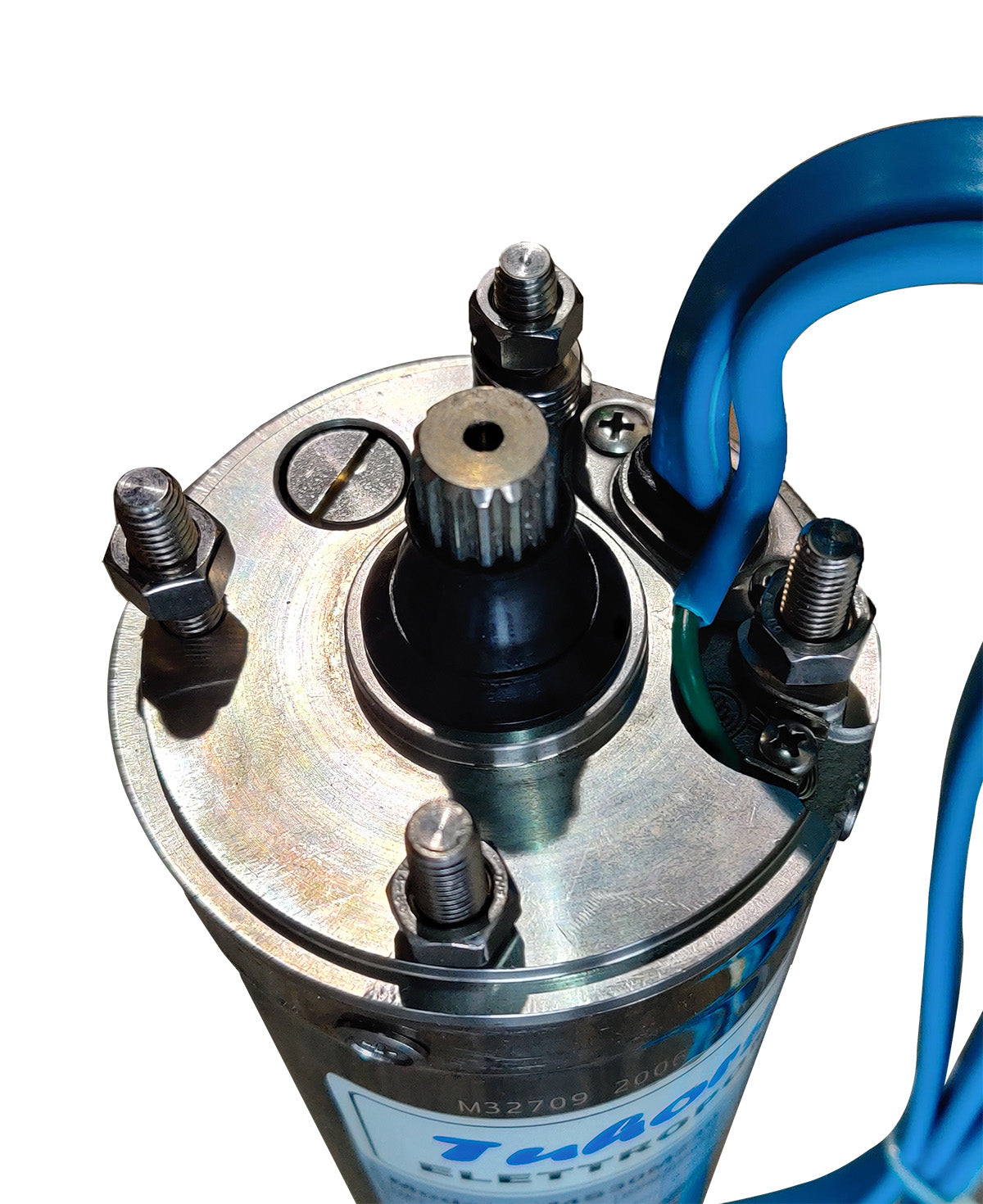

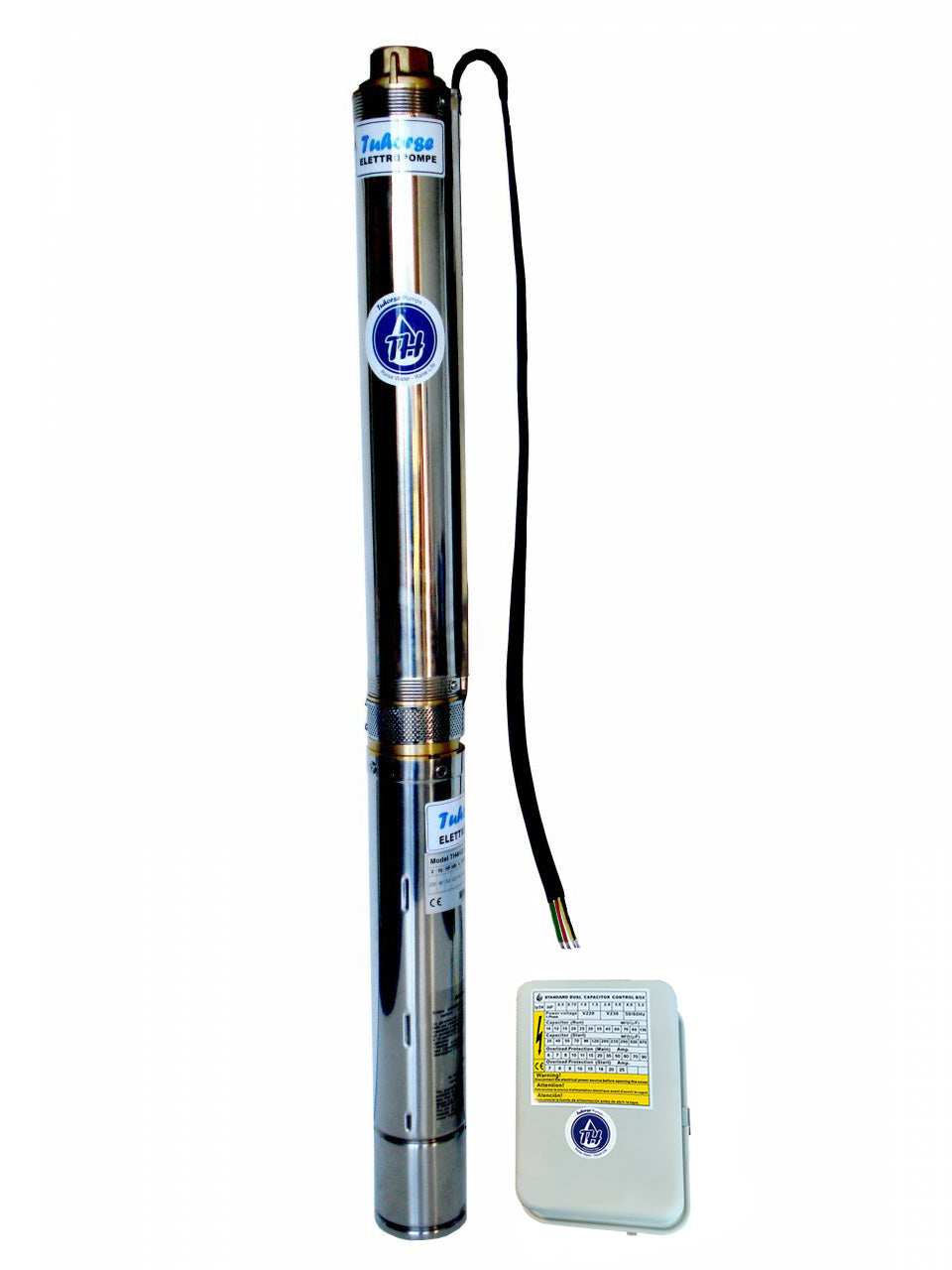

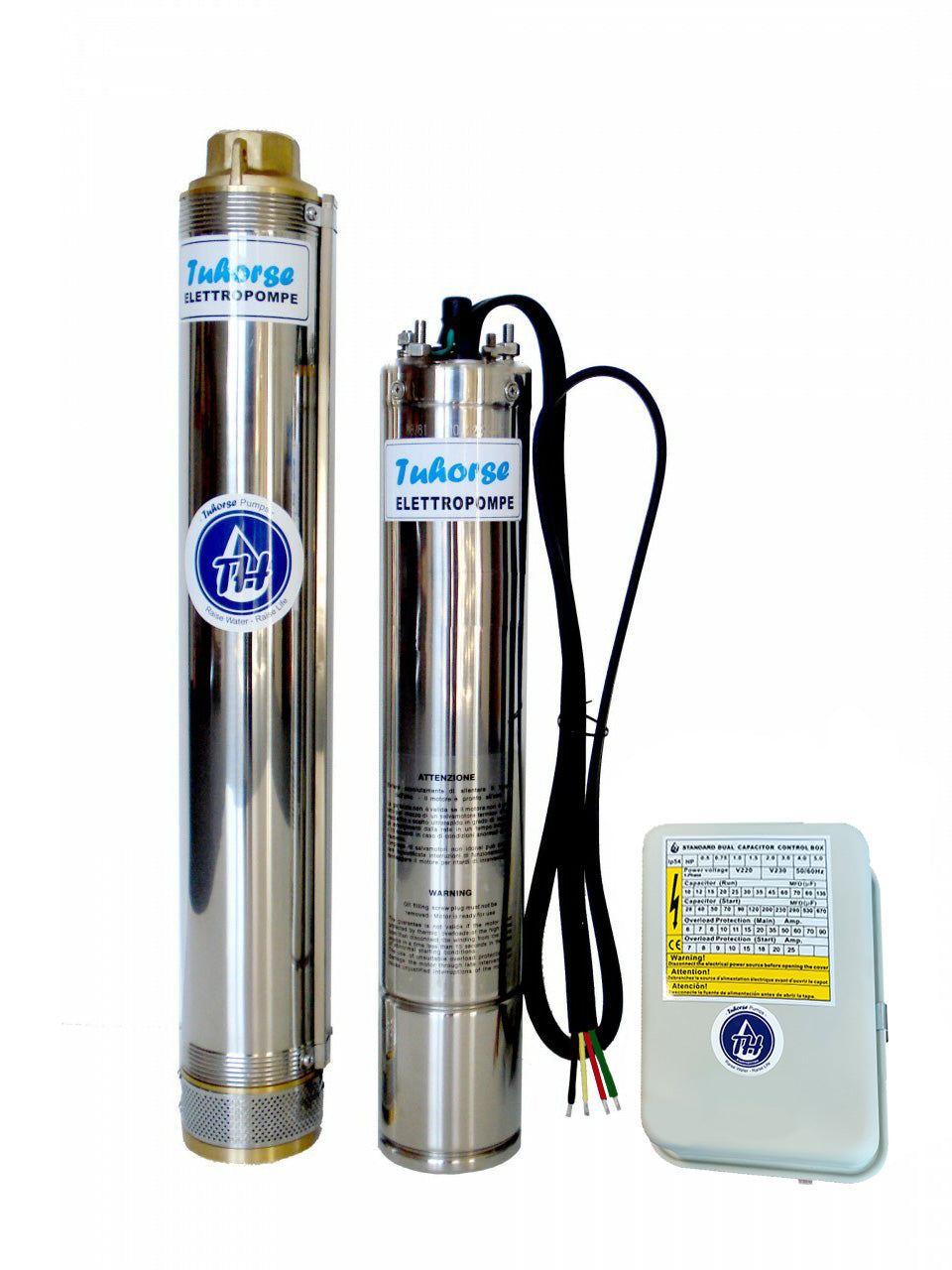

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 3HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 13.6 A
- Motor RPM: 3450 RPM
- Stages: 22
- Maximum Flow: 14.1 GPM
- Maximum Head: 880 ft.

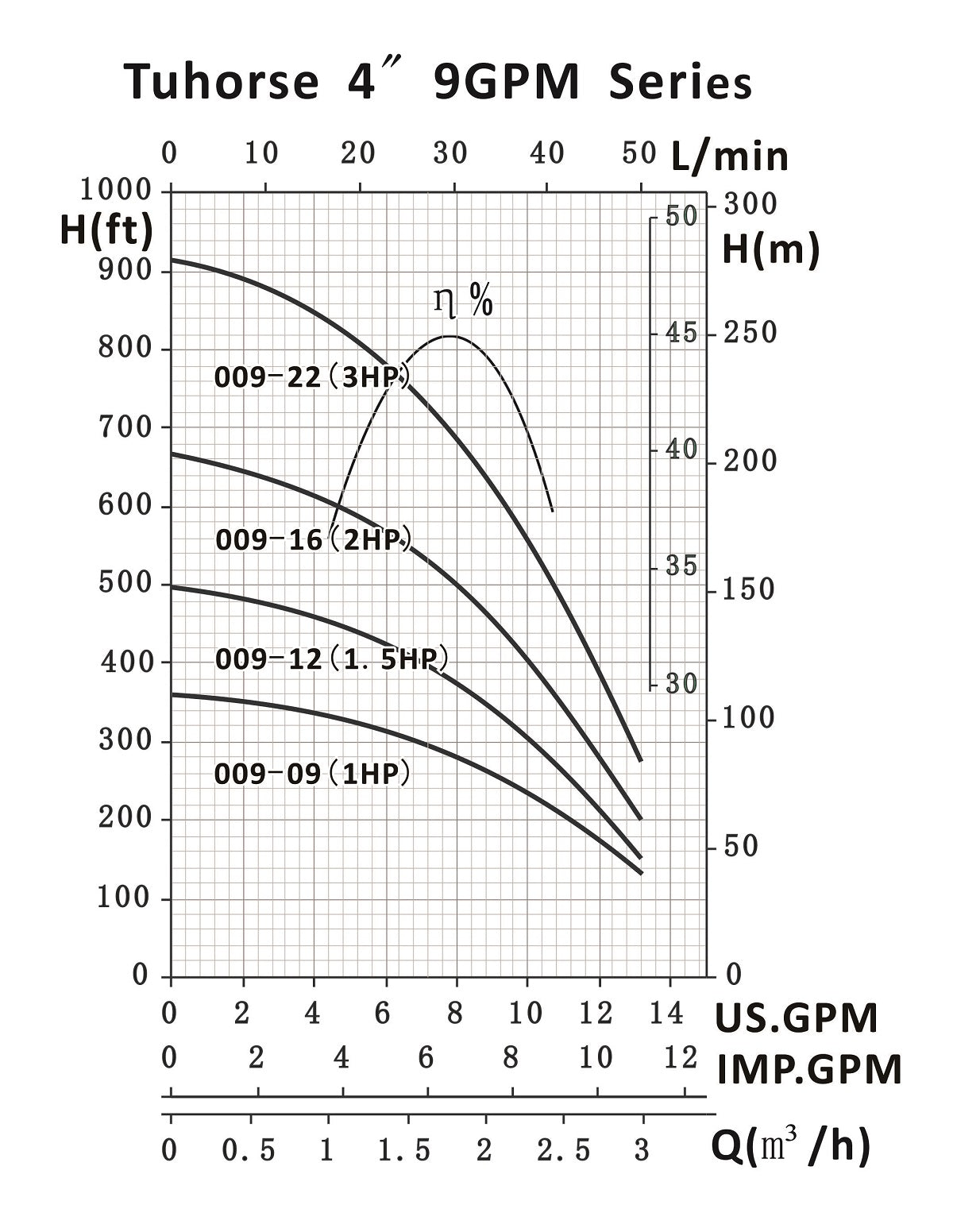

- Typical Flow: 13GPM @ 290ft; 11GPM @ 470ft; 9GPM @ 620ft; 7GPM @ 735ft; 5GPM @ 815ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour

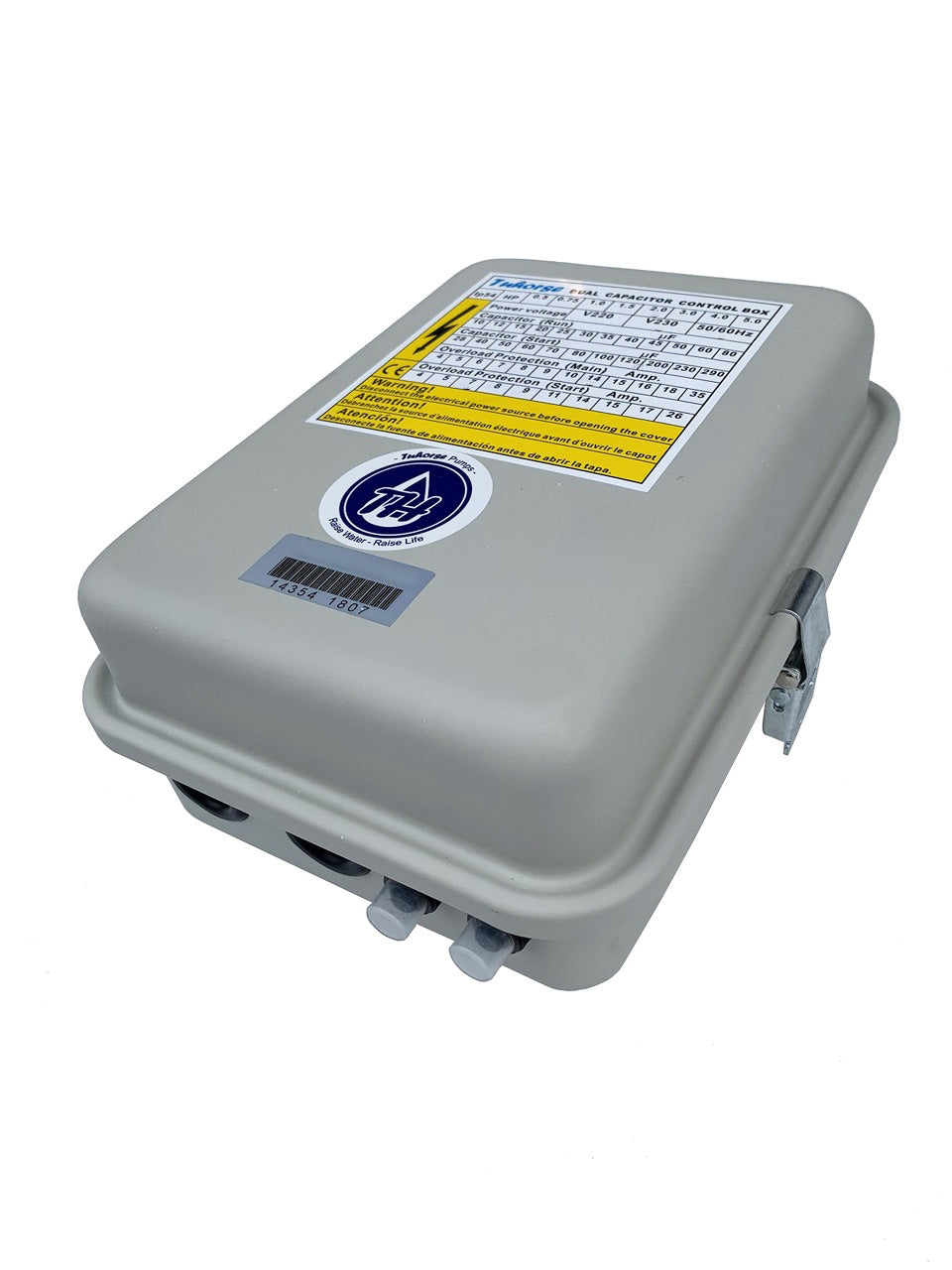

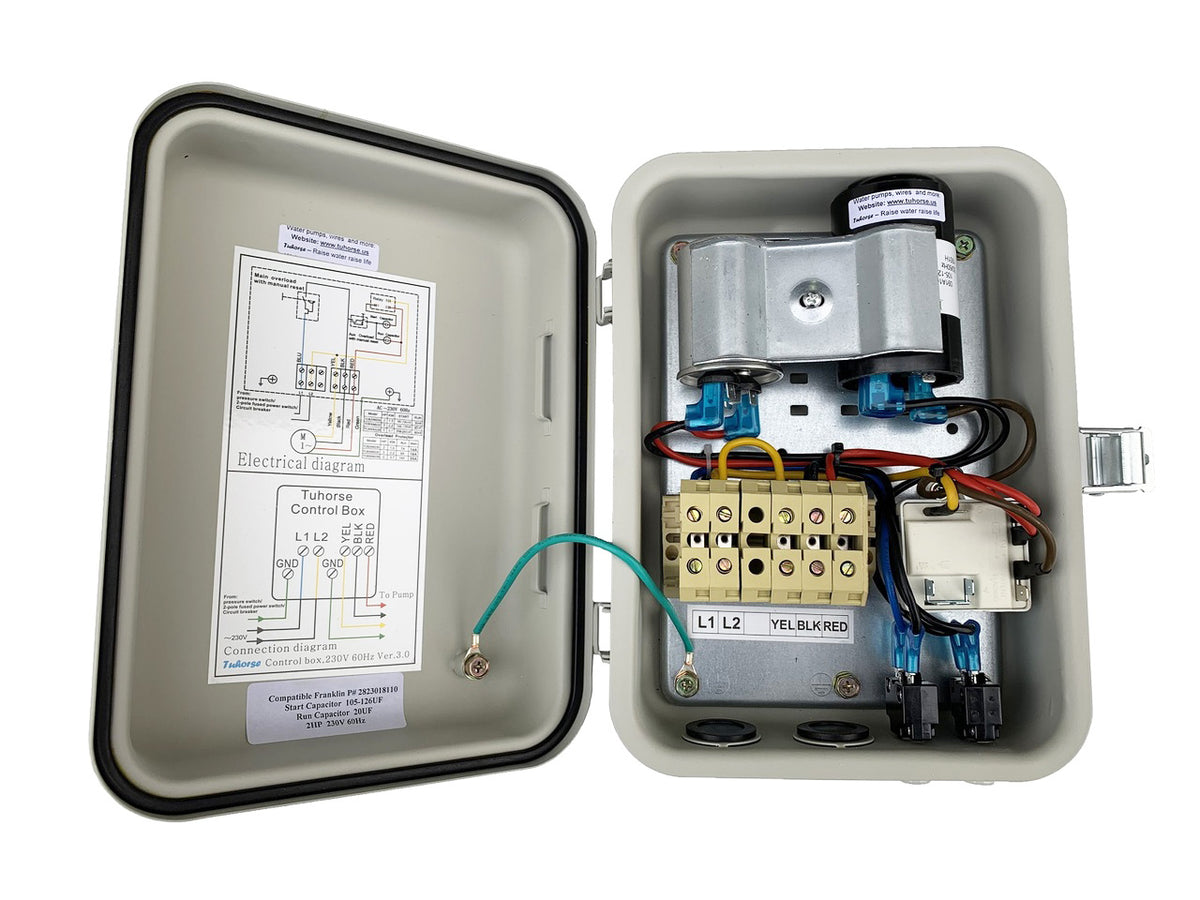

- Control Box: motor start box included
- Weight: 50.60 lbs.
- Dimensions/Length: 47"
* Control panel sold separately
Warranty: 1 Year
