Description
27 GPM rated, 33 GPM Max.
Complete pump end and motor. Complete Instructions.
- HP: 2HP
-
Voltage: 230V 1-phase
- Cycle: 60 Hz
- Operating Amperage: 10.2 A
- Motor RPM: 3450 RPM
- Stages: 10
- Maximum Head(cut off): 320 ft.
- Rated Flow: 27GPM
- Maximum Flow(0-100ft): 33 GPM

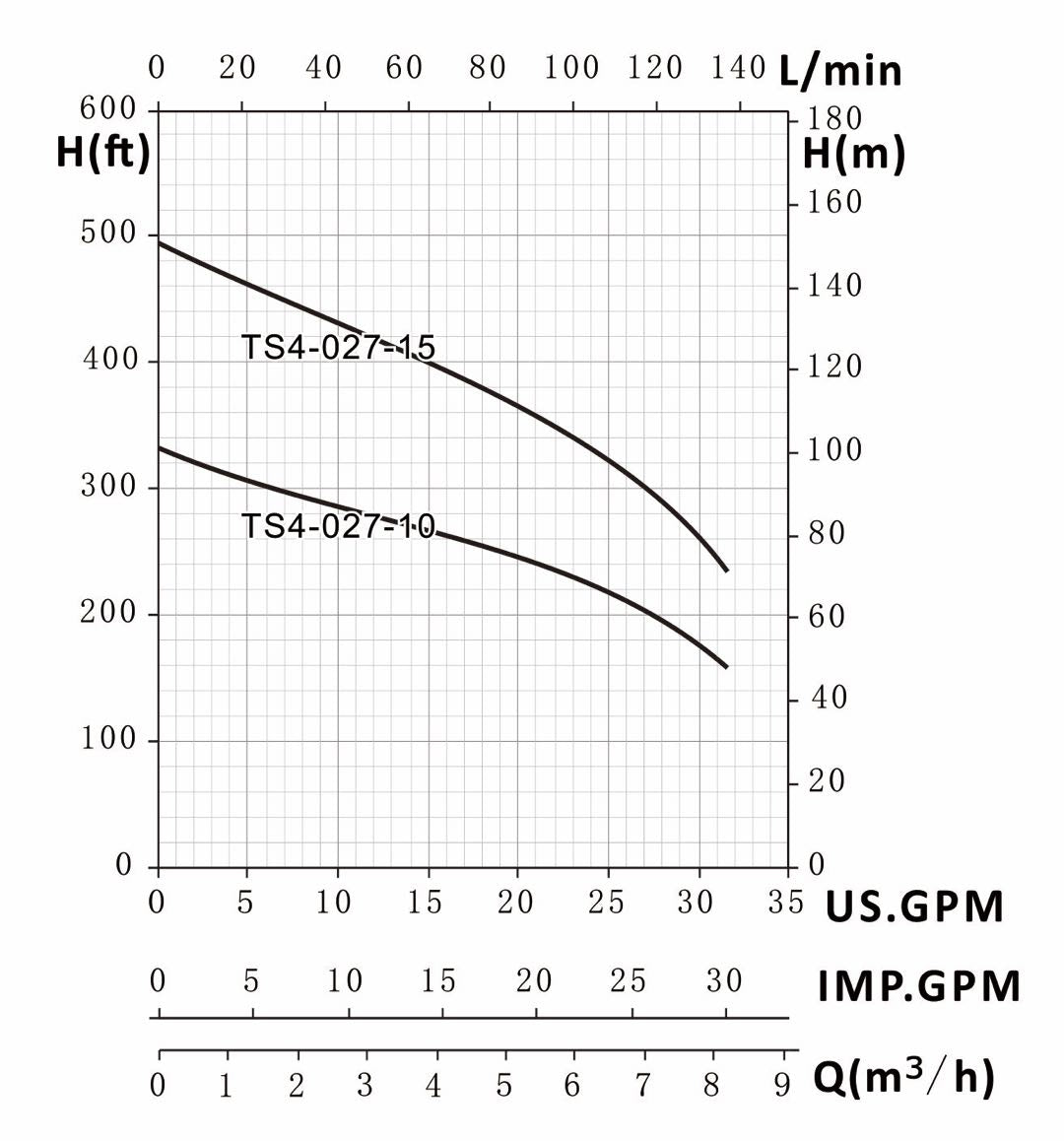

- Open Flow vs Depth: 30GPM @ 175ft; 25GPM @ 205ft; 20GPM @ 240ft; 15GPM @ 260ft;

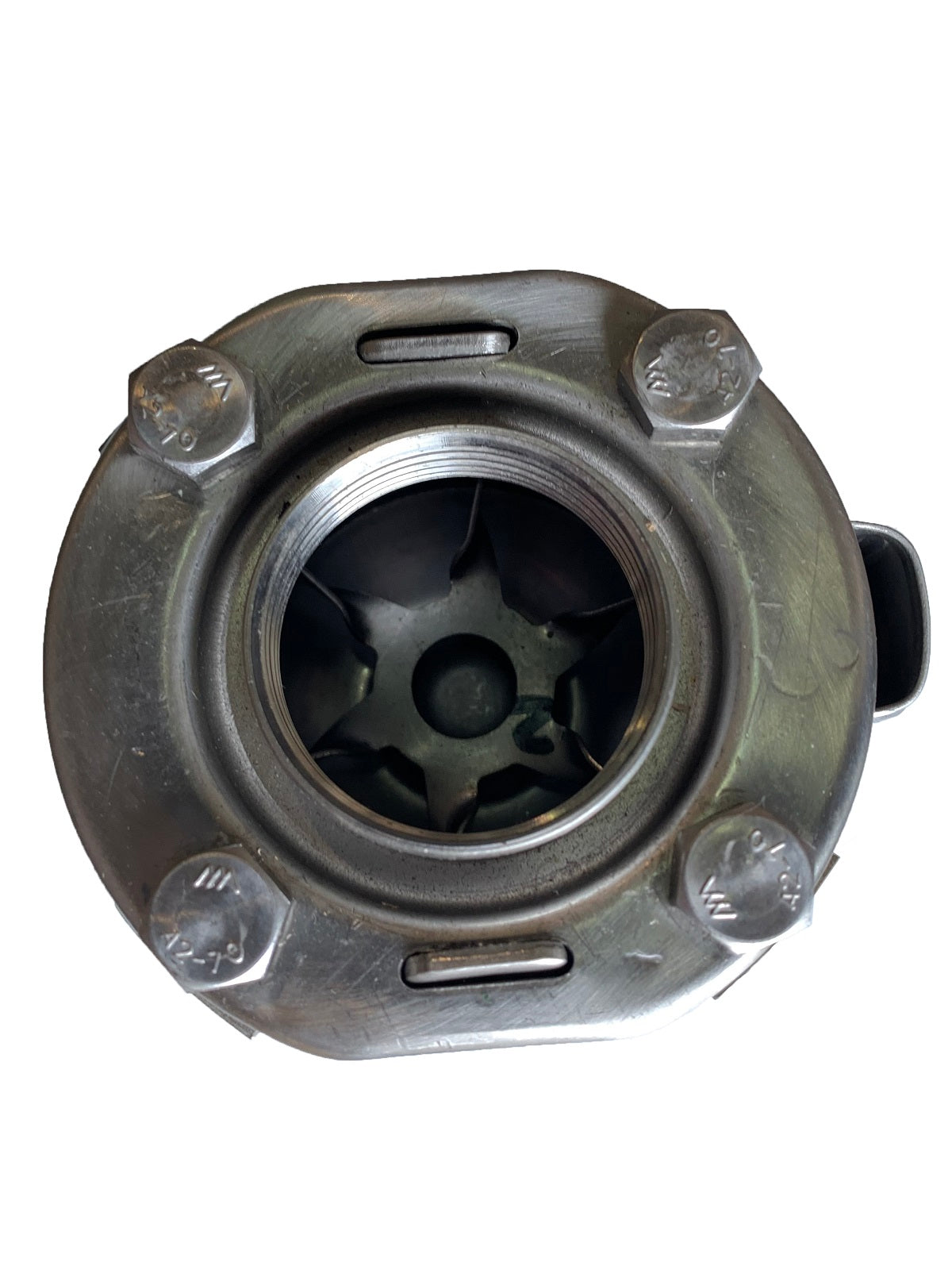

- Suction Port: Center Suction
- Discharge Port: 1.5 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Pump Housing Material: Stainless Steel 304
- Discharge and Suction Port Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304

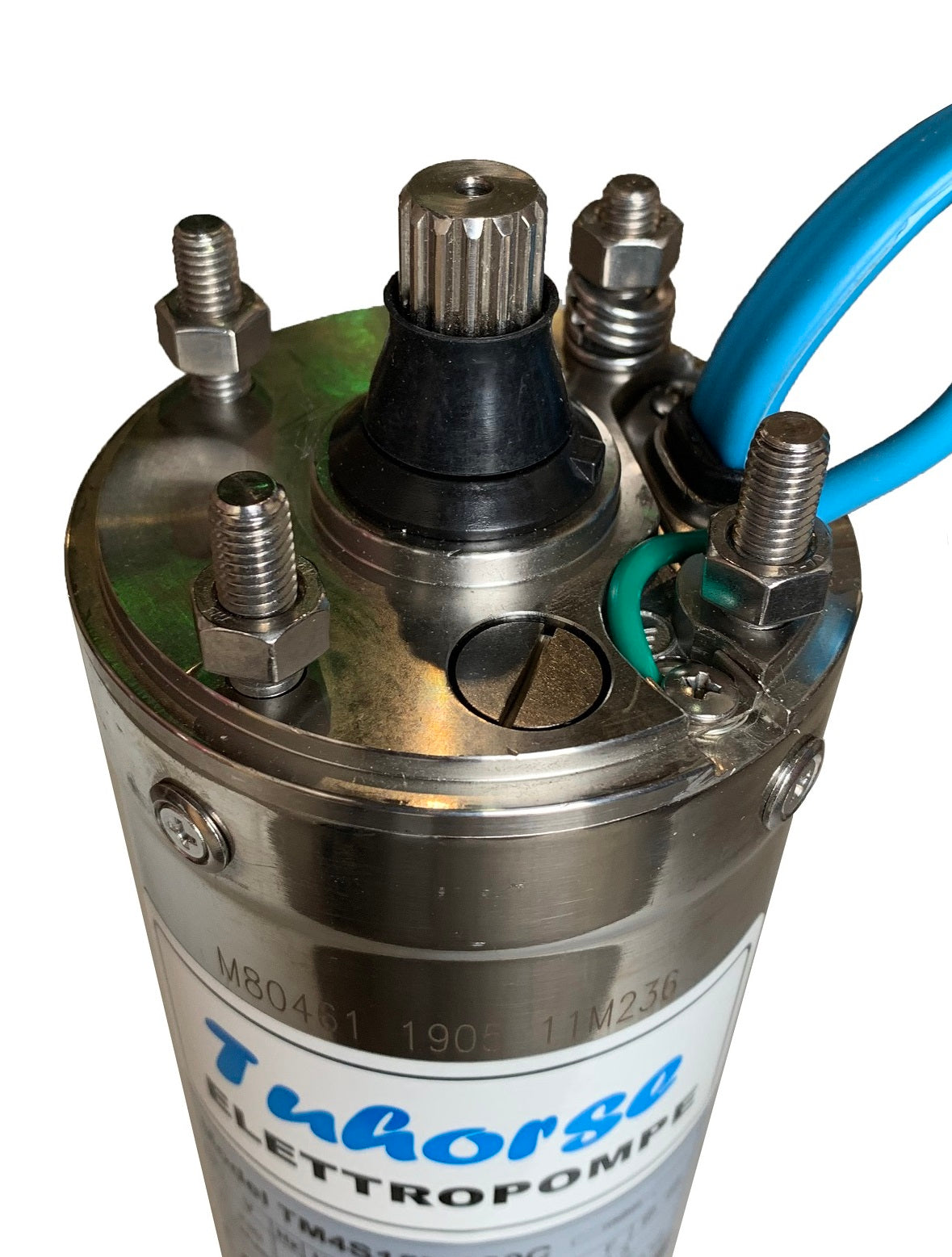

- Motor Housing: Stainless Steel 304
- Motor Top: Stainless steel 304
- Motor Bearing / Lubrication: Ball bearing, oil filled lubrication

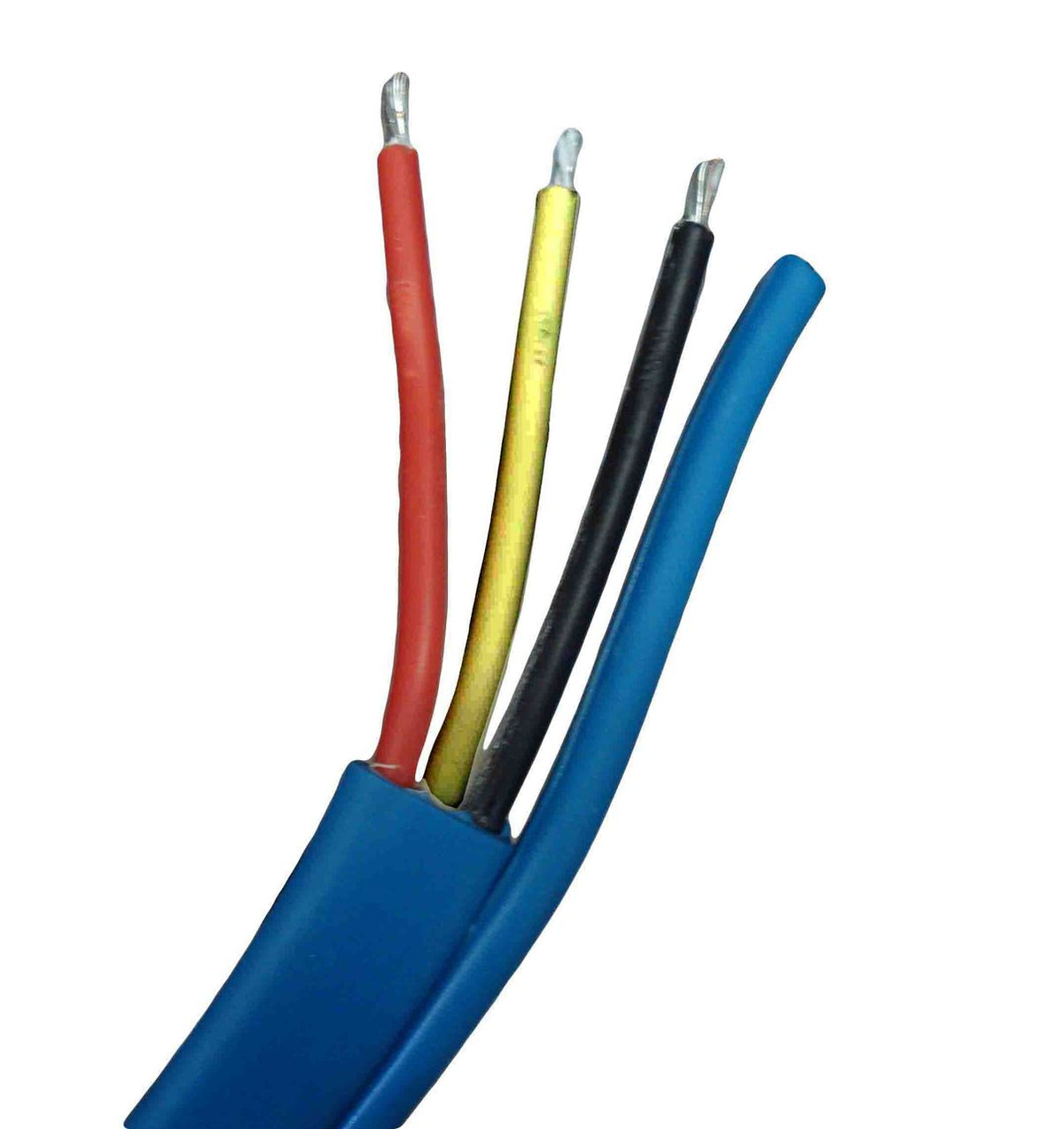

- Motor lead: 4 wires (3 wire + 1 ground)
- Duty: Continuous or up to 30 restarting cycles / hour

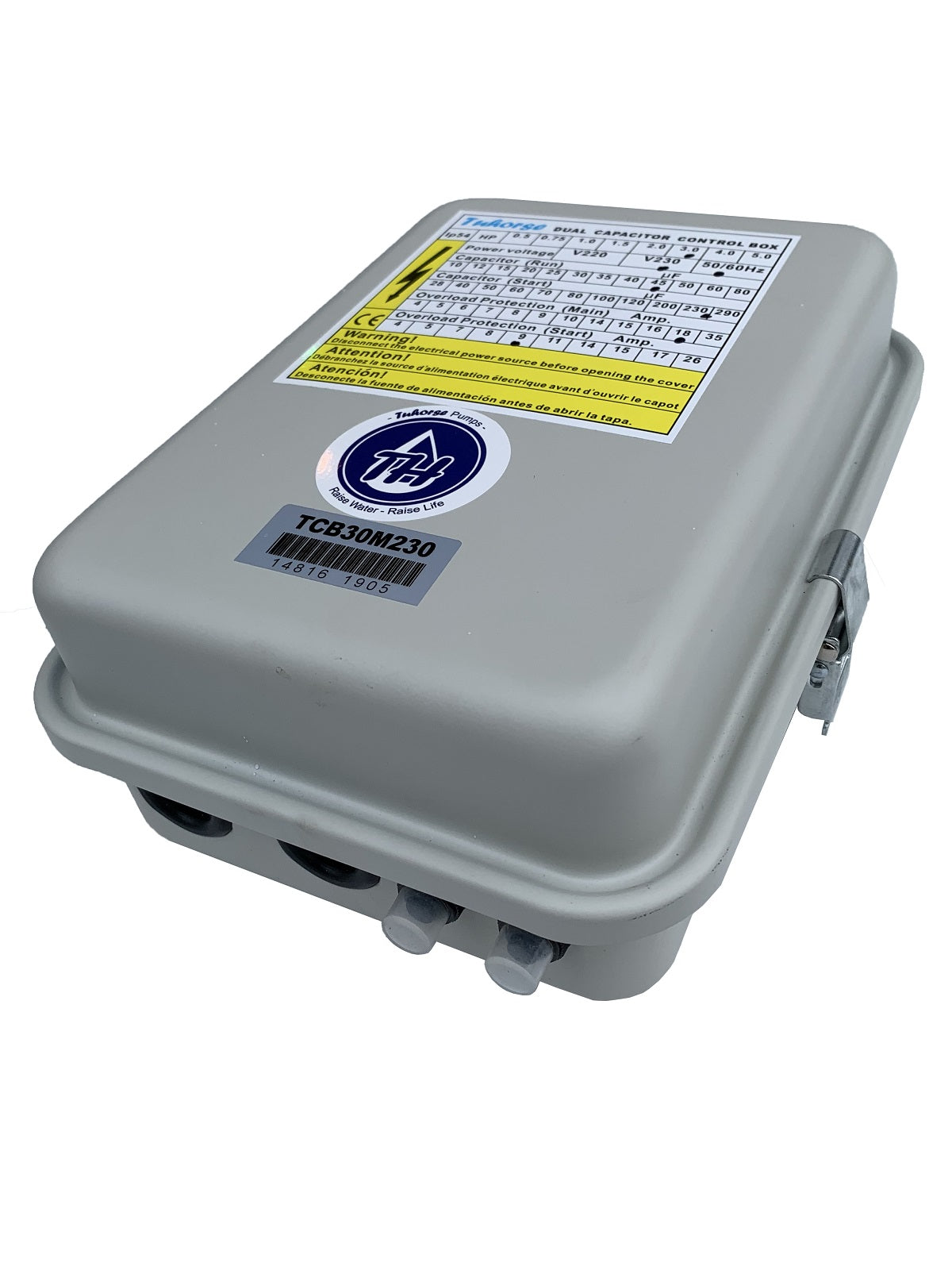

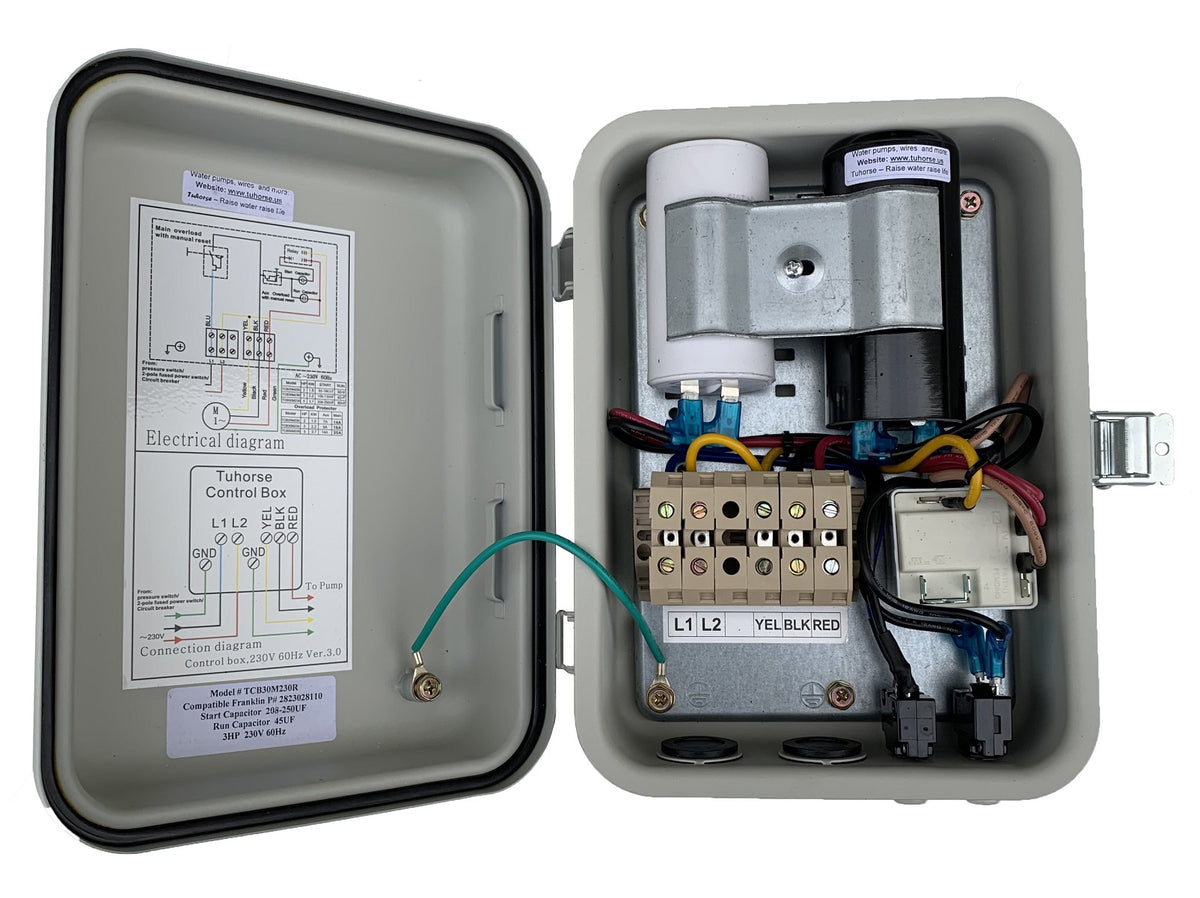

- Control Box: Dual capacitor motor start box included
- Shipping Weight: 47 lbs
- Package Dimensions/Length: 35"
Warranty: 1 Year
