Description
18 GPM rated, 26 GPM Max.

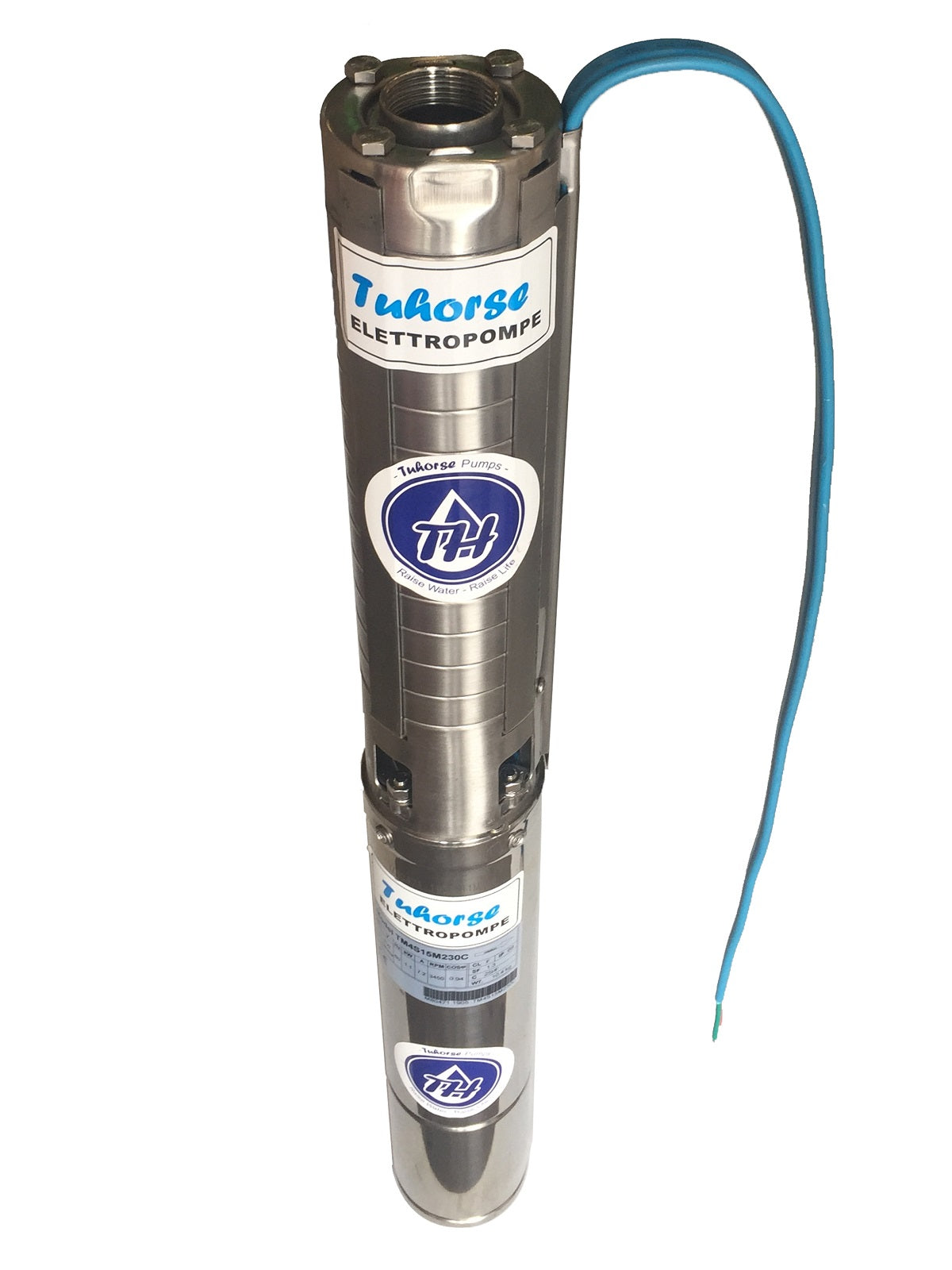

Complete Pump End and Motor Set. Complete Instructions.
- HP: 2HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 6.3 A
- Motor RPM: 3450 RPM
- Stages: 15
- Rated Flow: 18GPM
- Maximum Head(cut off): 480ft
- Maximum Flow(0-180ft): 18 GPM
- Free Flow Rate: 25GPM @ 160ft; 20GPM @ 270ft; 15GPM @ 320ft; 10GPM @ 395ft; 5GPM @ 435ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour
- Control Box: Sold separately (optional)
- Please note that a control box is optional, and not included in this package.
Warranty: 1 Year
