Description
13 GPM rated, 18 GPM Max.

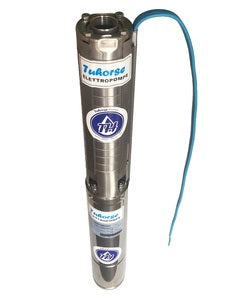

Complete pump end, motor and instructions.
- HP: 2HP
- Voltage: 230V 3-Phase
- Cycle: 60 Hz
- Operating Amperage: 6.3A
- Motor RPM: 3450 RPM
- Stages: 18
- Rated Flow: 13GPM
- Maximum Head(cut off): 530ft
- Maximum Flow(0-180ft): 18 GPM
- Free Flow Rate: 16GPM @ 290ft; 13GPM @ 350ft; 11GPM @ 375ft; 9GPM @ 405ft; 6GPM @ 450ft; 4GPM @ 480ft;
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Motor Top: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycle / hour
- Control Box: Sold separately (optional)
- Weight: 38 lbs.
- Package Dimensions/Length: 36"
Warranty: 1 Year
