Description
13 GPM rated, 18 GPM Max.

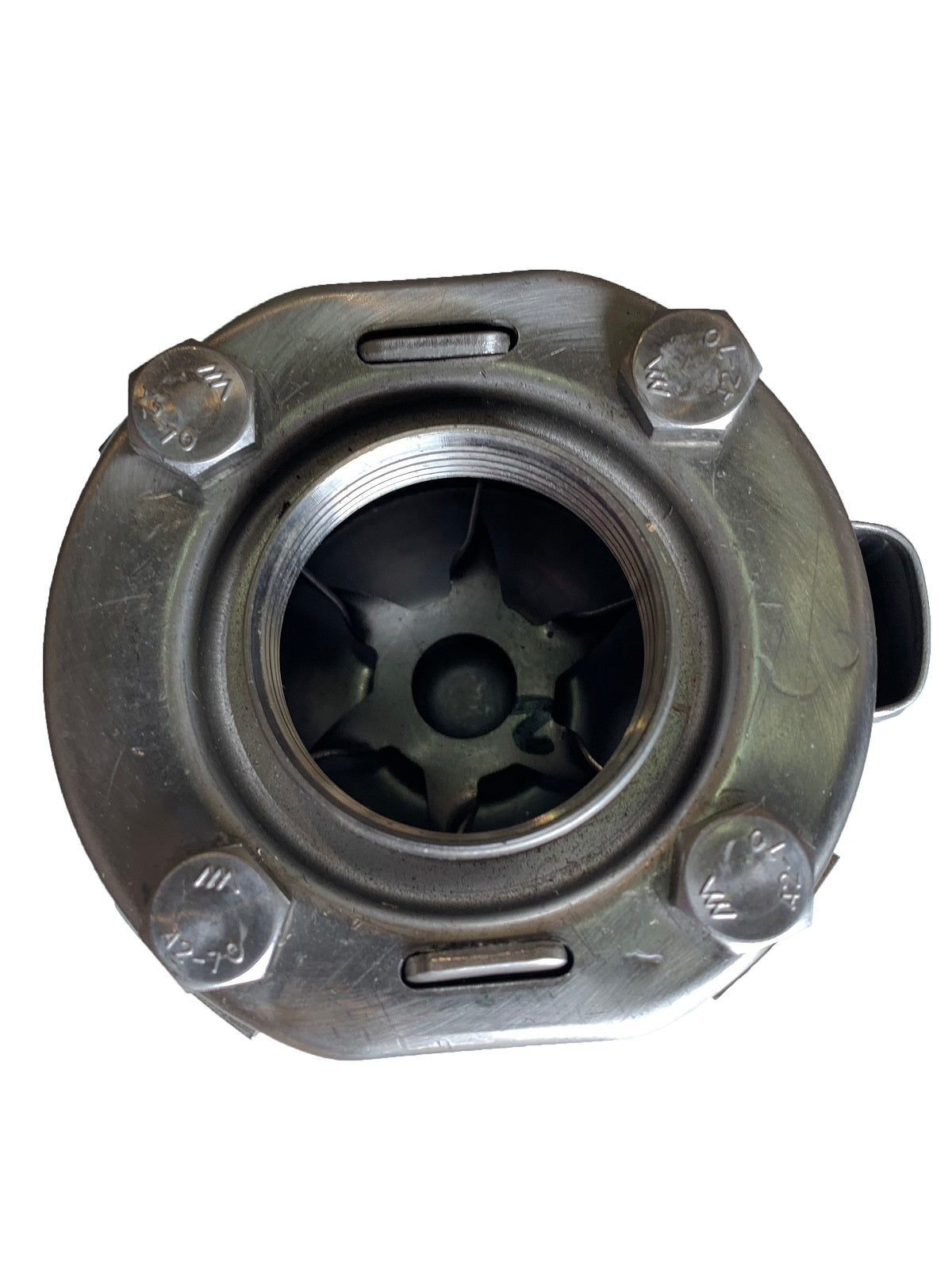

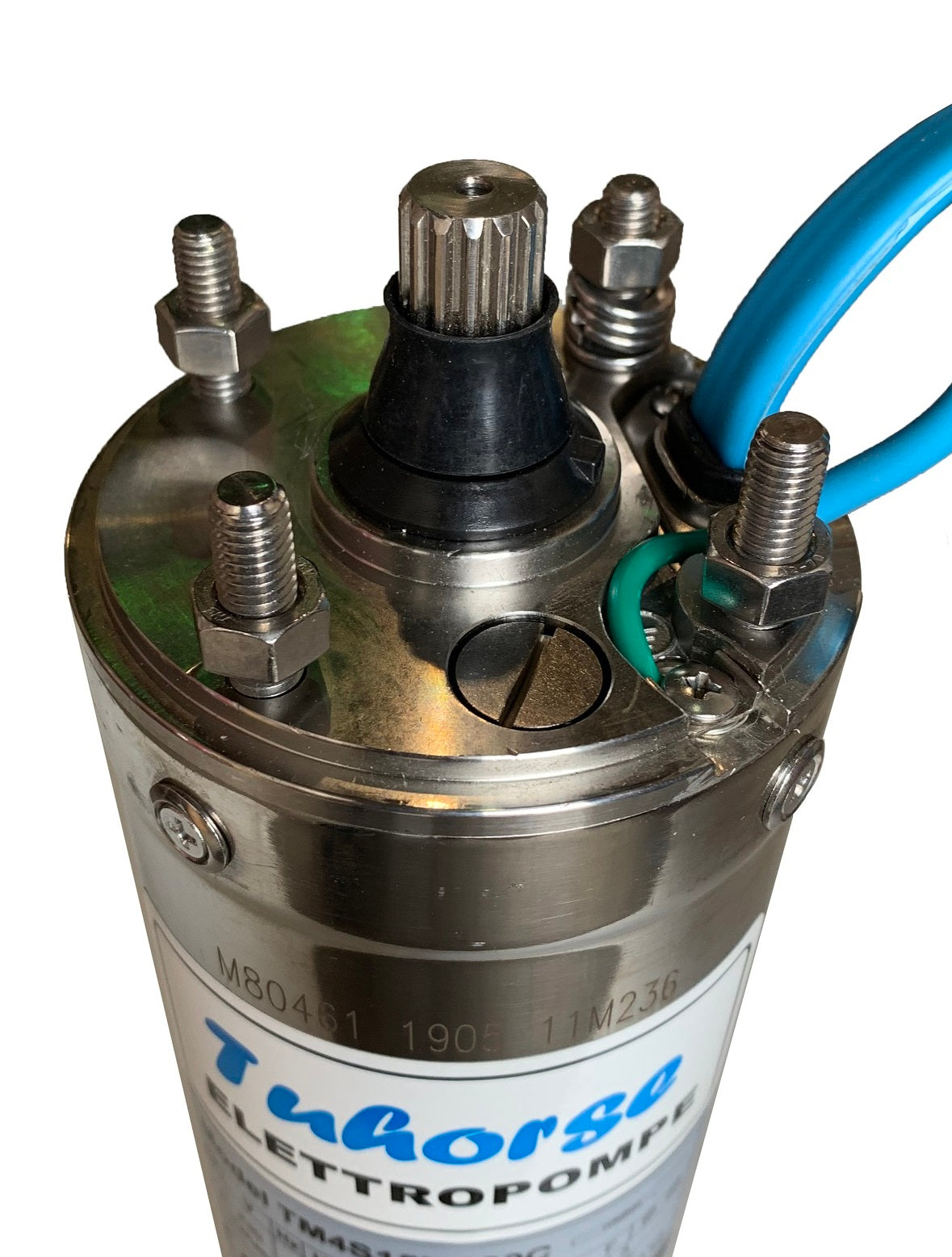

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 2HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 9.6 A
- Motor RPM: 3450 RPM
- Stages: 18
- Rated Flow: 13GPM
- Maximum Head(cut off): 480ft
- Maximum Flow(0-180ft): 18 GPM
- Free Flow Rate: 16GPM @ 290ft; 13GPM @ 350ft; 11GPM @ 375ft; 9GPM @ 405ft; 6GPM @ 450ft; 4GPM @ 480ft;
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes, Stainless Steel 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless Steel 304
- Duty: Continuous or up to 20 restarting cycles / hour

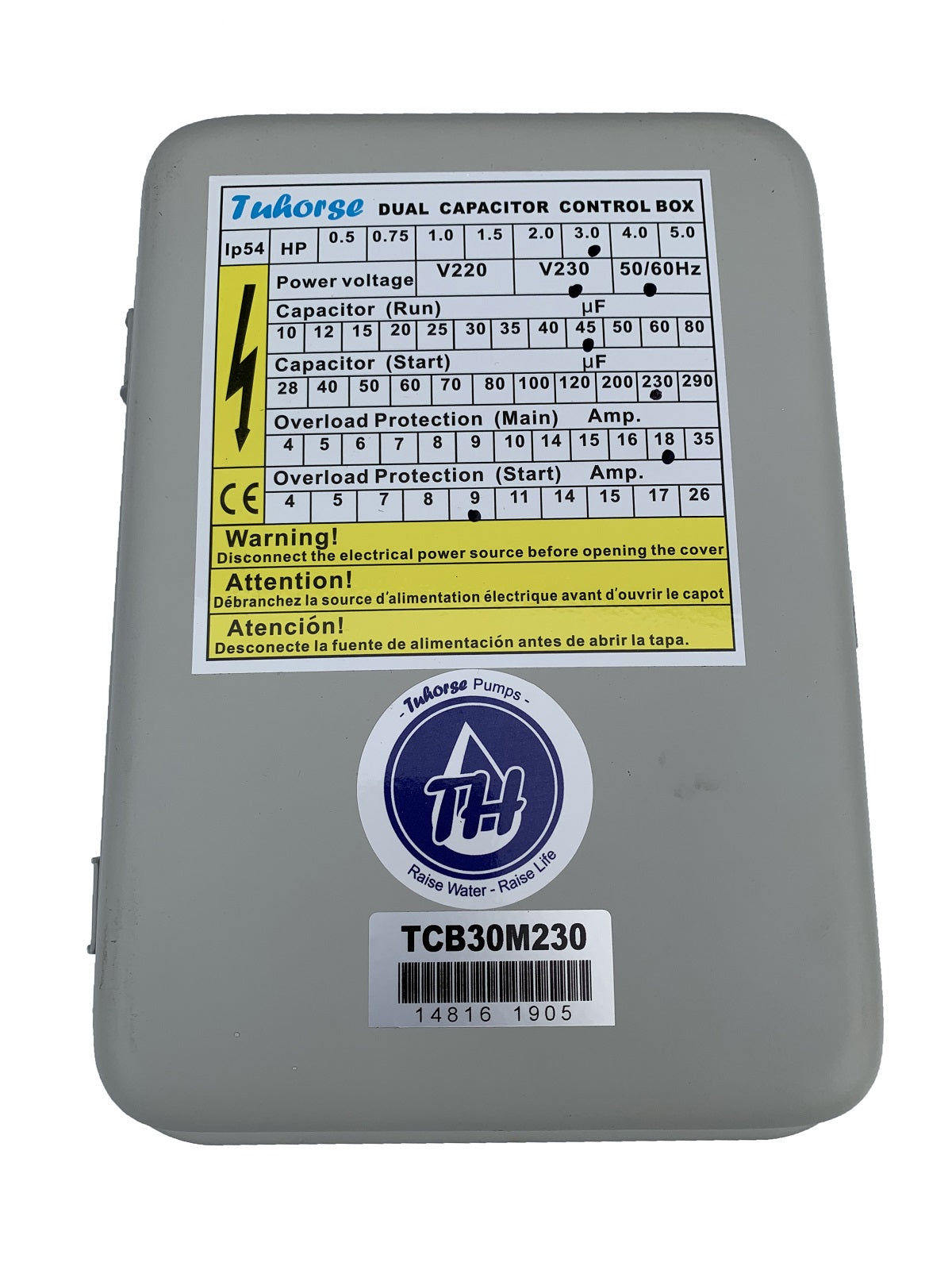

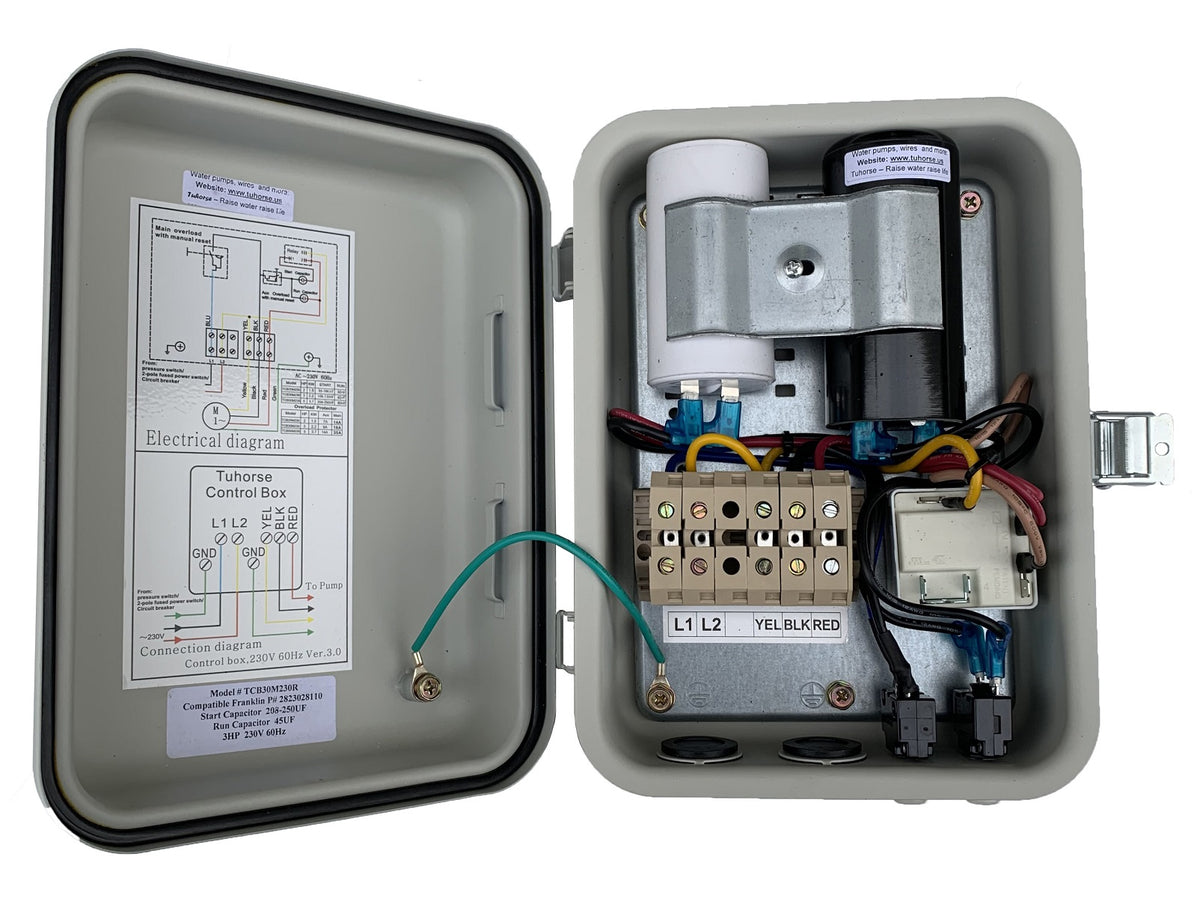

- Control Box: Dual capacitor control box pro included
- Weight: 48 lbs
- Package Dimensions/Length: 40"
Warranty: 1 Year
