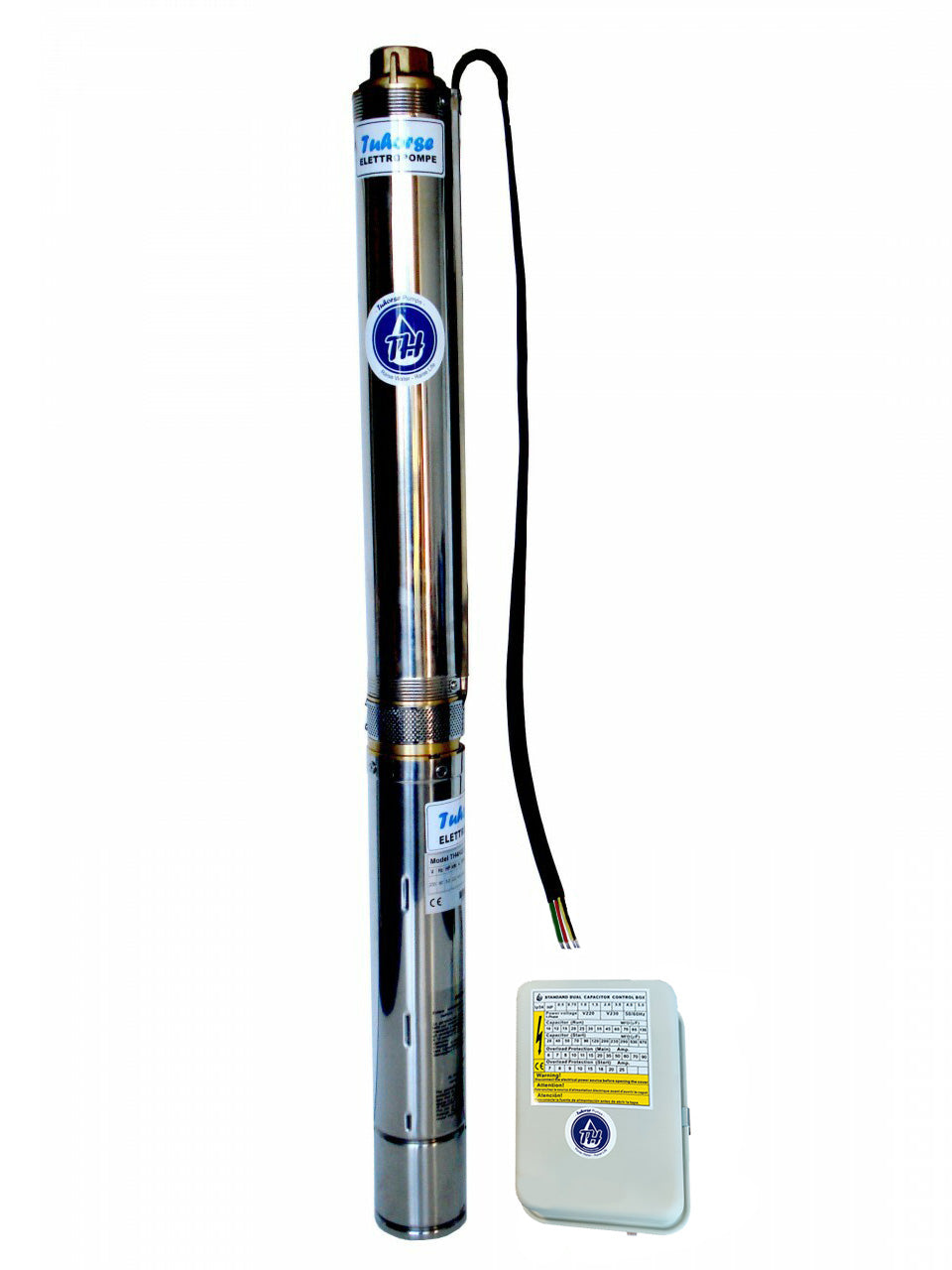

2HP TH4-030-08 230V 1-Phase. Complete pump end, motor, and control box pro set

SKU: TH403008M230
Regular price $509.00 USD
Regular price $849.00 USD Sale price $509.00 USD
In stock
Ships out the same business day or next

Description

30GPM rated

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.



  • Model: TH4-030-08
  • HP: 2HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 9.6 A
  • Motor RPM: 3450 RPM
  • Stages: 8
  • Maximum Head(cut off): 260 ft
  • Maximum Flow(0-70feet): 40 GPM

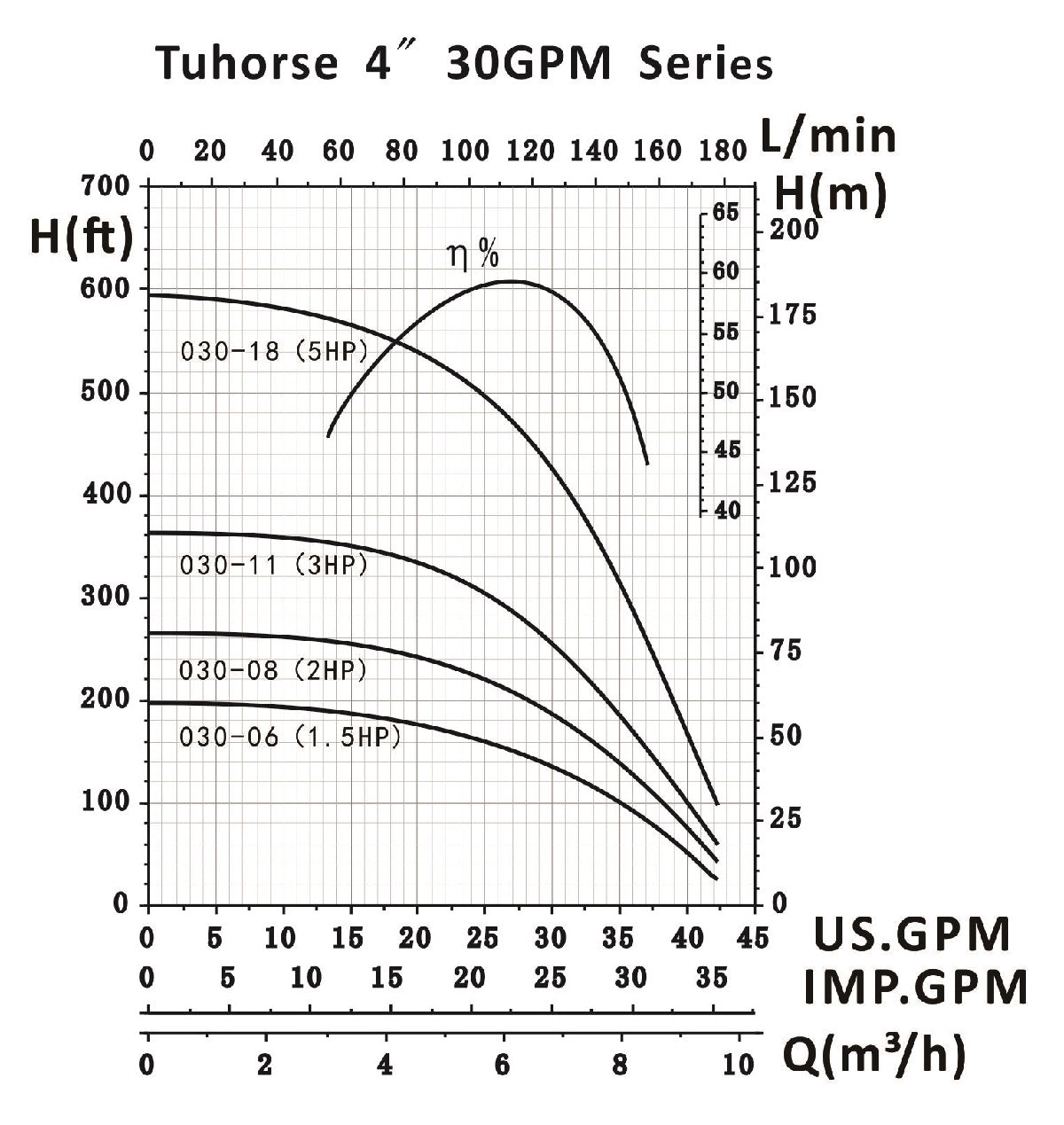

  • Free Flow Rates: 37GPM @ 115ft; 35GPM @ 135ft; 30GPM @ 180ft; 25GPM @ 220ft; 20GPM @ 240ft.
  • Suction Port: Center Suction
  • Discharge Port: 1.5 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel, Grade 304
  • Impeller Material: Thermal Plastic

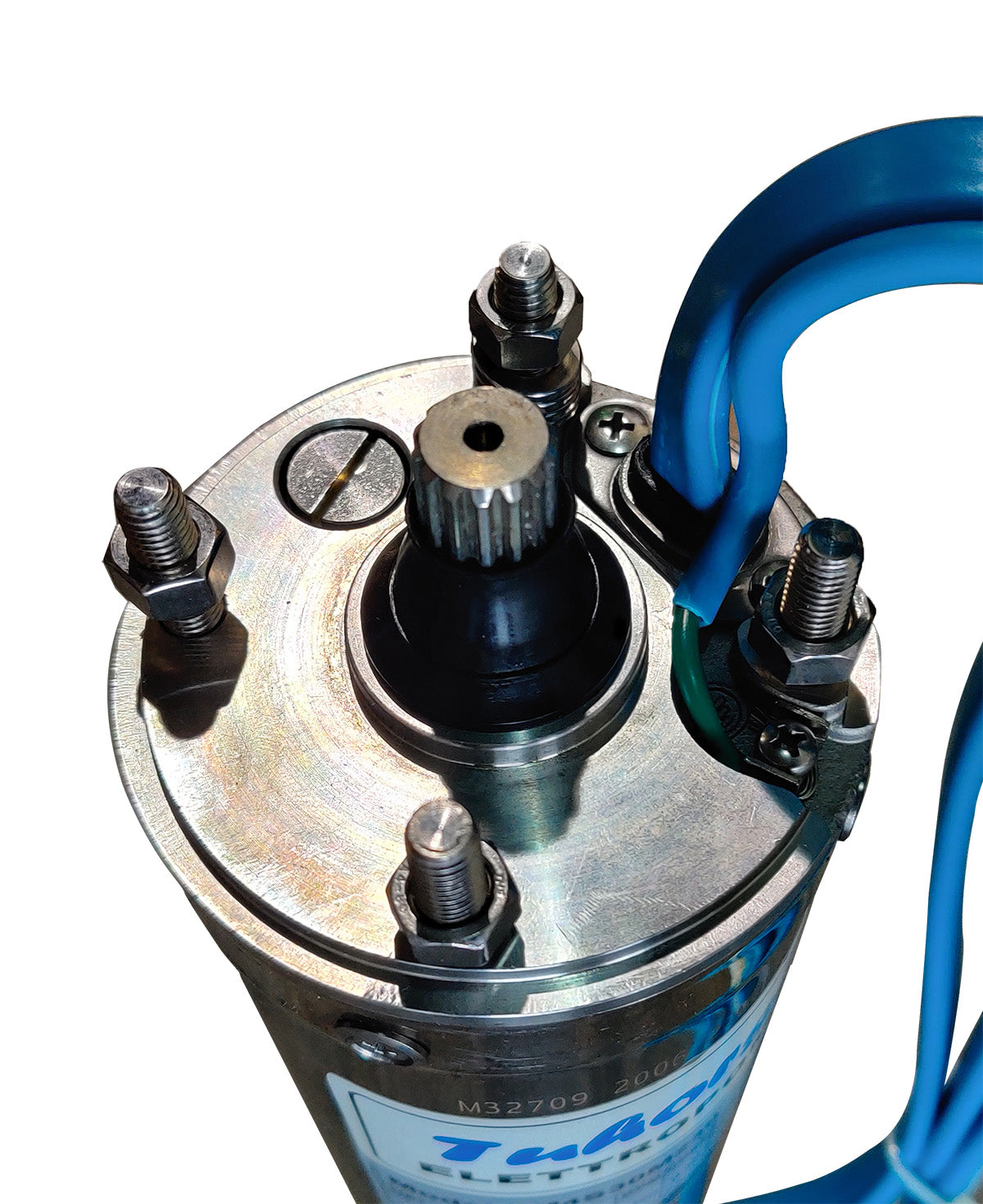

  • Motor Enclosure: Stainless steel, Grade 304
  • Duty: Continuous or up to 30 restarting cycles / hour

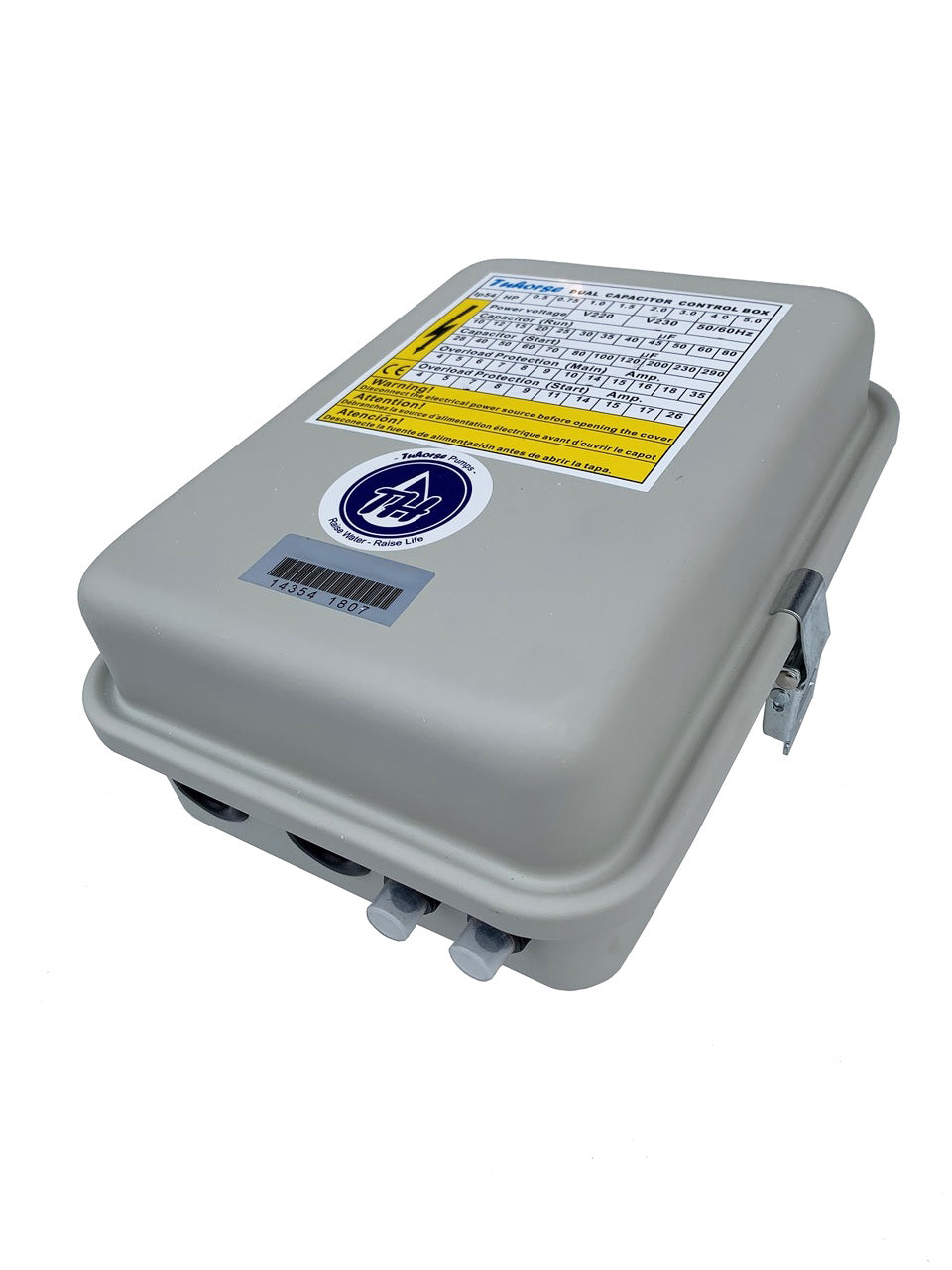

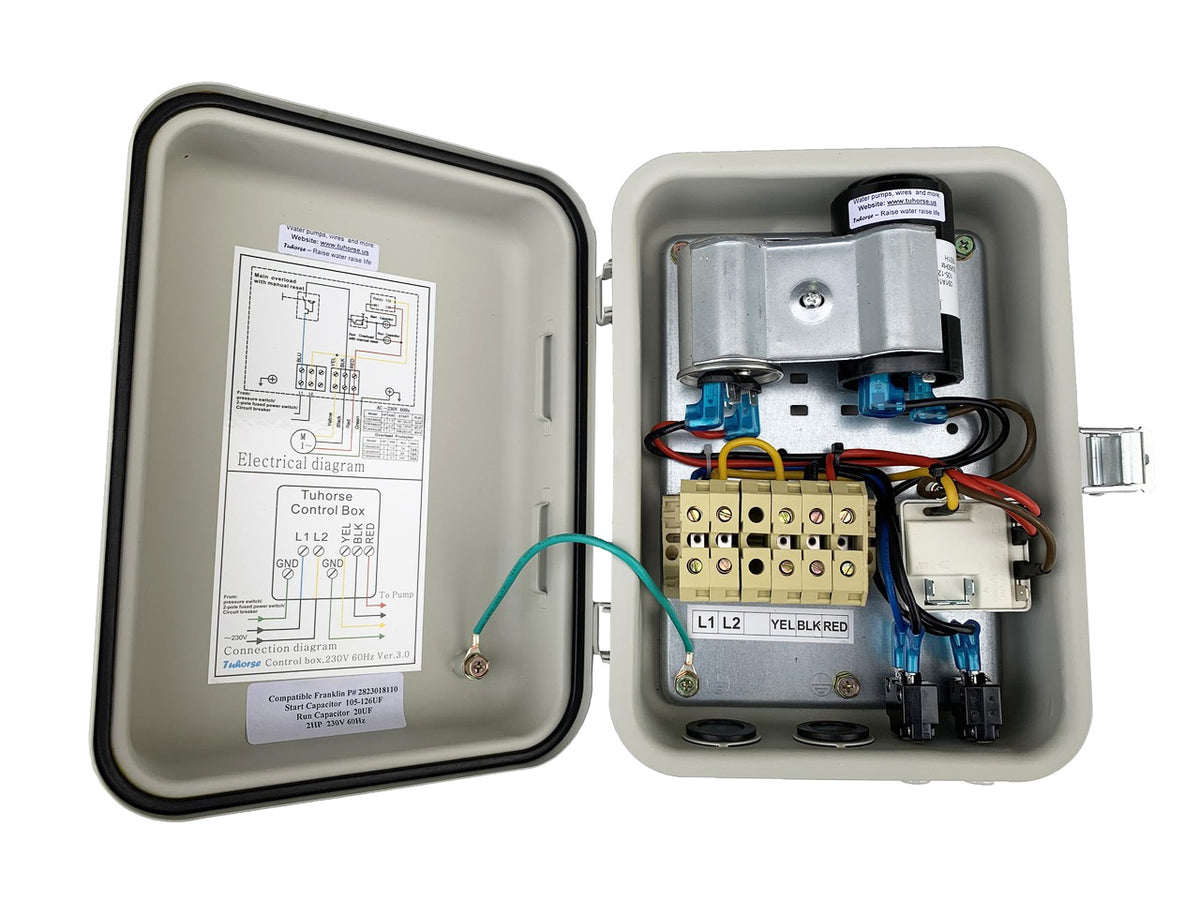

  • Control Box: Dual capacitor Control Box Pro included
  • Weight: 46 lbs
  • Dimensions/Length: 40"

Note: We recommend you to use our TDH calculator in selecting a pump for your application

Warranty: 1 Year

E
Ernesto Torres
Pump

Good

T
Trent Bingham
House well

We have owned two of these. The first one lasted ten years the second only one year. I bought another so I will share this information when I get it.
Tuhorse support: Thanks for the feedback. You can call us to find out whether the problem was the control box, pump-end, the motor or something else such as wire, pressure switch or pressure tank.

R
Robert
Have used 3 days to water lawn and it has exceeded my expectations

Easy to assemble and fast shipping

A
Allan Limbocker
The New Pump Is In & Working Well

Thanks To Custemer Service My Order Turned
Out Perfect.

Z
Zachary Baker
Excellent so far

165 feet deep. 6" bore. This pump works great and then some. Time will tell on its durability but the components seem to be well put together and the pump meets the stats that are published on the site. I installed it myself, first time ever, and it was fairly straightforward.

O
Owen!
Great Pump & Great Service!

This 2hp pump is just as described, quality. Better yet Tuhorse contacted me after the order and recommended a better and lower cost pump. Had the pump within 3 days. Thanks Tuhorse for your integrity and a truly helpful spirit!

J
John
180' Well pump failed

Service, Product and delivery exceeded expectations.

High Quality replacement pump

highly recommended

R
Ree
Quality replacement pump

Placed order for pump and paid for expedited shipping. pump arrived as promised. Very quickly. pulled old pump and installed new, turned on and ran very well pumping about 31 gal min to sprinklers in a pasture.
this is the second pump and motor from Tu Horse and have been very pleased with both very easy to install and wire up. very easy to trouble shoot.

A
Anonymous
Tu Horse

Everything arrived as ordered. Sales staff was great to work with. The pump is great.

A
Anonymous
Nice looking pump

have not used it yet but service was first class

j
jim zimmermann
tu horse well pump.2 hp 30 gal/min

pumps are a good quality.operates excellently.connections and control boxes are easy to connect and operate perfectly. thanks.
