Description

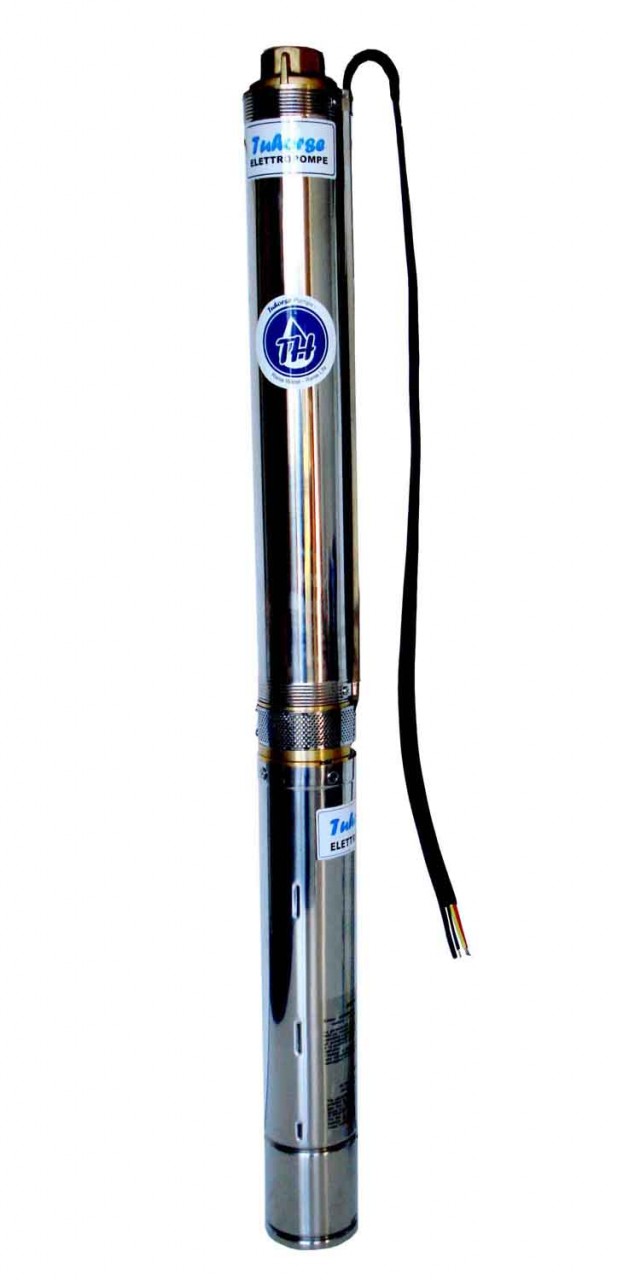

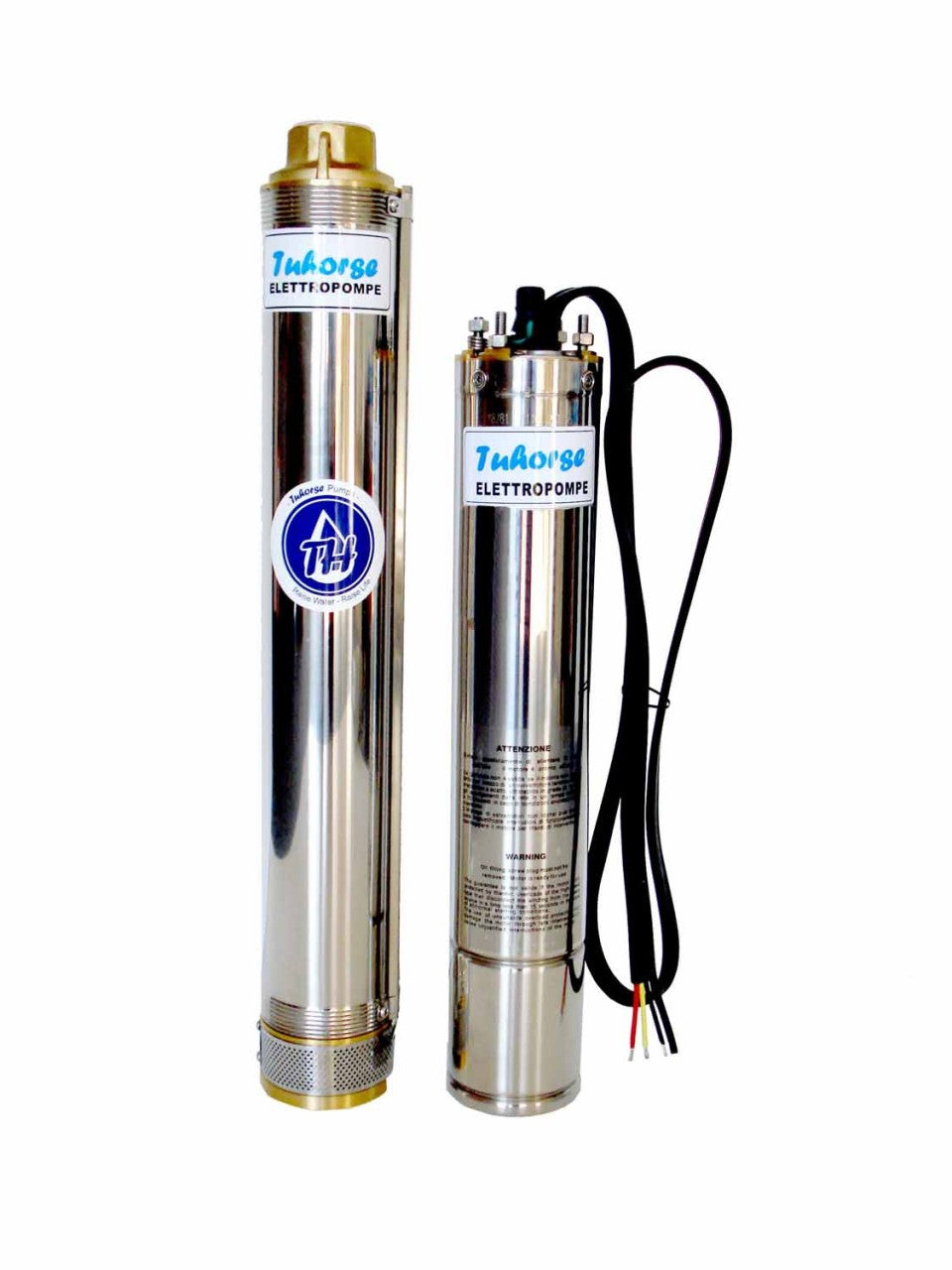

Complete pump end and motor. Complete Instructions.
- Model: TH4-015-12
- HP: 2HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 6.3 A
- Motor RPM: 3450 RPM
- Stages: 12
- Maximum Flow: 22 GPM
- Maximum Head: 459 ft

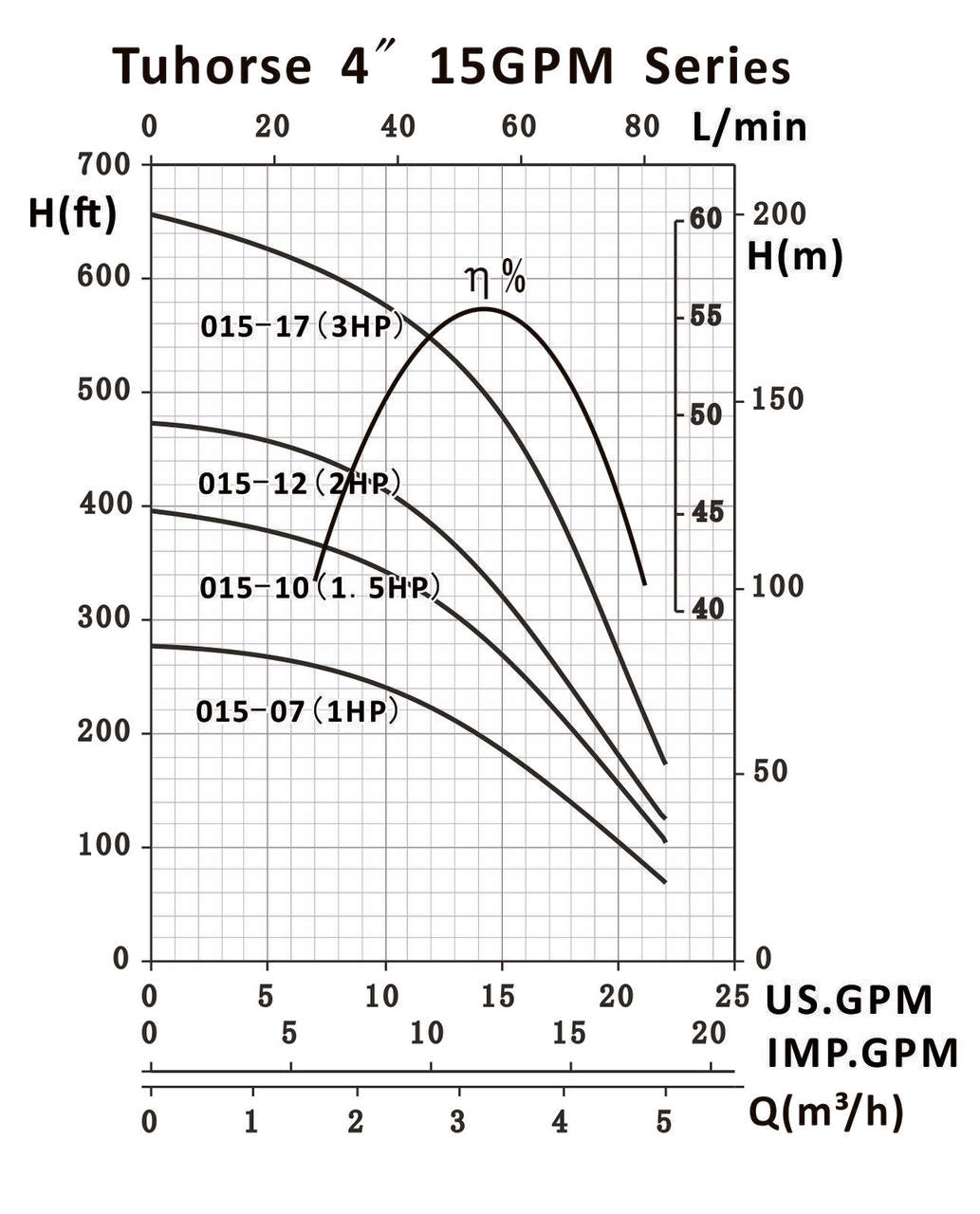

- Typical Flow: 21GPM @ 151ft; 14GPM @ 331ft; 7GPM @ 436ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour
- Weight: 40.7 lbs
- Dimensions/Length: 38.75"
Warranty: 1 Year
