Description

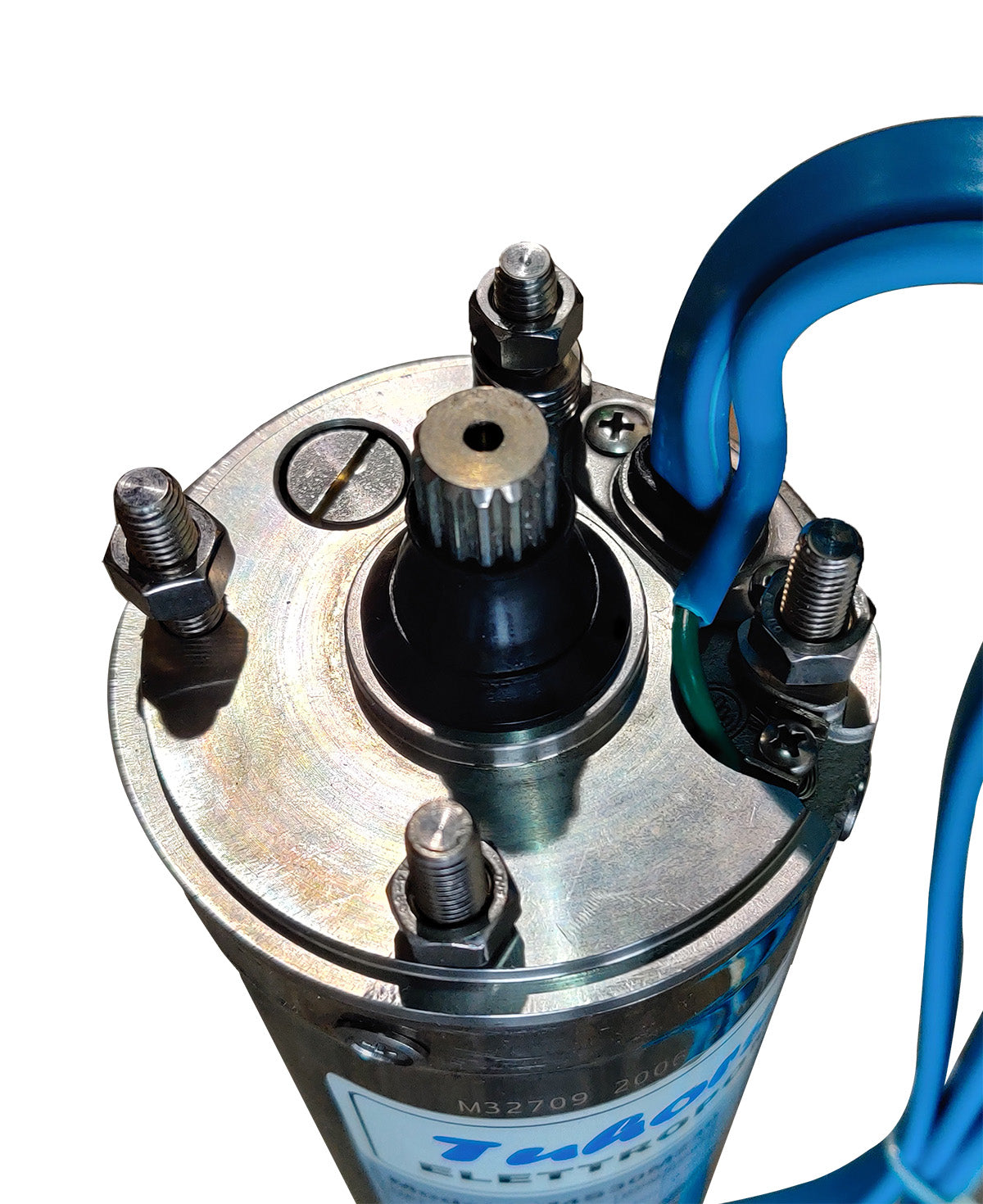

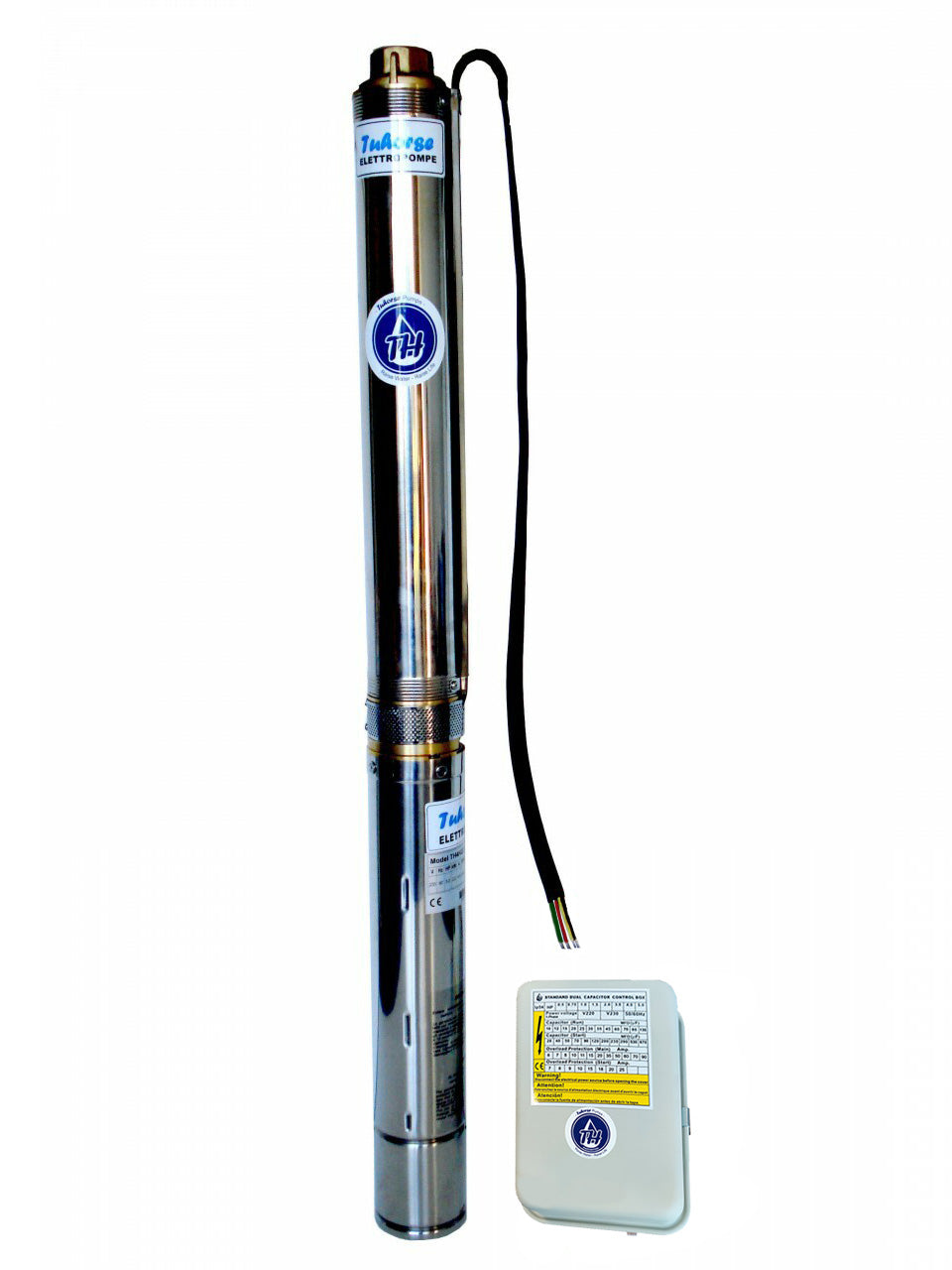

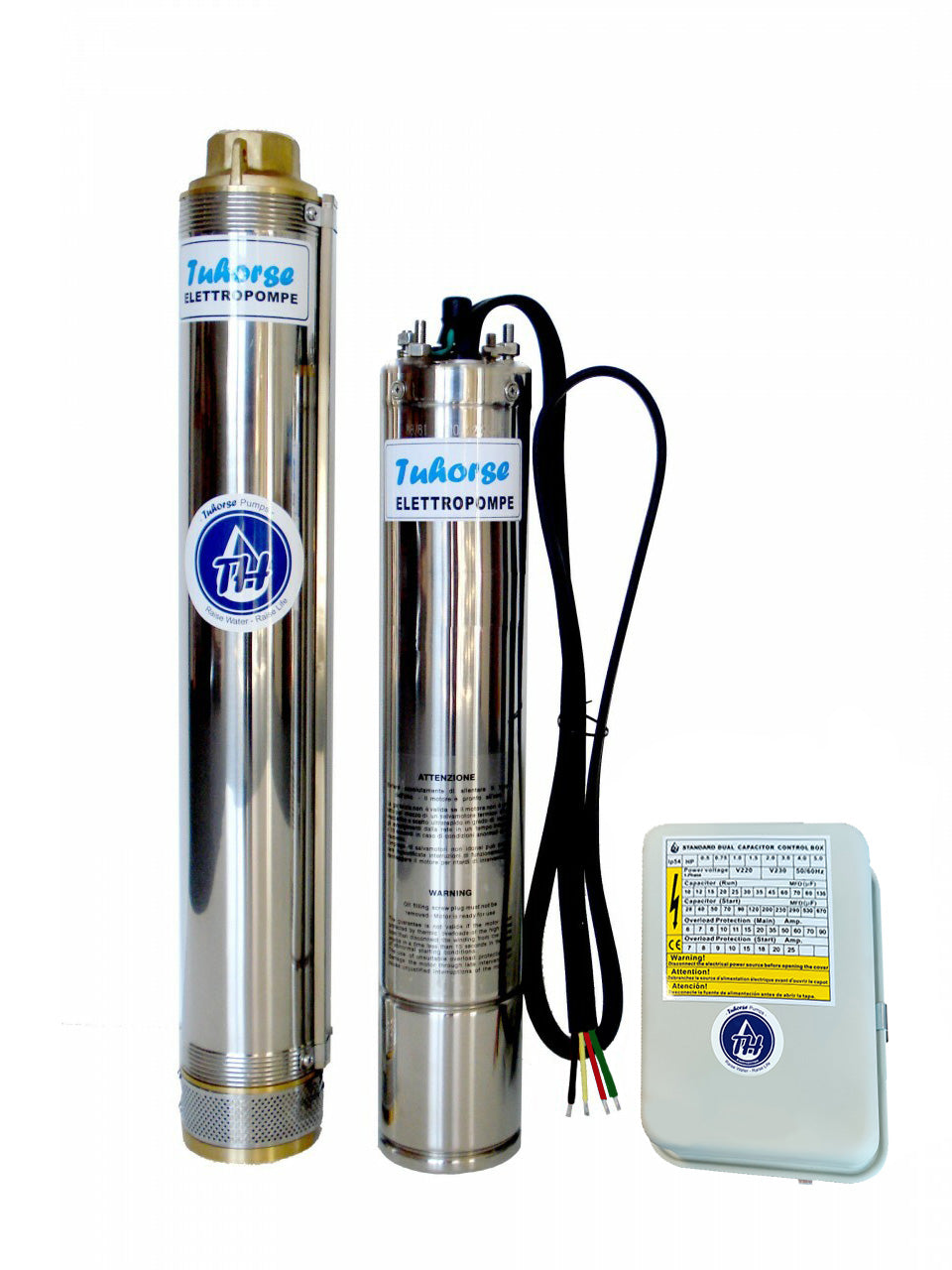

Complete pump end, motor, and dual capacitor control box set. Complete Instructions.
- HP: 2HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 9.6 A
- Motor RPM: 3450 RPM
- Stages: 12
- Maximum Head(cut off): 459 ft
- Rated Flow: 15GPM
- Maximum Flow(0-120 feet): 22 GPM
- Free Flow Rate: 20GPM @ 180ft; 18GPM @ 240ft; 15GPM @ 318ft; 10GPM @ 410ft; 8GPM @ 433ft
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour

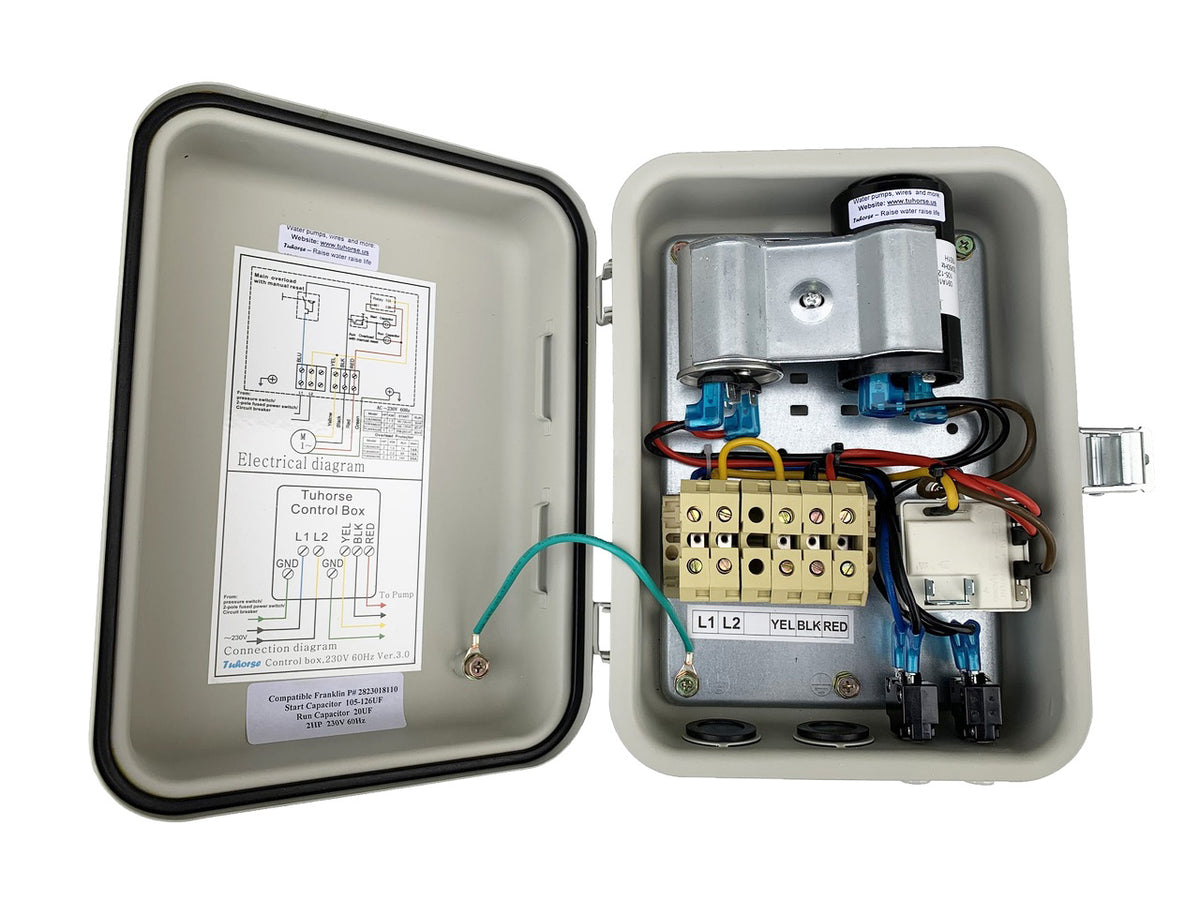

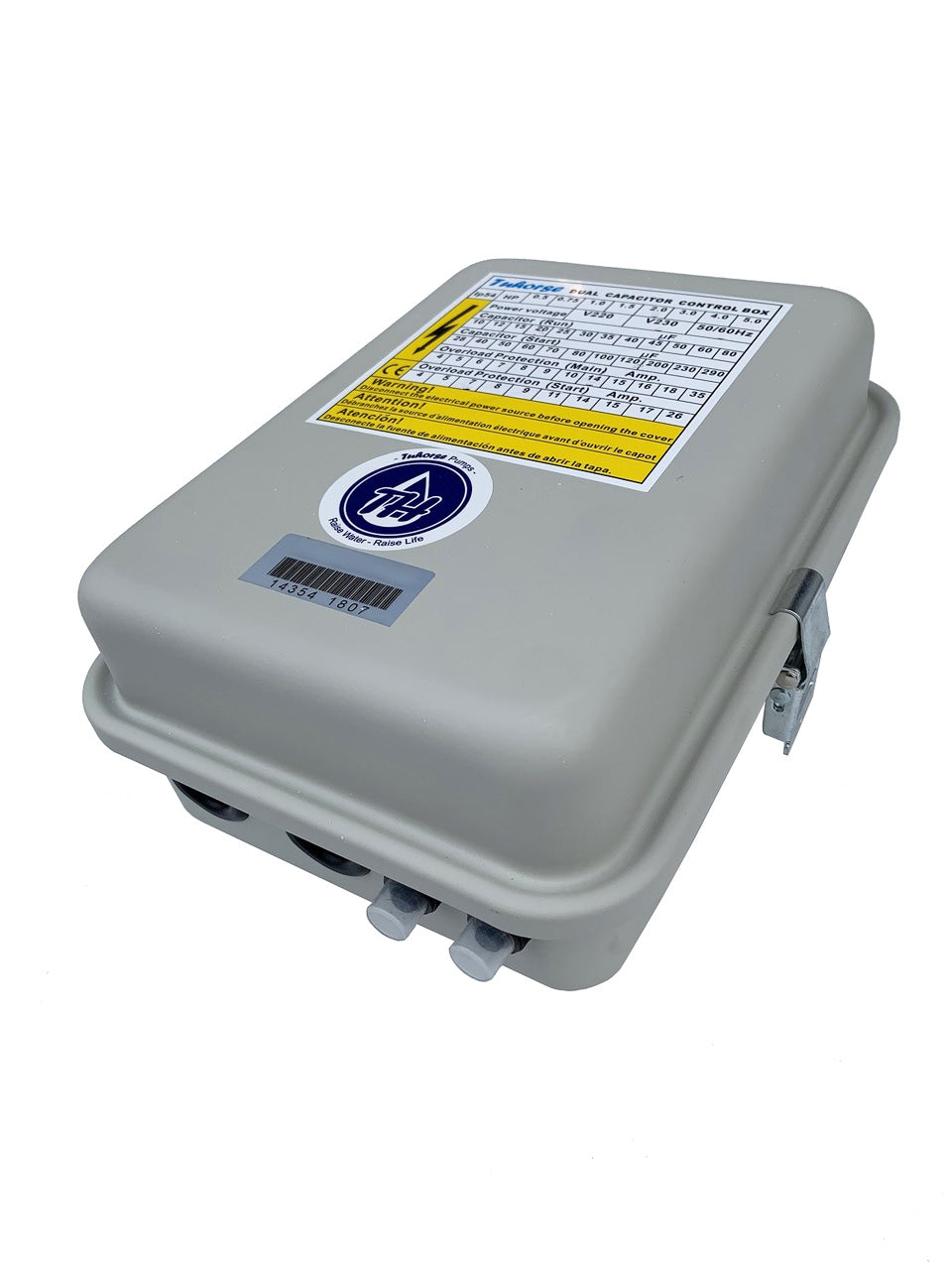

- Control Box: Dual capacitor motor start box included
- Weight: 46.2 lbs
- Dimensions/Length: 38.75"

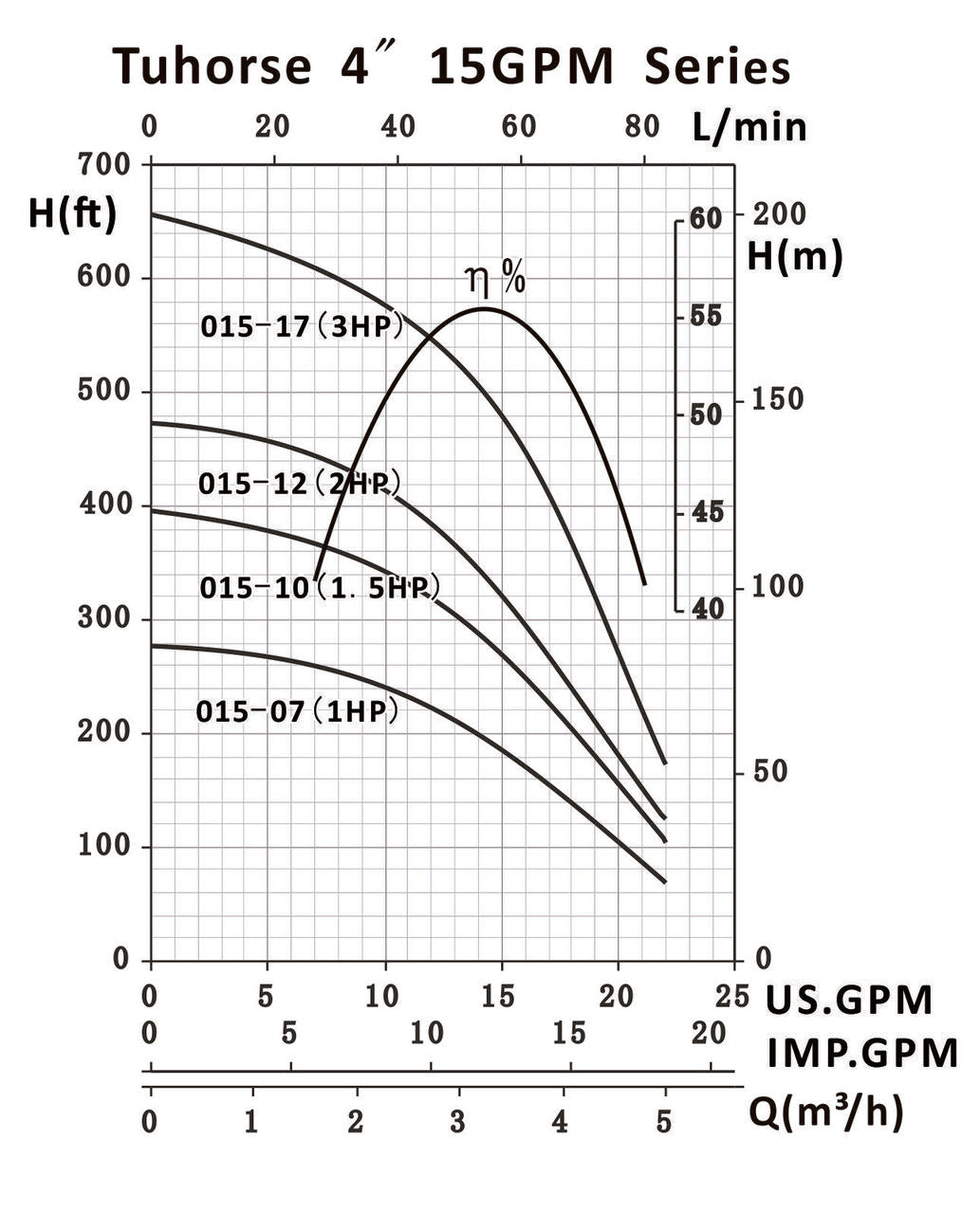

This TH4-015-12 is formerly our TH4-A-12. The pump curve remains the same because they are the same pump. We are in the process changing the model name to reflect the flow rate. 015 stands for 15GPM. The new model numbers help our customers to choose a suitable pump easier.
Warranty: 1 Year
