Description

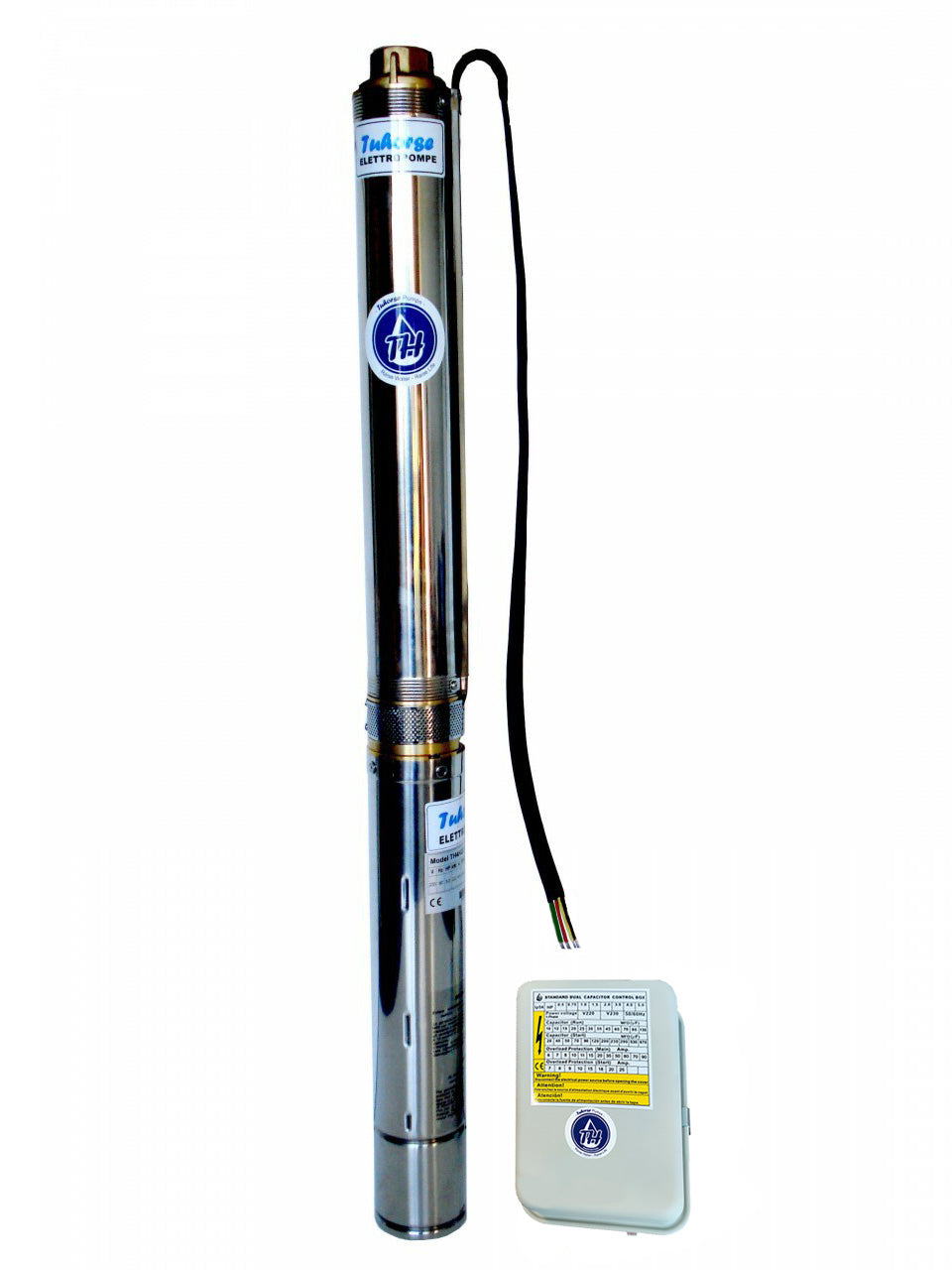

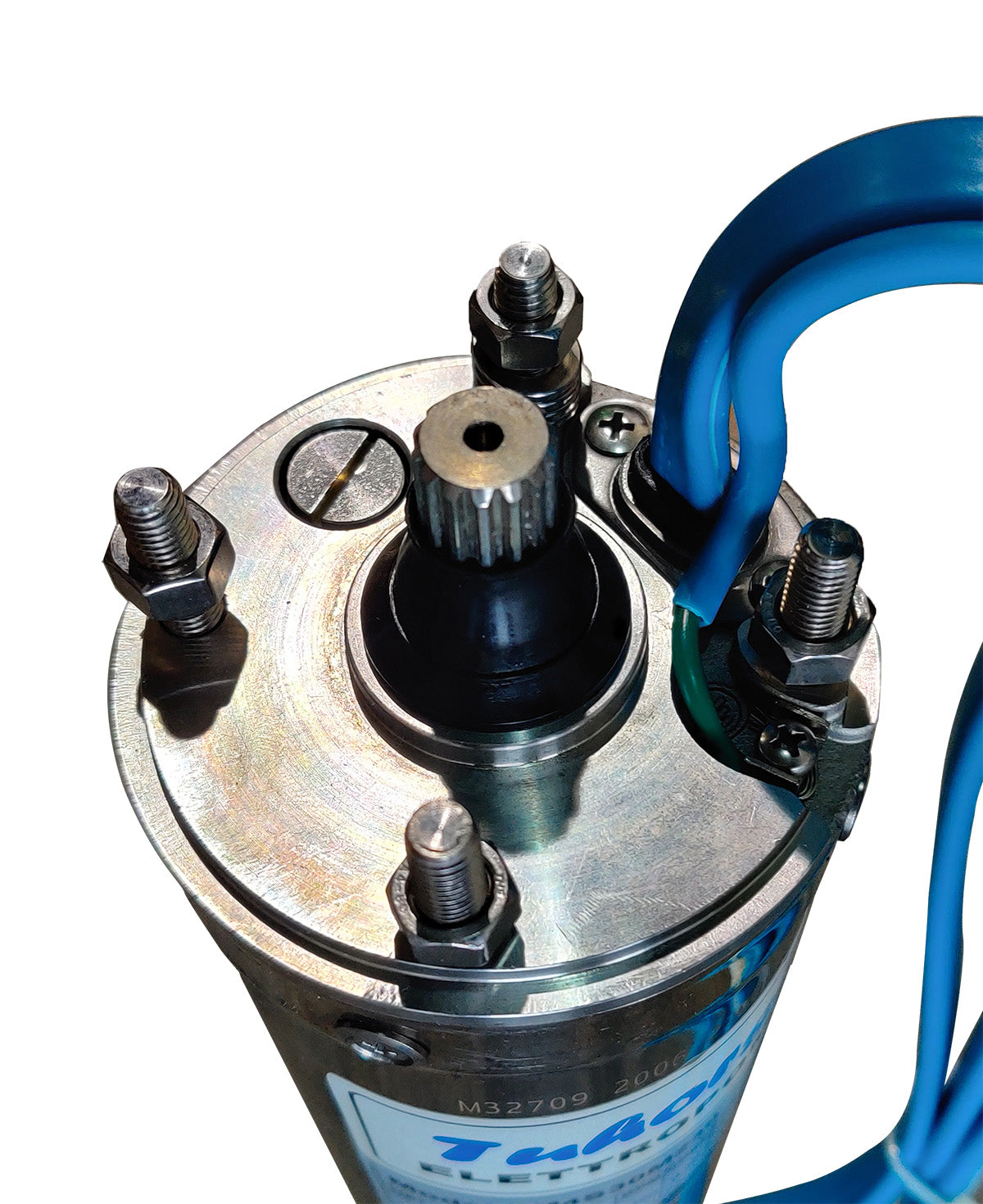

Complete pump end, motor, and dual capacitor control box pro set. Complete Instructions.
- Model: TH4-009-16
- HP: 2HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 9.6 A
- Motor RPM: 3450 RPM
- Stages: 16
- Maximum Flow: 14.1 GPM
- Maximum Head: 660 ft

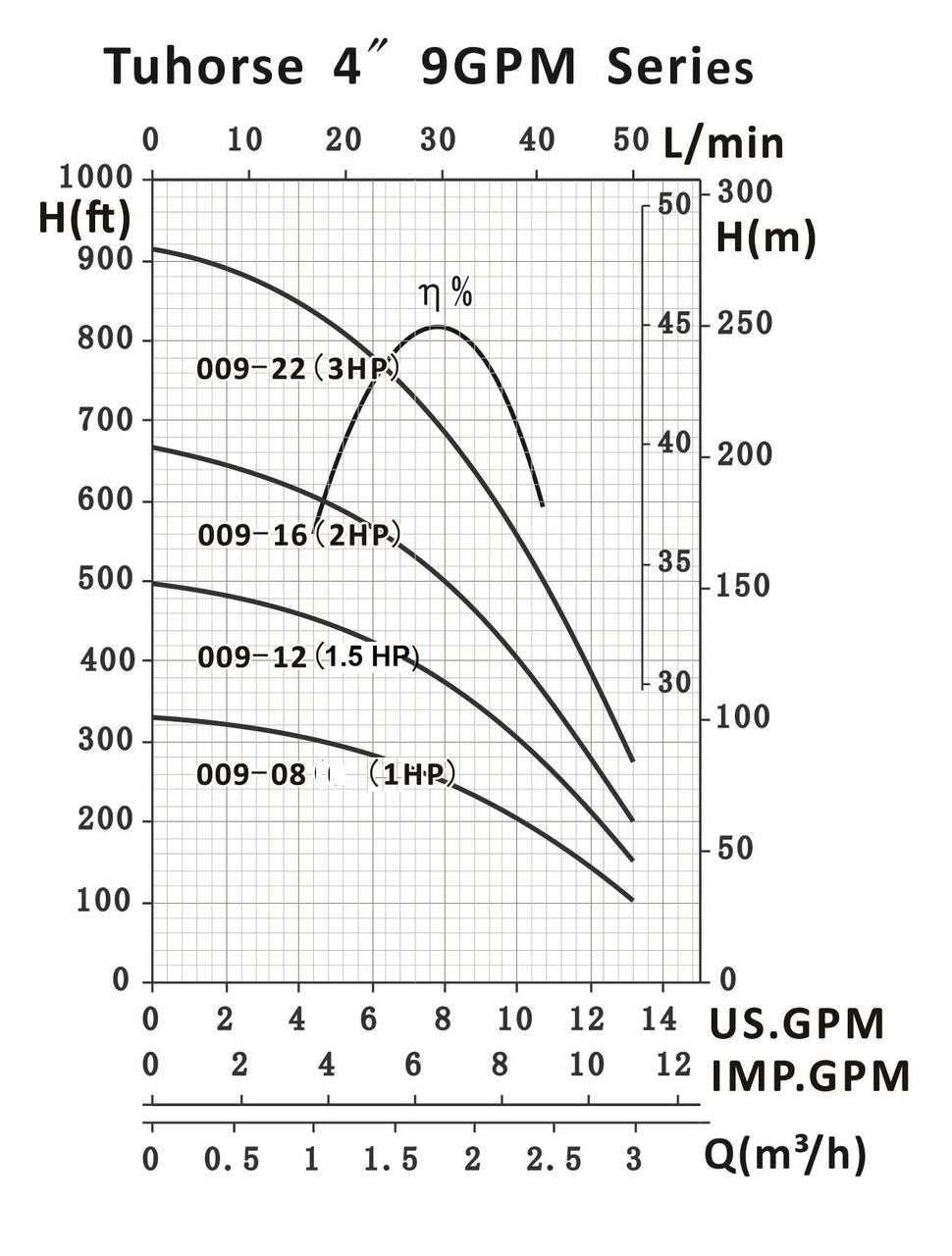

- Typical Flow: 13GPM @ 205ft; 11GPM @ 340ft; 9GPM @ 450ft; 7GPM @ 536ft; 5GPM @ 590ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour

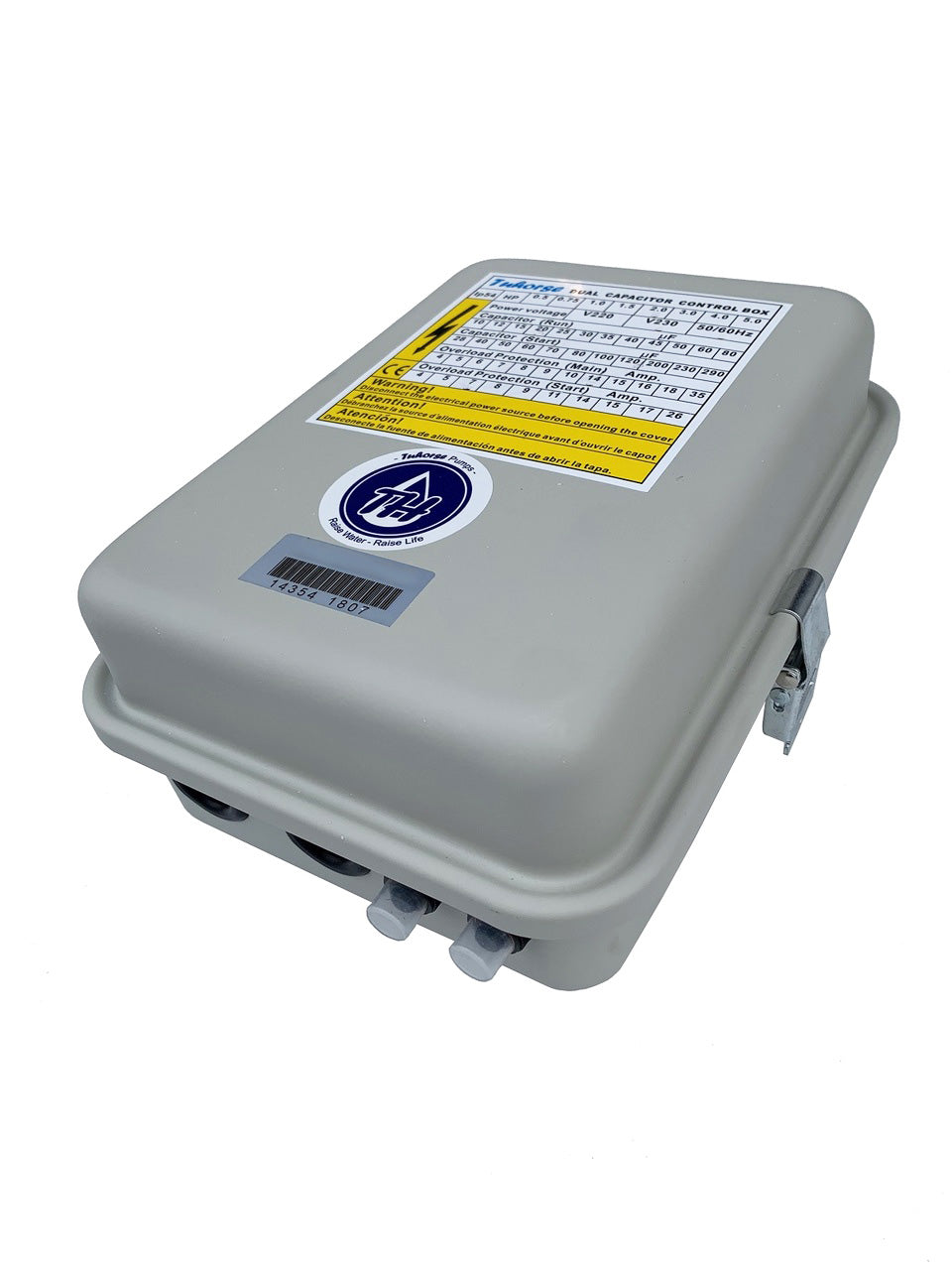

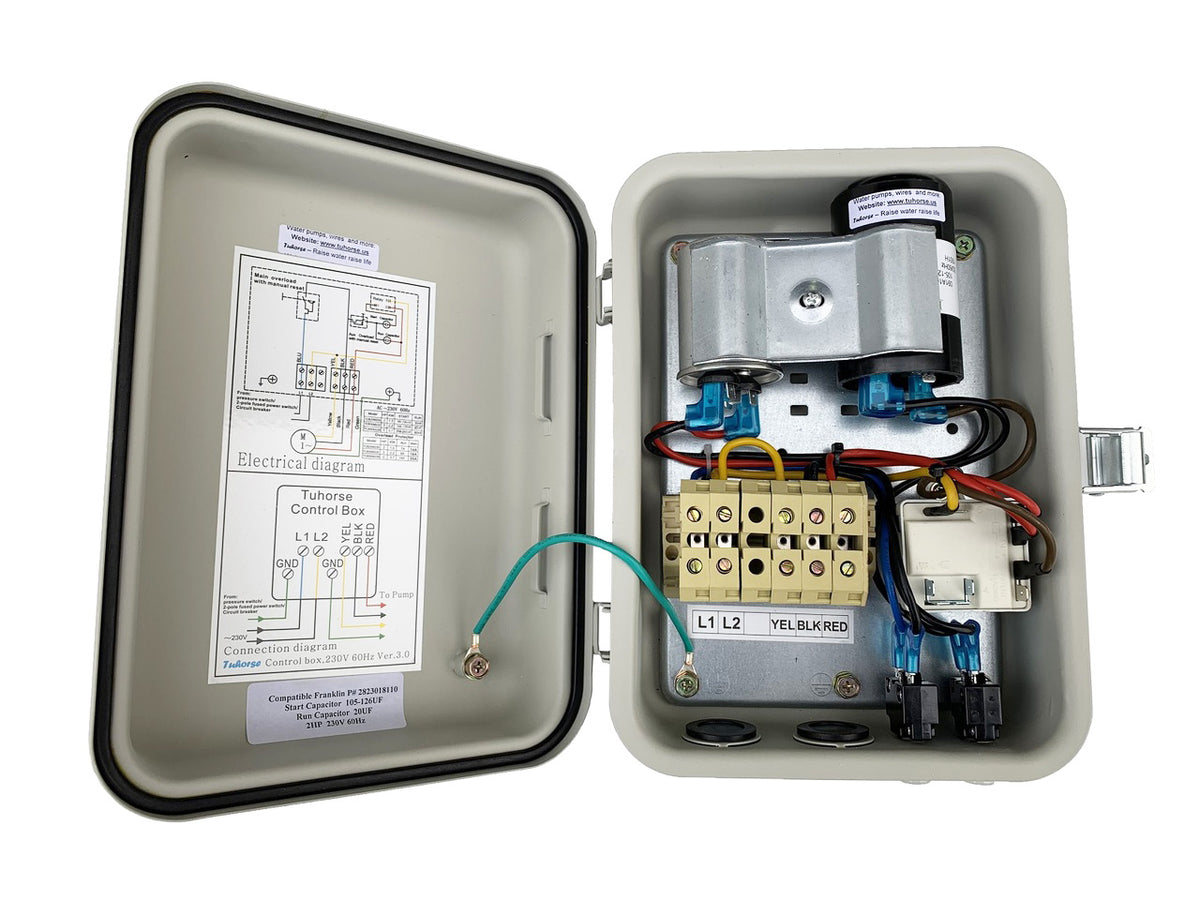

- Control Box: Dual capacitor control box pro
- Weight: 46.2 lbs
- Dimensions/Length: 40"
Warranty: 1 Year
