Description

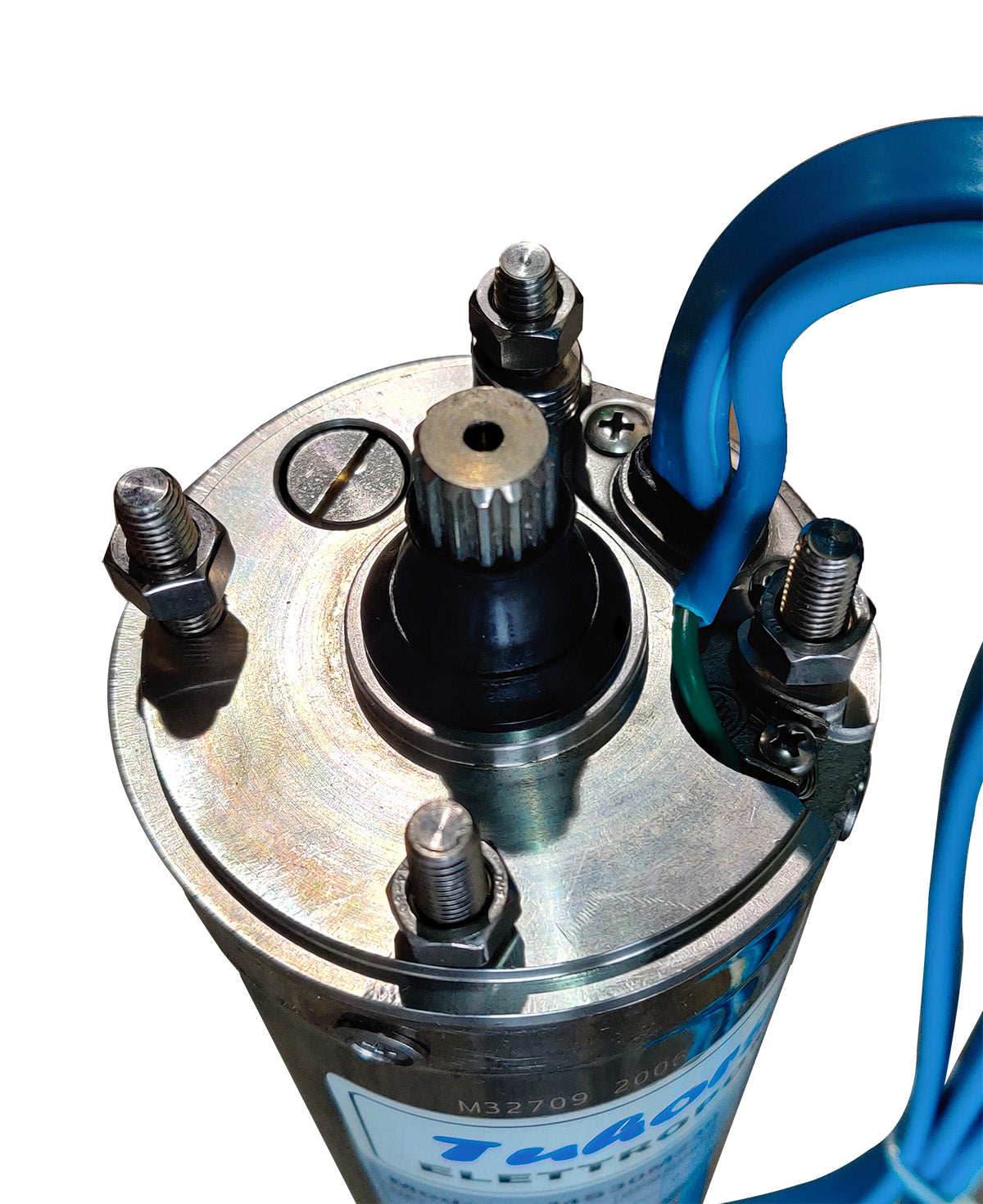

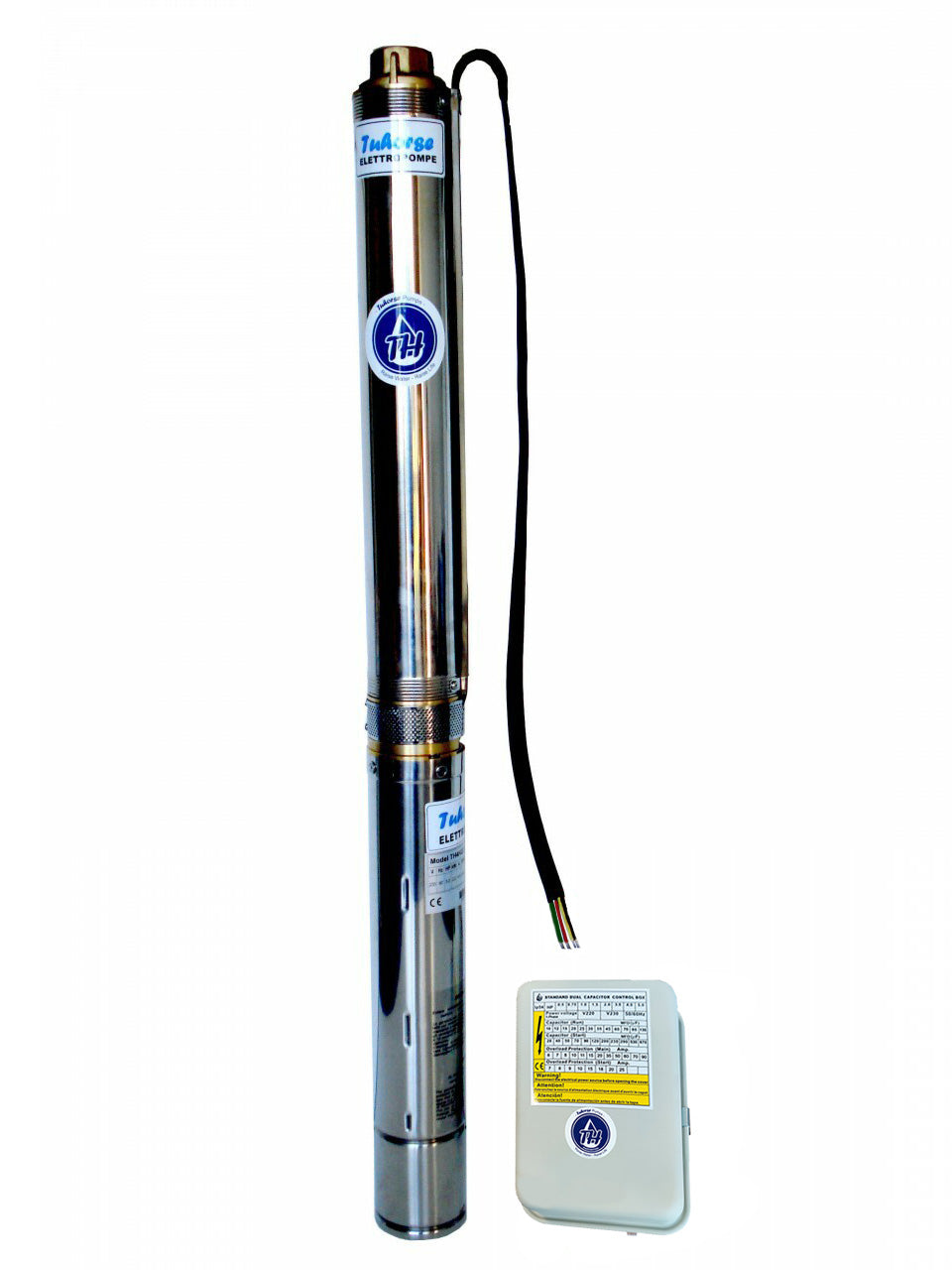

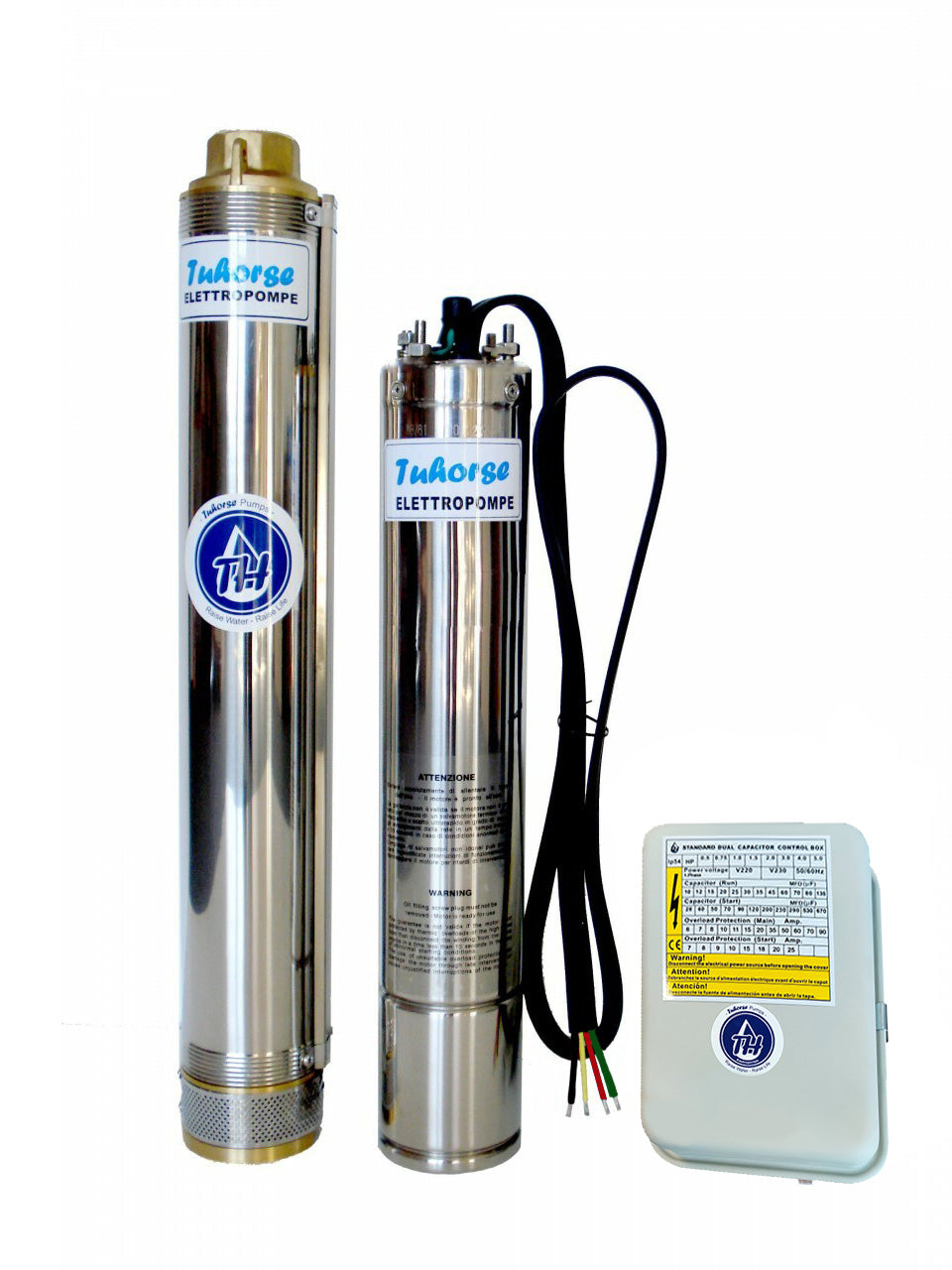

Complete pump end, motor, and dual capacitor control box pro set. Complete Instructions. This 9 stages new model replaced the well known TH4-009-08 by adding one extra stage.
- HP: 1HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 5.4 A
- Motor RPM: 3450 RPM
- Stages: 9
- Maximum Flow(0-80ft.): 14 GPM
- Maximum Head: 360 ft

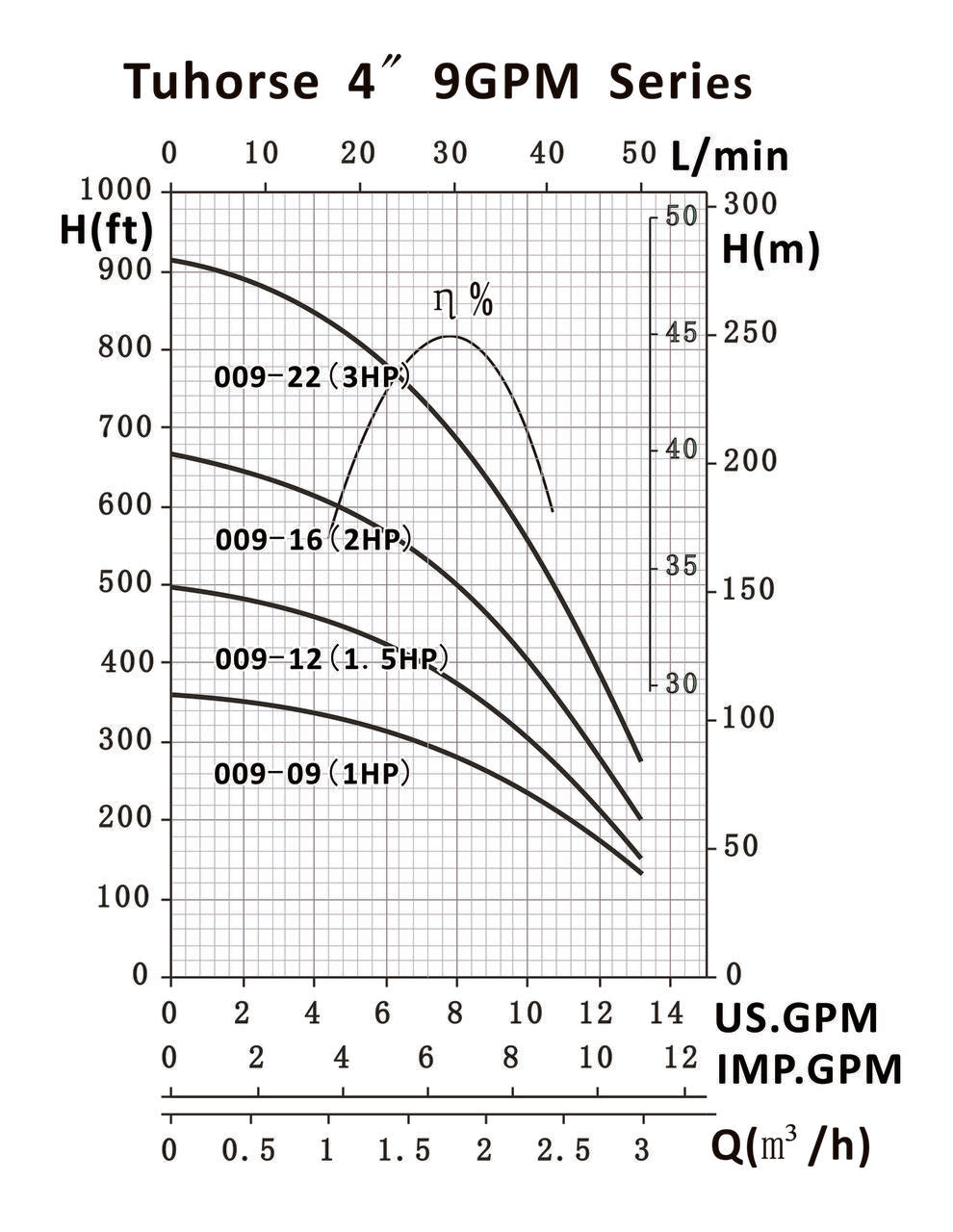

- Typical Flow: 13GPM @ 130ft; 11GPM @ 200ft.; 9GPM @ 260ft; 8GPM @ 278ft; 5GPM @ 320ft.
- Suction Port: Center Suction
- Discharge Port: 1.25 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour

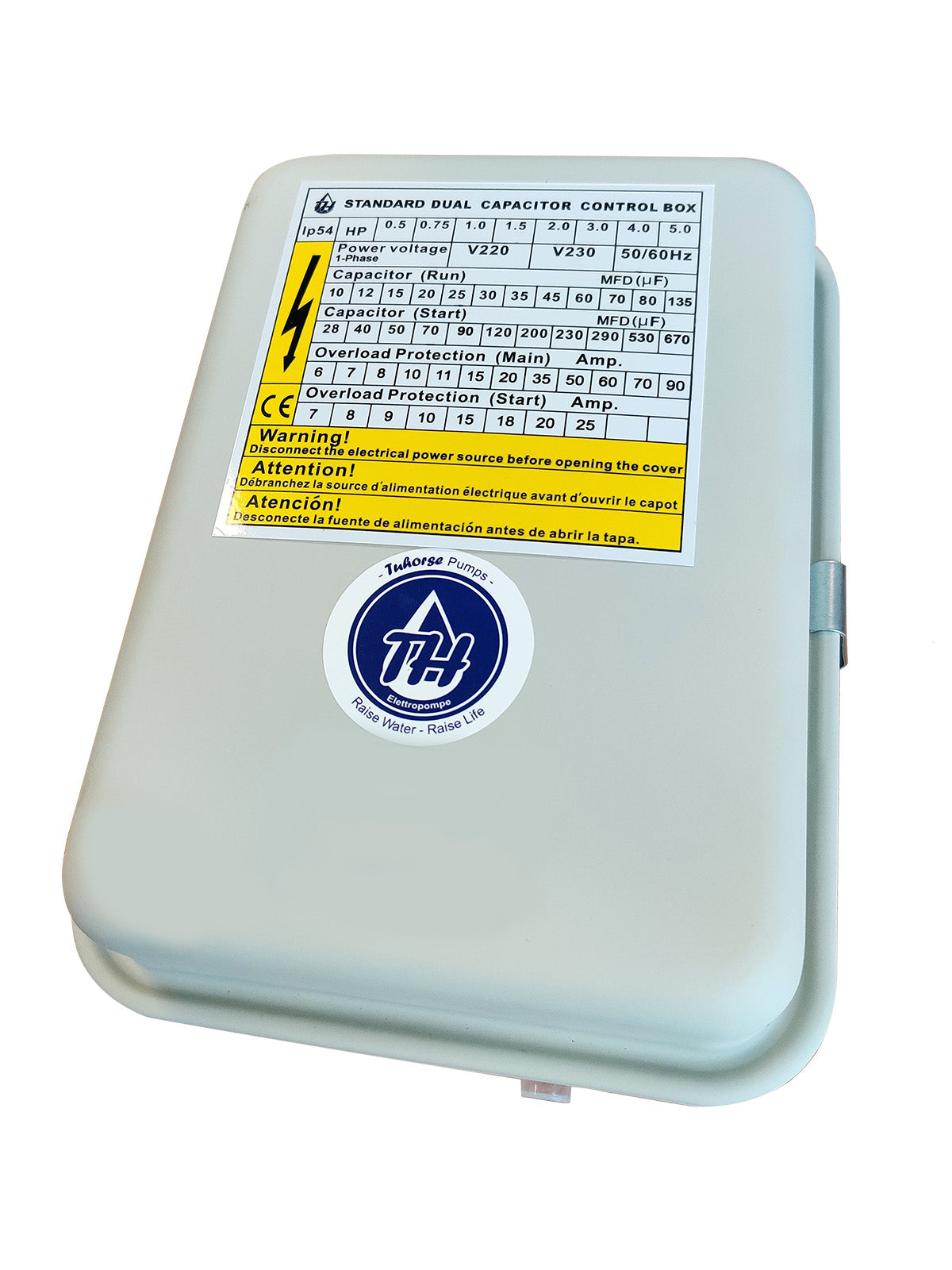

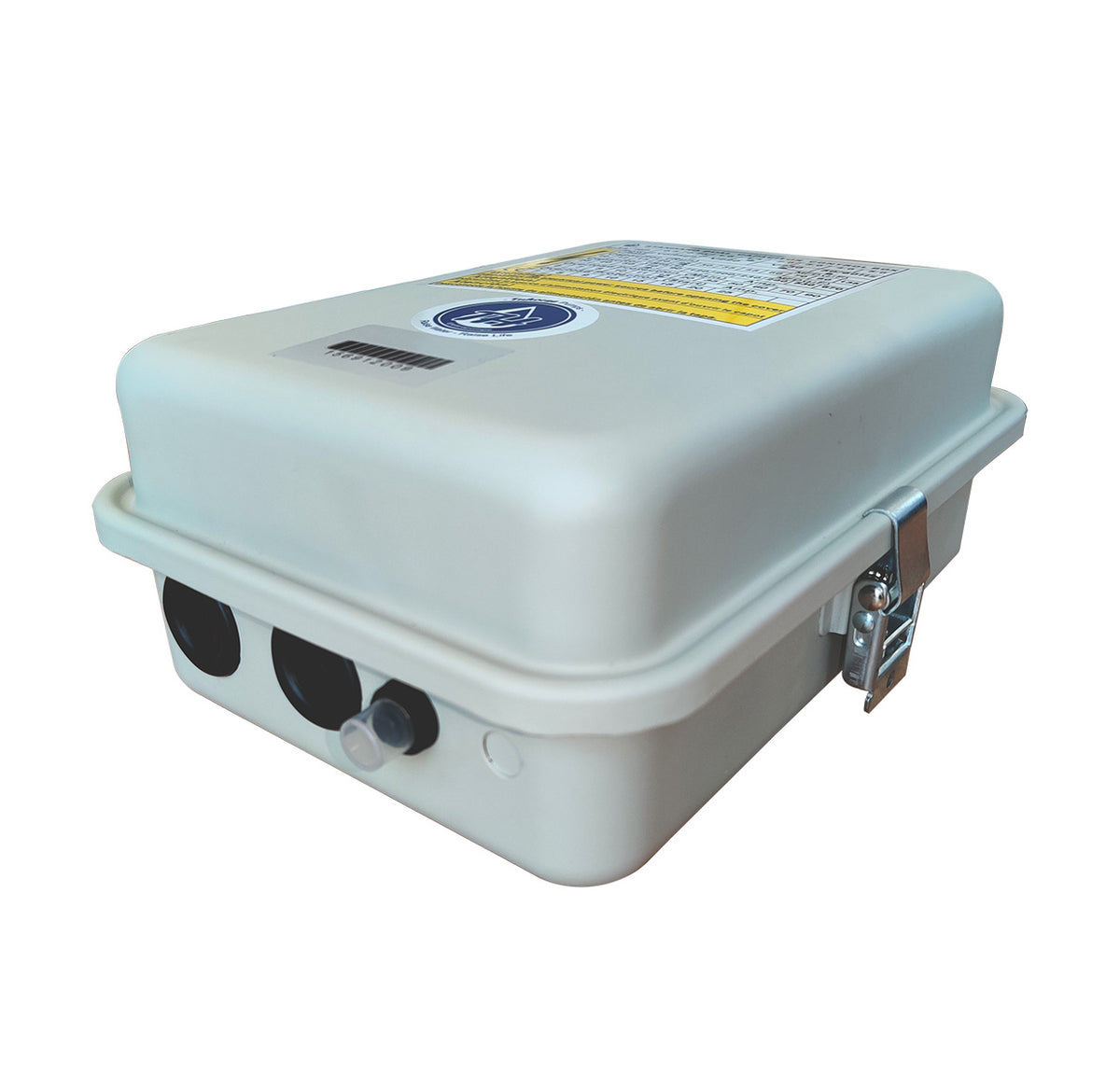

- Control Box: Dual capacitor control box pro
- Weight: 33 lbs
- Dimensions/Length: 30.25"
Warranty: 1 Year
