1.5HP TS4-018-11, 3-Wire 230V Stainless Steel Impeller Pump-End, Motor and Control Box Set

SKU: TS401811M230
Regular price $479.00 USD
Regular price $819.00 USD Sale price $479.00 USD
In stock
Ships out the same business day or next

Description

Complete pump end, motor and control box set.



  • HP: 1.5HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 7.2 A
  • Motor RPM: 3450 RPM
  • Stages: 11
  • Rated flow: 18 GPM
  • Maximum Flow: 26 GPM
  • Maximum Head: 330 ft.
  • Flow vs Depth: 26GPM @ 100 ft; 23.5GPM @ 150 ft; 20 GPM @ 200 ft; 15GPM @ 250ft; 8 GPM @ 300ft
  • Suction Port: Center Suction
  • Discharge Port: 1.25 in
  • Built-in Check-valve: Yes S.S. 304
  • Housing Material: Stainless Steel 304
  • Impeller Material: Stainless Steel 304
  • Motor Enclosure: Stainless steel 304
  • Duty: Continuous or up to 30 restarting cycles / hour

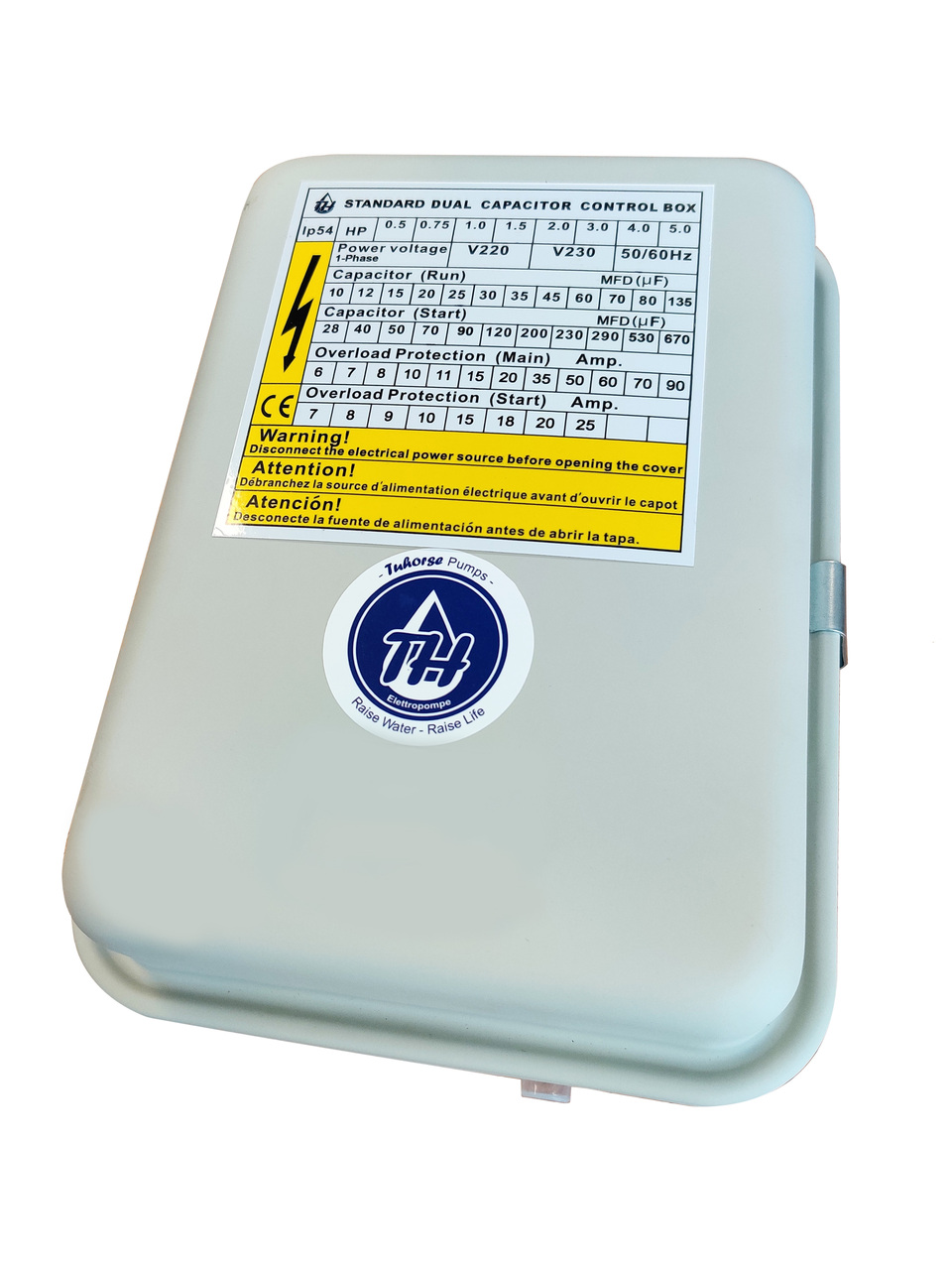

  • Control Box: Included
  • Shipping Weight: 42 lbs.
  • Dimensions/Length: 35"

Warranty: 1 Year

V
Vincent Sauer
TS4-018-11

So far so good.

c
cvofatboy
So far great pump

Recently went from a 1 hp 1” pvc set up to the tuhorse 1.5hp 1.25” pvc set up. Never installed a well pump before. Did research and watched several videos and learned a lot. Installation was a breeze. First thing I did was run it for 24 hours straight and filled up my swimming pool. The pump didn’t bat an eyelash. Somewhere around 30,000 gallons in 20 hours. During the day two 3/4” hoses wide open , they never slowed down. Solid stainless steel construction. Great customer service.
