1.5HP TH4-015-10 230V 1Ph. Complete pump end, motor, control box pro set

SKU: TH401510M230
Regular price $429.00 USD
Regular price $769.00 USD Sale price $429.00 USD
Out of stock

Description

15GPM Rated, 22GPM Max.

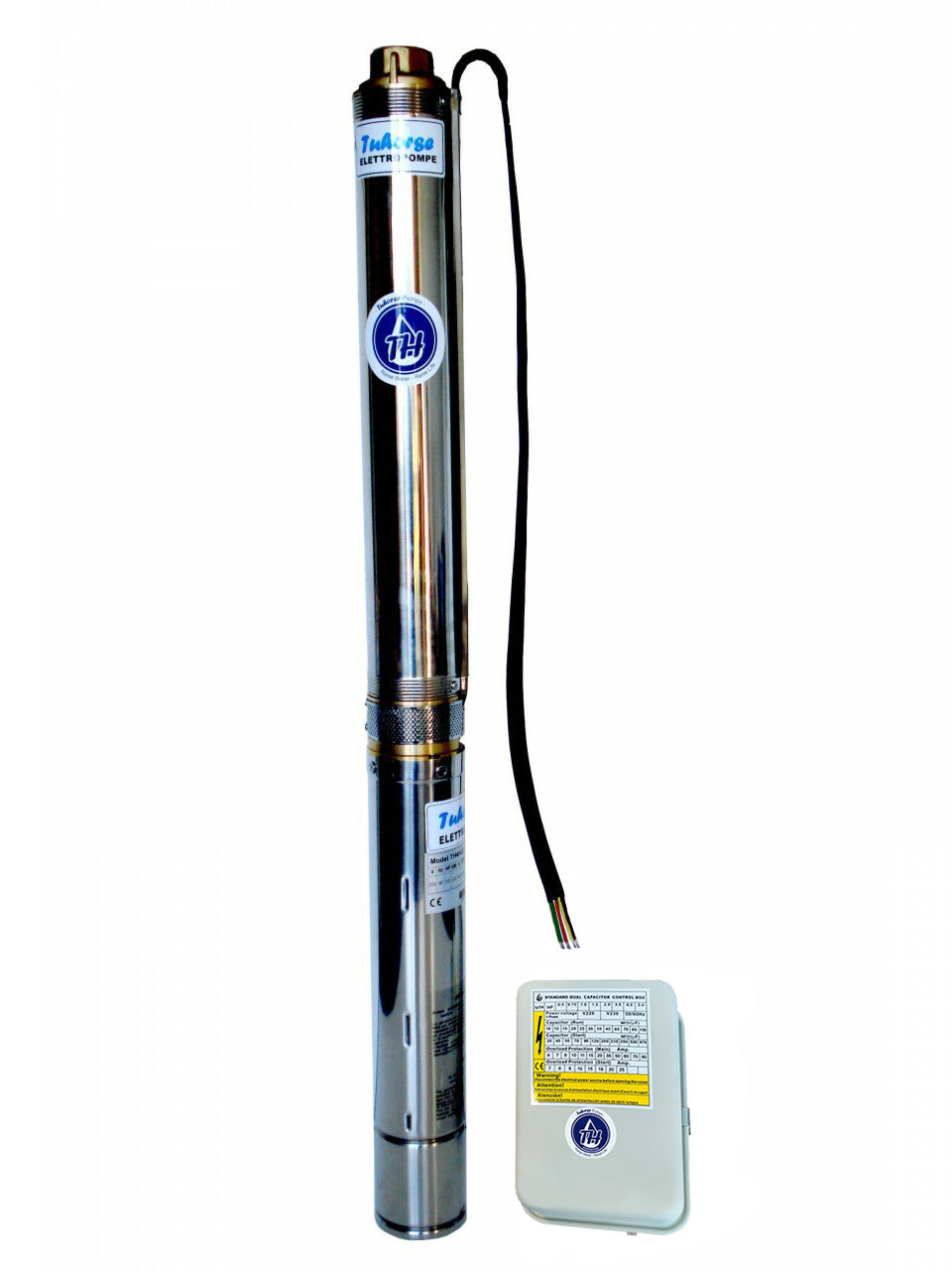

Complete pump end, motor, and dual capacitor control box pro set. Complete Instructions.



  • HP: 1.5HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 7.2 A
  • Motor RPM: 3450 RPM
  • Stages: 10
  • Maximum Flow: 22 GPM
  • Maximum Head: 384 ft

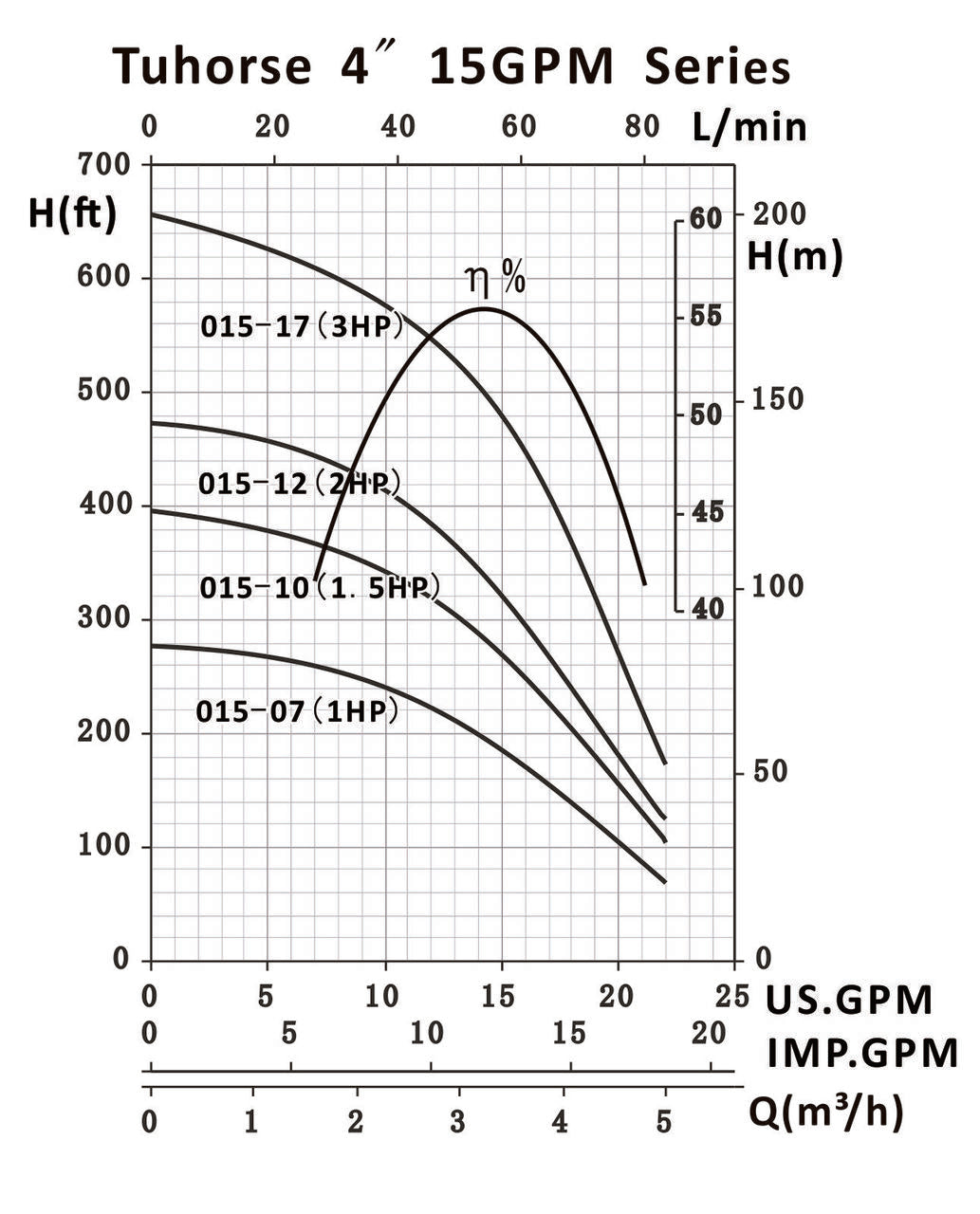

  • Typical Flow: 21GPM @ 125ft; 14GPM @ 276ft; 7GPM @ 361ft
  • Suction Port: Center Suction
  • Discharge Port: 1.25 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour

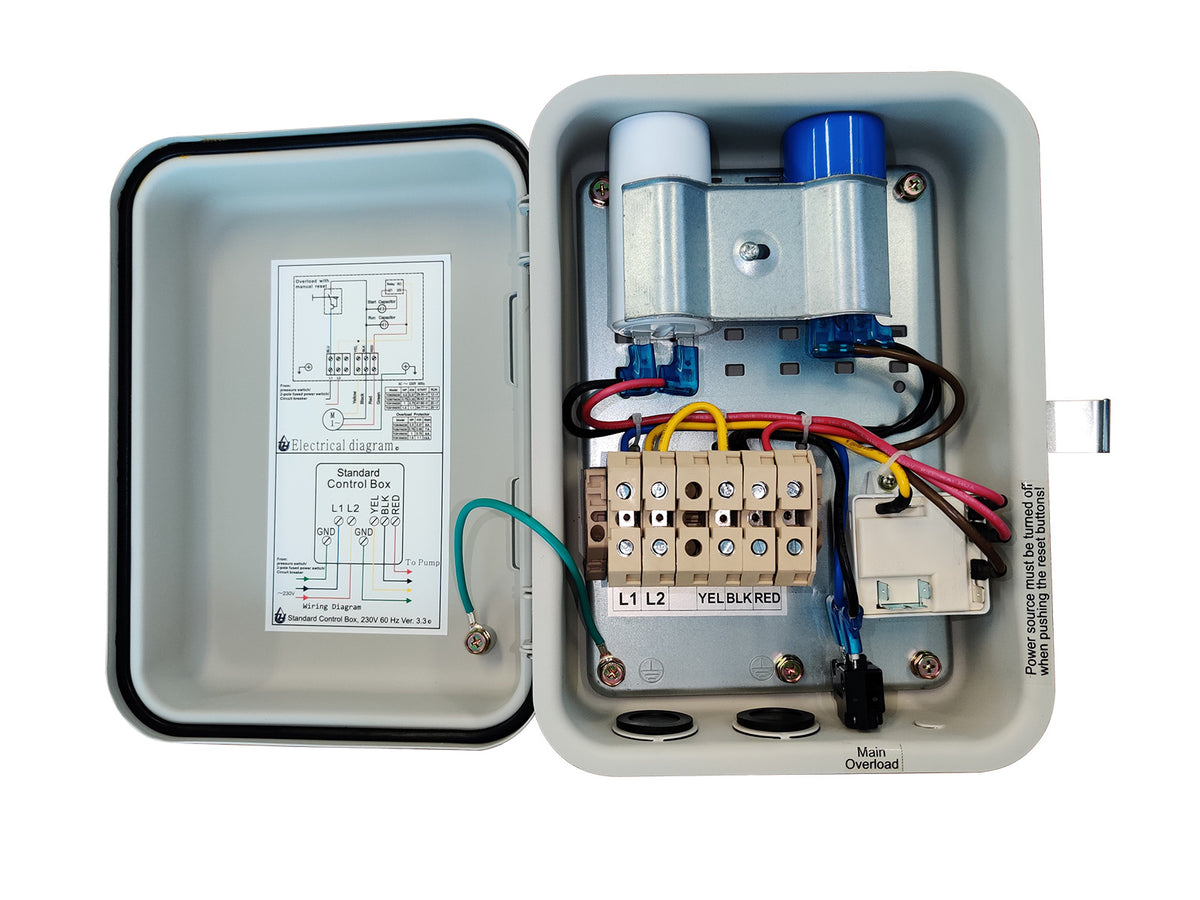

  • Control Box: Dual capacitor control box pro
  • Weight: 39.6 lbs
  • Dimensions/Length: 35"

Warranty: 1 Year
