1.5HP TH4-009-12 230V 1Ph. Complete pump end, motor, control box pro set

SKU: TH400912M230
Regular price $429.00 USD
Regular price $769.00 USD Sale price $429.00 USD
In stock
Ships out the same business day or next

Description

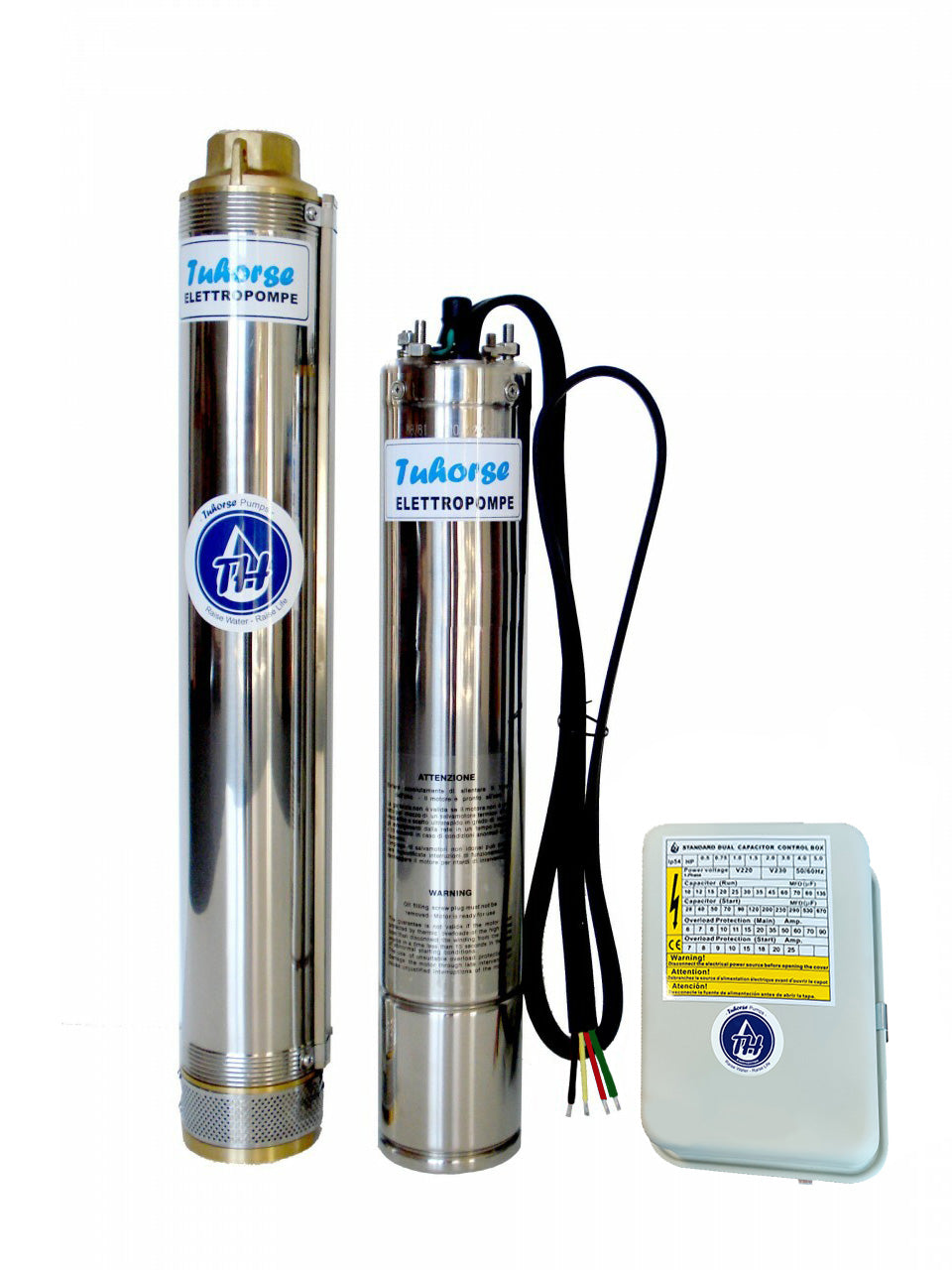

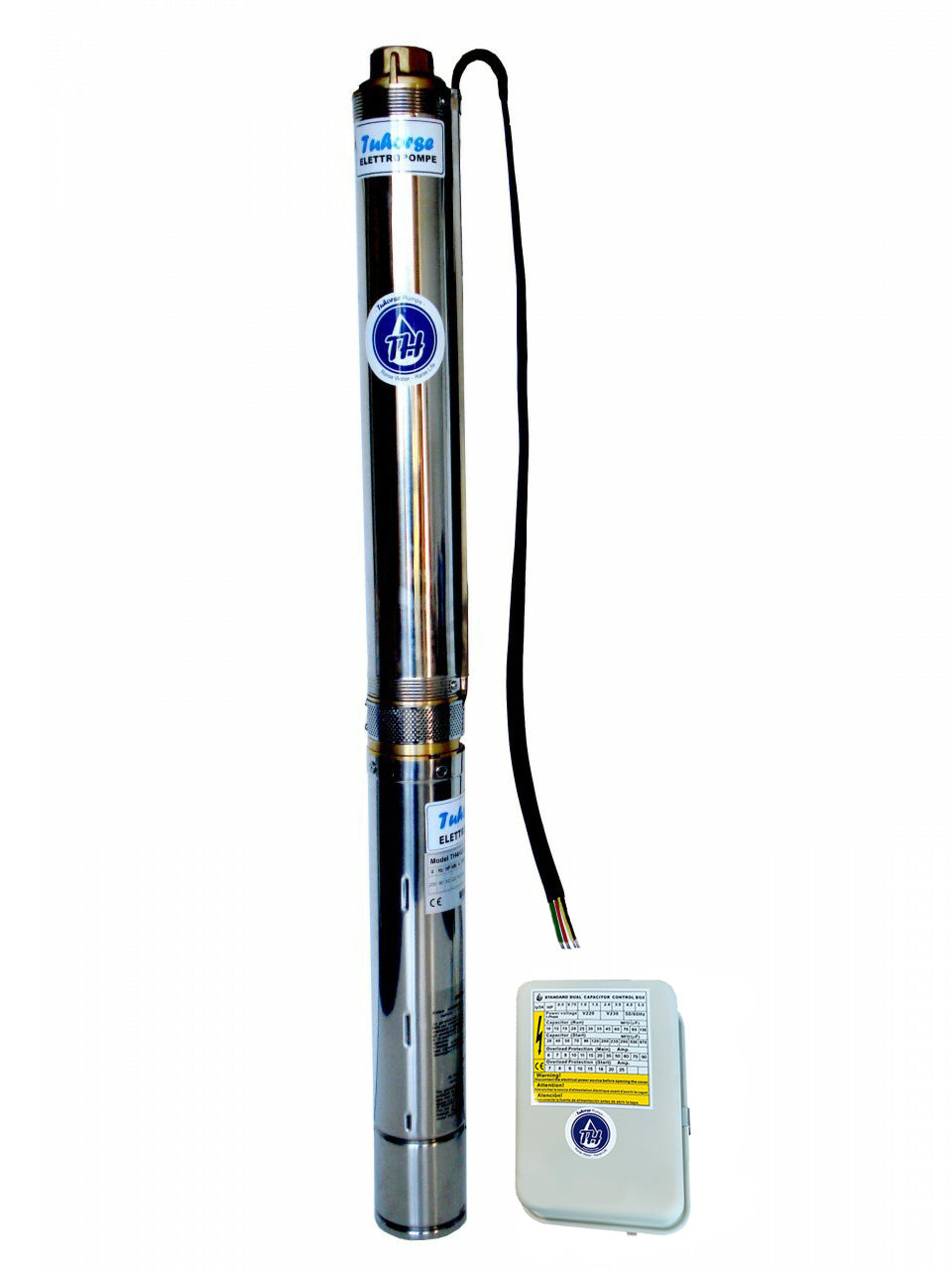

Complete pump end, motor, and dual capacitor control box pro set. Complete Instructions.

  • HP: 1.5HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 7.2A
  • Motor RPM: 3450 RPM
  • Stages: 12
  • Rated Flow: 9GPM
  • Maximum Flow: 14.1 GPM
  • Maximum Head(cut off head): 480 ft

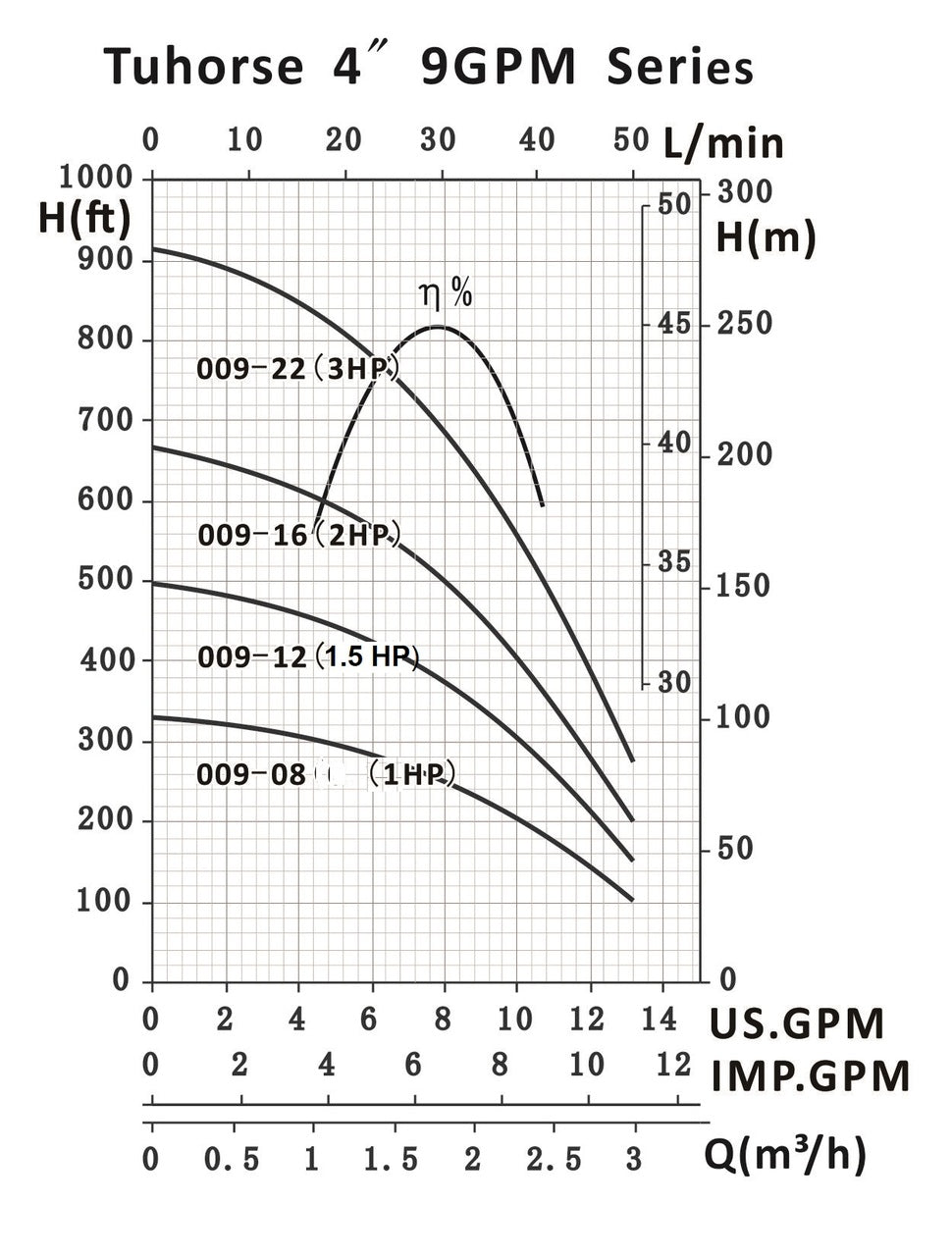

  • Typical Flow: 13GPM @ 160ft; 11GPM @ 260ft; 9GPM @ 335ft; 7GPM @ 400ft; 5GPM @ 440ft.
  • Suction Port: Center Suction
  • Discharge Port: 1.25 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic

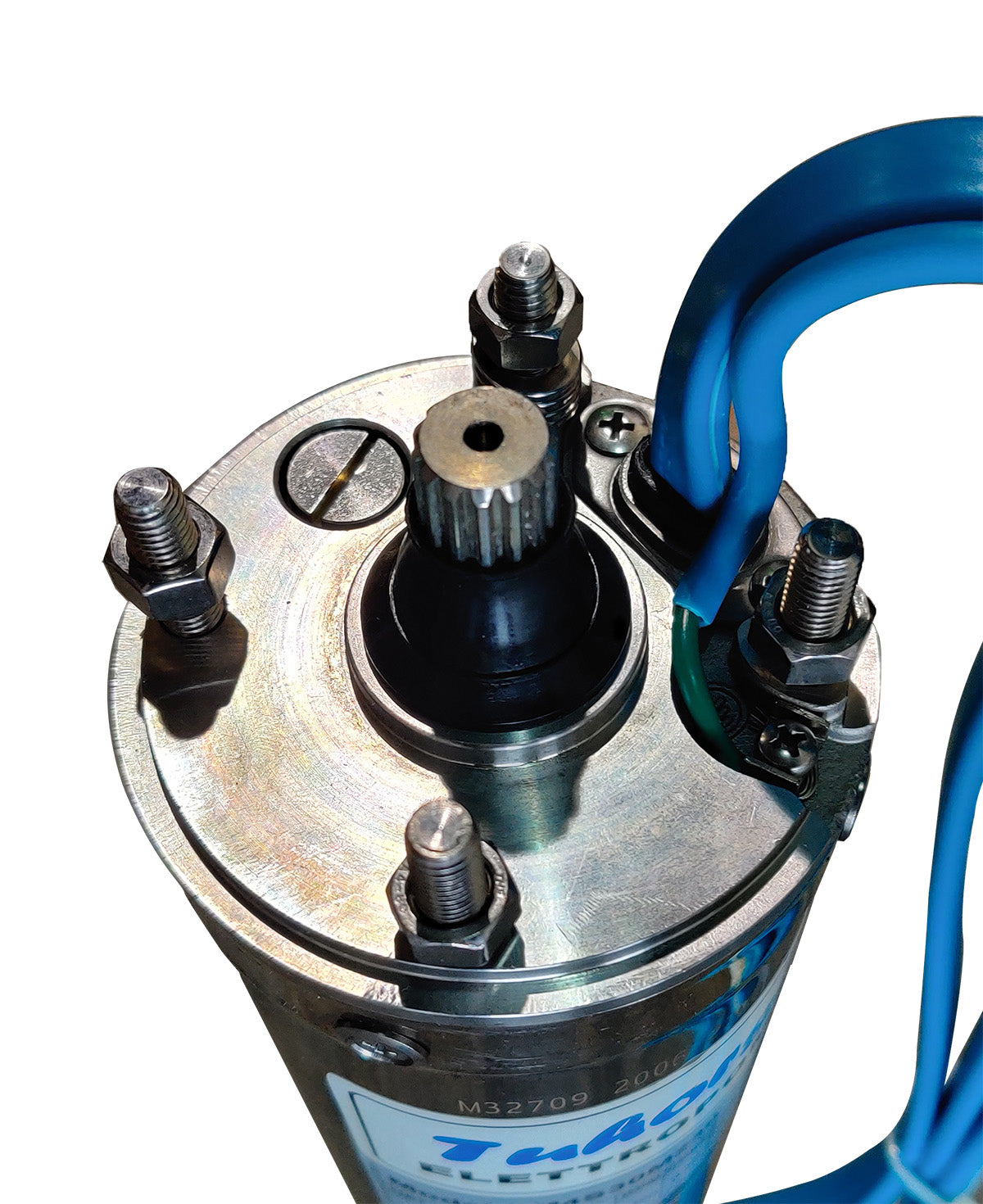

  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour

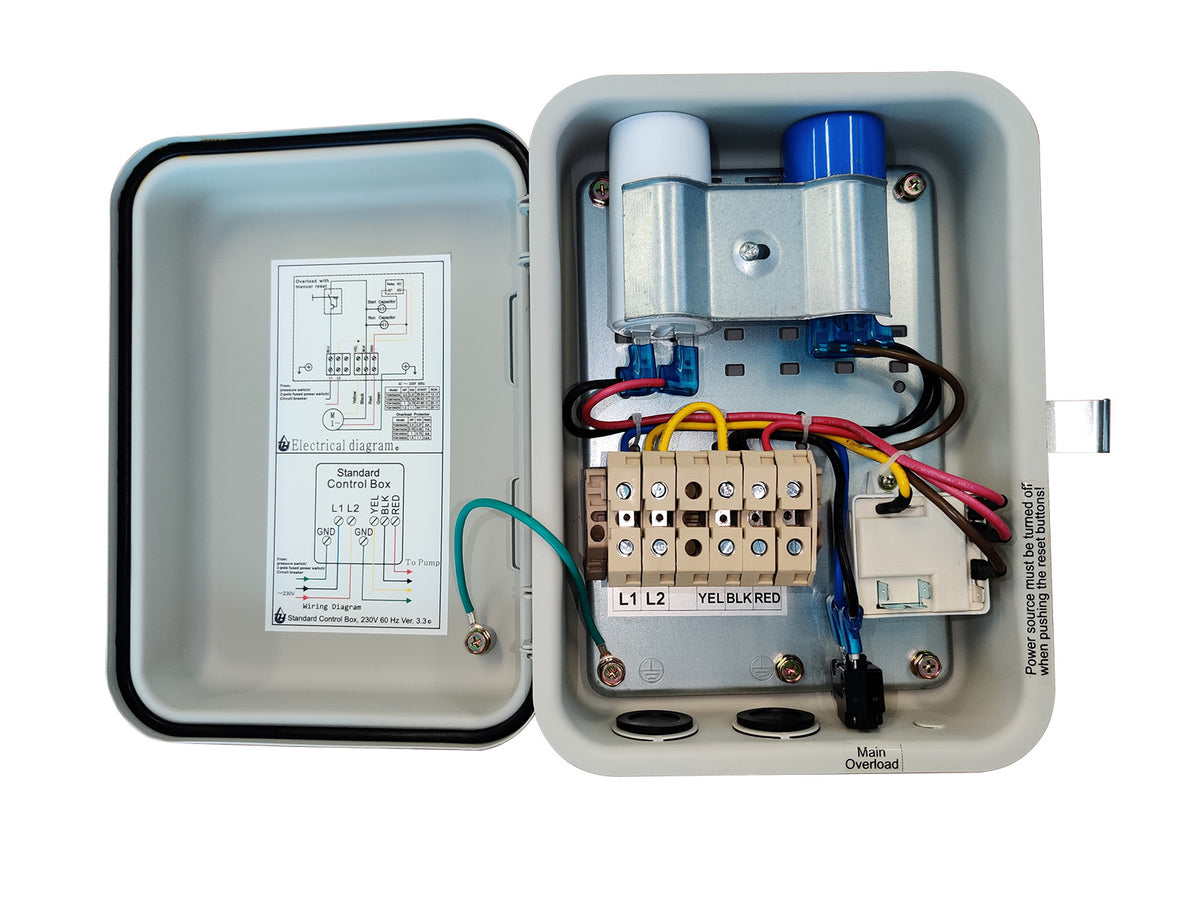

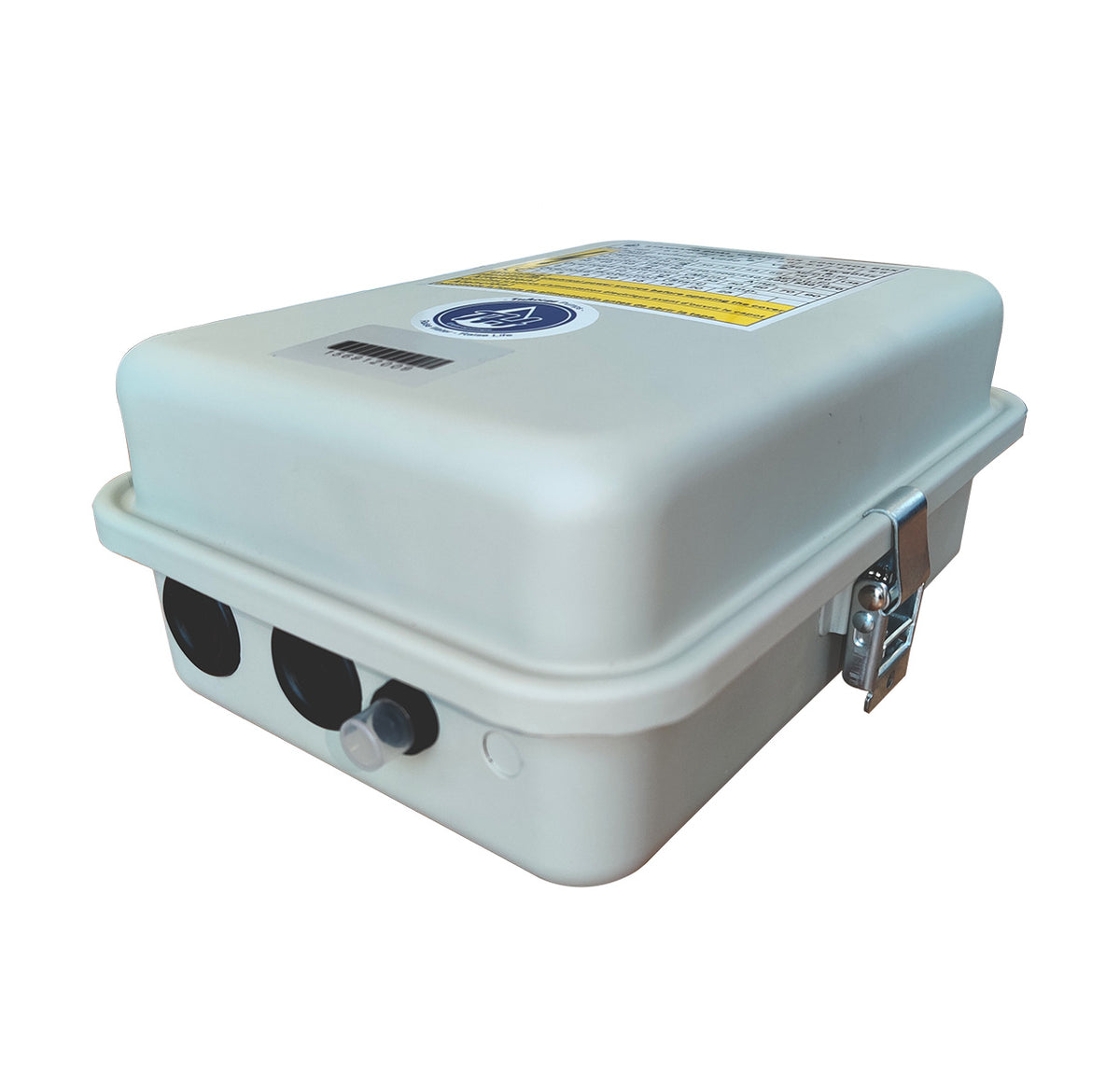

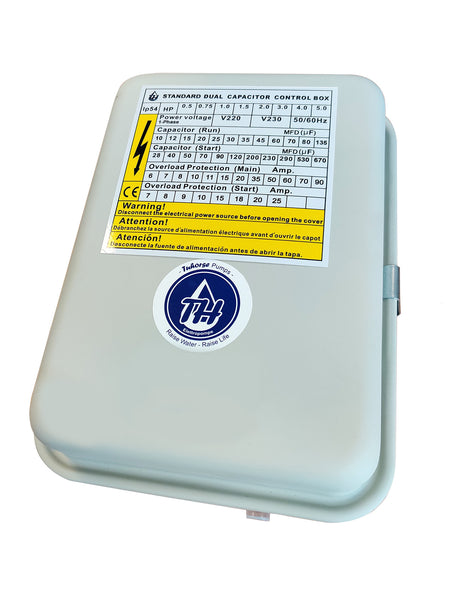

  • Control Box: Dual capacitor control box pro
  • Weight: 36 lbs
  • Dimensions/Length: 36"
  • Note: External check valve required if pressure tank is used

Warranty: 1 Year
