Description

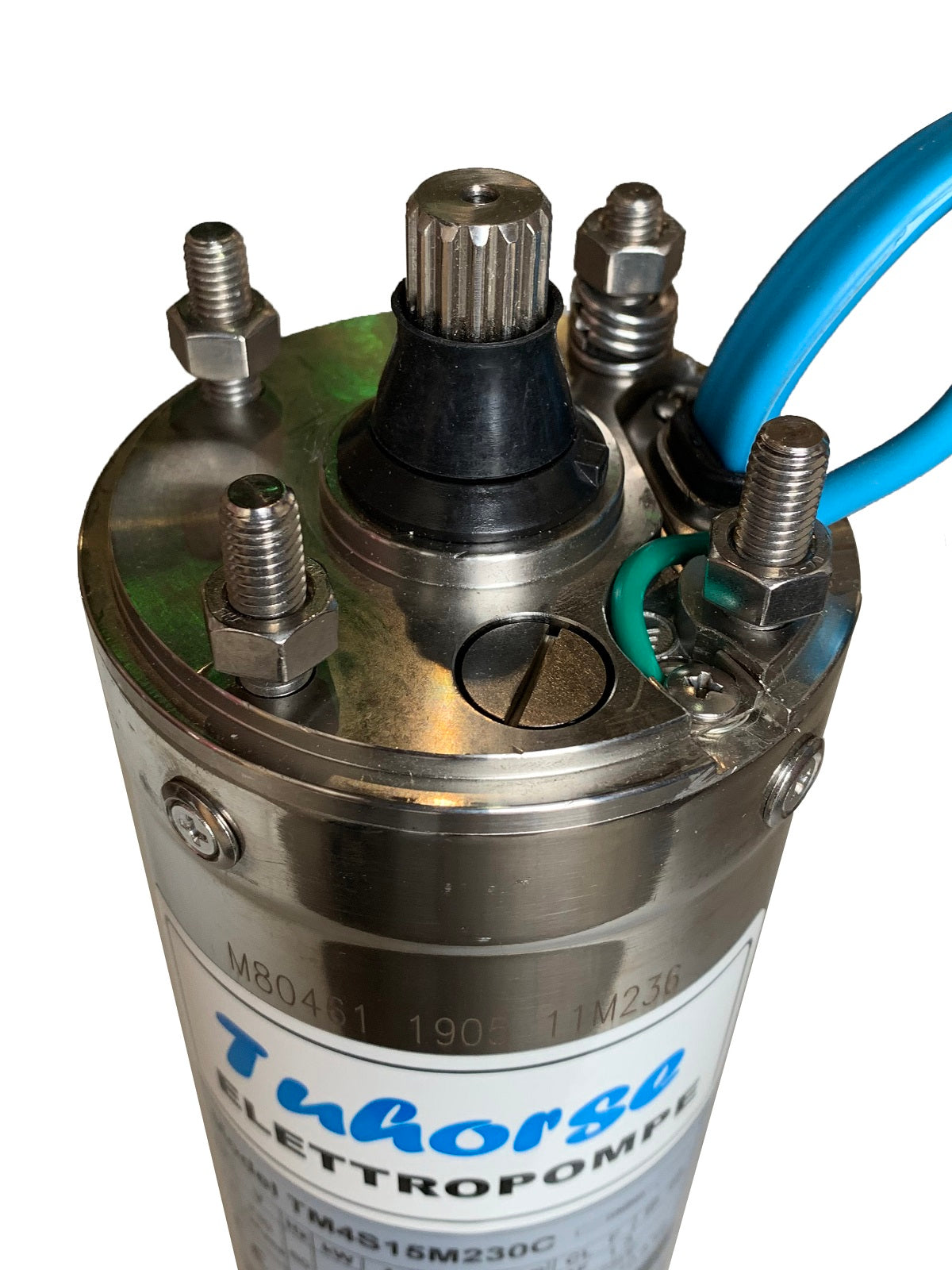

Complete pump end, motor and dual capacitor control box set. Complete Instructions.
- HP: 1HP

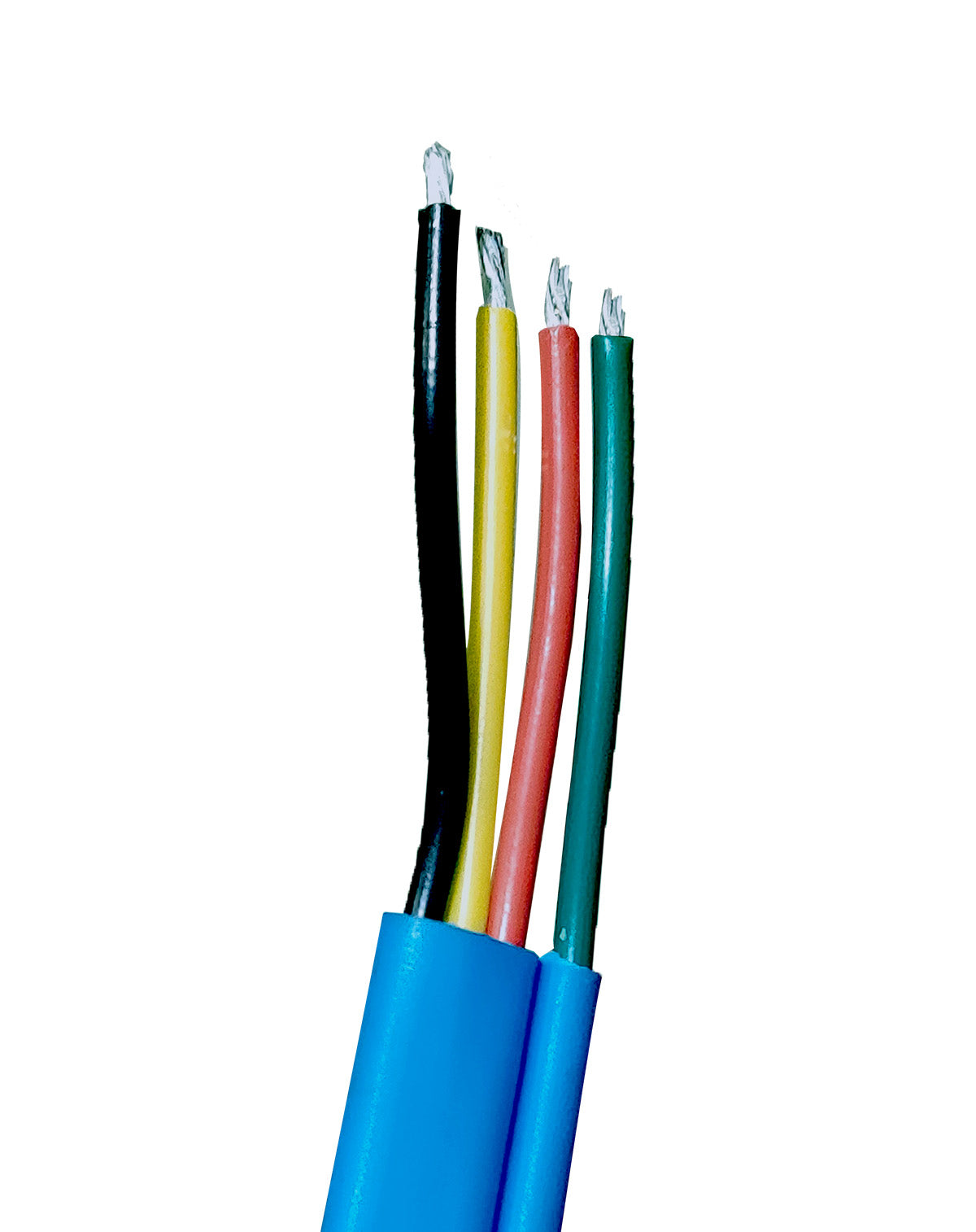

- Voltage: 230V Single Phase, 3-wire + ground lead
- Cycle: 60 Hz
- Operating Amperage: 5.4 A
- Motor RPM: 3450 RPM
- Stages: 10
- Rated flow: 13 GPM
- Maximum Flow(0-100 ft.): 18 GPM
- Maximum Head: 300 ft
- Flow vs Depth: 16GPM @ 150ft; 13GPM @ 180ft; 10GPM @ 205ft; 8GPM @ 230ft; 6GPM @ 250ft.
- Suction Port: Center Suction

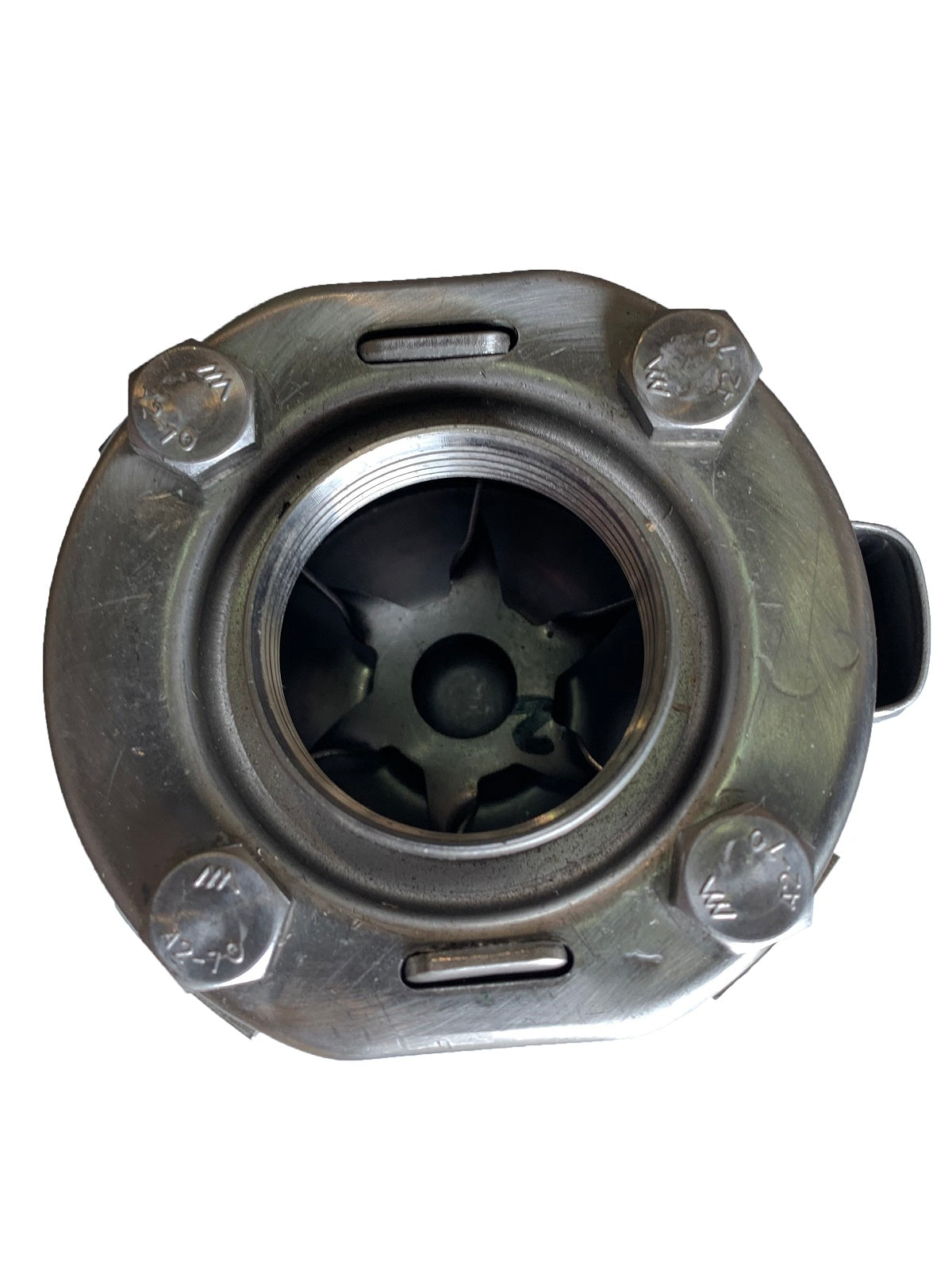

- Discharge Port: 1.25 in
- Built-in Check-valve: Yes S.S. 304
- Housing Material: Stainless Steel 304
- Impeller Material: Stainless Steel 304
- Motor Enclosure: Stainless steel 304
- Duty: Continuous or up to 30 restarting cycles / hour

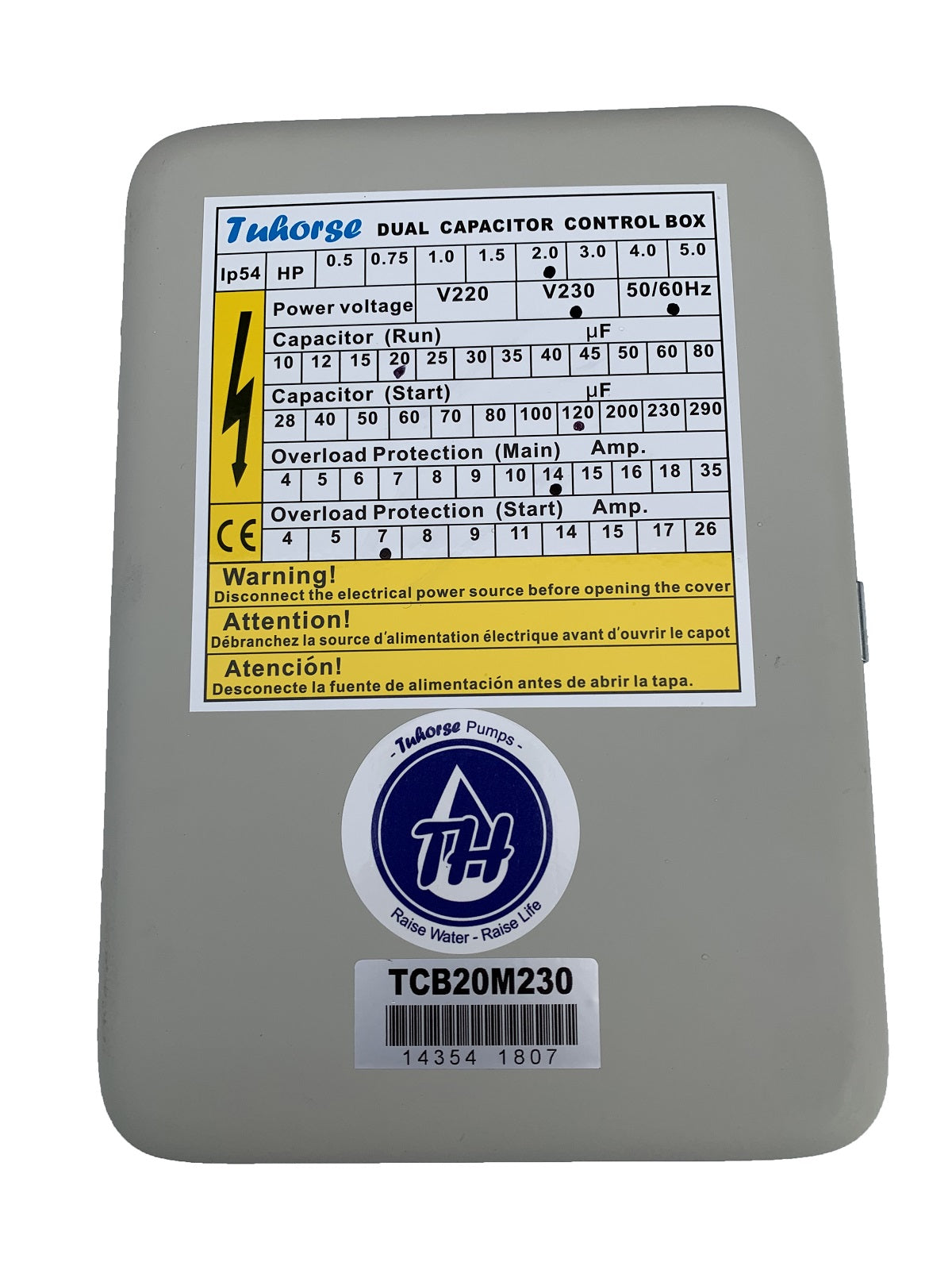

- Control Box: Dual capacitor control box
- Weight: 37 lbs
- Dimensions/Length: 30.5"
Warranty: 1 Year
