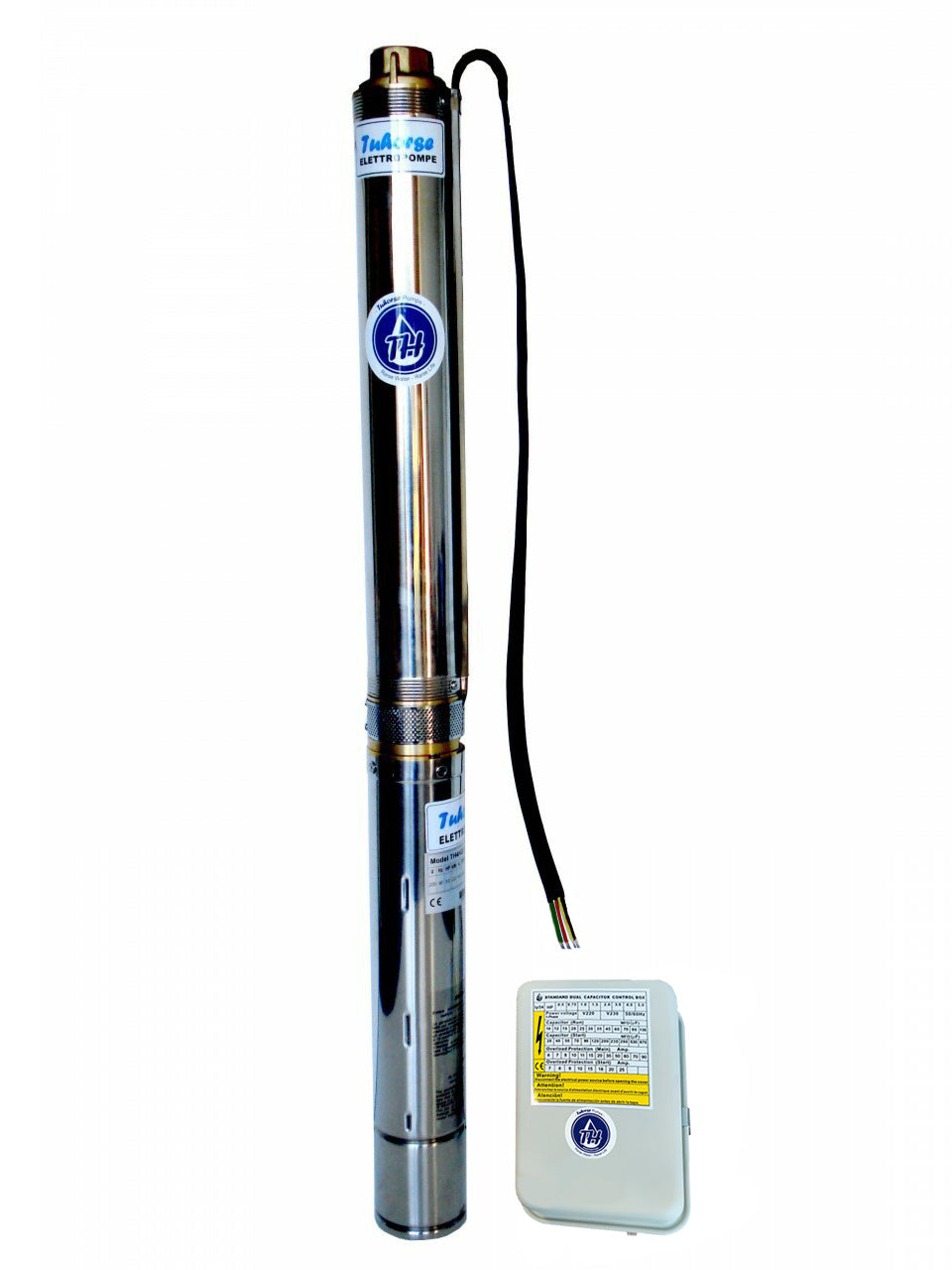

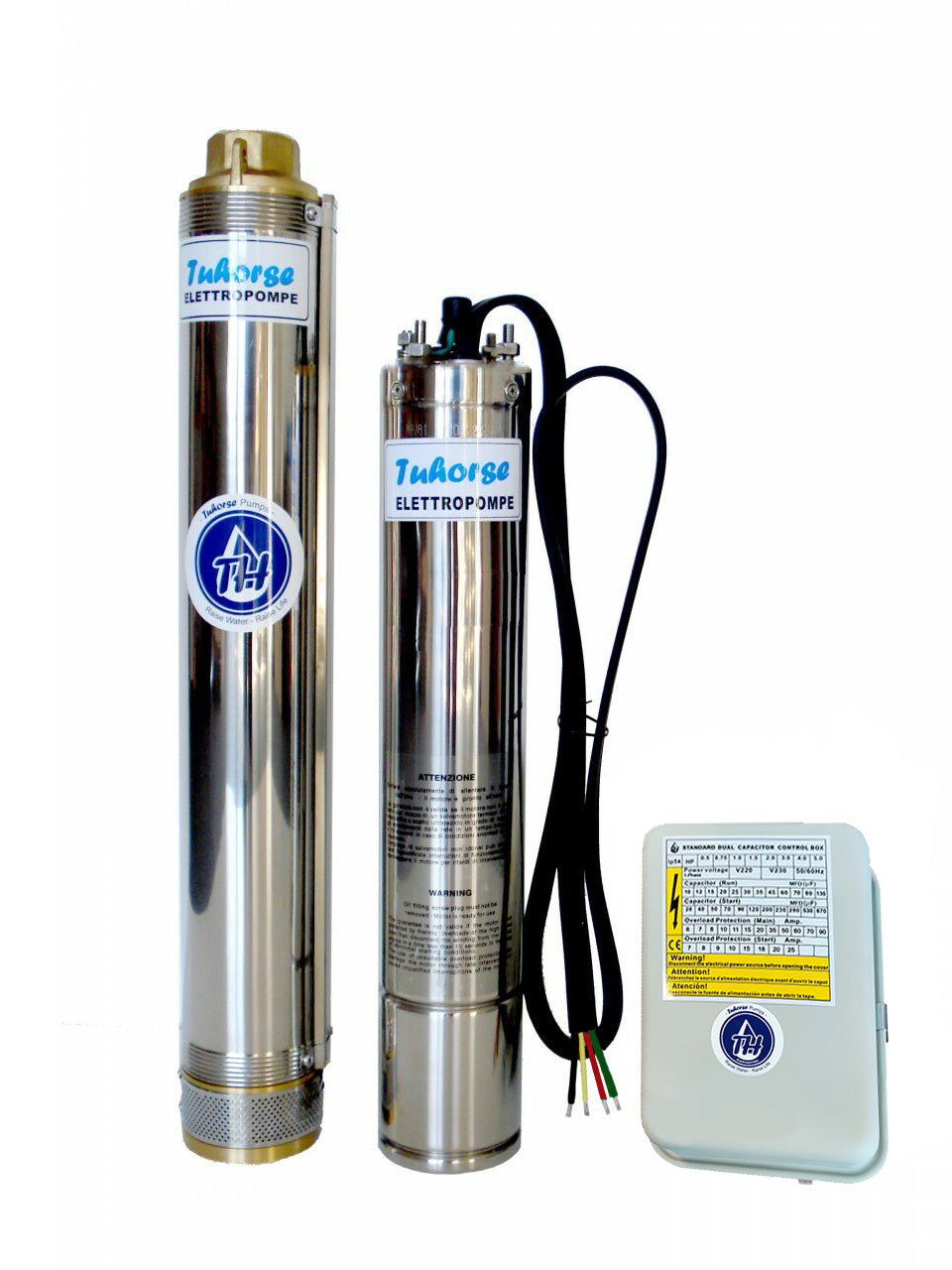

1.0HP TH4-015-07 230V 1Ph. Complete pump-end, motor, control box pro set

SKU: TH401507M230
Regular price $339.00 USD
Regular price $619.00 USD Sale price $339.00 USD
In stock
Ships out the same business day or next

Description

Complete pump end, motor, and dual capacitor control box pro set. Complete Instructions.

  • HP: 1HP
  • Voltage: 230V Single Phase
  • Cycle: 60 Hz
  • Operating Amperage: 5.4 A
  • Motor RPM: 3450 RPM
  • Stages: 7
  • Rated flow: 15 GPM
  • Maximum Flow: 22 GPM
  • Maximum Head: 269 ft

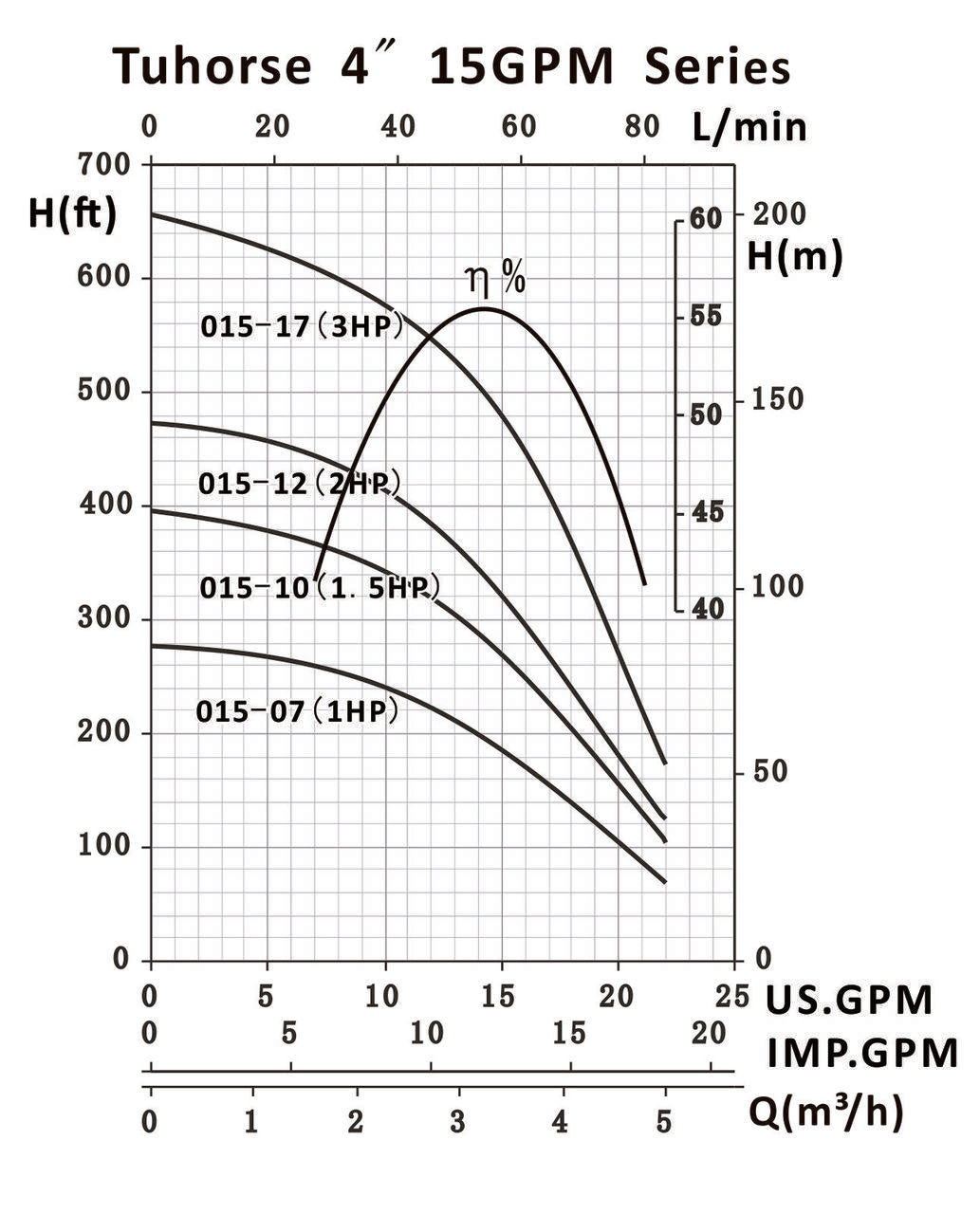

  • Typical Flow: 21GPM @ 89ft; 14GPM @ 194ft; 7GPM @ 253ft
  • Suction Port: Center Suction
  • Discharge Port: 1.25 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour

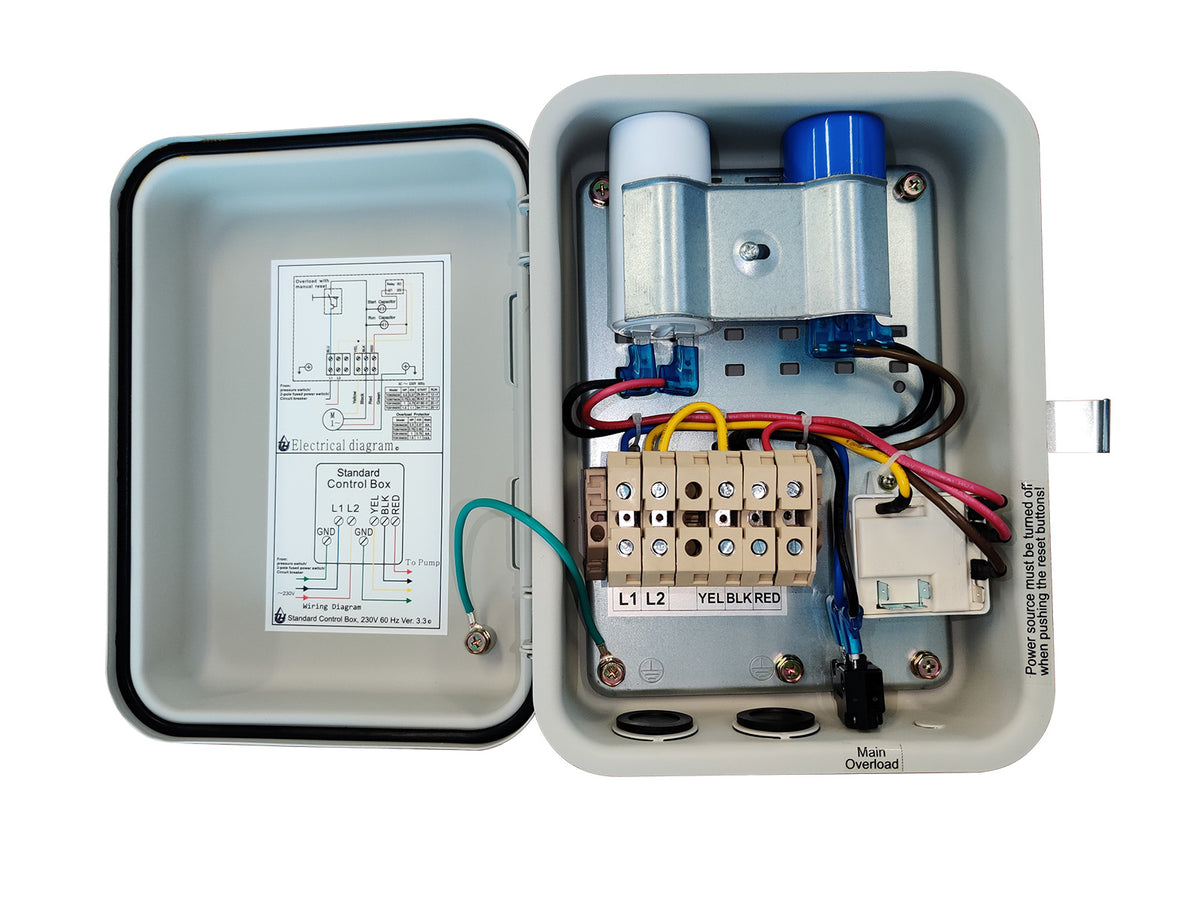

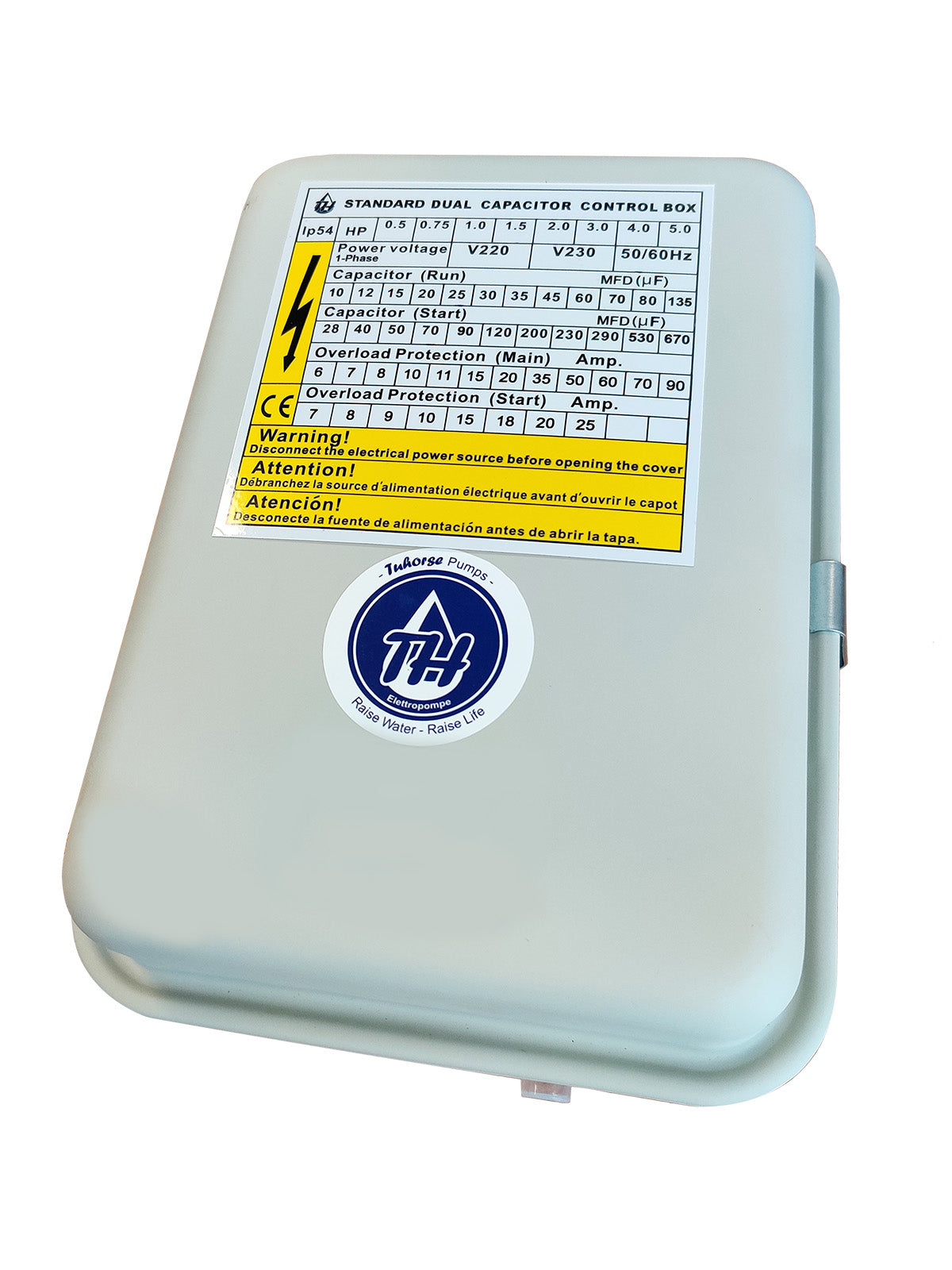

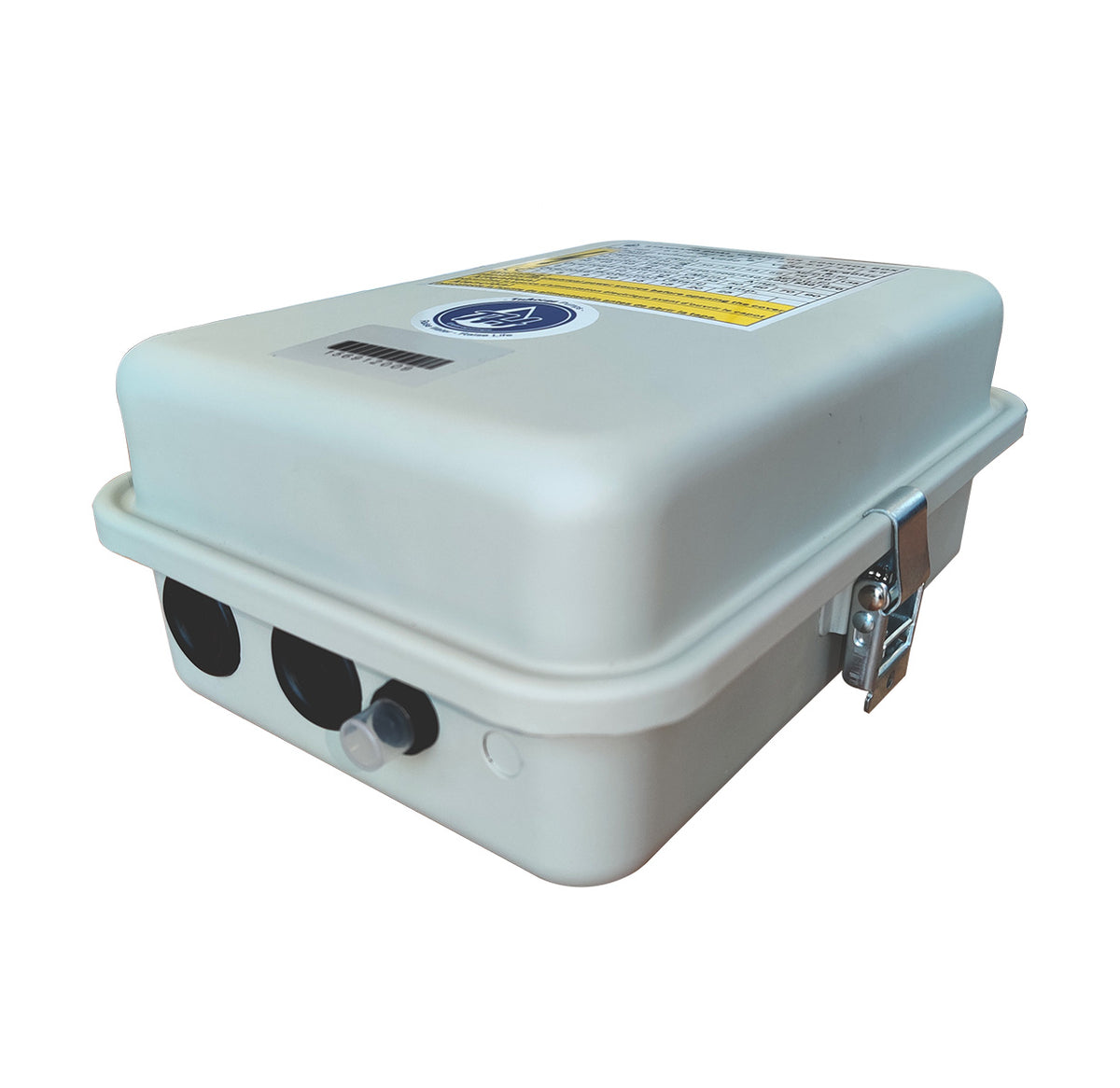

  • Control Box: Dual capacitor control box pro
  • Weight: 33 lbs
  • Dimensions/Length: 30.75"

Warranty: 1 Year

M
M
Great value

I've only had the pump for less than 2 months, but it's working well.

It has a light duty internal check valve, but to hook it up to a pressurized tank it needs a separate, more heavy duty check valve.

The discharge port looks to be stainless steel. I prefer stainless plumbing parts because I know they don't have lead, unlike some brass parts out there. So was happy about that.

As long as the pump holds up for a few years I'll consider it a fantastic value. I'm happy with my purchase.

F
Frank
1.0HP TH4-015-07 230V 1PH. COMPLETE PUMP-END, MOTOR, CONTROL BOX PRO SET

works great

J
J DO drilling
Good

Best product

O
Onil Montero
Excellent Product.

Excellent Product.

D
David Miller
Works exactly as expected to work.

The product performs as promised and is sold at very, very competitive price.

J
Jay Whatley
4 years and still going strong

I purchased this pump and controller in March 2016. It is now March 2020, and I have had no issues with this pump or controller, they are still working great. This has proved to be a very good pump. Customer service was also excellent. For a time I thought I was having a problem with the pump and they walked me through everything to check. Turned out to be just the pressure switch. I replaced that and problem was solved.

m
margo Miller
works like a charm

we have had a few of these .They have been perfect. We have had to replace only because of lightening strikes. We use it at a cistern at our spring about 300 ft. below the house. very happy with it!
Also, the price is excellent and the customer service could not be better...for any questions or concerns, they are right there for you.

J
Jeff H
Well made, great price

It seems to be a very high quality product with a well made control. Very happy with my purchase.

J
Jim
Excellent service for quality product

This pump provides good quality with ease of installation and excellent service from distributors. The pump surpassed my expectations and delivers the water volume and pressure as per advertised specs.
The price in American dollars provides good quality as compared to similar products in Canada. I will await it's performance over time. The one year warranty is reassuring.

M
Mark
Extremely satisfied

The package arrived as and when promised , it was complete, instructions are primitive so ignore those and either understand what you're doing or do some research. Products looked and worked perfect. What more can you ask for at this price?
