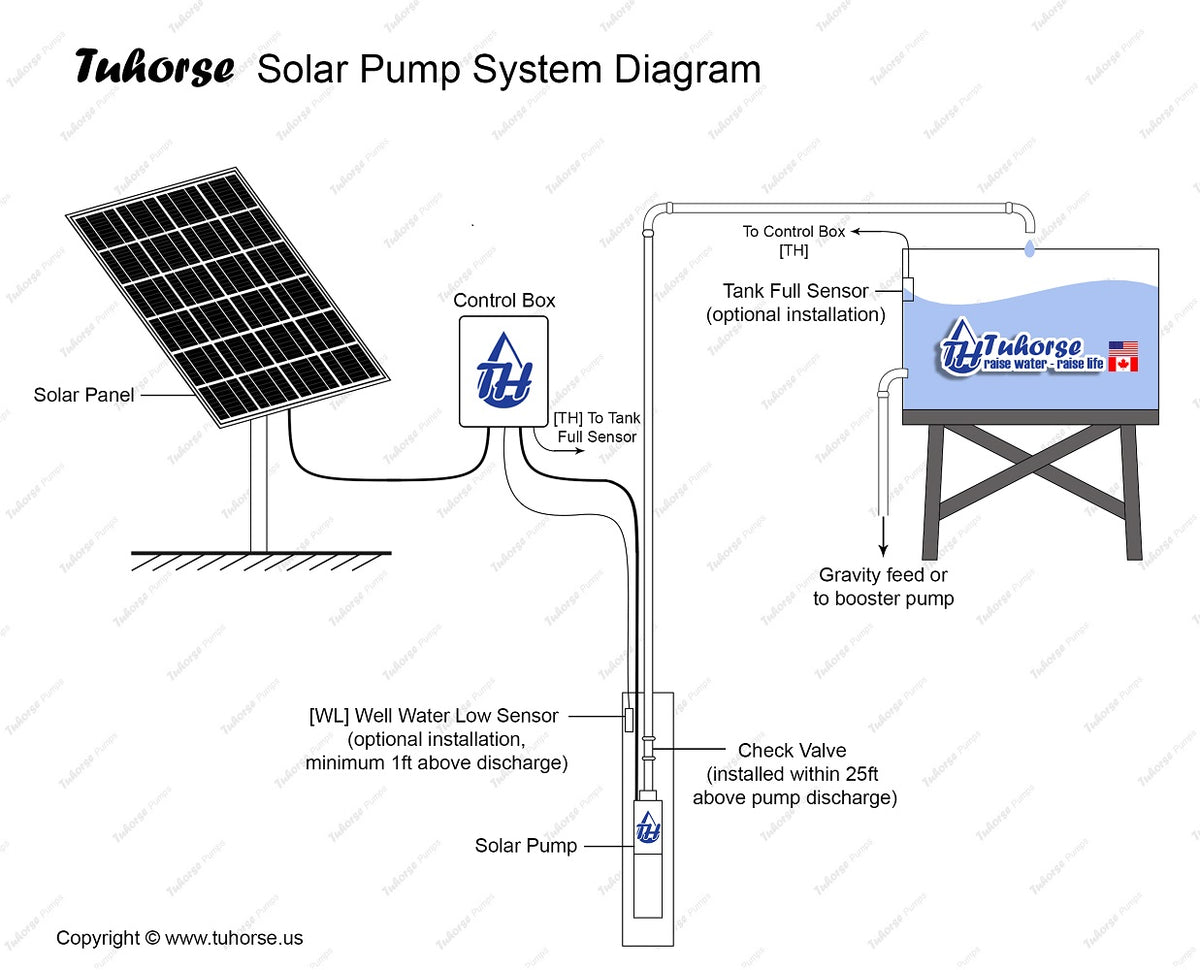

3THS04S48V500 Solar Water Pump Features
- Fits 3 1/4" inside diameter and larger well (does not fit 3" ID)
- Brushless motor, permanent magnetic motor rotor
- Helical rotor design for high head, high pressure
- Works directly with solar panels without the need of battery
- Dry Run protection through application of well water level sensor
- Maximum Power Point Tracking system (MPPT)
- Low power, over voltage, over current protections
- Maximum submersion depth - 150 feet
Package includes

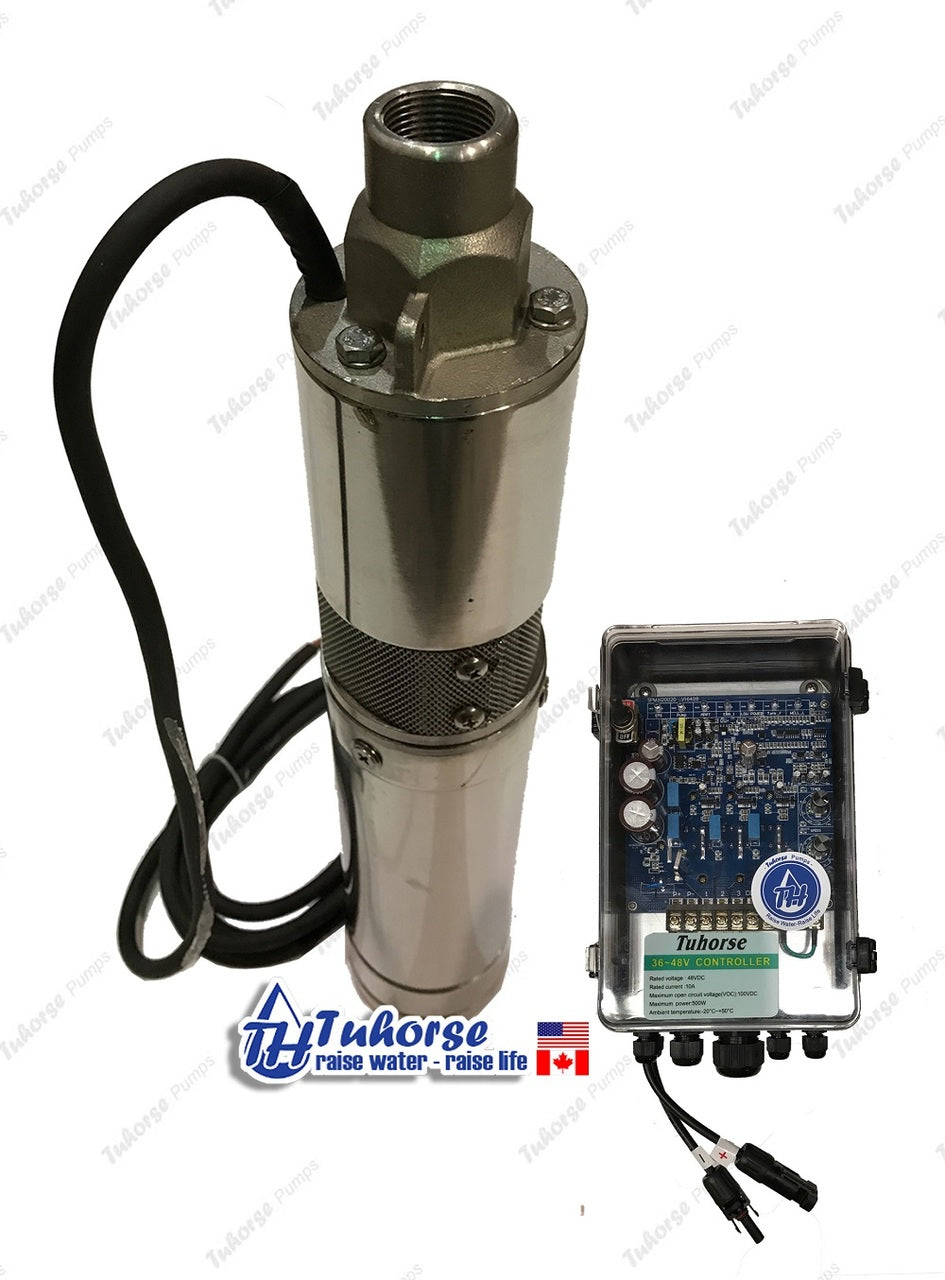

- 3" 500 Watts, stainless steel solar pump and motor w/ 9 ft. lead
- Automatic Control Box
- 1 x well water level sensor, 1 x cistern water level sensor for setting up automatic pumping
- 2 x 6 ft. MC4 cable with M-F connectors, for connecting solar panel to control box
- Heat shrink kits for watertight connection
- Installation guide
- 1 year warranty

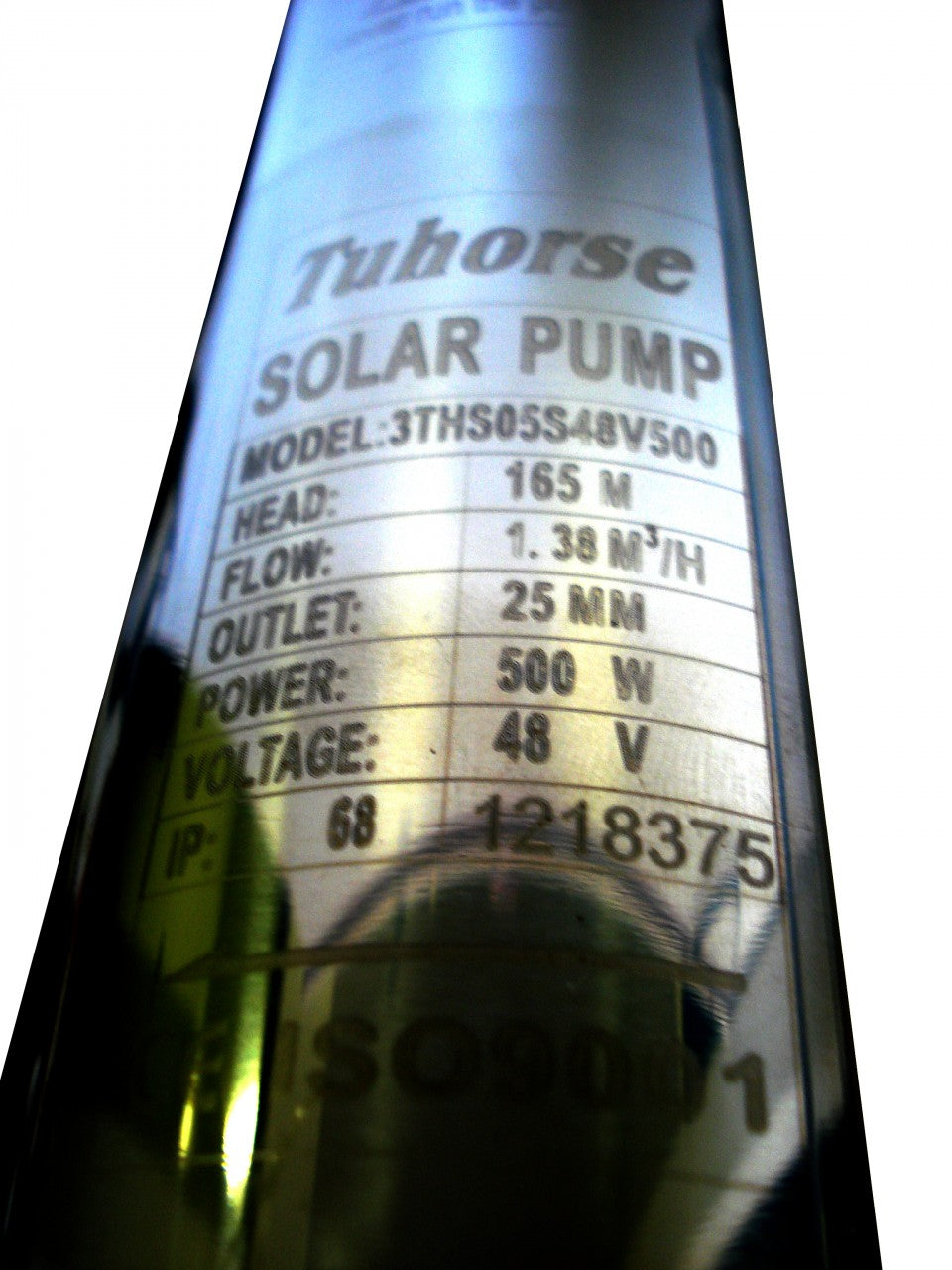

Pump Specifications:
- Pump power: 500W, 48V-DC nominal operating power ( minimum 30V DC for low head application )
- Pump type: Helical Rotor
- Rated Flow: 4GPM
- Max flow: 6.6GPM
- Max head: 320 feet (98 meters)
- Discharge: 3/4" NPTF
- Pump Diameter, length: 3" x 16" (76mm x 410mm)
- Pump Net weight: 12Lb (5.5kg), excluding control box
- Package Weight: 29Lb / 13kg, including control box and accessories

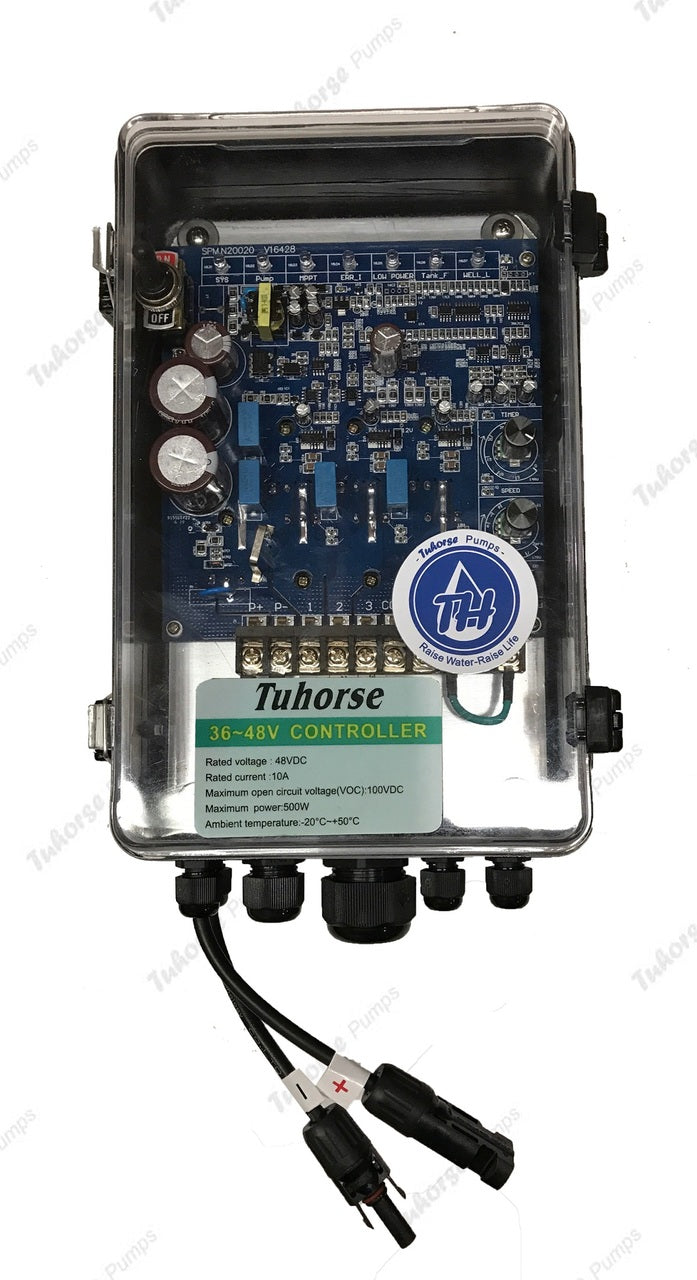

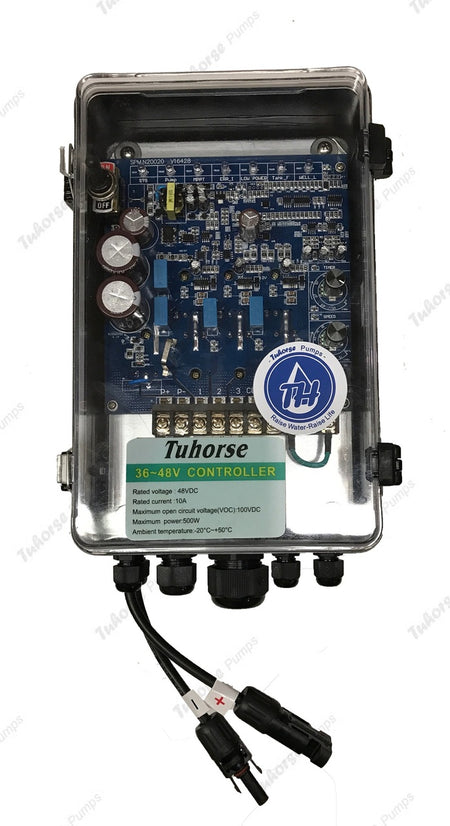

Auto control box specifications:
Optimize pumping efficiency with MPPT according to sunlight condition and solar panel used
Fully automatic pumping mode through the employ of either or both
water level sensors in well and in storage tank
Bypass sensors for application does not require water level monitoring
Manual motor speed adjustment accommodate low-yield-well in
lower head application
Adjustable timer add time for low-yield-well to recover in automatic mode
Low power, over voltage and over current protections.
Dry run protection in automatic mode
Solar and battery power input
MPPT Maximum Power Point Tracking system
48V input, allow up to 100Voc (solar panel open circuit)
| Daily production with 6 hours peak sun-- Tested with 1x 280W 72-cell panel(not included) | ||
| Head (ft.) | Gallon / min | Gallon / day |
| 150 ft. | 1.8 Gal | 650 Gal |
| 120 ft. | 2.8 Gal | 1000 Gal |
| 90 ft. | 3.9 Gal | 1400 Gal |
| 60 ft. | 4.5 Gal | 1620 Gal |
| 30 ft. | 5.5 Gal | 1980 Gal |
| Daily production with 6 hours peak sun-- Tested with 2x 280W 60-cell panel(not included) | ||
| Head (ft.) | Gallon / min | Gallon / day |
| 250 ft. | 2.3 Gal | 830 Gal |
| 220 ft. | 3 Gal | 1080 Gal |
| 180 ft. | 4 Gal | 1440 Gal |
| 130 ft. | 5.5 Gal | 1980 Gal |
| 100 ft. | 6 Gal | 2160 Gal |
| 50 ft. | 6.6 Gal | 2300 Gal |
Recommended Solar Panels (NOT included):
Option 1: 2 x 190W to 280W Panels in series connection (for up to 180ft TDH)
Option 2: 4 x 190W to 250W Panels. 2 in series-parallel connection to reach maximum head
Option 3: 3 x 135W to 160W Panels in series connection (for up to 180ft TDH)
Option 4: 6 x 135W to 160W Panels. 3 in series then parallel to the other 3 to reach maximum head
Option 5: 4 x 95W to 120W Panels. 2 in series-parallel connection (for up to 180ft TDH)
Option 6: 8 x 95W to 120W Panels. 4 in series then parallel to the other 4 to reach maximum head
Note:
When multiple panels are used, it is recommended to use identical panels in the array
Do not use panel array that exceeds 100volts of Open Circuit Voltage (Voc)
Maximum power of the panel array is 150% of the motor's power rating.
If over 150% rating panel array is used, turn the knob to lower the motor speed to prevent from over powering the motor.
Lower the motor speed for the pump just to be able to pump water at moderate sun condition.
Warranty: 1 Year
