Description
This solar kit is currently shipping to Canadian customers only due to the solar panel is only stocked in BC, Canada. US Customer please buy compatible SKU# 3THS04S48V500K6P

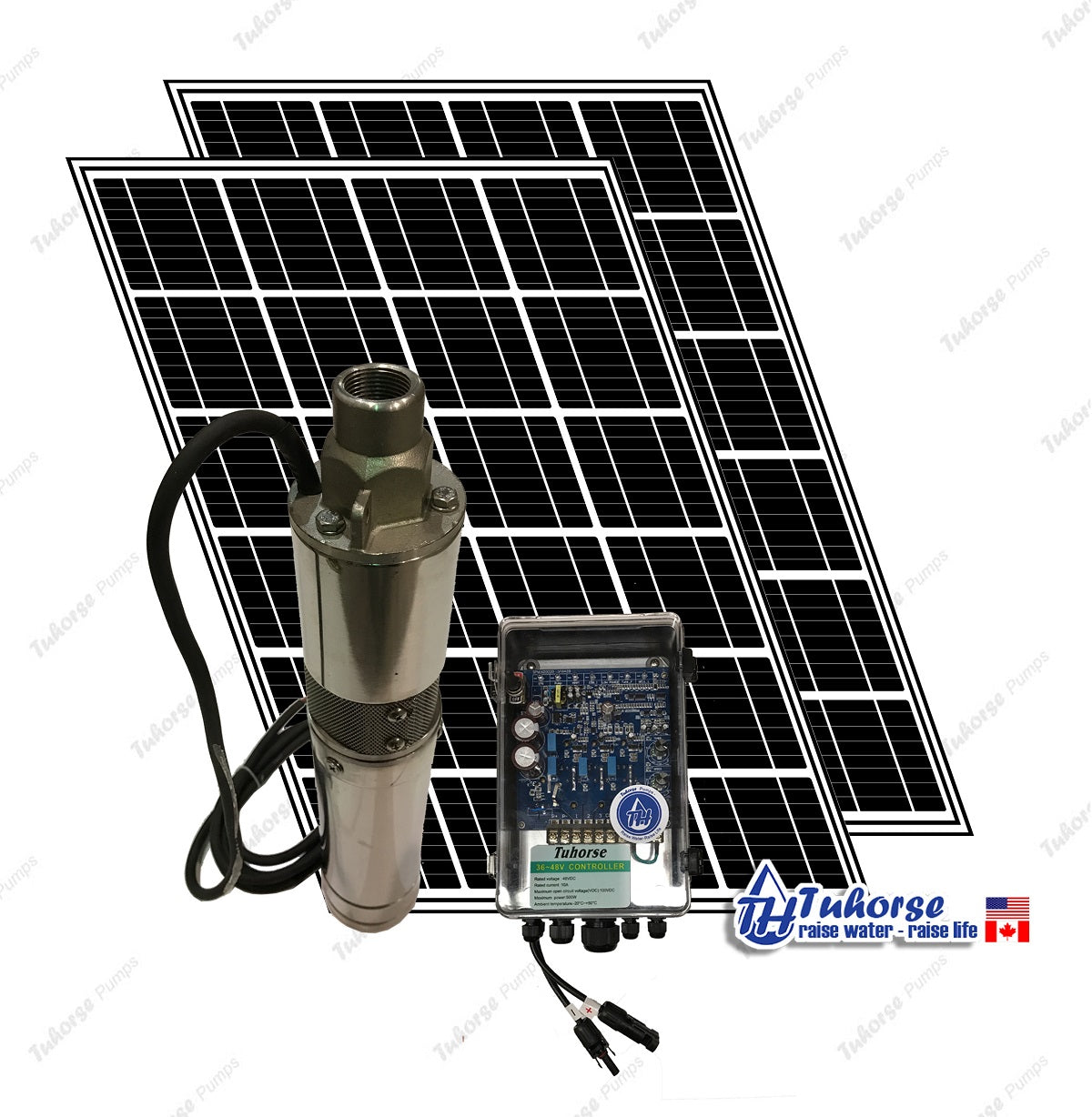

500 Watts Pump and 560W PV Panel Complete Kit (3THS4S48V500K2P)
This solar pump kit is suitable for pumping from 50 to 250 feet head (TDH), with daily water usage of 800 to 2300 gallon.
Package includes:
2 x 280 Watts mono crystalline A-grade solar panel
3" 500 Watts 48V, stainless steel solar pump and 3-phase motor
250 feet of 12/2 submersible pump wire
Automatic control box

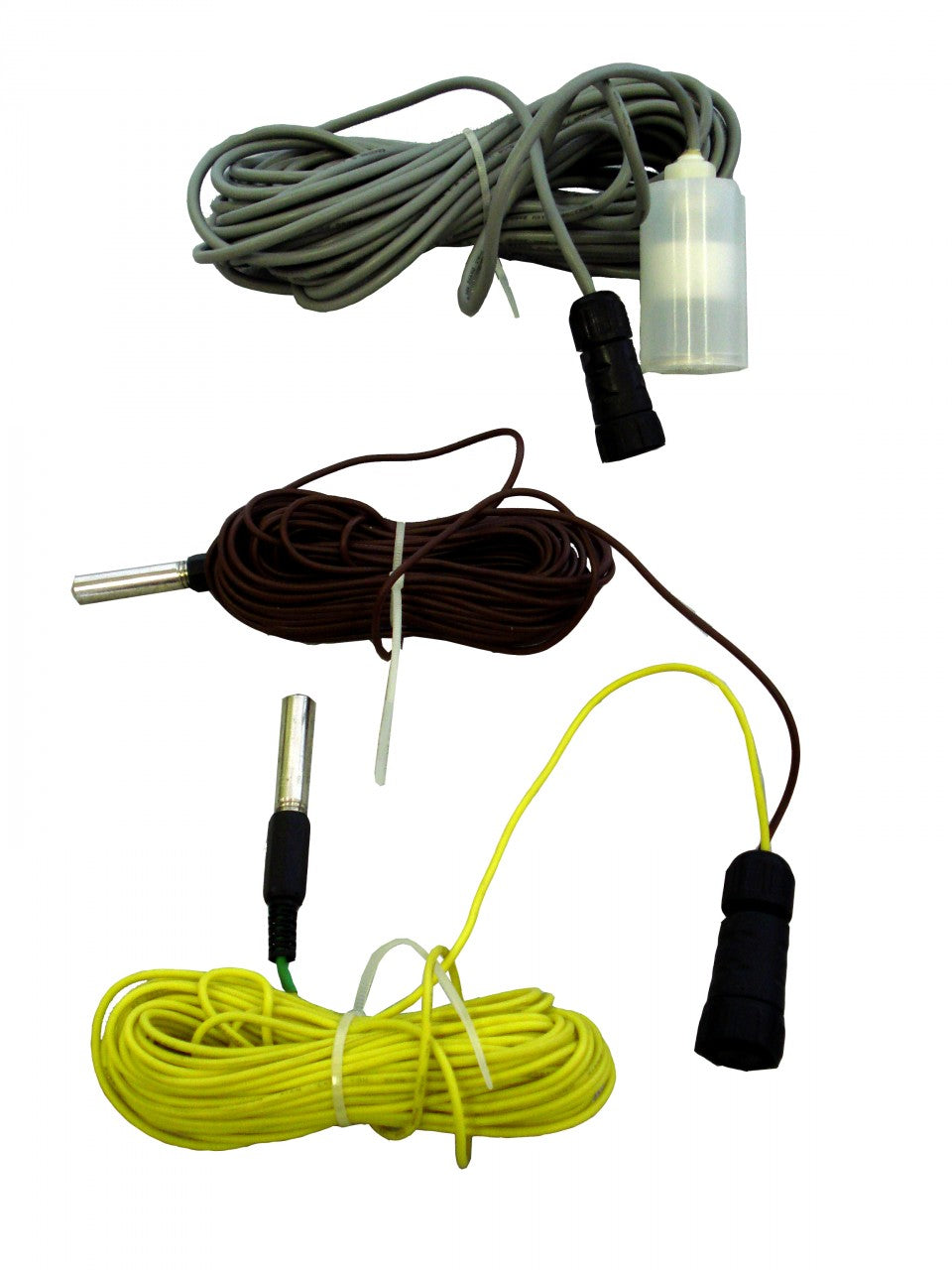

2 sets of water level sensor for setting up your automatic pumping system
2 x 6 ft. MC4 cable with M-F connectors, for connecting solar panel to control box
Heat shrink kit for watertight connection
Installation guide
2 year warranty (return to BC Canada*)
| Daily production based on 6 hours peak sun | ||
| Head (ft.) | Gallon / min | Gallon / day |
| 250 ft. | 2.3 Gal | 830 Gal |
| 220 ft. | 3 Gal | 1080 Gal |
| 180 ft. | 4 Gal | 1440 Gal |
| 130 ft. | 5.5 Gal | 1980 Gal |
| 100 ft. | 6 Gal | 2160 Gal |
| 50 ft. | 6.6 Gal | 2300 Gal |
3THS04S48V500 Solar Water Pump Specifications:
Fit 3-1/4" inside diameter and larger wells (do not fit 3")
500W, 48V-DC nominal operating power

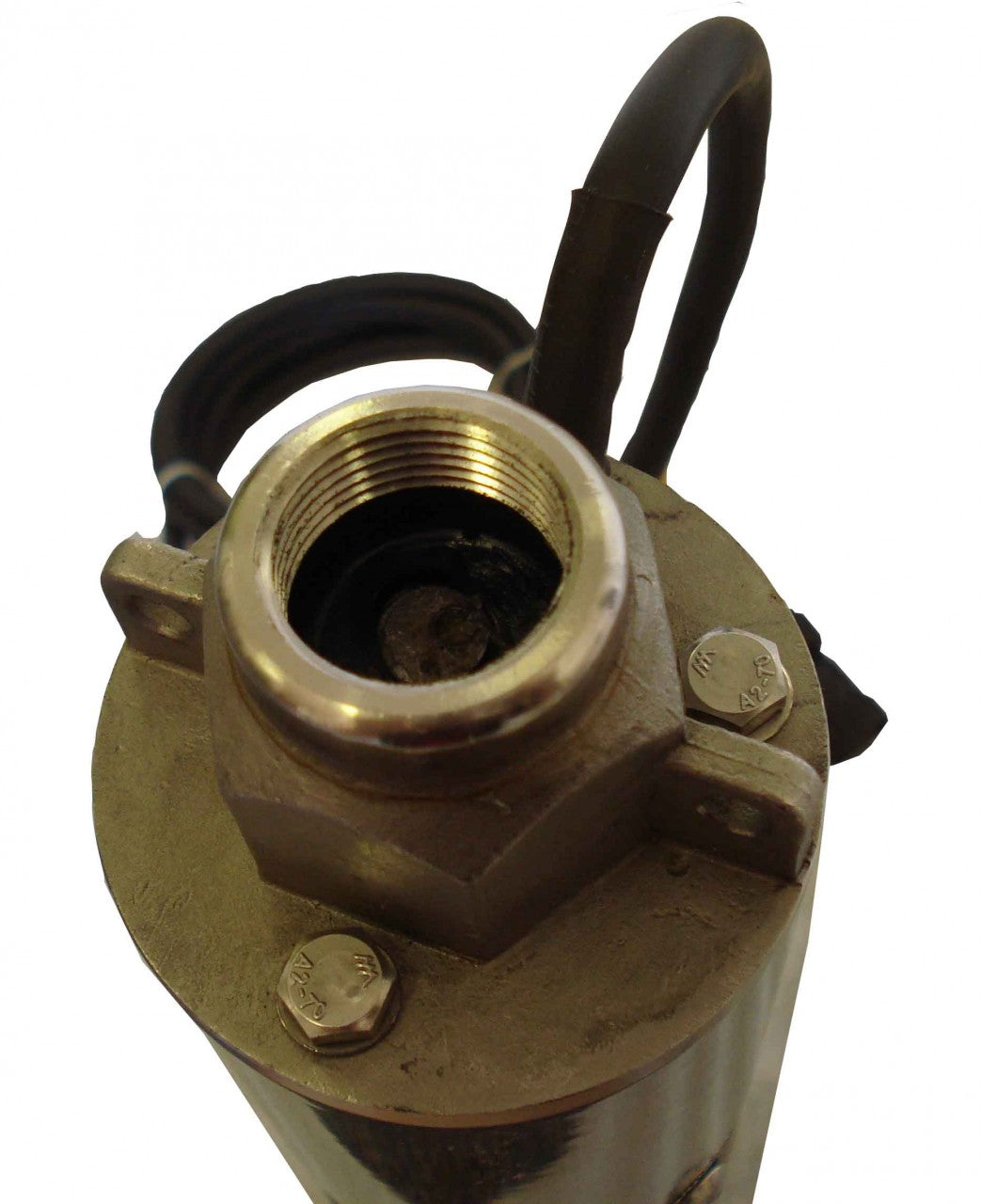

3/4" NPTF discharge (outlet)
4GPM rated, 6.8GPM Max.
Helical pump impeller design
Brushless motor, permanent magnetic motor rotor
Soft start, DC solar power is converted to 3-phase power to the pump motor
Maximum submersion - 150 feet
Pump Diameter, length: 3" x 16" (76mm x 415mm)
Pump Net weight: 13Lb (6kg), excluding control box
Package Weight: 22Lb / 10kg, including control box
Solar Panel shipping weight and dimensions(estimate): 72Lb (32kg), 64"x33"x4"(163x84x10cm)
Auto control box specifications:
Optimize pumping efficiency with MPPT according to sunlight condition and
solar panel used

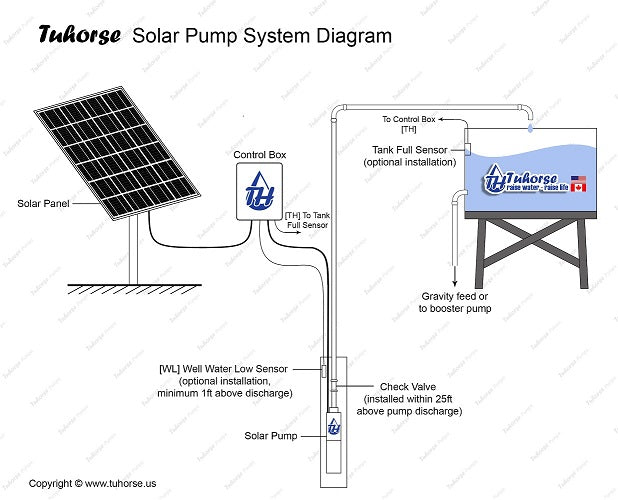

Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Adjustable motor speed to accommodate low-yield-well and to protect motor from over powered
Adjustable timer adding delay time for low-yield-well to recover in automatic mode
Low power protection
Dry run protection in automatic mode
Maximum input withstand Voc = 100V (solar panel open circuit voltage)
Maximum input current 10 amps
Important shipping note for solar panels:
Due to the large size of the solar panel, any orders that includes solar panel will only be shipped with Ground Service. Please do not choose 2 day or 1 day services even the options are displayed during check out. There is no air service available for the PV panel. We ship to Canada and 48 US continental States. For Alaska, Hawaii and Puerto Rico customers please buy solar pump packages without PV Panel as we do not have over size shipping available for those locations.
Duty and Fee:
We prepaid customs duty and fee for all our USA buyers in the 50 States when goods entering from Canada to the USA. This is part of our service excellence to ensure that USA buyers will not receive an unexpected bill. Buyers are responsible for taxes, if there is any, just like you may pay taxes when you buying anything in the USA. For your information, we have not seen our USA customer who is required to pay taxes for any orders. Please consult your local governments for tax detail.
Warranty: 2 Years
