Description

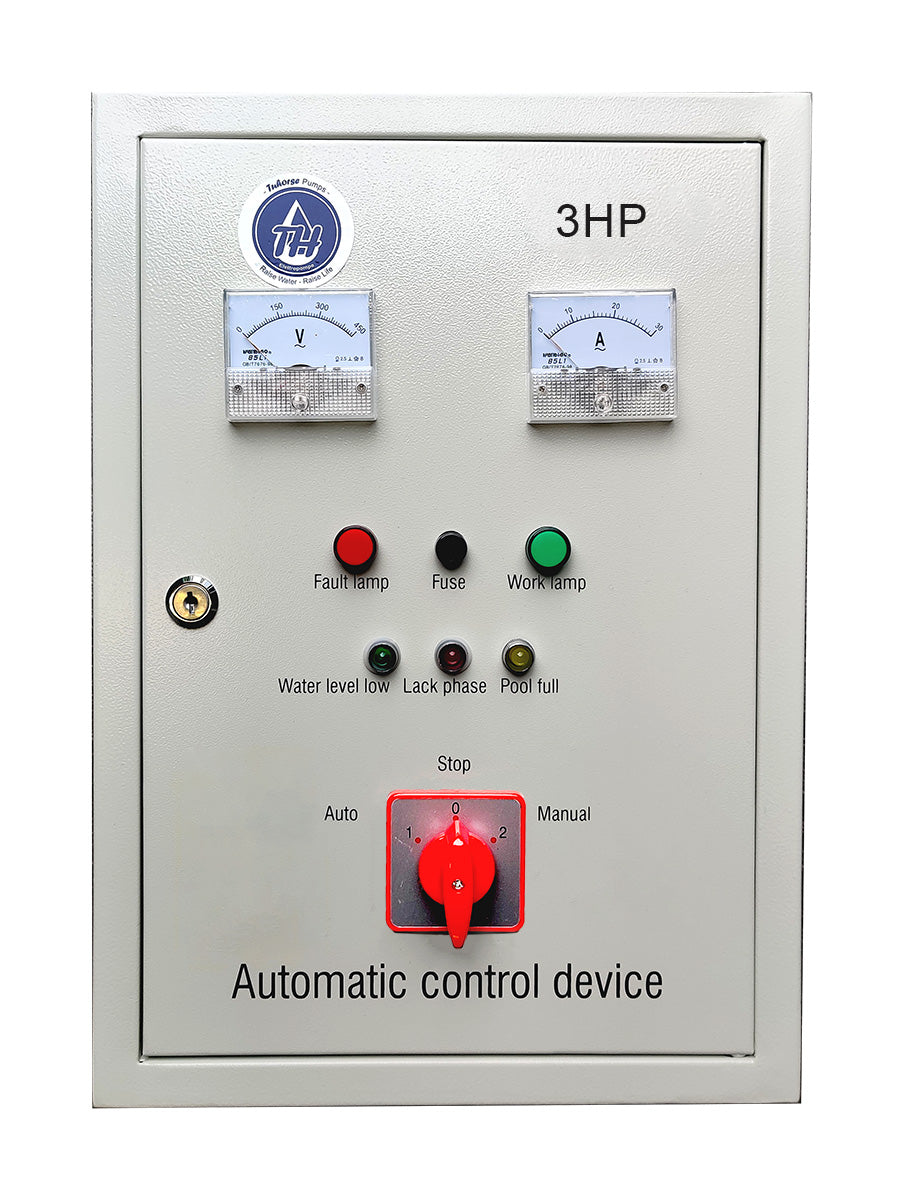

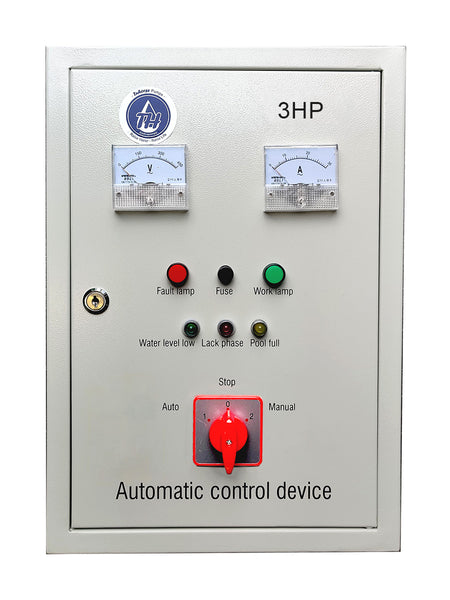

For use with a submersible deep well water pump. Supports 2HP to 3HP three phase water pumps running on 3-phase 230V. It is NOT an inverter.
Features a full automatic mode with water level probes and manual mode.
Model: TCP30T230
- HP: 2 - 3HP
- Voltage: 230V 3-Phase input and output
- Cycle: 60 Hz
- Overload Protector: included, Maximum Amps adjustable
- Phase Loss protection: included
- Water level probes: included
- Micro Processor Control: yes
- Housing Material: Steel
- Knockout for wire: four 3/4"
- Net weight: 14Lb
- Shipping Weight: 16 lbs

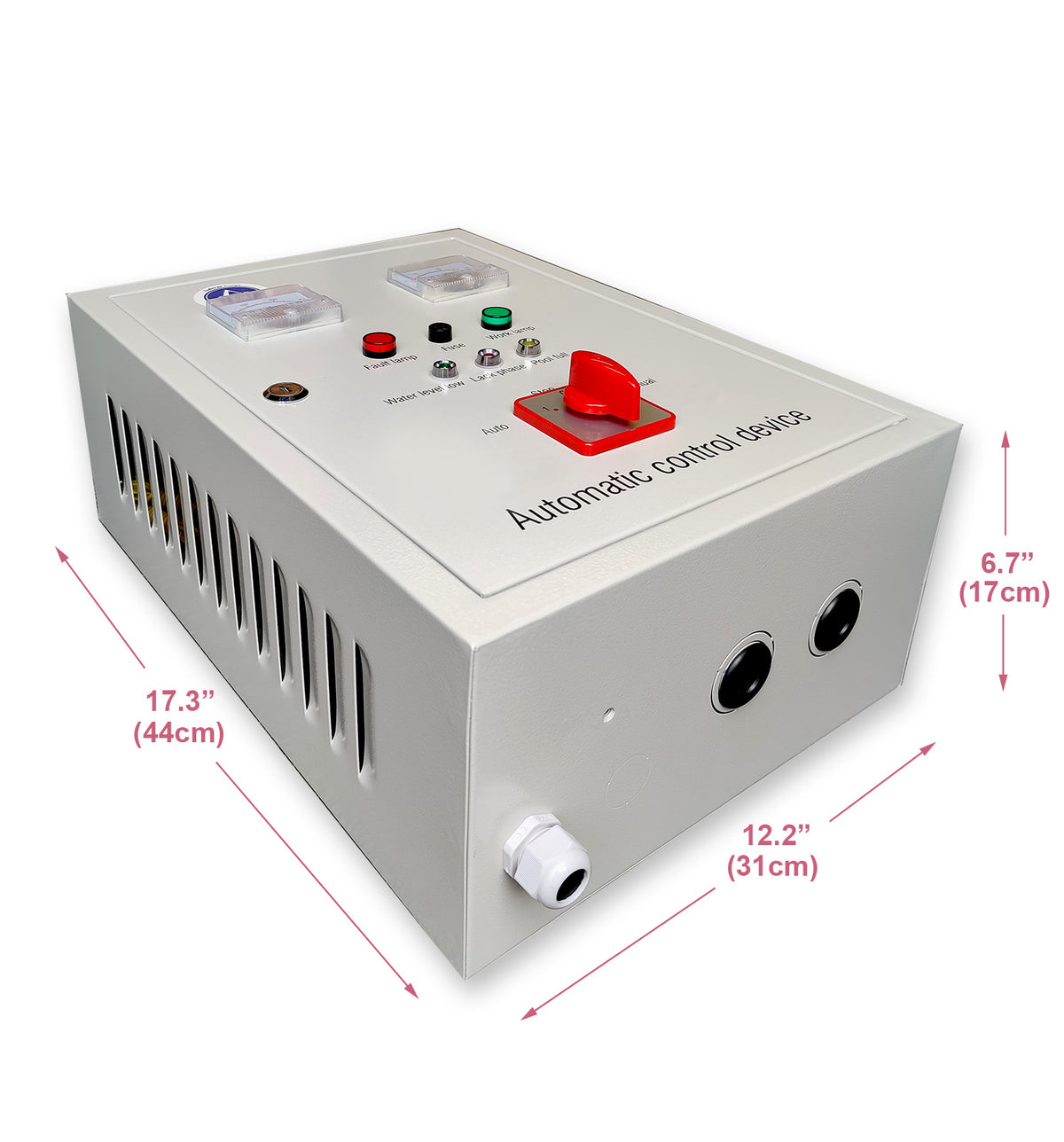

- Dimensions/Length: 17-1/2" x 12-1/4" x 7"
More details:
* Steel Casing w/ lock and keys
* Manual mode controlling the motor On/Off without using the probes
* Also can be used with non-water-pump motors in manual mode
* Automatic mode is for controlling water pumps only
* Automatically controlling the motor by the probes' signal according to the water level in the well or in the cistern, or by other pilot device if used.
* Connection Terminals accept up to #4 AWG wire
* 3 Phase magnet relay switch
* Built-in overload protection with fine turn
* Phase loss protection (Automatic mode only)
* Voltage, Amperage meters. Working status LED indicators
* For indoor and under cover mounting
Warranty: 1 Year
