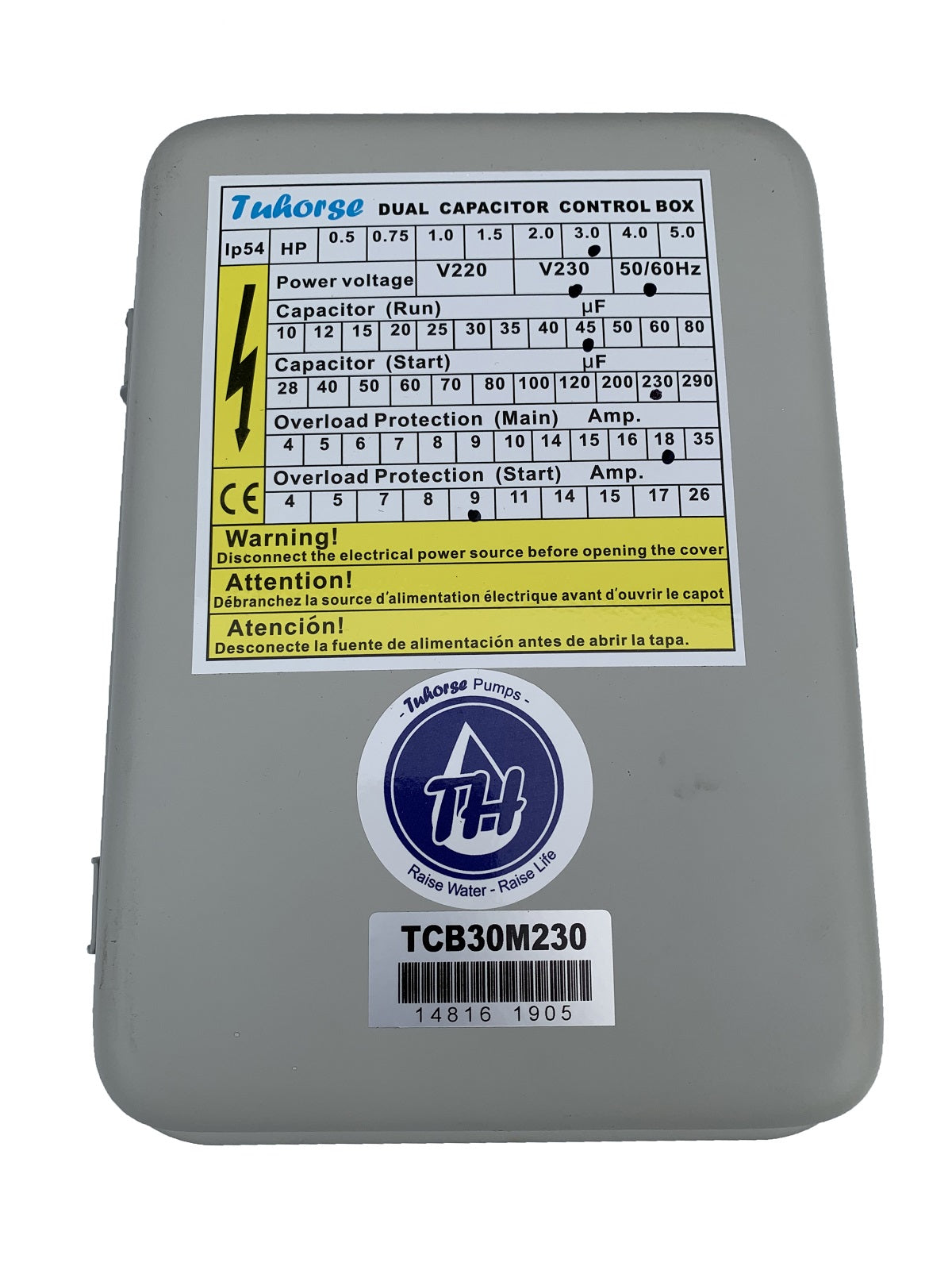

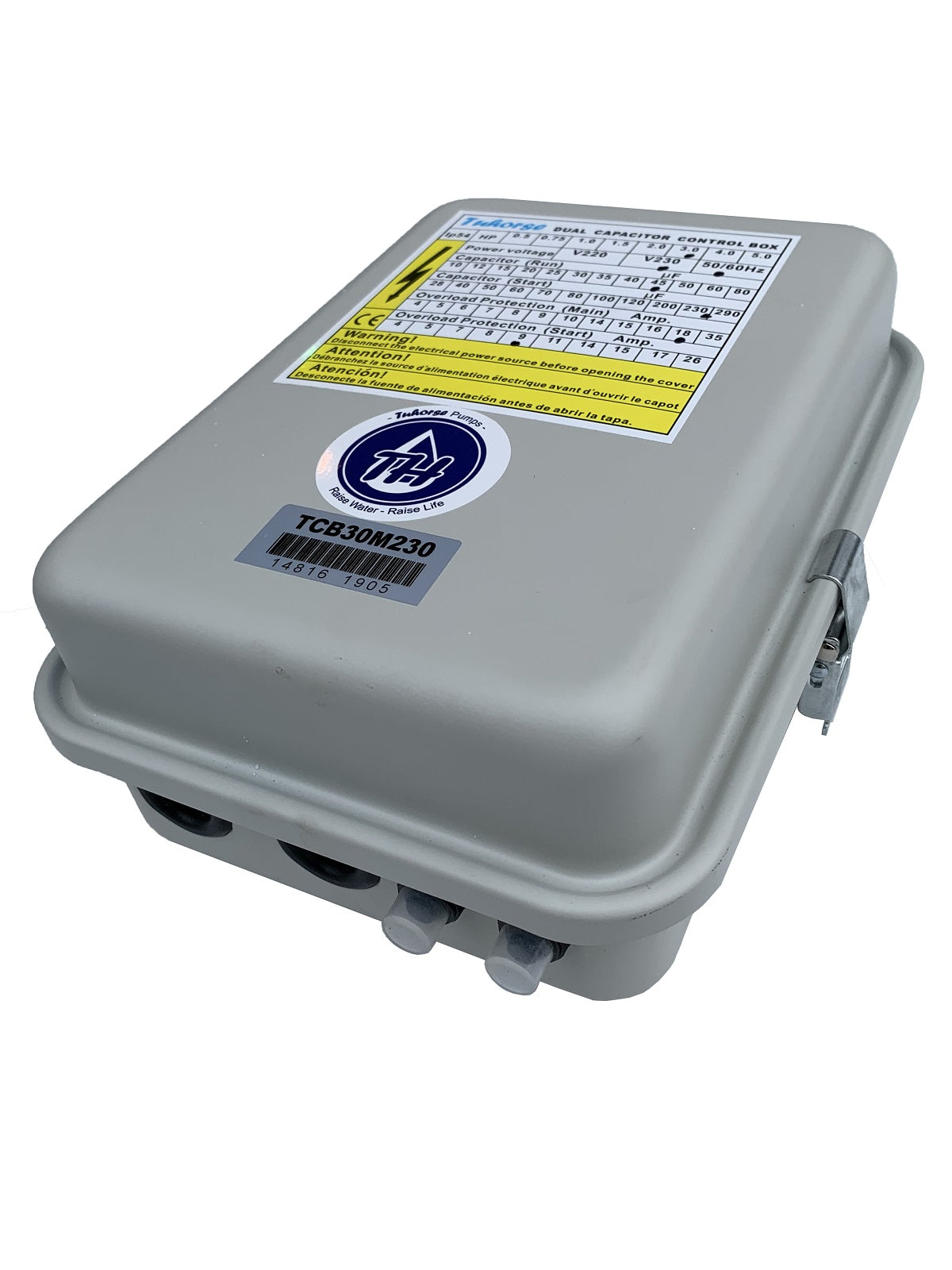

3HP Control Box. Compatible Replacement for Franklin 2823028110 and Goulds CB30412CR

SKU: TCB30M230R
Regular price $119.00 USD
Regular price $169.00 USD Sale price $119.00 USD
In stock
Ships out the same business day or next

Description

This control box is compatible to 3HP Franklin Standard Control Box with part# 2823028110 and Goulds CentriPro CB30412CR. It is NOT compatible to the Franklin Deluxe Control Box(2823028310). There is NO Magnetic Contactor in this box.

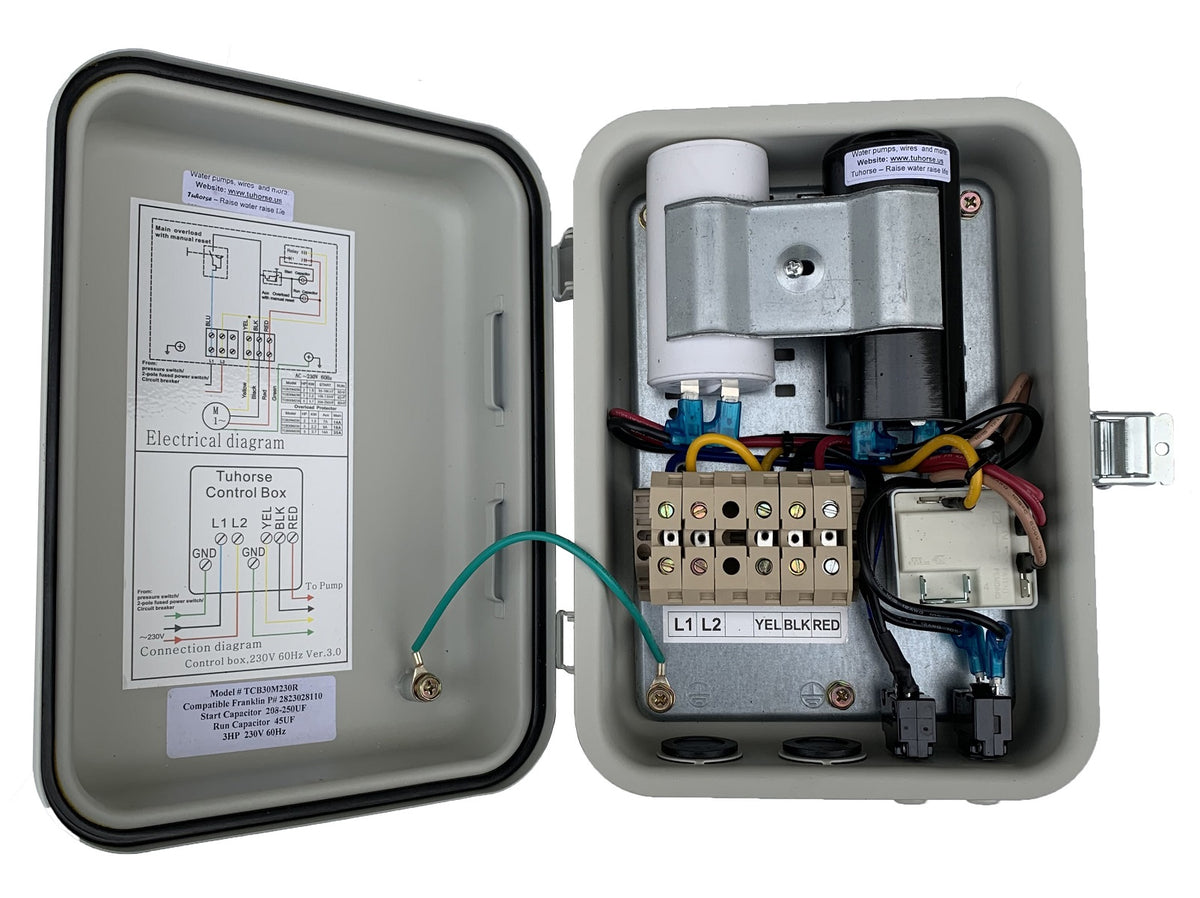

For use with submersible deep well water pump. Metal cased. Contains a start (208-250uF) and run (45uF) capacitor. Supports 3HP single phase deep well water pumps running on 230V. Supports 14 to 6 gauge wire (14 to 6 AWG). Wall Mountable



  • HP: 3HP
  • Voltage: 230V
  • Cycle: 60 Hz
  • Operating Amperage: up to 18A
  • Motor RPM: n/a
  • Stages: n/a
  • Maximum Flow: n/a
  • Maximum Head: n/a
  • Typical Flow: n/a
  • Suction Port: n/a
  • Discharge Port: n/a
  • Built-in Check-valve: n/a
  • Housing Material: steel
  • Knockout for wire: two 3/4"
  • Impeller Material: n/a
  • Motor Enclosure: n/a
  • Duty: n/a
  • Control Box: Dual Capacitor Control Box
  • Weight: 5.6 lbs
  • Dimensions/Length: 27cm x 20cm x 11cm

Warranty: 1 Year
