Description

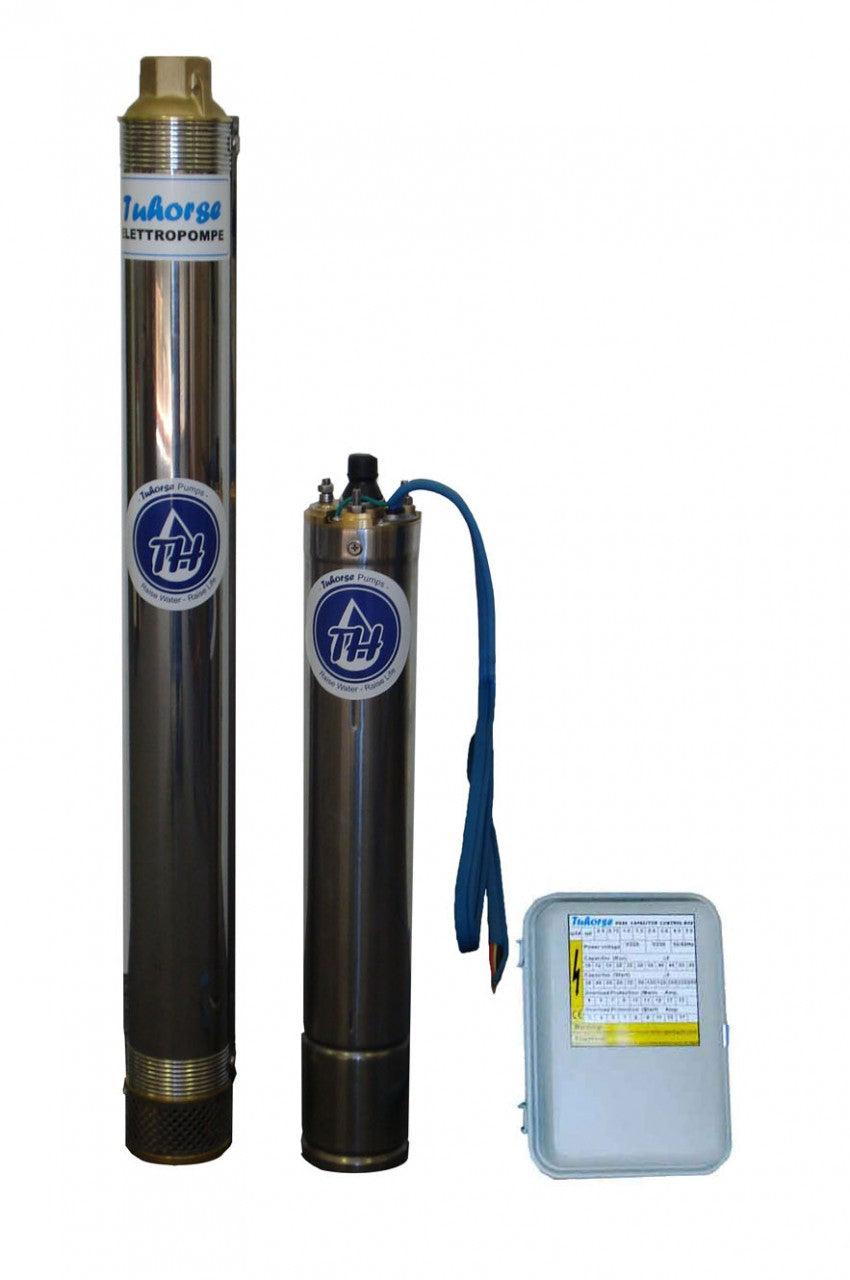

Complete submersible deep well pump end, motor, and dual capacitor Control Box Pro set. Complete Instructions.
If you have a hard time pulling your old 4 inch pump off the well because the 4" steel well casing is rusted or the PVC casing is melted, consider to use a 3" pump instead.
This 6GPM pump is made for a low yield deep well. It is suitable for a small family without a sprinkler system.
Model: TH3-006-20
- Fit 3-1/4 inch and larger ID well
- HP: 3/4HP
- Voltage: 230V Single Phase
- Cycle: 60 Hz
- Operating Amperage: 4.5 A
- Motor RPM: 3450 RPM
- Stages: 20
- Maximum Head(cut off): 400 ft
- Rated Flow: 6 GPM
- Maximum Flow (0-120 feet): 8.5 GPM

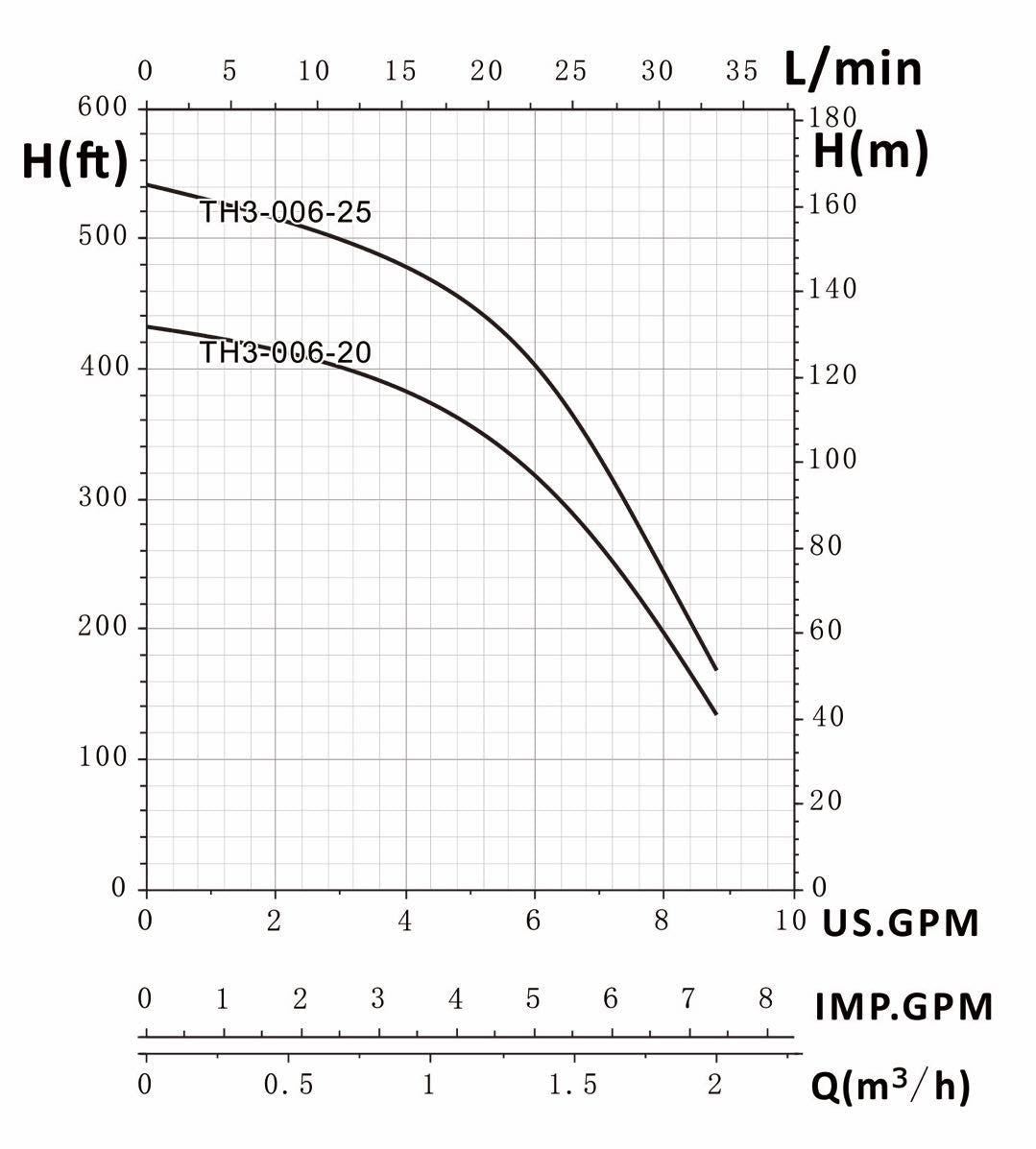

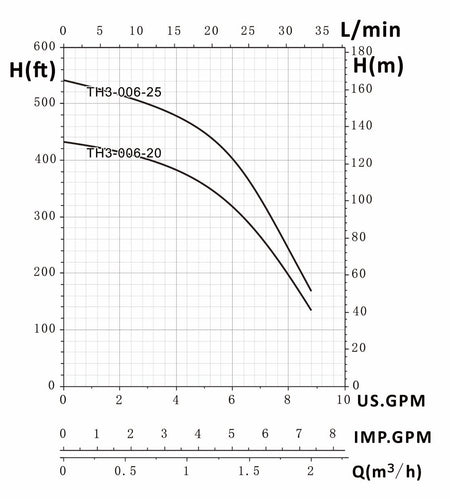

- Open Flow vs Depth: 8GPM @ 190ft; 7GPM @ 250ft; 6GPM @ 310ft; 5GPM @ 350ft

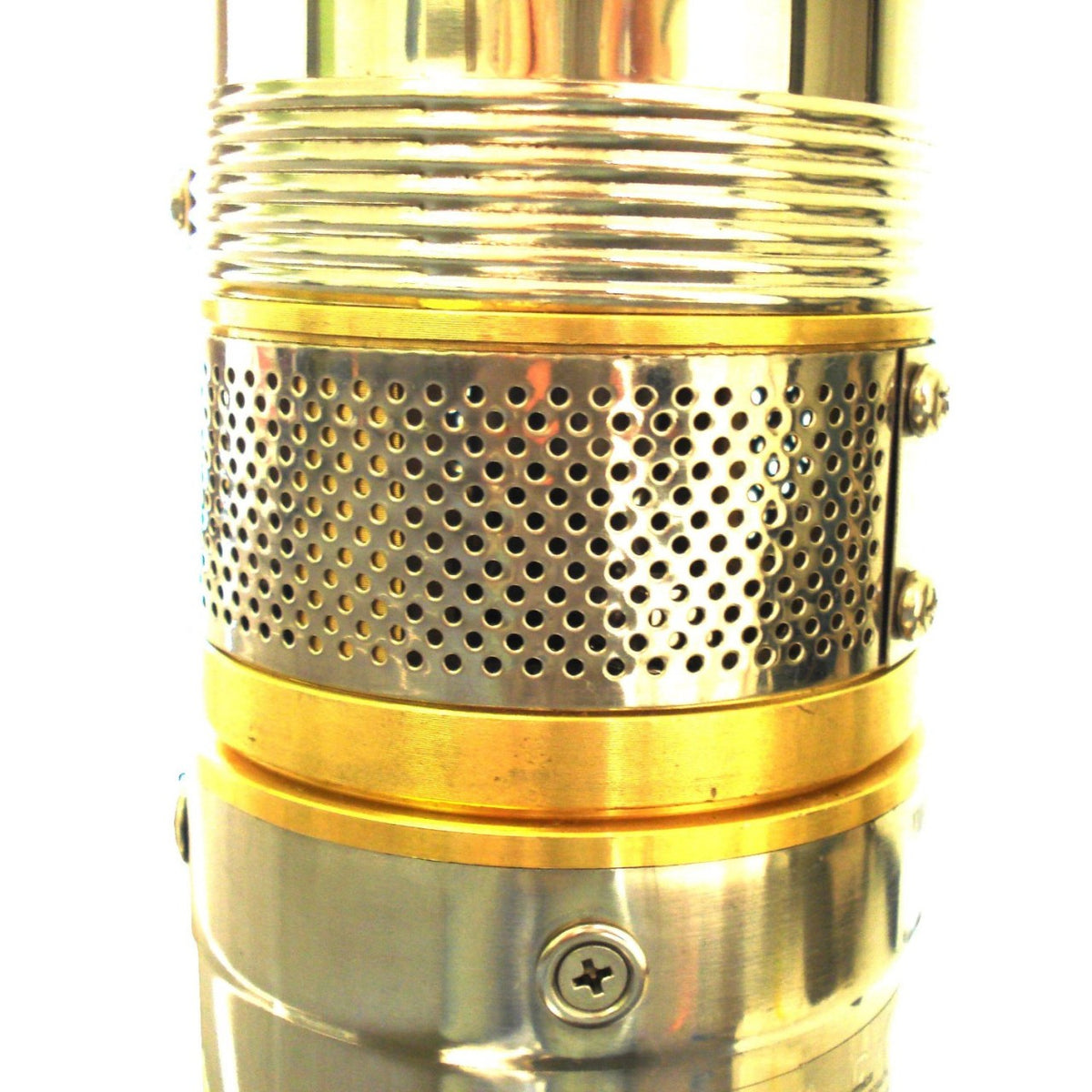

- Suction Port: Center Suction

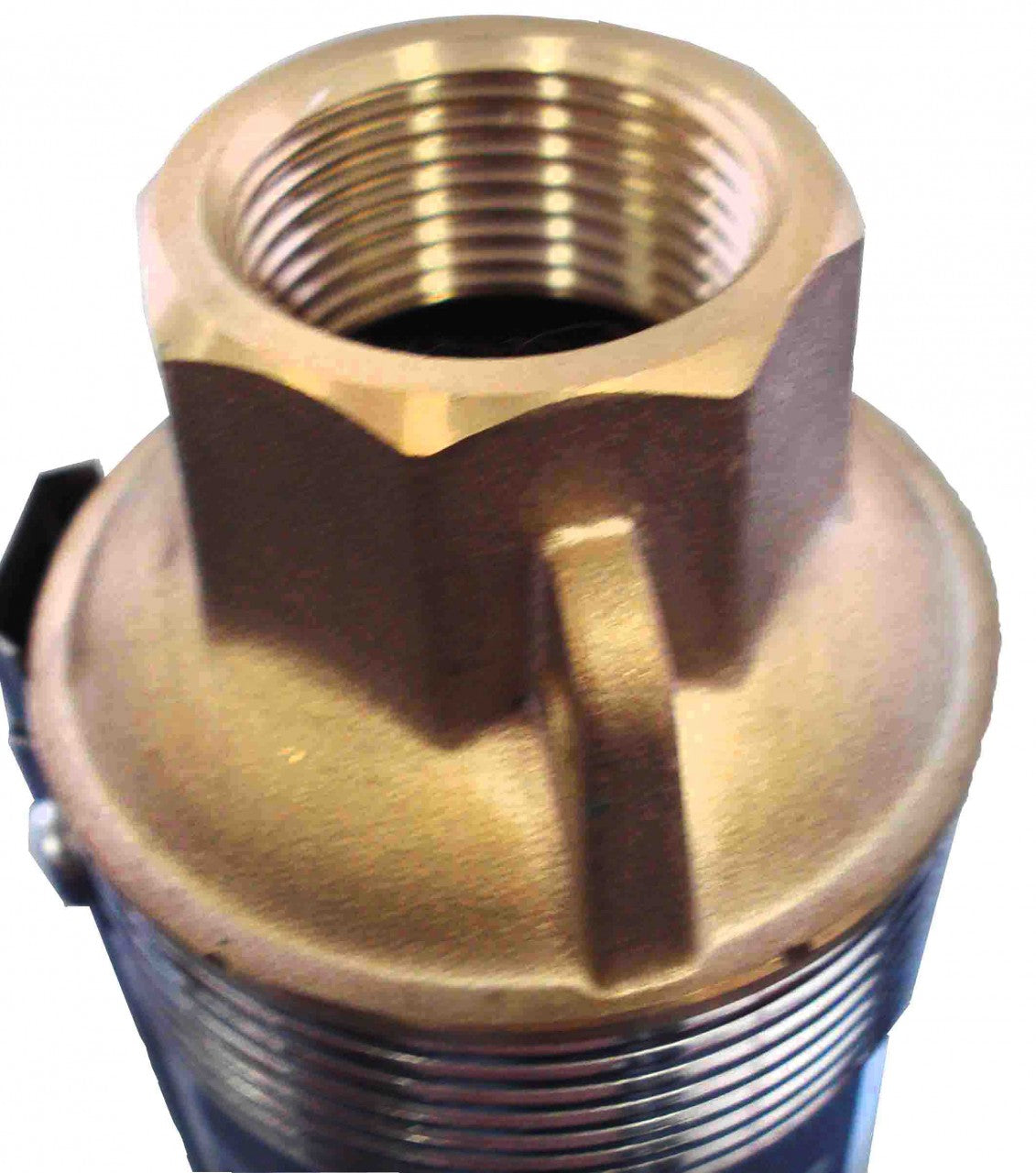

- Discharge Port: 1 inch NPT
- Built-in Check-valve: Yes, but an external check valve is required in water tight system
- Housing Material: Stainless Steel 304
- Discharge and Suction Port Material: Stainless Steel 304
- Impeller Material: Thermal Plastic

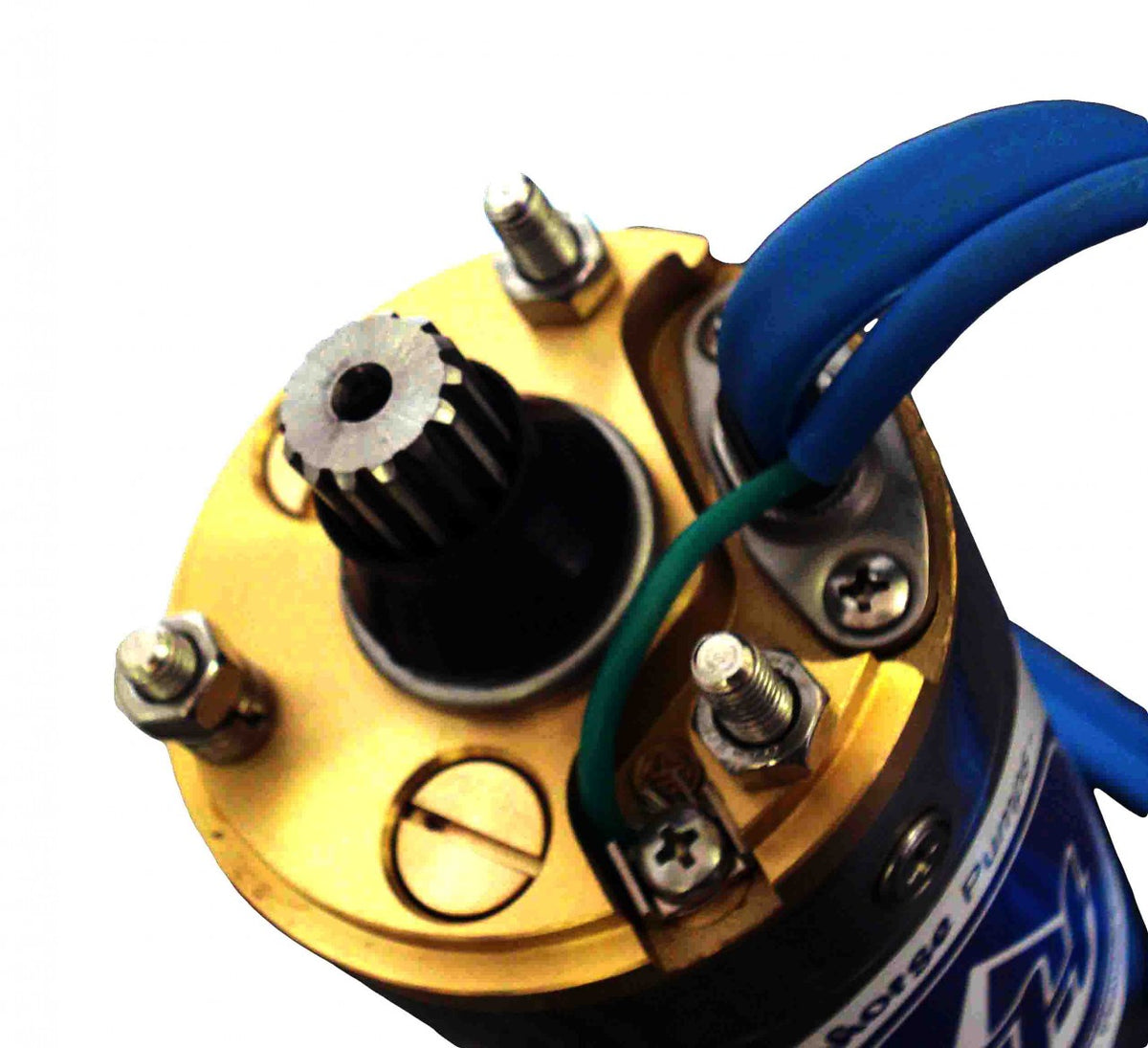

- Motor Enclosure: Stainless steel 304
- Motor Bearing / Lubrication: Ball bearing, oil filled

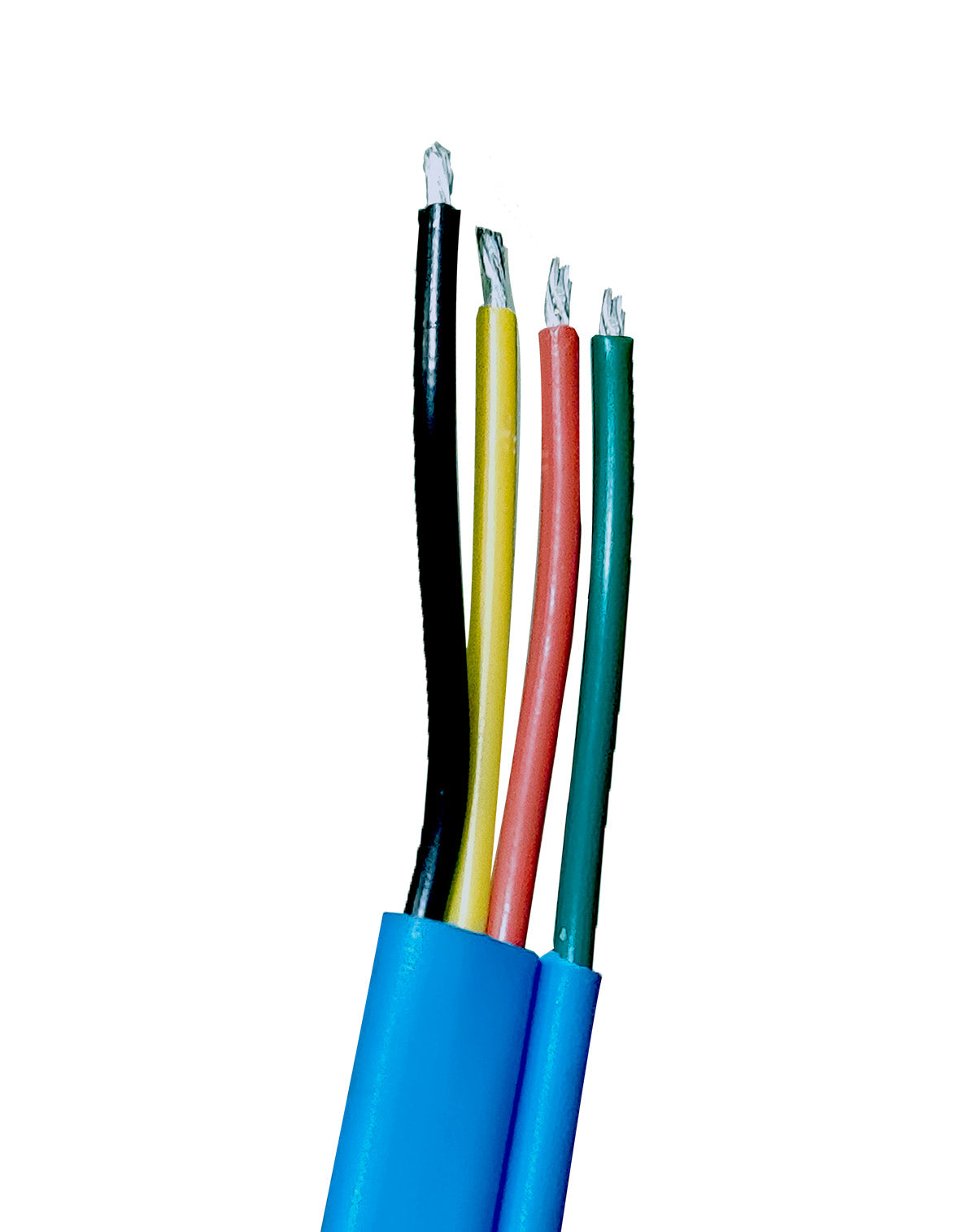

- Motor lead: 4 wires (3 wire + 1 ground)
- Duty: Continuous or up to 30 restarting cycles / hour

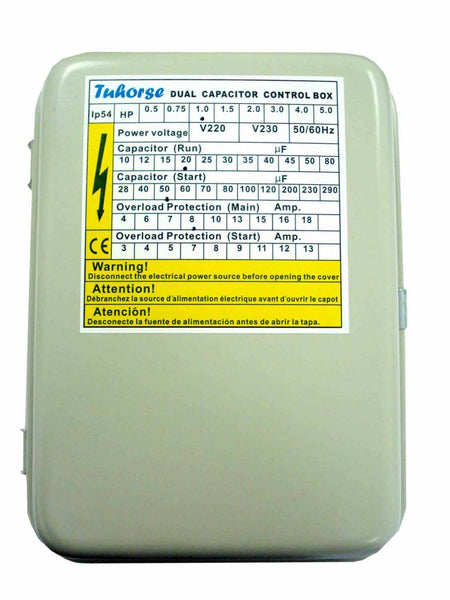

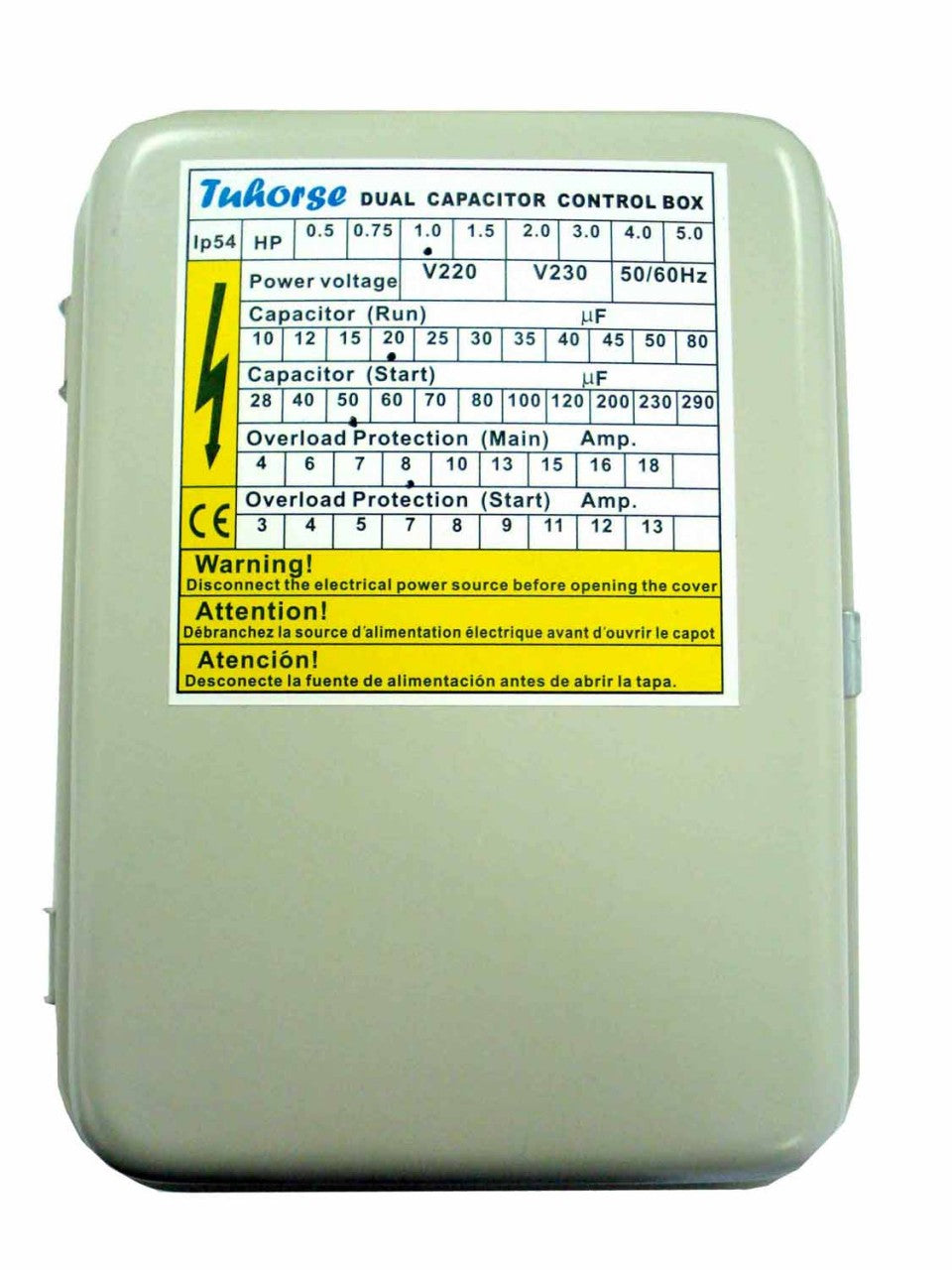

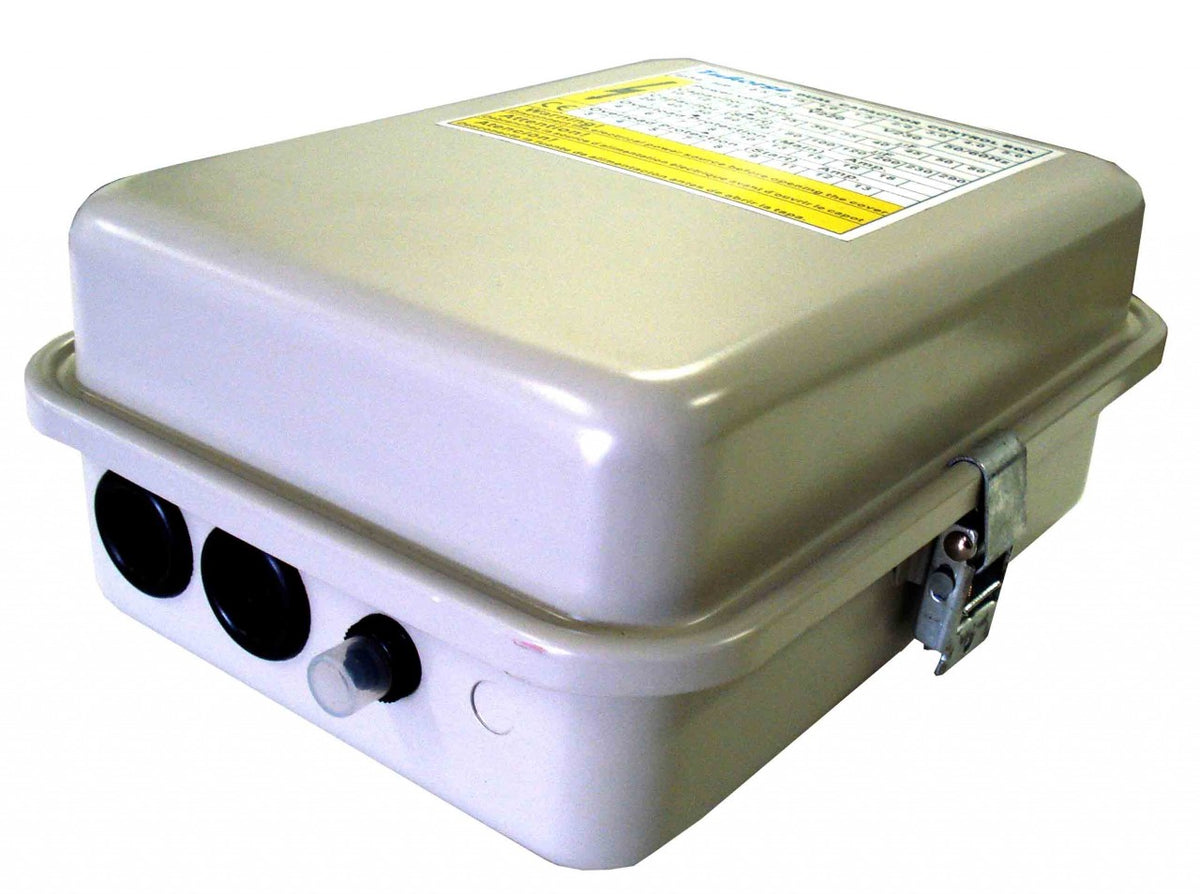

- Control Box: Dual capacitor control box included
- Weight: 20 lbs

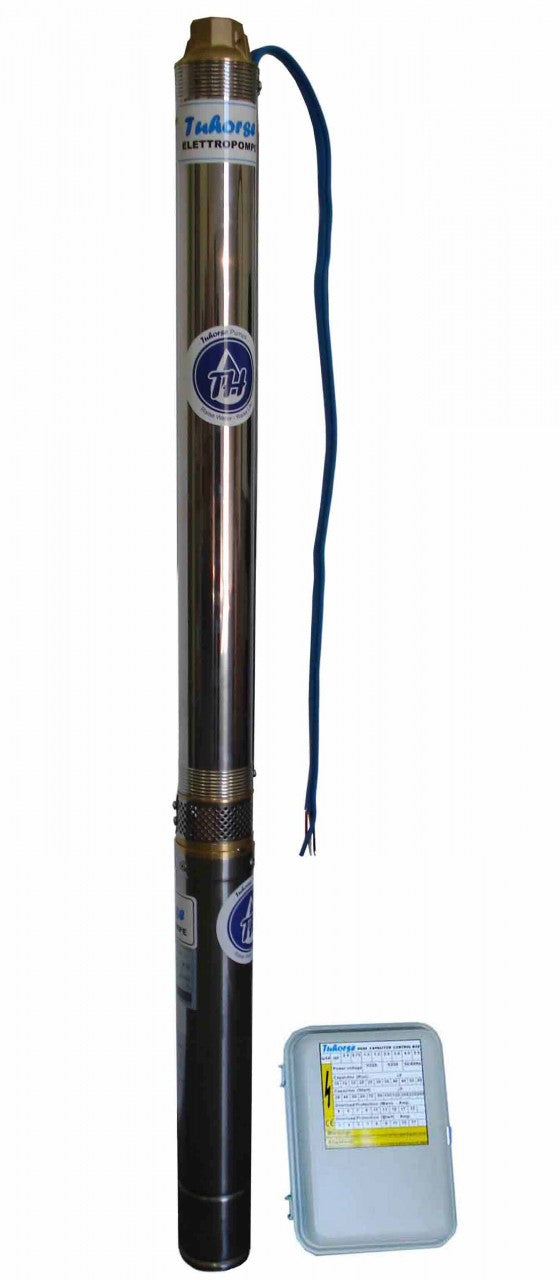

- Assembled Dimensions: 39.5" long x 2.87" diameter
- Packing weight with control box: 30lbs
- Packing Dimensions/Length: 40"x26"x10 (101cmx26cmx18cm
Warranty: 1 Year
