Description
This control box is made to be compatible with 2HP pumps that use a Franklin Standard Control Box 2823018110 and Goulds CentriPro Standard Control Box CB20412CR.

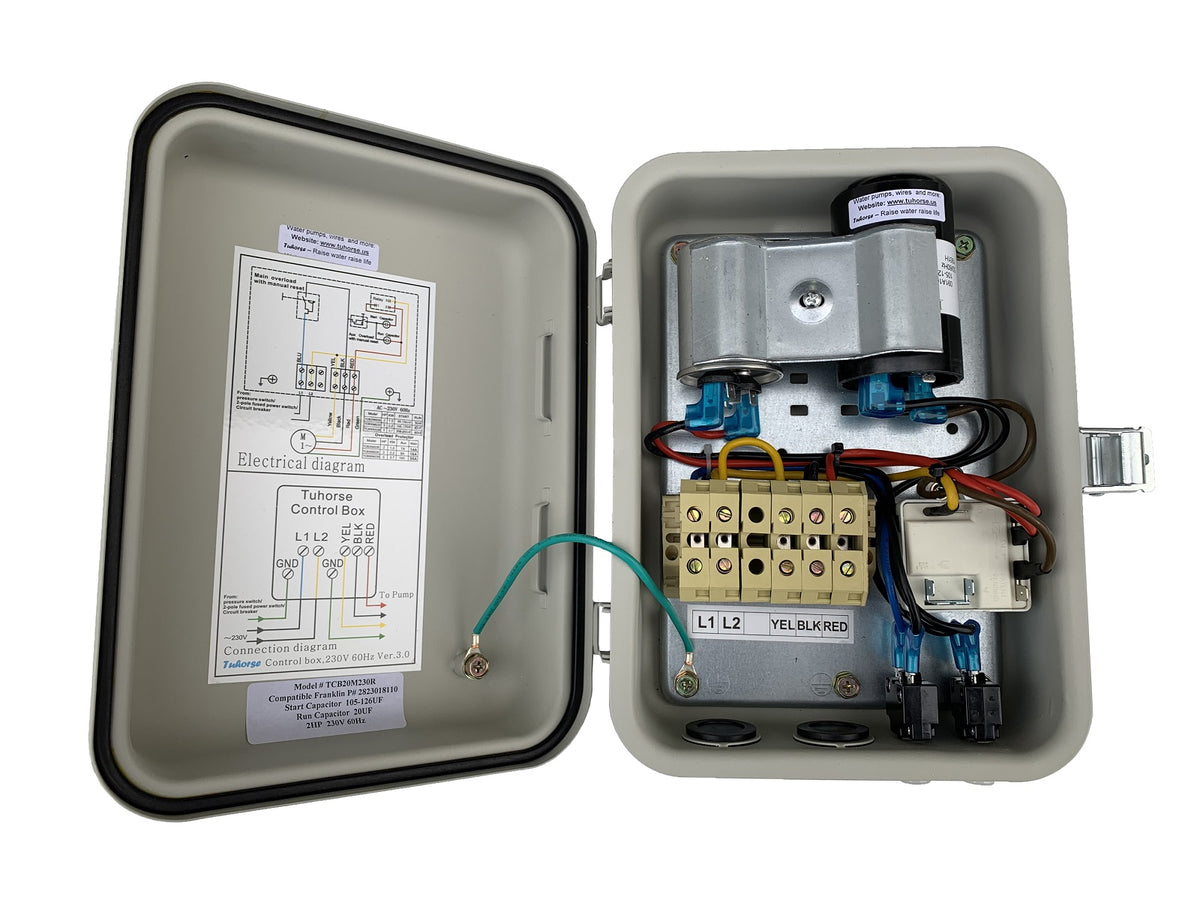

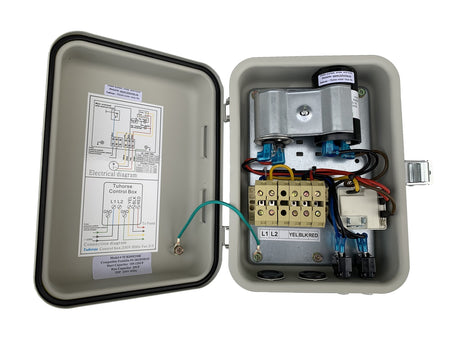

For use with submersible deep well water pump. Metal cased. Contains a start (105 - 126uF) and run (20uF) capacitor. Supports 2HP 3-wire single phase deep well water pumps running on 230V. Supports 14 to 6 gauge wire (14 to 6 AWG). Wall Mountable
- HP: 2HP
- Voltage: 230V
- Cycle: 60 Hz
- Operating Amperage: up to 14A
- Motor RPM: n/a
- Stages: n/a
- Maximum Flow: n/a
- Maximum Head: n/a
- Typical Flow: n/a
- Suction Port: n/a
- Discharge Port: n/a
- Built-in Check-valve: n/a
- Housing Material: steel
- Knockout for wire: two 3/4"
- Impeller Material: n/a
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: Dual Capacitor Control Box
- Weight: 5.5 Lbs
- Dimensions/Length: 27cm x 20cm x 11cm
Please note that this is NOT a replacement for Franklin Deluxe Control Box (2823018310) and Goulds Deluxe Control Box (CB20412MC). The replacement we offer for the Deluxe Control box could be found here.
Warranty: 1 Year
