Description
Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required.
- HP: 20HP
- Voltage: 460V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 25A
- Motor RPM: 3450 RPM
- Stages: 10
- Maximum Head (cut off): 650 ft.
- Rated Flow: 150GPM
- Maximum Flow( 0-200 ft.): 220 GPM

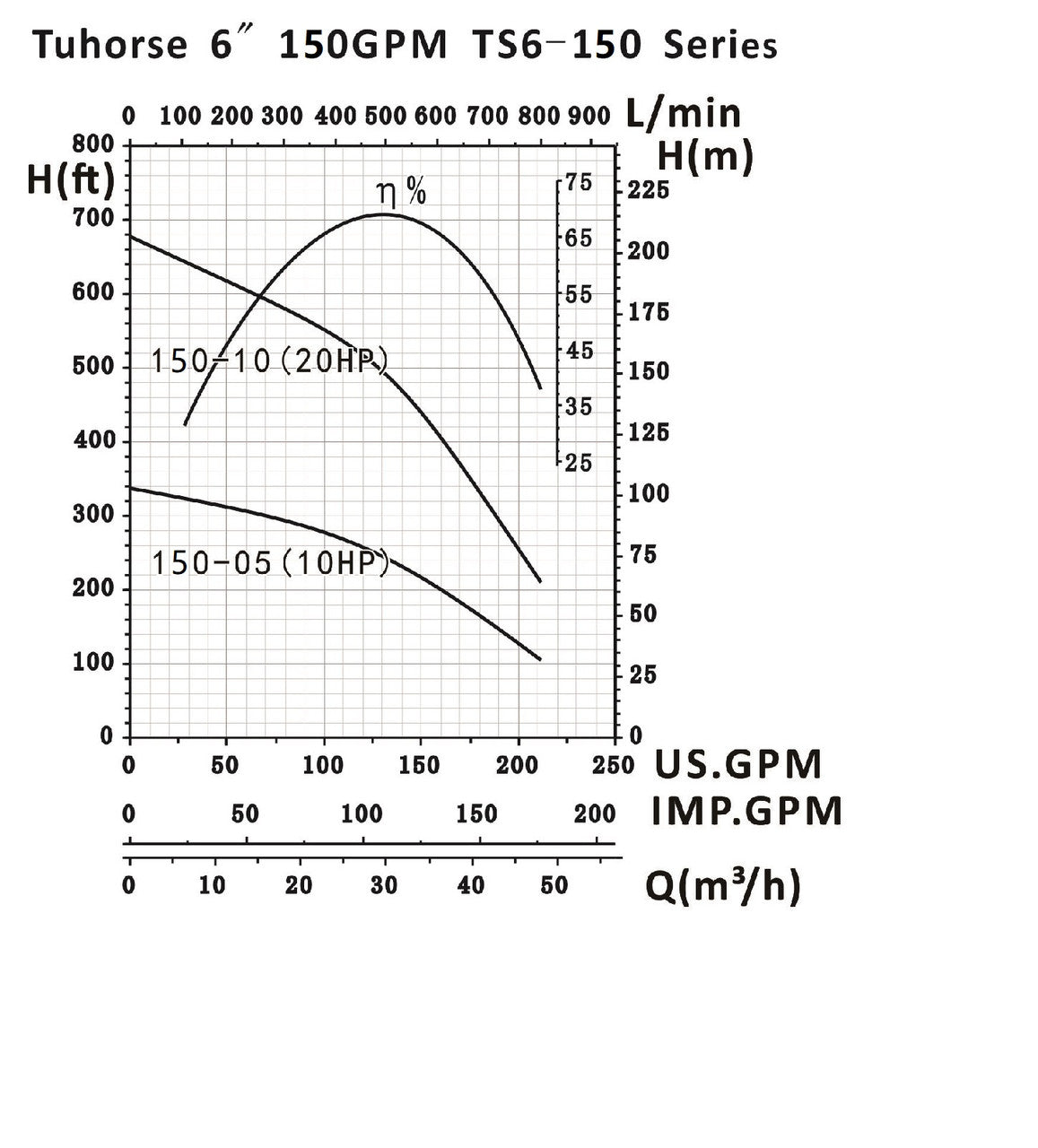

- Free Flow Rate: 180GPM @ 320ft; 150GPM @ 430ft; 130GPM @ 490ft; 100GPM @ 550 ft; 70GPM @ 590ft.
- Suction Port: Center Suction

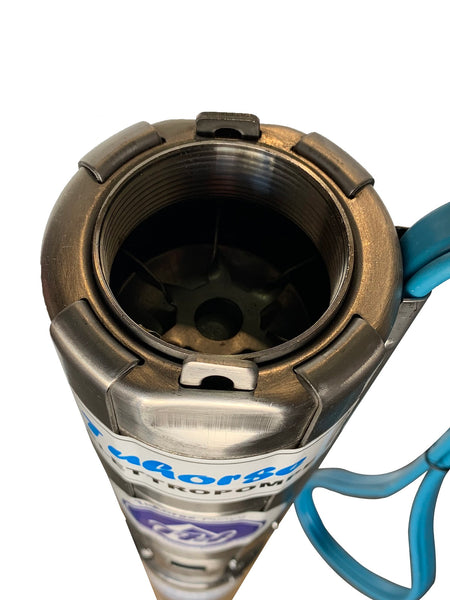

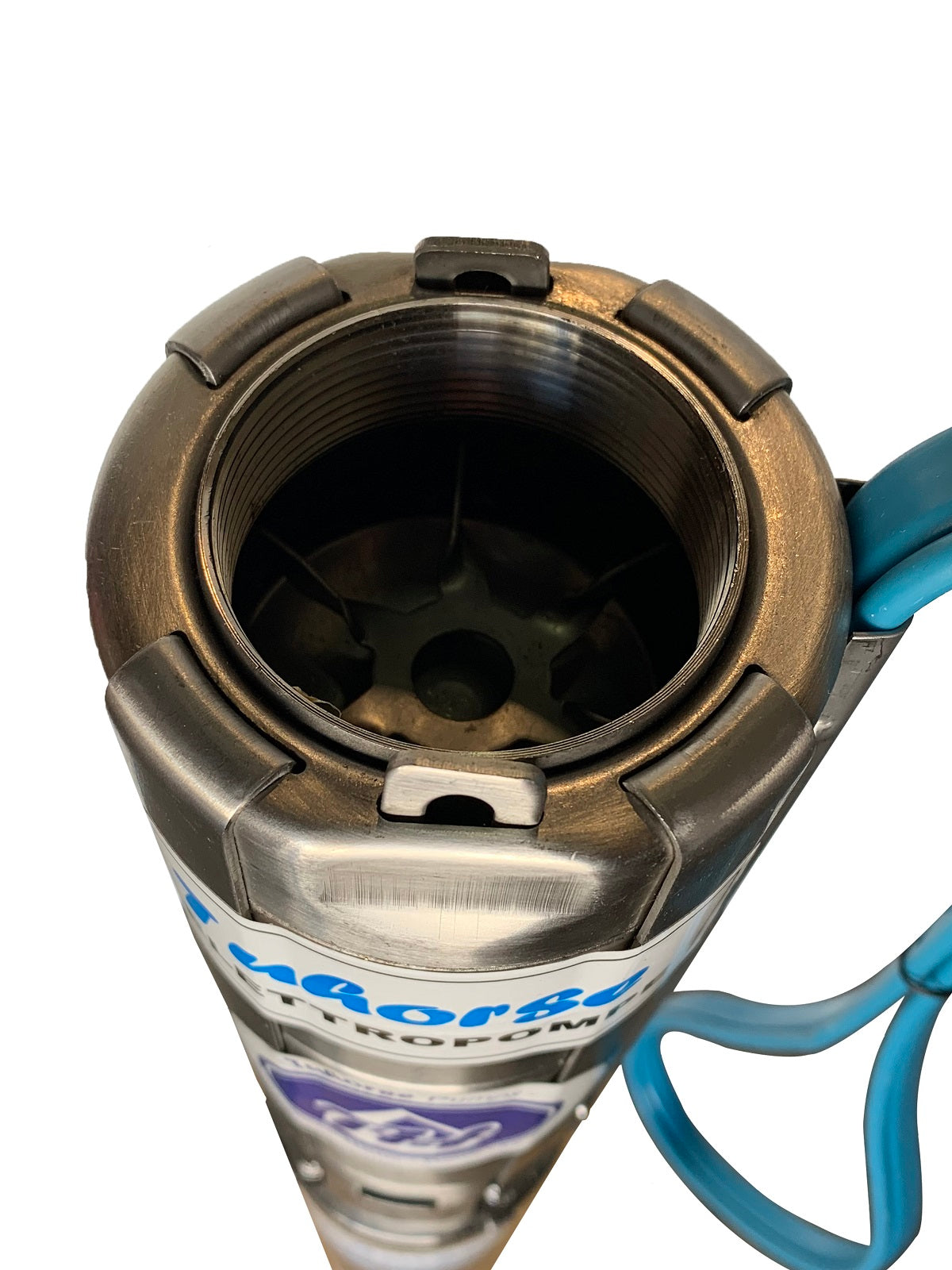

- Discharge Port: 4 inch NPT Female (4" to 3" NPT adapter sold separately if needed)
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel 304
- Impeller Material: stainless steel 304
- Motor Body and Top: Stainless steel 304
- Motor Base: Cast Iron
- Discharge and Suction Port Material: Stainless Steel 304
- Motor Bearing / Lubrication: Ball bearing, Oil filled lubrication
- Duty: Continuous or allow maximum 15 restarting cycles / hour
- Control Box: A three-phase power switch with overload protection is required (not included). Our 20 HP, 3-phase, 460V control panel is fully compatible.
- Net Weight: 200 lbs.
- Shipping weight: 50+150 Lbs.
- Dimensions/Length(pump and motor assembly): 80 inches
- Shipping Dimensions: Motor and pump separately packed.
Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause phase loss (missing phase) problem.

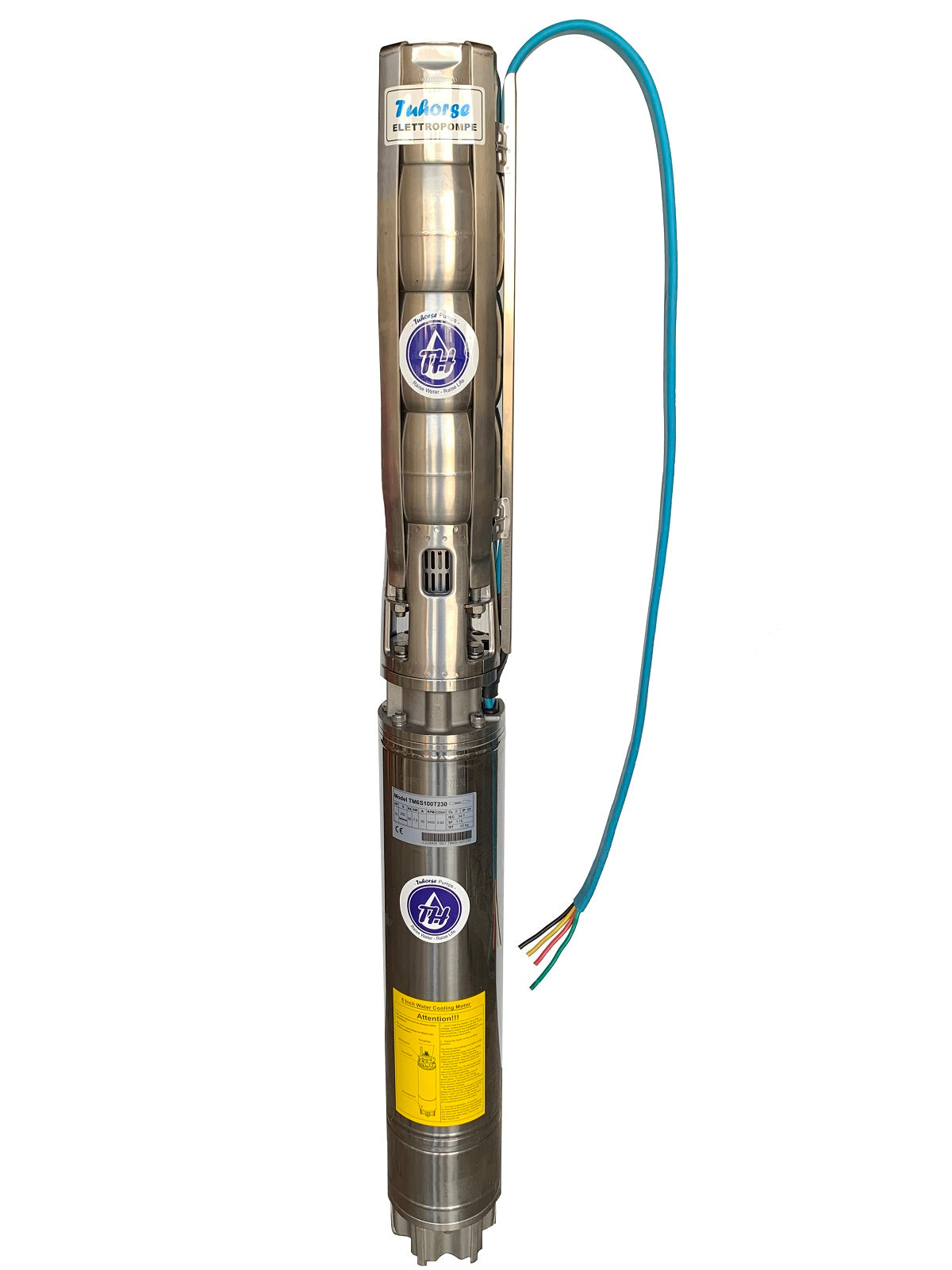

* Not exactly as shown in photos due to stages and HP vary from models. Photos are taken from one of the 10HP for illustrations only.
Shipping information:
Please allow 1 days handling time. This item ship to USA and Canada only.
The motor is 150 Lb. Two person lift is required for unloading if a forklift truck is unavailable. Please help the driver to unload the packages.
Warranty: 1 Year
