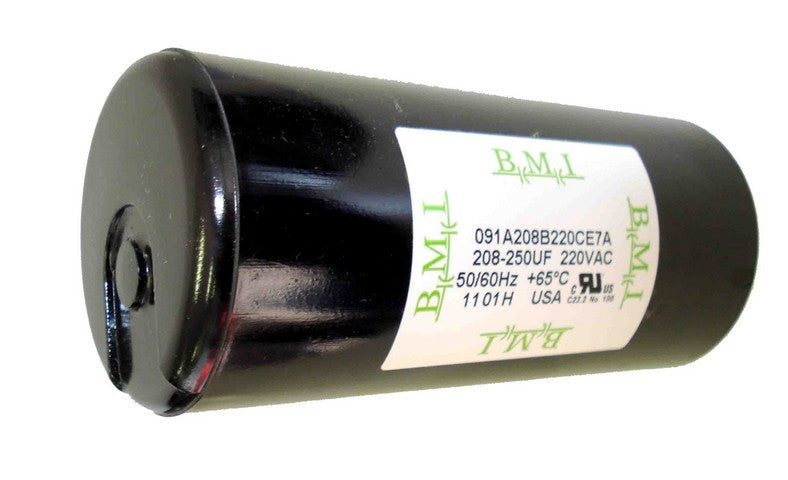

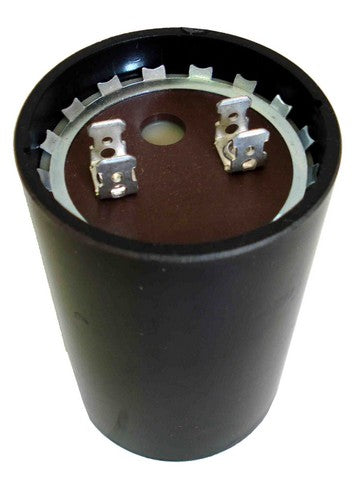

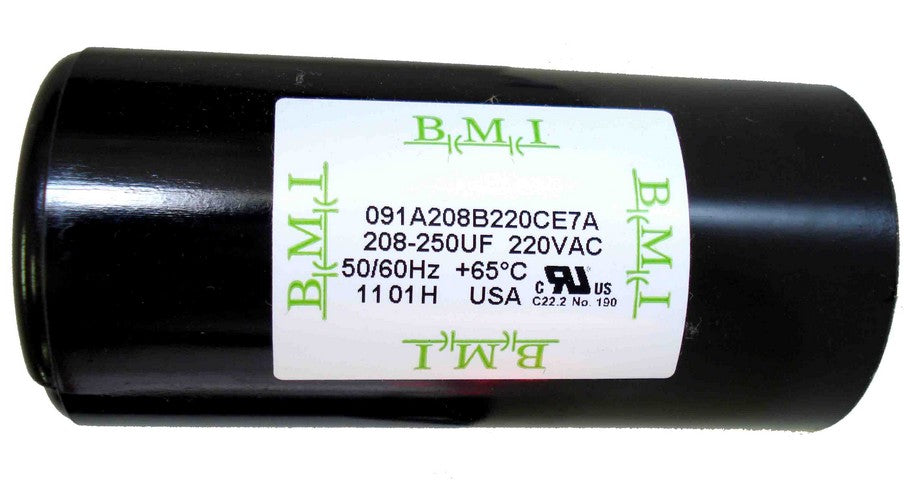

208-250 MFD (uF) Motor Start Capacitor 091A208B220CE7A by BMI

SKU: 208capBMI
Regular price $25.00 USD
Regular price $49.00 USD Sale price $25.00 USD
In stock
Ships out the same business day or next

Description

Temporary substitute a better capacitor without extra cost. SKU# U17-1428R, 208-250 330V with discharge resistor. Made in the USA by BMI.

This Barker Microfarad (Made in USA) AC motor start capacitor is suitable for use in Franklin 3HP Standard Control Box 2823028110, Deluxe Control Box 2823028310 and other control boxes that use the same single phase motor capacitor requirements.

Compatible with Franklin Part# 275463111

MFG# 091A208B220CE7A

4.25" height x 2.15" diameter.

208-250 MFD (uF) 220VAC.

The start capacitor in a motor control box is considered a consumable part. Capacitors tend to lose capacitance over time and/or use, and need to be replaced when the capacitance drops 10% below the described range or electrolyte leaking is observed.

No Warranty for Electronic Components

C
Chip
Product was exactly what I needed

Installed on my motor and have had no issues.

J
Jim P
Great Replacement

Recently after a power outage my well didn't start. I Recently Installed a new low pressure switch that ended up being the problem. It was recommended to keep spare capacitors, start/run capacitors. Company was top notch to order from and actually gave me a better capacitor and the same price. This will be my go to well parts source from now on. Thanks
