Description
To purchase, please select your desired length from the above options

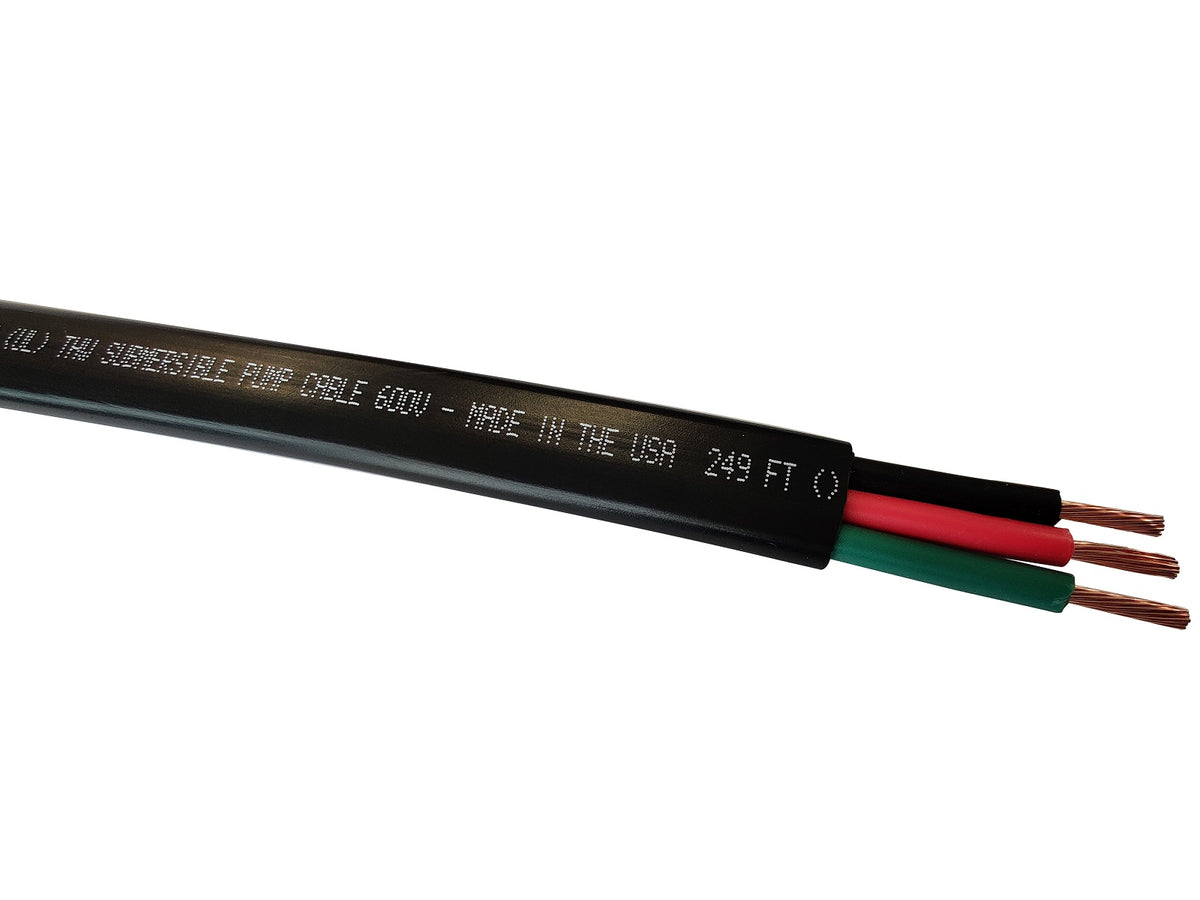

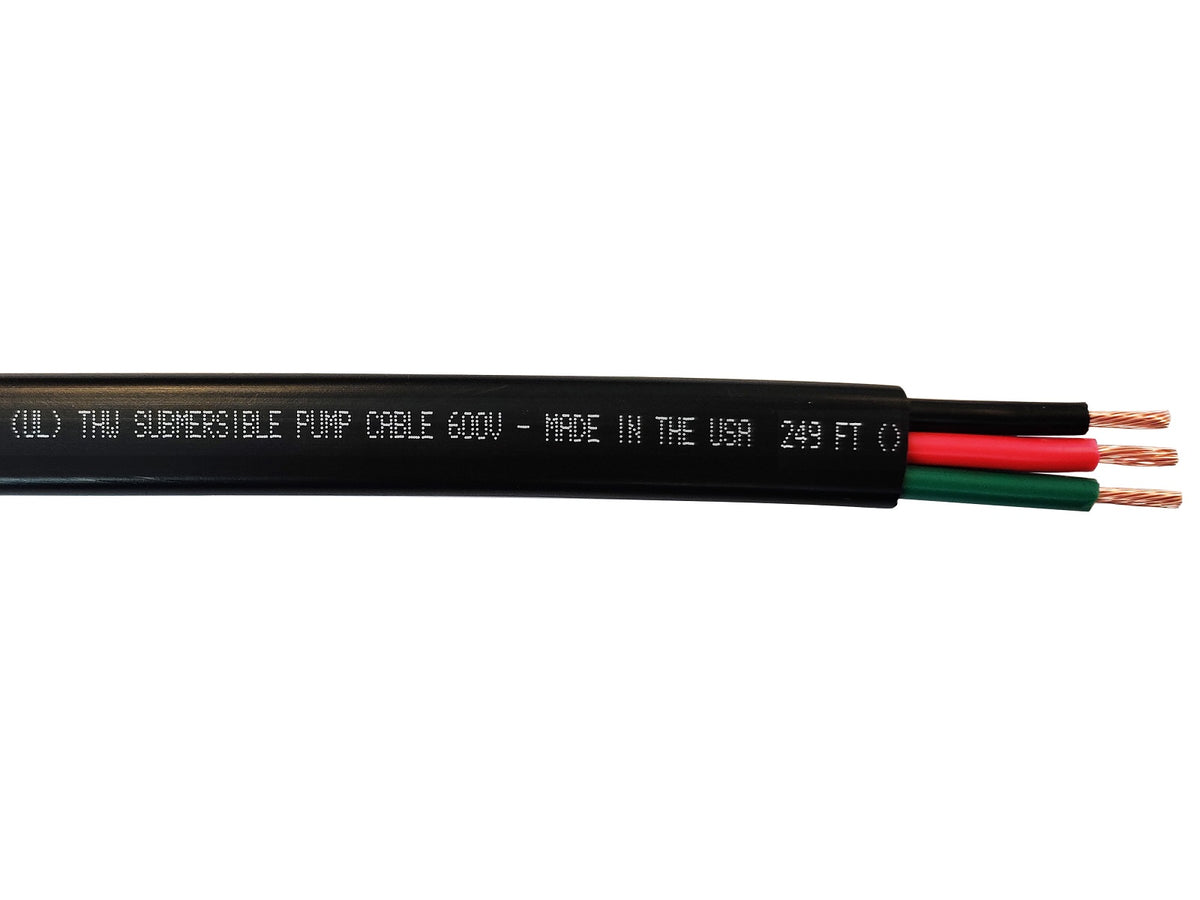

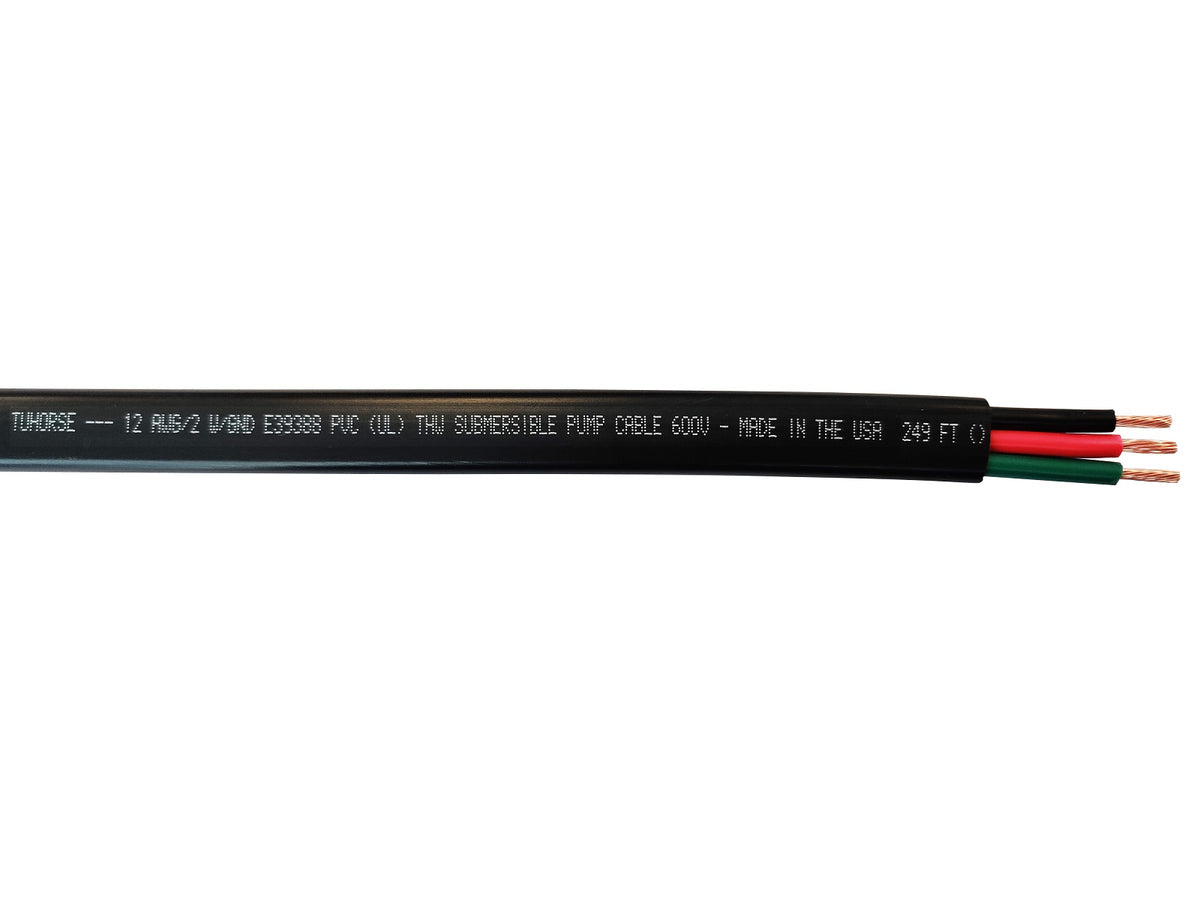

This is a AWG #12, 12/2 with ground, jacketed Heavy Duty submersible pump copper wire, suitable for 2-wire submersible pumps that require 2 wires and 1 ground wire. Total 3 conductors, stranded wires. It is also suitable for some Tuhorse solar pumps.
Working temperature up to 75°C, Voltage up to 600V.
Made in the USA, UL listed, RoHS Certified.
For example:
Refer to our drop wire table to choose the proper wire gauge.
FEATURES
– Operating temperature range -40° C to 75° C
– Resistant to acid, abrasion, alkalis, flame, gas, and oil
– Water resistant
– Cable is sequentially marked
APPLICATIONS
– For wiring within the casing of deep well submersible water pumps.
CONSTRUCTION
Annealed bare stranded copper conductors PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor Submersible Pump Cable.
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.
Warranty: Manufacturer Warranty
