Description

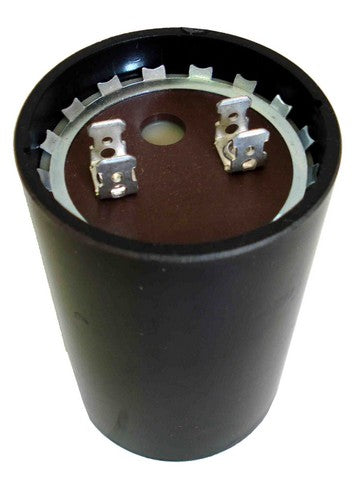

This Barker Microfarad (Made in USA) AC motor start capacitor is suitable for use in Franklin 1HP, 1.5hp and 2HP Control Box 2823008110 , 2823018110 , 2801084915, 2823018310, 2823508110 and other control boxes that use the same single phase motor capacitor requirements.
Compatible with Franklin Part# 275464113

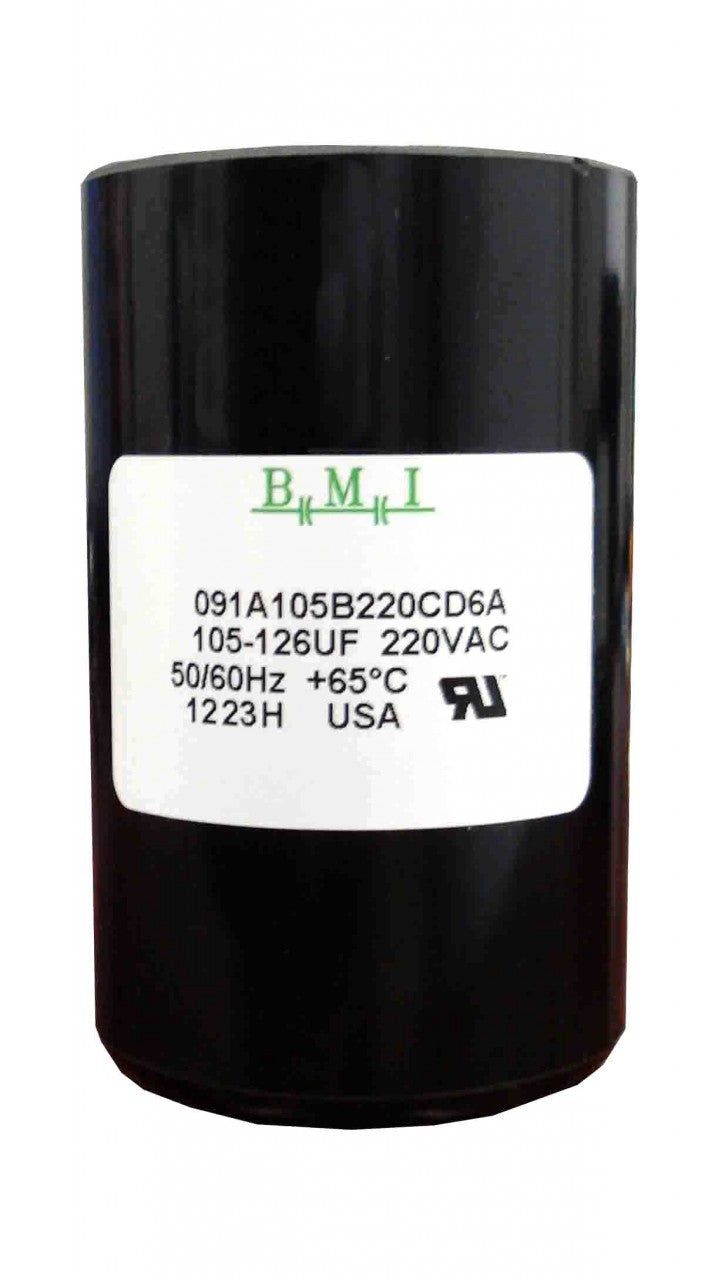

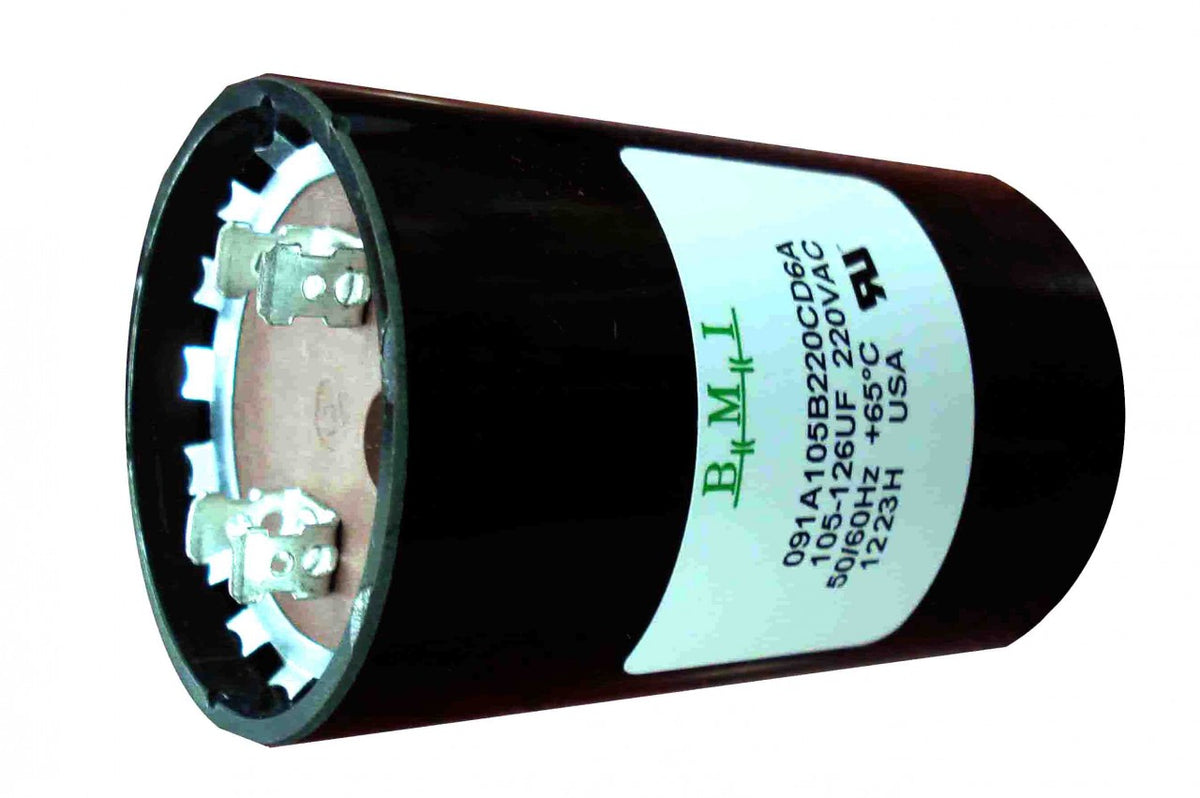

MFG# 091A105B220CD6A
3.35" height x 2.15" diameter.
105-126 MFD (uF) 220VAC.
The start capacitor in a motor control box is considered a consumable part. Capacitors tend to lose capacitance over time and/or use, and need to be replaced when the capacitance drops 10% below the described range or electrolyte leaking is observed.
No Warranty for Electronic Components
