Description

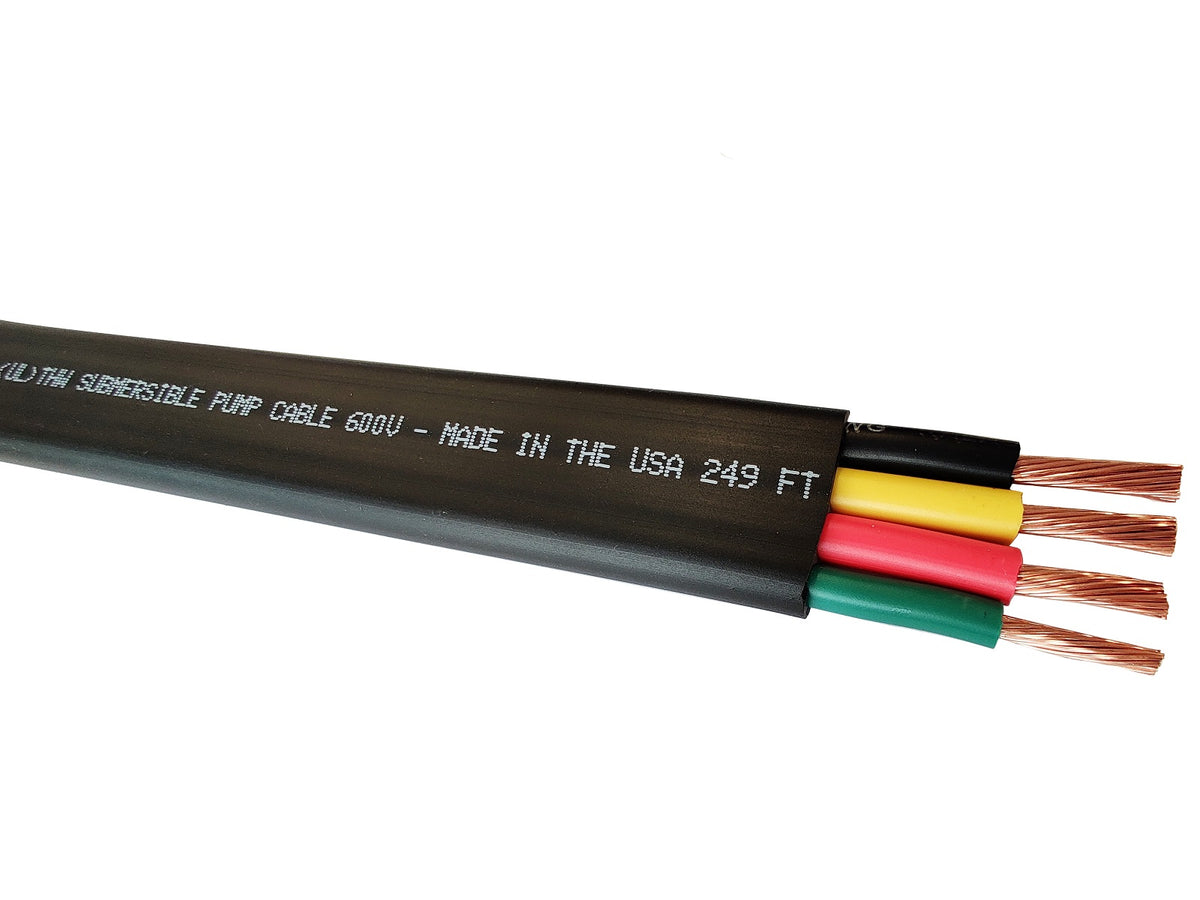

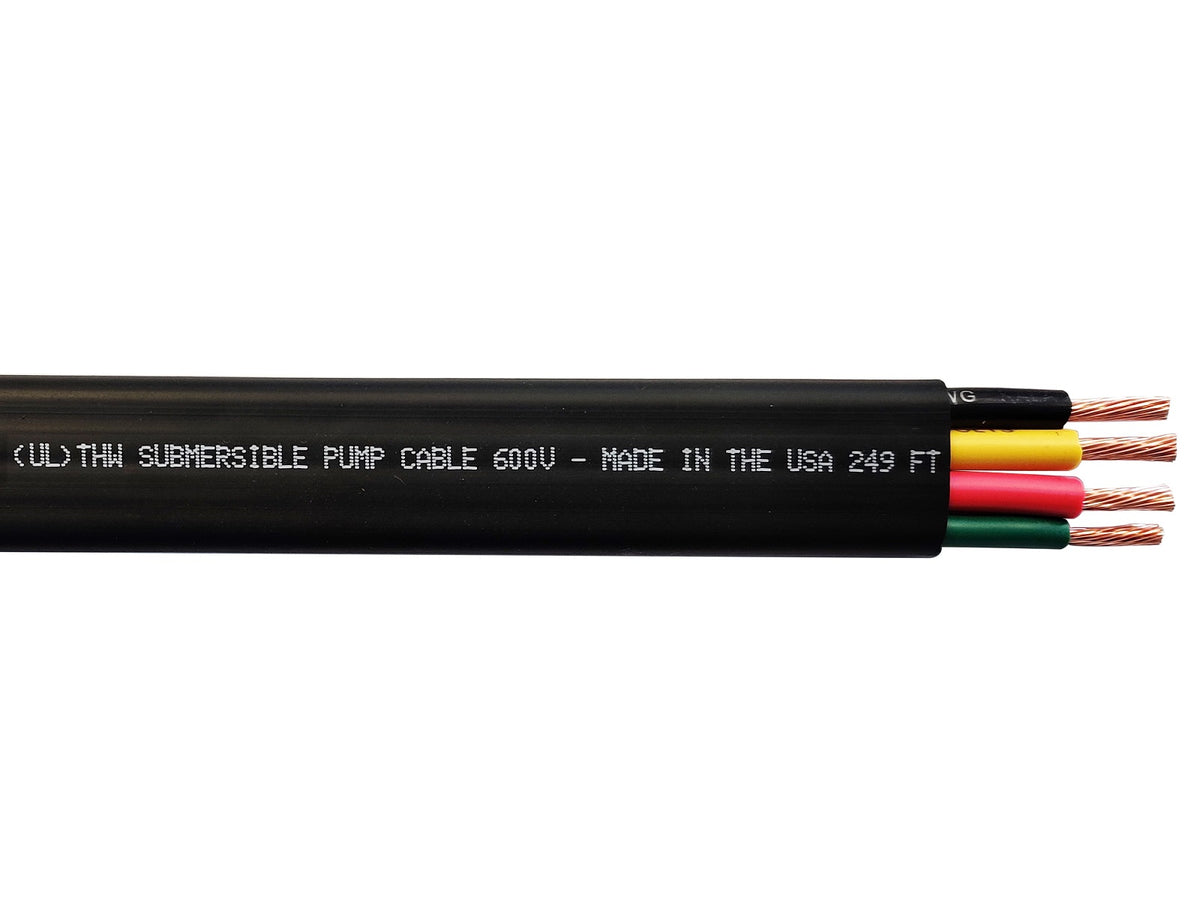

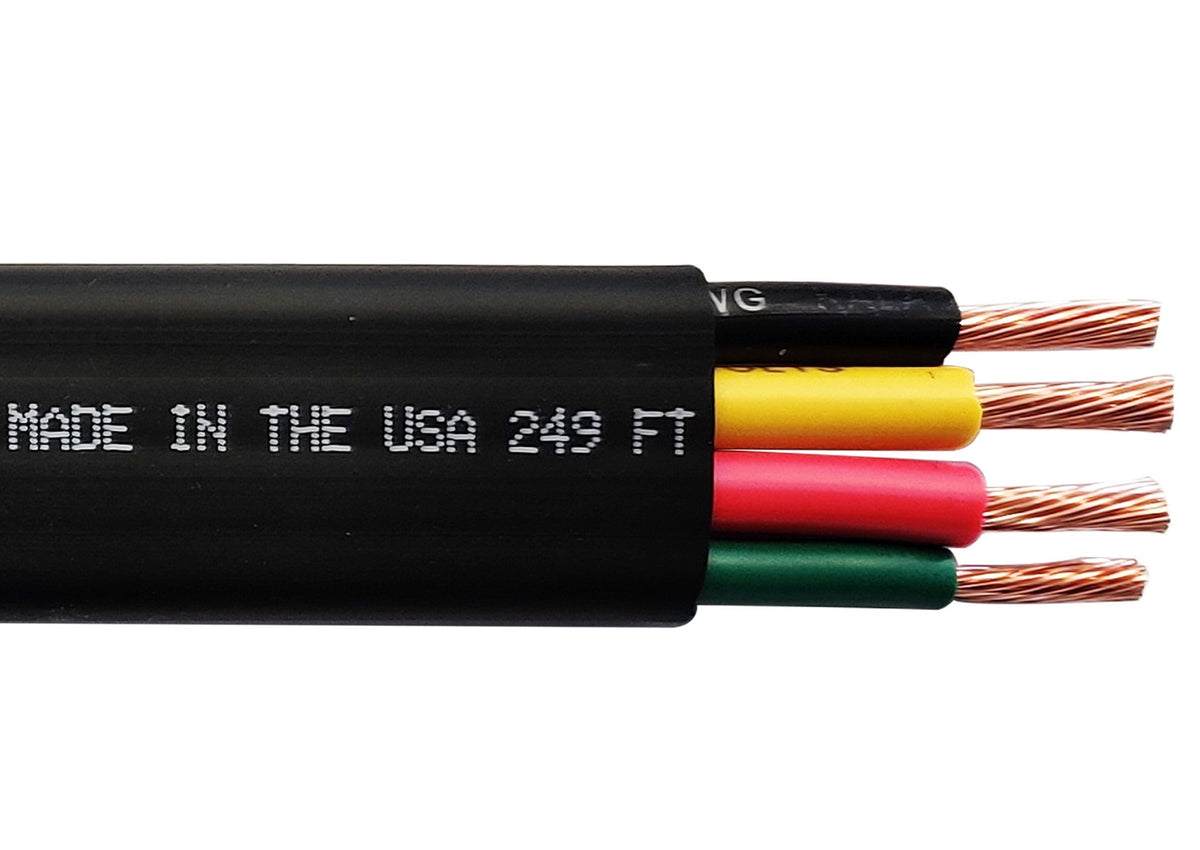

This is a AWG #10, 10/3 with ground, jacketed Heavy Duty submersible pump copper wire, suitable for 3-wire submersible pumps that require 3 wires and 1 ground wire. Total 4 conductors, stranded wires
Working temperature up to 75°C, Voltage up to 600V.
Made in the USA, UL listed, RoHS Certified.
For example:
This wire is suitable for use with Tuhorse's TH4 and TH6 series submersible pumps. Refer to our drop wire table to choose the proper gauge wire.
FEATURES
– Operating temperature range -40° C to 75° C
– Resistant to acid, abrasion, alkalis, flame, gas, and oil
– Water resistant
– Cable is sequentially marked
APPLICATIONS
– For wiring within the casing of deep well submersible water pumps.
CONSTRUCTION
Annealed bare stranded copper conductors PVC insulated and run parallel with a PVC black jacket to form a 75°C 600 Volt Multi-Conductor Submersible Pump Cable.
UL Listed per UL 83 Type THW as Deep Well Submersible Pump Cable.
Warranty: Manufacturer Warranty
