Description

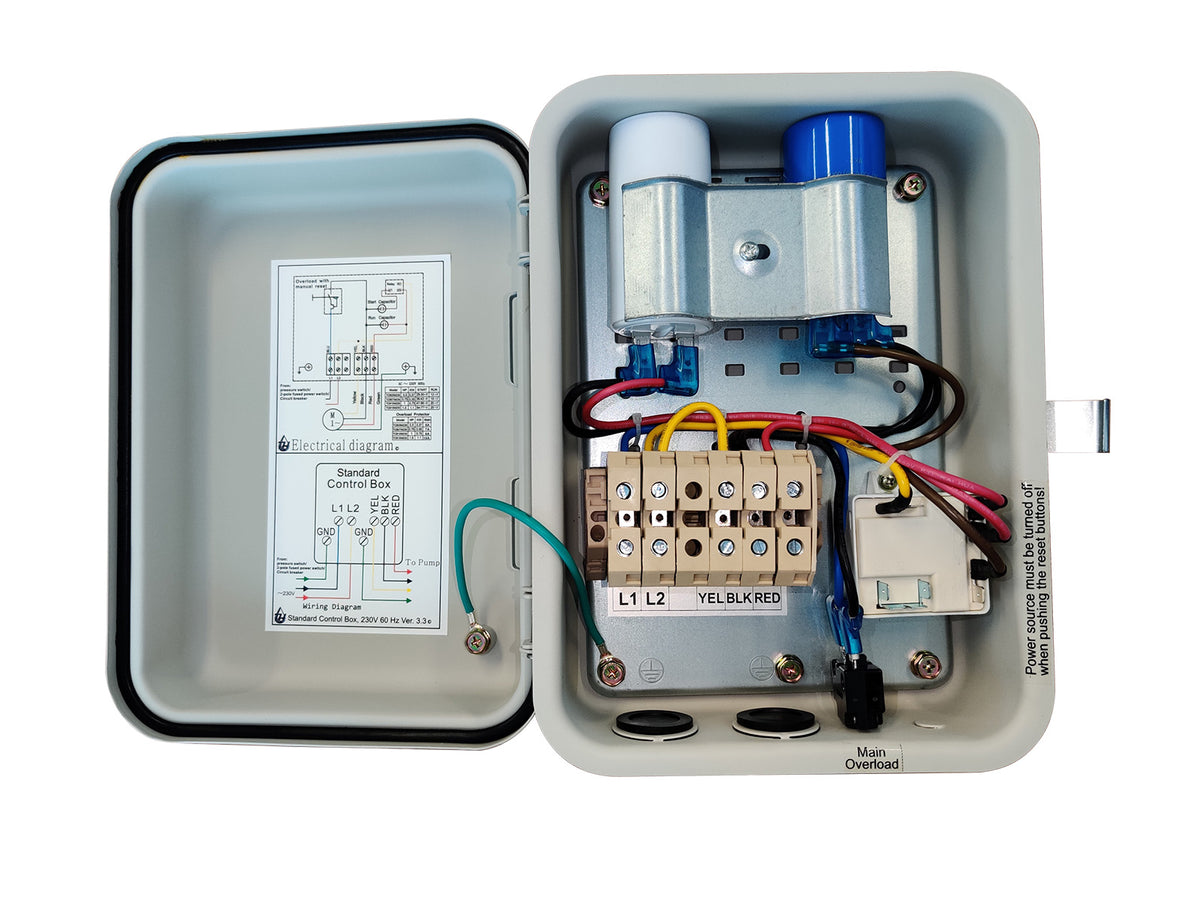

For use with Tuhorse submersible deep well water pump. Metal cased. Contains a start (70uF) and run (25uF) capacitor. Supports 1.5HP single phase deep well water pumps running on 230V. Supports 14 to 6 gauge wire (14 to 6 AWG). Wall Mountable.
- HP: 1.5HP
- Voltage: 230V 1-Phase
- Cycle: 60 Hz
- Operating Amperage: up to 11 Amps
- Motor RPM: n/a
- Stages: n/a
- Maximum Flow: n/a
- Maximum Head: n/a
- Typical Flow: n/a
- Suction Port: n/a
- Discharge Port: n/a
- Built-in Check-valve: n/a
- Housing Material: Steel
- Knockout for wire: two 3/4"
- Impeller Material: n/a
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: Dual Capacitor Control Box
- Weight: 4.4 lbs
- Dimensions/Length: 28cm x 22cm x 13cm
Warranty: 1 Year
