Description

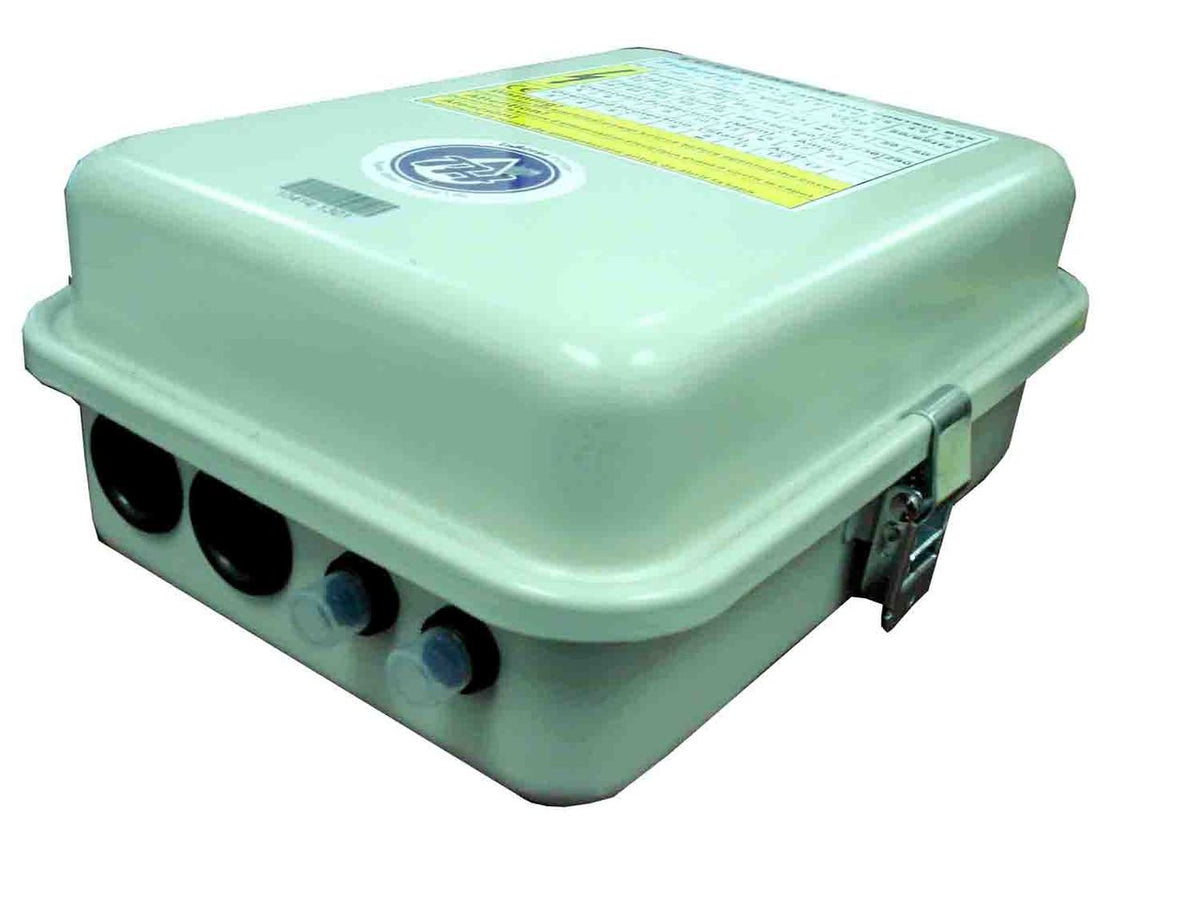

For use with submersible deep well water pump. Metal cased. Contains a start (105 - 128uF) and run (10uF) capacitor. Supports 1.5HP single phase deep well water pumps running on 230V. Supports 14 to 6 gauge wire (14 to 6 AWG). Wall Mountable
This control box is compatible to 1.5HP pumps that use a Franklin Electric Standard Control Box with part# 2823008110 and Goulds CentriPro CB15412CR. It is NOT compatible to a Franklin Deluxe Control Box(2823018310).
- HP: 1.5HP
- Voltage: 230V
- Cycle: 60 Hz
- Operating Amperage: up to 13A (15A overload protector)
- Motor RPM: n/a
- Stages: n/a
- Maximum Flow: n/a
- Maximum Head: n/a
- Typical Flow: n/a
- Suction Port: n/a
- Discharge Port: n/a
- Built-in Check-valve: n/a
- Housing Material: steel
- Knockout for wire: two 3/4"
- Impeller Material: n/a
- Motor Enclosure: n/a
- Duty: n/a
- Control Box: Dual Capacitor Control Box ( CSCR or CRC )
- Weight: 5.5 Lbs.
- Dimensions/Length: 27cm x 20cm x 11cm
Warranty: 1 Year
