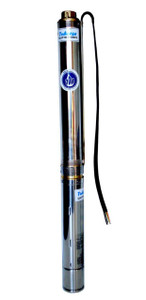

3HP TH4-070-06 460V 3-Phase Pump-end and Motor

Retail Price:
$960.00
$575.00 (You save $385.00)
SKU:
th407006t460
Brand:
Condition:
New
Weight:
46.20 LBS
Shipping:
Calculated at checkout


Product Description

70GPM, 95GPM Max.

Complete pump end and motor set. Control box (control panel) is not mandatory, but a three phase power switch with overload protection is required(not included)

Note: This pump is low pressure, high flow. It is used for free flow or low TDH applications, such as low head pumping to a holding tank, a pond or a dripping irrigation system. It is not made for a domestic water system with a pressure tank.



  • HP: 3HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 4.6 A
  • Motor RPM: 3450 RPM
  • Stages: 6
  • Maximum Flow: 95GPM
  • Maximum Head: 160ft
  • Typical Flow: 90GPM @ 60 ft; 80GPM @ 75 ft; 70GPM @ 90 ft; 60GPM @ 105 ft; 40GPM @ 125ft
  • Suction Port: Center Suction
  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: Three phase power switch with overload protection is required
  • Weight: 46.2 lbs
  • Dimensions/Length: n/a



Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause missing phase problem.

This TH407006T460 is formerly our TH4MA06T460. The pump curve remains the same because they are the same pump. We are in the process changing the model name to reflect the flow rate. 070 stands for 70GPM. The new model numbers help our customers to choose the right pump easier



Warranty Information

1 Year
