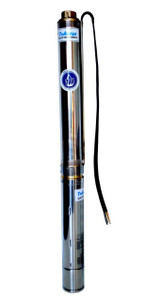

3HP TH4-090-04 460V 3-Phase. Pump-end and motor

Retail Price:
US$960.00
US$575.00 (You save US$385.00)
SKU:
TH409004T460
Brand:
Condition:
New
Weight:
46.60 LBS
Shipping:
Calculated at checkout


Product Description

Please note: This model is for FREE FLOW or LOW TDH applications.

90GPM rated, 120GPM Max.

Complete pump end, and motor. Complete Instructions.



  • HP: 3HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 4.6A
  • Motor RPM: 3450 RPM
  • Stages: 4
  • Maximum Head(cut off): 120 ft
  • Maximum Flow: 120 GPM
  • Free Flow Rates: 100GPM @ 50ft; 90GPM @ 65ft; 75GPM @ 75ft; 40GPM @ 92ft
  • Suction Port: Center Suction
  • Discharge Port: 2 in
  • Built-in Check-valve: Yes
  • Housing Material: Stainless Steel, Grade 304
  • Impeller Material: Thermal Plastic
  • Motor Enclosure: Stainless steel, Grade 304
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box:  Three phase power switch with overload protection is required
  • Weight: 46.6 lbs
  • Dimensions/Length: 40"

Note: We recommend you to use our TDH calculator in selecting a pump for your application

Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause phase lose problem.

Warranty Information

1 Year
