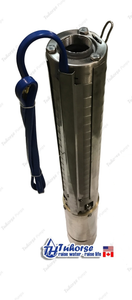

4" 1000W Solar Powered Submersible Deep Well Centrifugal Pump and Control Box Set

Retail Price:
US$1,390.00 (You save US$1,090.00)
47.00 LBS
Calculated at checkout

Product Description

1000 Watts Centrifugal Pump and Control Box ( 4THS10C110 )

 This solar pump is suitable for up to 280 feet head (TDH), with daily water usage of 2000 to 6000 gallon.

Package includes:

4" 1000 Watts 110 Volts, stainless steel centrifugal solar pump and motor
Automatic control box
2 x water level sensor for setting up automatic pumping
2 x 6 ft. MC4 cable w/ M-F connectors, for connecting solar panel to control box
Heat shrink splice kit for watertight connection
Installation guide
1 year warranty (return to BC Canada*)

Performance using 8 x 195W to 230W Solar panels(not included in the package)

Production based on 6 hours peak sun daily
Head (ft.) Gallon / min Gallon / day
280 ft 5.5 Gal. 1980 Gal
220 ft. 8.8 Gal 3168 Gal
160 ft. 14 Gal 5040 Gal
80 ft. 17 Gal 6120 Gal


4THS10C110V1000 Solar Water Pump Specifications:

Fit 4" inside diameter and larger well
1000W, 110V-DC nominal operating power
1-1/4" NPTF discharge (outlet)
10GPM rated, 17GPM Max.
Centrifugal stainless steel impellers design
Pump Diameter, length: 4" x 21" (100mm x 680mm)
Pump Net weight: 20Lb (9kg), excluding control box
Package Weight: 46Lb / 21kg, including control box
Soft start, DC solar power is converted to 3-phase to power the pump motor
Maximum submersion - 150 feet

Auto control box specifications:

Optimize pumping efficiency with MPPT according to sunlight condition and
solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Adjustable motor speed to accommodate low-yield-well and to protect motor from over powered
Adjustable timer adding delay time for low-yield-well to recover in automatic mode
Low power protection
Dry run protection in automatic mode
Maximum input withstand Voc = 200V (solar panel array open circuit voltage)
Maximum input current 12.5 amps

Duty and Fee:

We prepaid duty and customs fee for all our USA buyers in the 50 States when goods entering from Canada to the USA. This is part of our service excellence to ensure that USA buyers will not receive an unexpected bill. Buyers are responsible for taxes, if there is any.  For your information, we have not seen our USA customers are required to pay taxes for an order that is under $2500. We don't seems have seen taxes were charged for any orders, but please consult your local governments for tax detail if the order is over $2500.



Warranty Information

1 year warranty (return to BC Canada*)

Note: Tuhorse full solar pump kits with solar panel offer two years warranty. Consider to choose from a full kit SKUs to buy.
